API Audio MC531 Monitor Controller Bluetooth USB

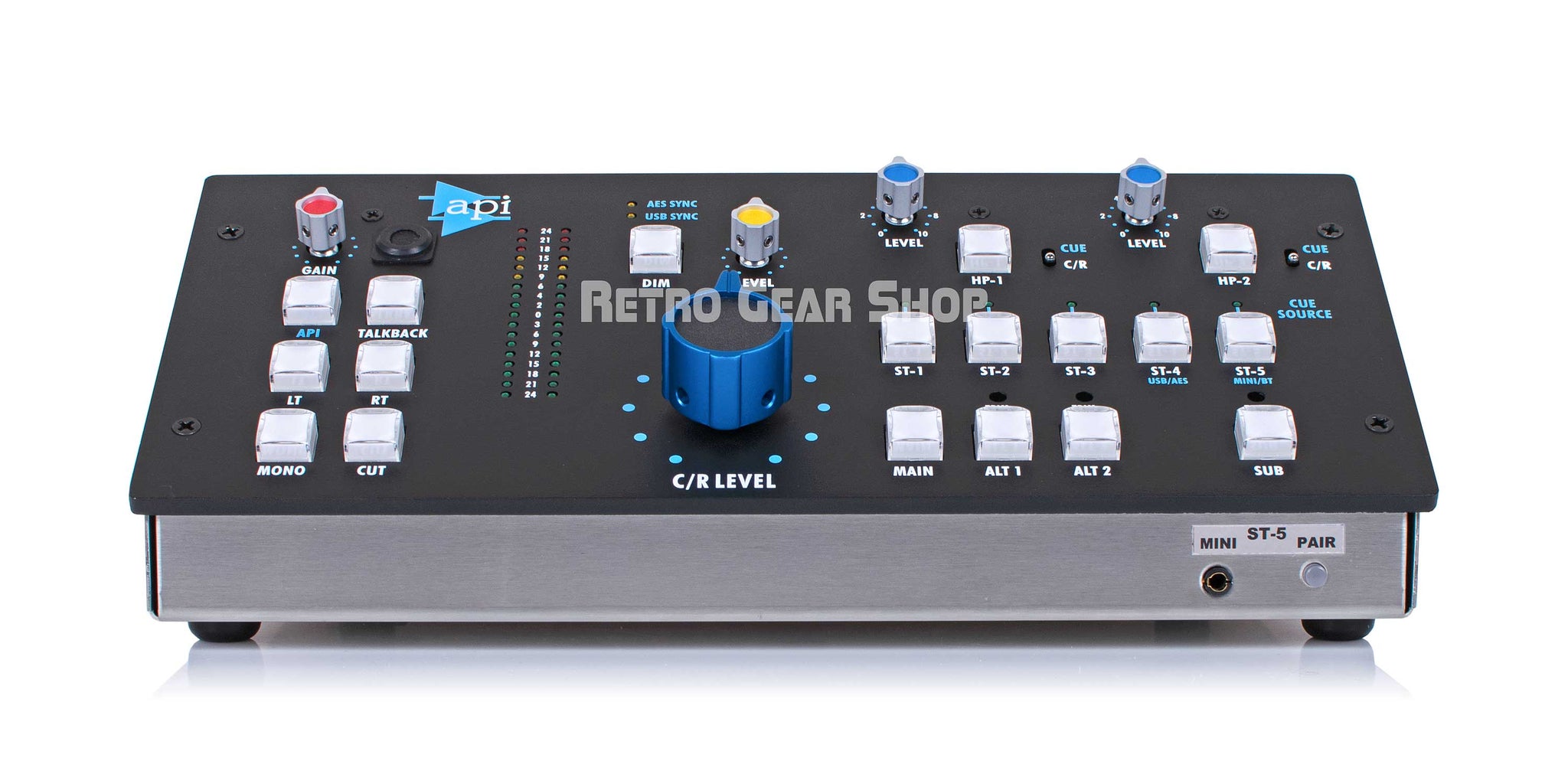

API Audio MC531 Front

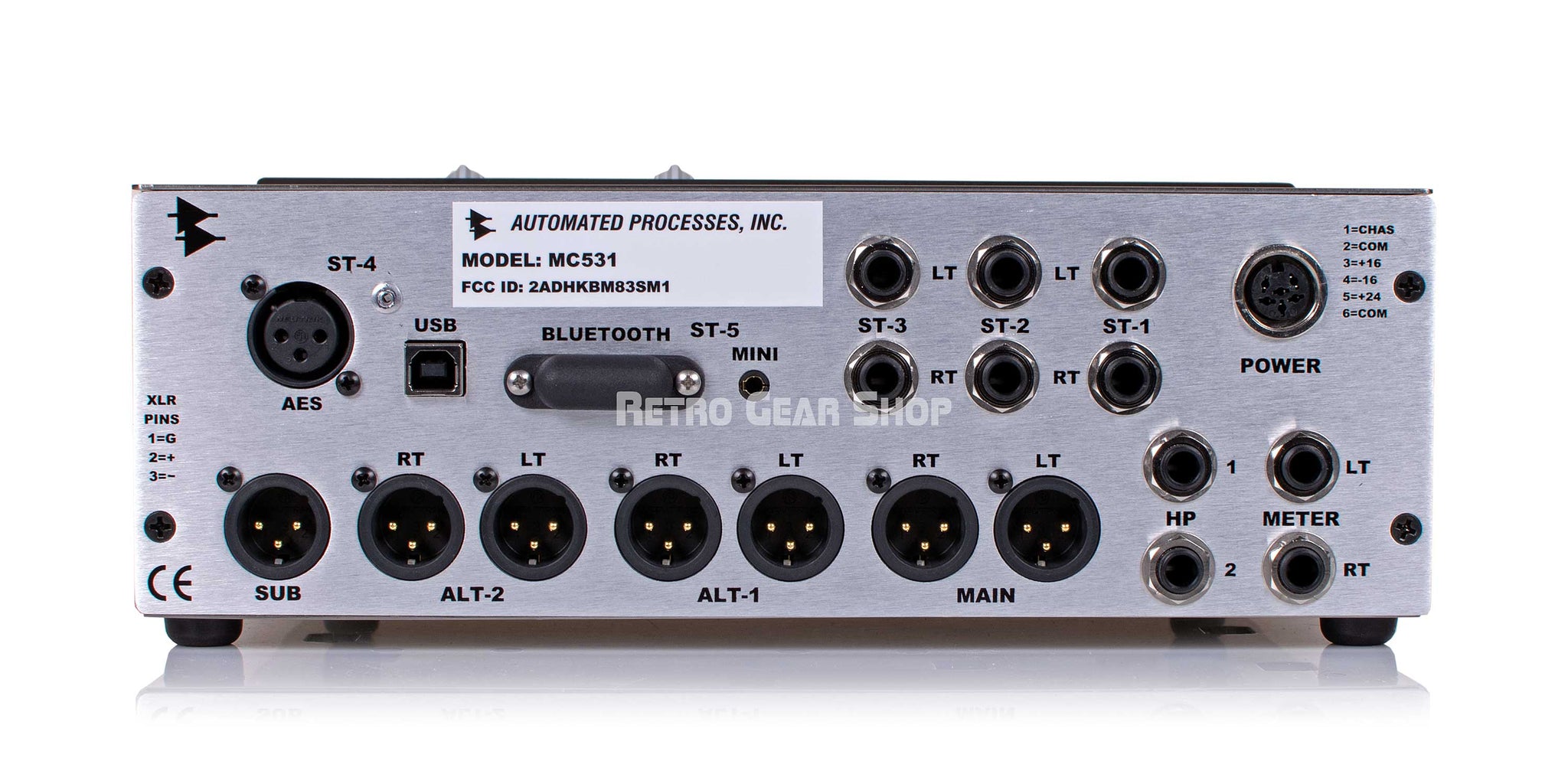

API Audio MC531 Rear

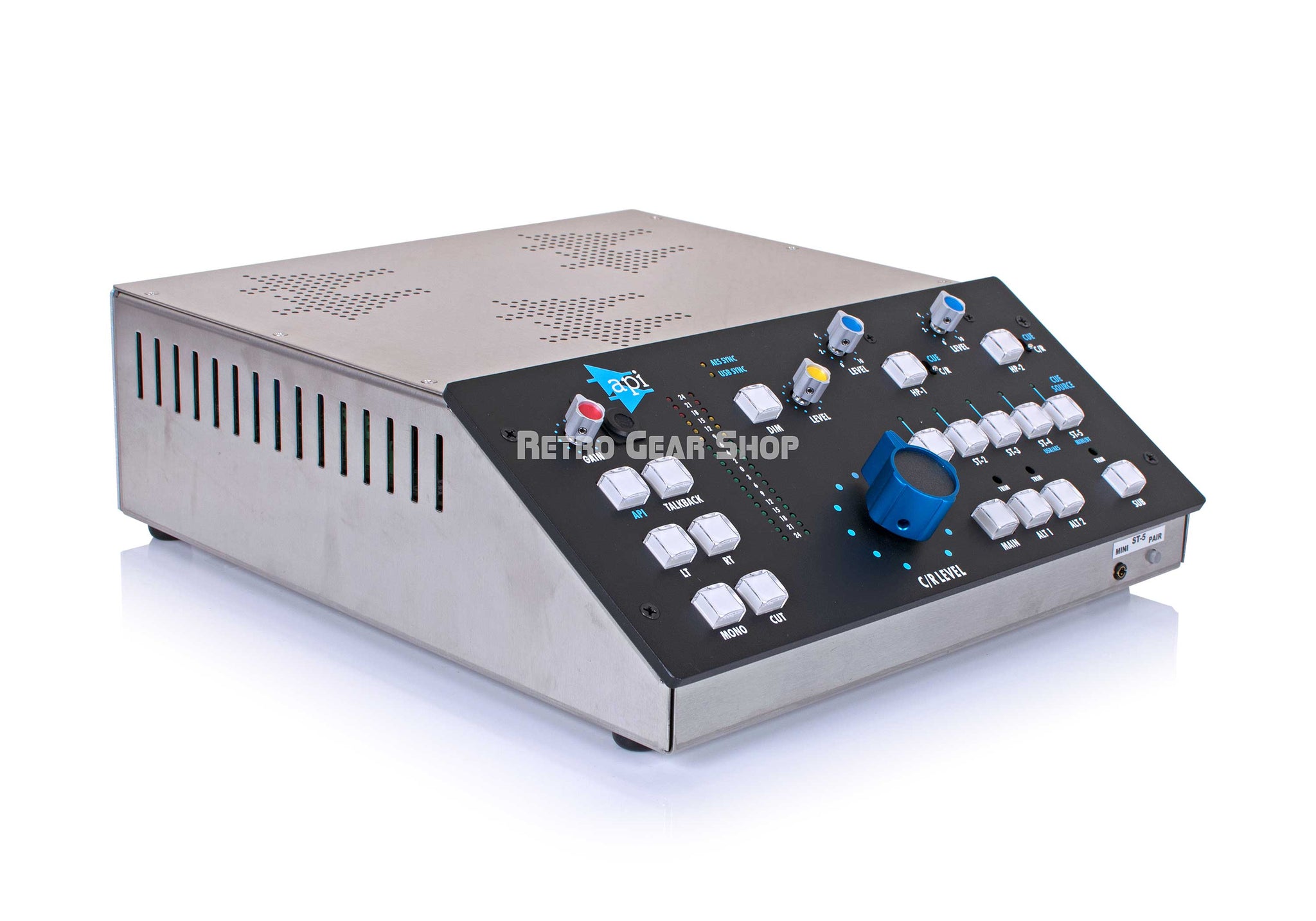

API Audio MC531 Top Left
API Audio MC531 Box
API Audio MC531 Rear

API MC531 Monitor Controller Used

Regular price $2,370.25 now $2,175

HomeOutboard/RecordingMonitorsAPI Audio

API MC531 Monitor Controller

Briefly taken out for in store demo. Mint shape with original box. Retails for $2370 new, save some here!

Drawing inspiration from the monitor control modules of all API consoles, the MC531 features a Main and two Alternate stereo outputs, the latter having individual trims for speaker level matching. Programmable subwoofer integration allows the user to link the Sub with the Main and/or either of the Alternate outputs. With a total of seven selectable stereo input sources (three analog line-level inputs, AES, USB, plus 3.5mm and Bluetooth), the MC531 can meet the monitoring needs of almost any studio setup. Two independent Headphone outputs and a built-in Talkback mic complement the feature set. Of course, the classic API 41-detent Control Room Knob is right at your fingertips.

Retro Gear Shop is an Authorized API Audio dealer.

Any questions, contact us!
Input Connections:
ST-1, ST-2, ST-3: 1⁄4” Balanced Analog, 30K Ohm Input Impedance
ST-4: Digital Input, USB Type-B, XLR female AES3
ST-5: Bluetooth, Mini Jack front and rear in parallel
Output Connections:
Control Room Outputs: XLR, selectable electronic or transformer balanced, 75 Ohms
Meter Output: 1⁄4” Balanced
Headphone: 1⁄4” Stereo
Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Frequency Response: +/- 0.5dB 20Hz to 50KHz
Signal to Noise Ration: 115db
Power Consumption: 16 Watts
Unit Size: 11.0” x 12.75” x 4.0”
Shipping Size: 14.5" x 13.5" x 8.5"
Unit Weight: 8.5 lbs
Shipping Weight: 12 lbs
