API's L200 Rack features a level of flexibility designed to meet the needs of the discriminating engineer/producer. Module interchangeability has always been an API standard and the L200 system follows the tradition. The L200R is fully compatible with modules used in API's Vision and Legacy Series Consoles, including the 205L Direct Input, the 212L Mic Pre, the 215L HP/LP Sweep Filter, the 225L Compressor and the 235L Noise Gate.
Requires L200 PSU, sold separately.

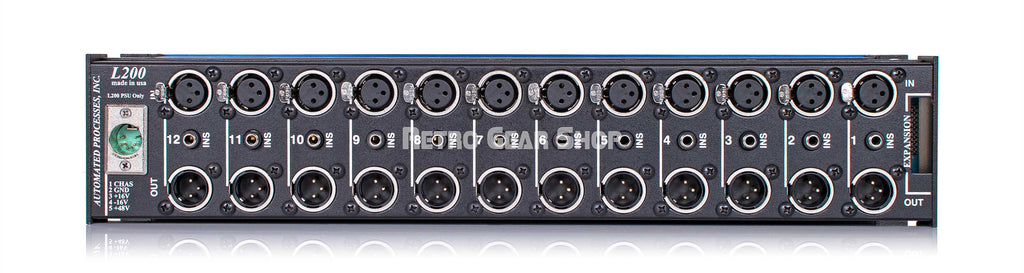

- Holds 12 API Vision or Legacy Plus L200 series modules - XLR Jacks for Inputs and Outputs, Pin 2 Hot
- TT Jacks for side chain / Aux Out / Mic In, etc.
- Powered by API external L200PS Tri-polar, +16v / -16v / +48V external power supply
- 100 to 250 volts 50/60 Hz AC, front panel LED
- 19" rack mount, 2U tall
- Sturdy, vented steel chassis
Size: 3.5" X 19" X 7.25" Deep
Size (Boxed for Shipping): 8" X 22" X 16.5"
Actual Weight: 8.67 lbs.
Shipping Weight: 11.72 lbs.
