Drawing inspiration from the monitor control modules of all API consoles, the MC531 features a Main and two Alternate stereo outputs, the latter having individual trims for speaker level matching. Programmable subwoofer integration allows the user to link the Sub with the Main and/or either of the Alternate outputs. With a total of seven selectable stereo input sources (three analog line-level inputs, AES, USB, plus 3.5mm and Bluetooth), the MC531 can meet the monitoring needs of almost any studio setup. Two independent Headphone outputs and a built-in Talkback mic complement the feature set. Of course, the classic API 41-detent Control Room Knob is right at your fingertips.

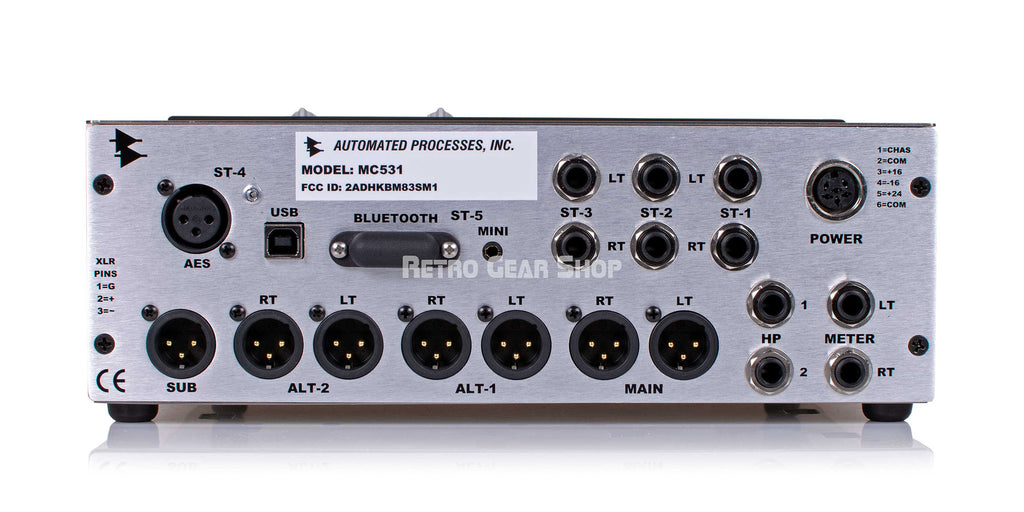

Input Connections:
ST-1, ST-2, ST-3: 1⁄4” Balanced Analog, 30K Ohm Input Impedance
ST-4: Digital Input, USB Type-B, XLR female AES3
ST-5: Bluetooth, Mini Jack front and rear in parallel
Output Connections:
Control Room Outputs: XLR, selectable electronic or transformer balanced, 75 Ohms
Meter Output: 1⁄4” Balanced
Headphone: 1⁄4” Stereo
Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Frequency Response: +/- 0.5dB 20Hz to 50KHz
Signal to Noise Ration: 115db
Power Consumption: 16 Watts
Unit Size: 11.0” x 12.75” x 4.0”
Shipping Size: 14.5" x 13.5" x 8.5"
Unit Weight: 8.5 lbs
Shipping Weight: 12 lbs
