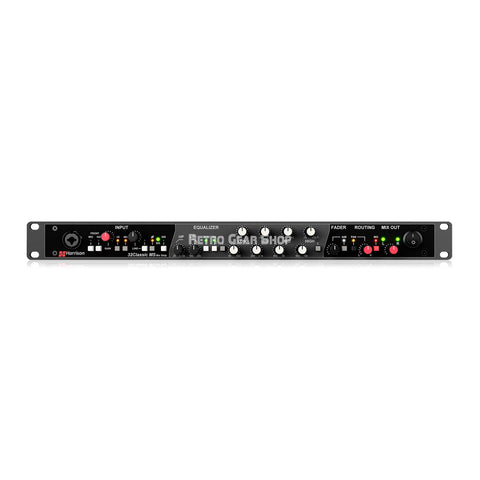

Harrison Audio 32Classic MS Mixstrip Pre-Amp Analog Channel Strip

The 32Classic MS is a high-performance all-analog channel strip that brings the signature Harrison sound and processing tools from our flagship 32Classic recording console to your studio. With additional hybrid workflow features and an integrated stereo mix bus for summing multiple units together, the 32Classic MS delivers the sound of legends whilst adding unique and innovative features to enhance your workflow.

Boasting the same design as the 32Classic console, 32Classic MS features premium Jensen JT-MB-CPCA transformer-coupled microphone preamp, characterful Harrison LP/HP filters with 3 dB resonant peak, and super-smooth 4-band parametric EQ. The original 3232 console was used by artists such artists such as Michael Jackson, Fleetwood Mac, Led Zeppelin, and many others to create some of the most highly regarded and timeless music ever made. Now, for the first time, that unmistakable sound is available in 19” rack format. Add a recording legend to your studio with the 32Classic MS.

Flexible Input Section
• Dedicated Mic and Line XLR inputs on the rear panel.
• Selectable Instrument/Hi-Z and Mic combi-XLR input on the front panel.

Transformer Coupled Preamp
• The microphone preamplifier uses legendary Jensen JT-MB-CPCA transformer.

32 Classic Equalizer
• Harrison 4 band parametric EQ with proportional Q from 32Classic Console.
• Legendary Harrison Low Pass and High Pass filters.

Mixer Section
• Unique mixer section which allows the channel signal to feed a stereo mix bus with panning. The balanced Mix bus can be cascaded across multiple 32Channel Strip MS units.

Insert Point
• Each 32Classic MS unit includes a balanced Insert Point.

Mic pre
• Minimum Gain – 20 dB
• Maximum Gain – 70 dB
• Input Impedance – 5.8K
• Input Impedance Pad In – 1.3K
• Maximum Input Level No Pad - +4 dBu
• Maximum Input Level With Pad - +24 dBu
• THD 50 dB Gain - < 0.01%
• Frequency Response 20 Hz – 20 KHz +/- 0.25 dB
• Ein < -129 dBu

Line level input
• Input Impedance – 10K
• Line Trim - +/- 9.5 dB
• Maximum Input Level - +24 dBu
• THD +4dBu Line Input To Stereo Mix Output < 0.01%
• Frequency Response 20 Hz – 20 KHz +/- 0.25 dB

Line level outputs
• Maximum Output Level - +24 dBu
• Output Impedance – 30 Ohms
