SPL Audio ADC8 Optional Eight-channel AD Converter
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.

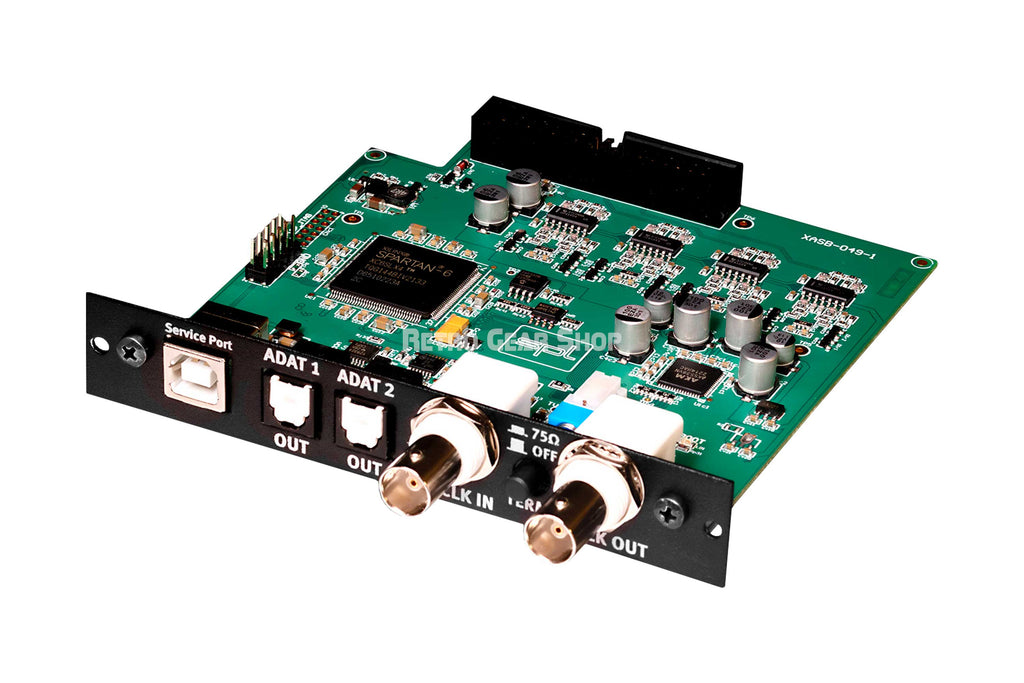

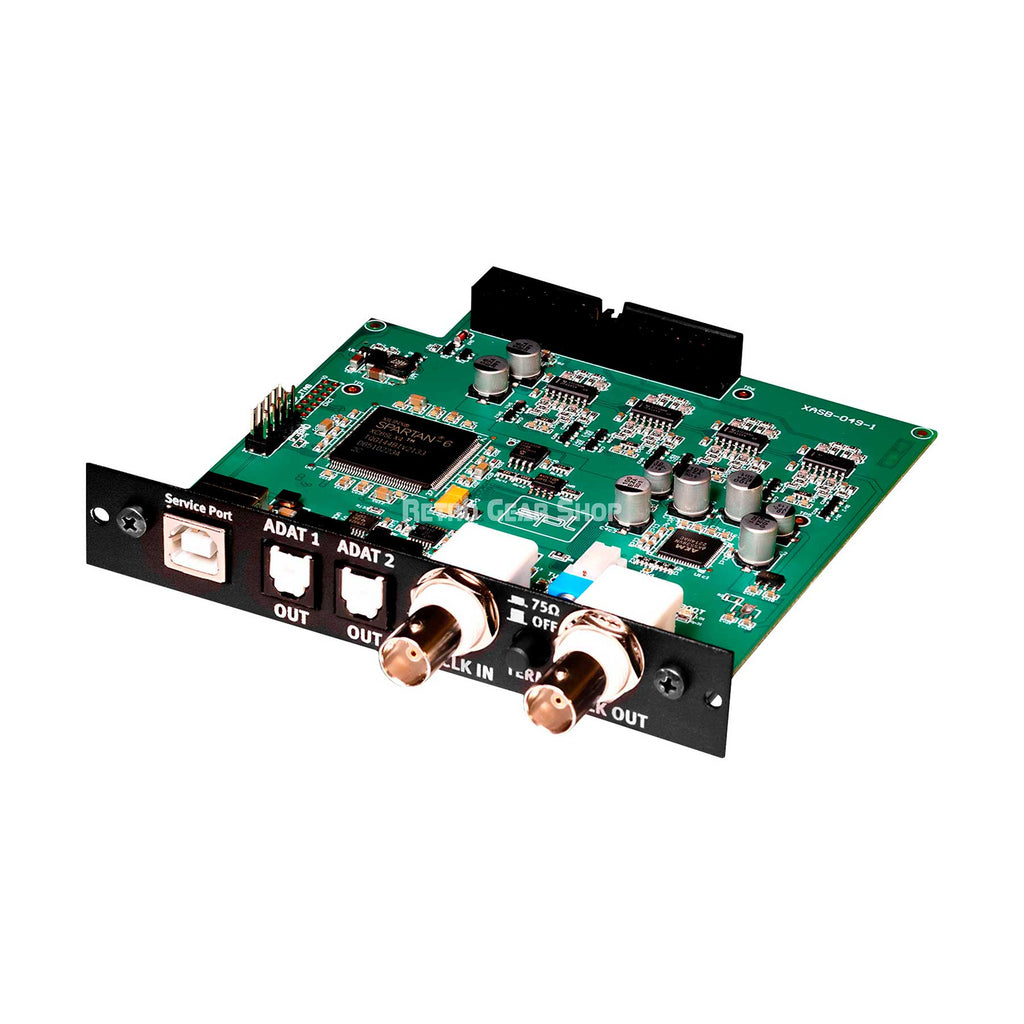

The ADC8 analog-to-digital converter module is a pre-installed or reinstallable ADAT digital output for the SPL P8 – eight-channel microphone preamplifer with discrete technology.
Important:
The ADC8 converter is only compatible to the product SPL P8 – eight-channel microphone preamplifer with discrete technology. The converter module cannot be installed in other devices.
Centerpiece

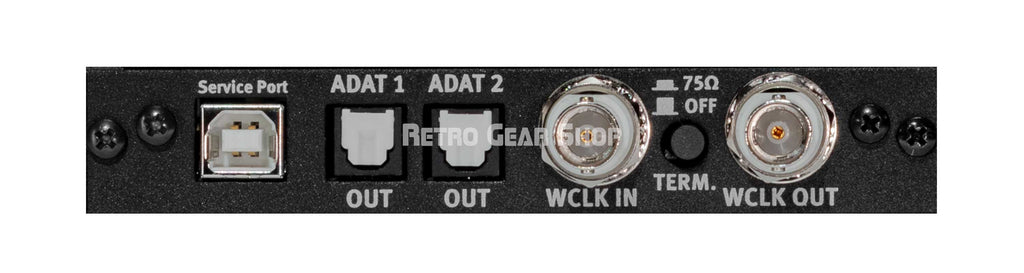

The centerpiece is an eight-channel 24-bit converter chip (AKM 5538) with sampling rates from 44.1 kHz up to 192 kHz. The converter module ofers an ADAT output (TOSLINK) and a word clock in and output. Highly acurate quartz oscillators ensure a clean, low-jitter master clock and as soon as an external synchronization signal is present, all internal oscillators are automatically disabled to prevent interference.
Pre-installed
P8 devices with pre-installed ADC8 are usually build to order. Please ask you dealer for a BTO unit if the device is not ofered with the optional converter installed (e.g. in online stores). The dealer can order this confguration directly from us.
Reinstalled
The ADC8 converter module can also be reinstalled after purchase by qualifed technicans. It is not necessary to open the device. Follow all safety and mounting instructions witin the converter manual (see below).
