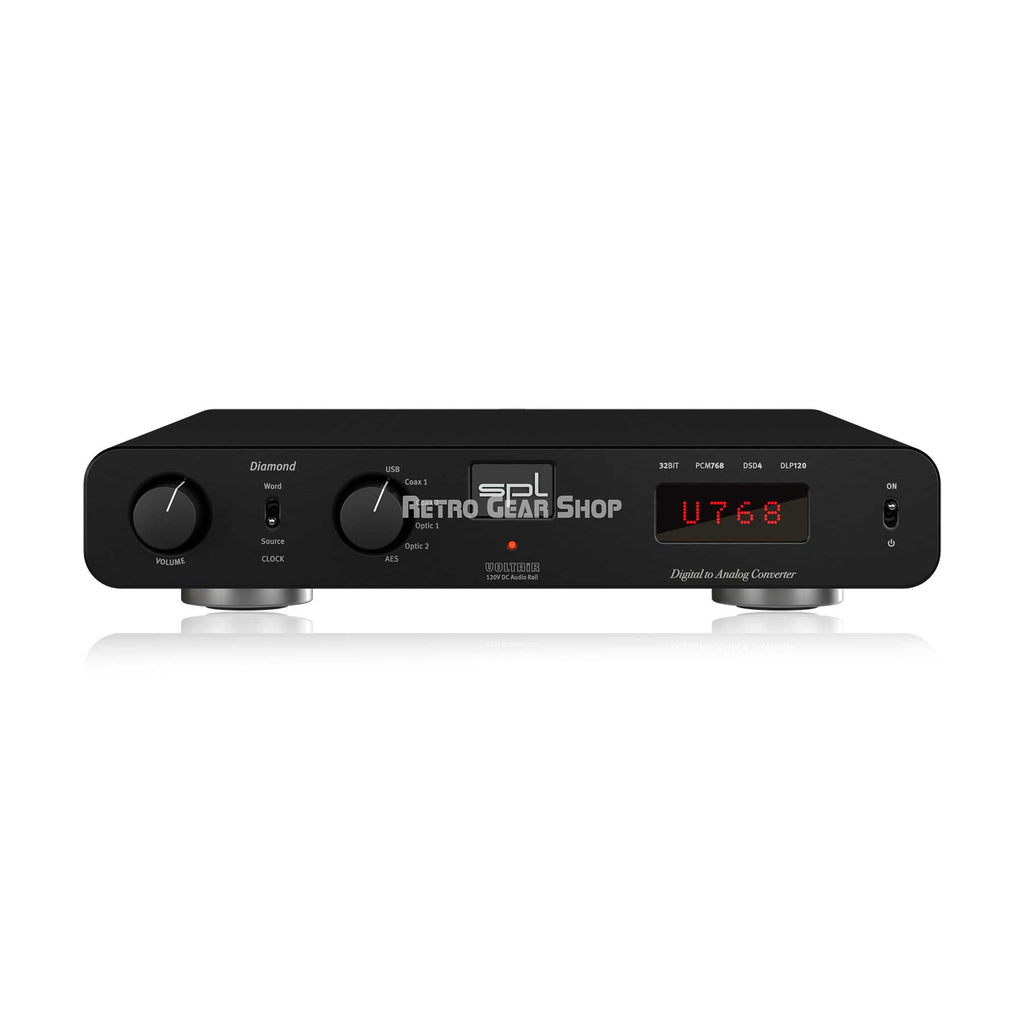

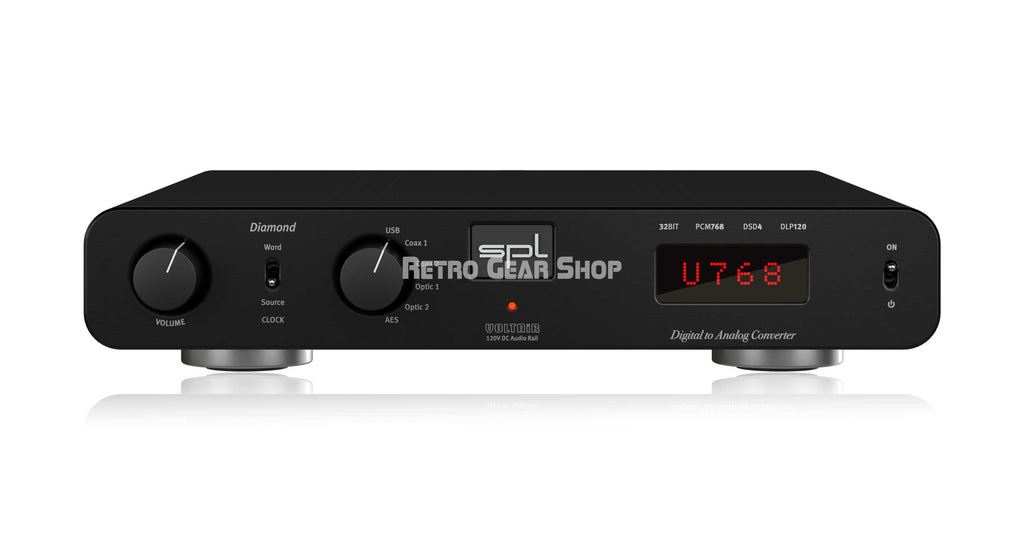

SPL Audio Diamond Premium DAC with VOLTAiR Technology Black
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
Diamond is the perfect DAC and preamplifier for everyone who plays music exclusively from digital sources. Diamond offers connectivity for six digital sources and an external word clock. The superior VOLTAiR technology and the premium DAC combined with an analog volume control allowing for highest resolution at any volume makes the Diamond an one-of-a-kind DA converter that delivers finest soundstages with an unrivalled analog feel.

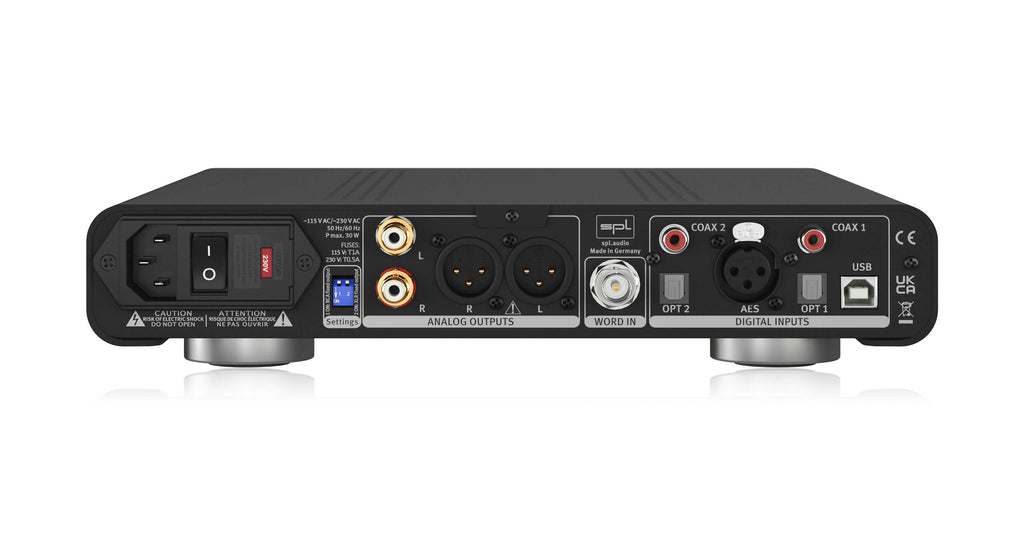

Analog & Outputs: XLR (balanced), RCA
• Maximum output level (0 dBFS = max. +15 dBu): 32.5 dBu
• Output impedance: 75 Ω
• Frequency range (0 dBu): 10 Hz – 100 kHz
• Crosstalk (0 dBu, 1 kHz): -108 dB
• THD & N (0 dBu, 1 kHz): 0.001 %
• Noise (A-weighted): -102 dBu
• Dynamic range (0 dBFS = +15 dBu => 117,3 dB): 134.5 dB
Digital Inputs, DAC768
• AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
• Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
• Optical SPDIF (Toslink F 06), PCM sample rates: 44.1/48/88.2/96/ with Glass fibre <1m 176.4/192 kHz
• USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
• USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
• 0 dBFS calibrated to: 15 dBu
Internal Linear Power Supply with Shielded Toroidal Transformer
• Operating voltage for analog audio: +/- 60 V
• Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 0.5 A
• Fuse for 115 V: T 1 A
• Power consumption: max. 40 VA
• Stand-by power consumption: < 0.3 W
Dimensions & Weight
• W x H x D (width x height incl. feet x depth): 278 x 57 x 300 mm
11 x 2.24 x 11.81 inch
• Unit weight: 3.15 kg
6.95 lbs
• Shipping weight (incl. packaging): 5.35 kg
11.79 lbs
