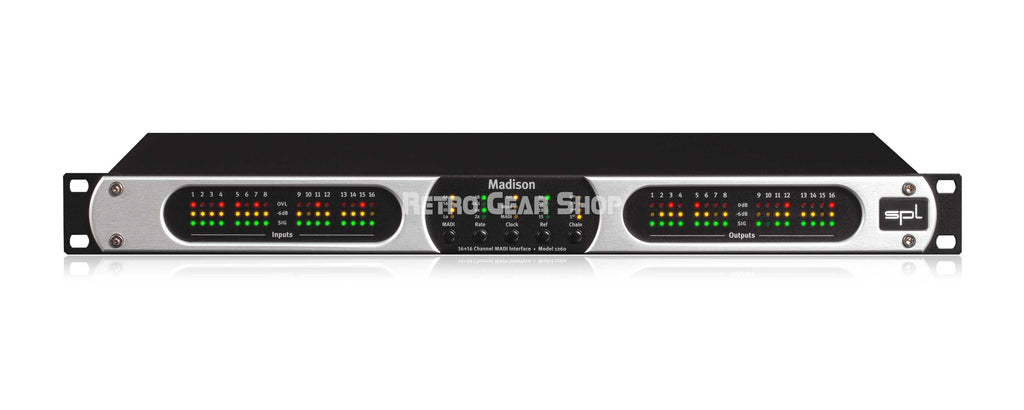

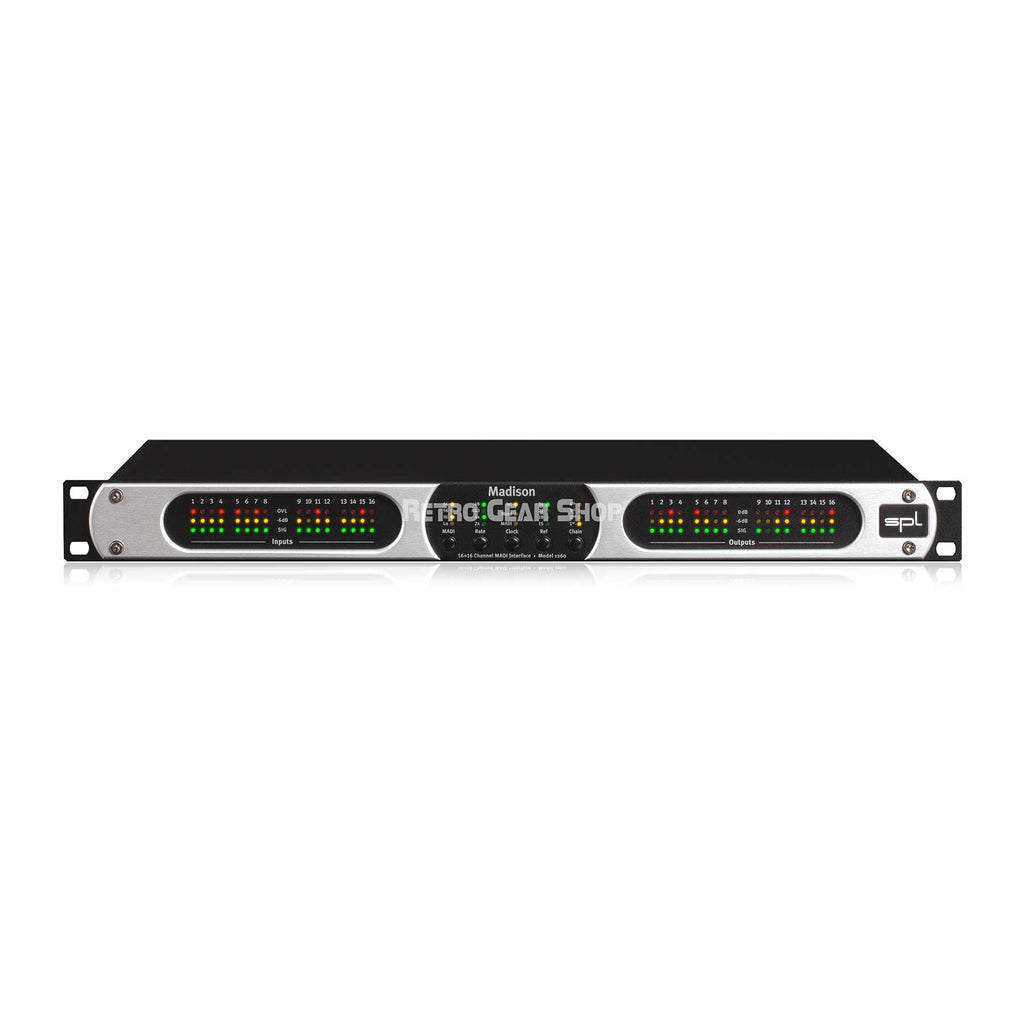

SPL Audio Madison 16+16 Channel AD/DA Converter and MADI Interface
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
Madison offers what hardly any other manufacturer in this price segment has to offer: 16 AD/DA converters. With SmartMADI and the Madicon this becomes an expandable multi-channel studio interface of the first order.
• MADI transmission distance up to 2 km
• MADI I/O latency: 1 sample
• Optical MADI socket, type SC
• 56 & 64 channel Hi/Lo modes
• Accepts Varispeed up to +/-12,5%
• Sync to MADI, Wordclock or Internal
• Device ID for daisy chaining
• 16 AD and 16 DA converters
• 24 bit / up to 192 kHz
• Level lights per channel in easily readable blocks of four
• OdBfs: 15, 18, 22 or 24 dBu
• Fanless and therefore particularly suitable for noise-sensitive environments
• Optional redundant power supply unit
Analog Input & Outputs; DB25 (balanced)
• Maximum input & output gain: 24 dBu
• Input impedance: 20 kΩ
• Output impedance: 75 Ω
• Common mode rejection (1 kHz): 82 dB
• Crosstalk (1 kHz, 48 kHz SR): -110 dB
• Dynamic Range (A-weighted, 48 kHz SR): 115 dB
Digital I/O; MADI-Port
• MADI optical, Type SC: 44.1/48/88.2/96/176.4/192 kHz
• Varispeed: ±12.5% in 56 CH mode, -12.5% in 64 CH mode
• Reference Levels: 15dBu, 18dBu, 22dBu, 24 dBu
• Wordclock input, BNC, terminated impedance: 75 Ω
• Wordclock Level (Input TTL/CMOS5/CMOS3): 3.3 V
• S/N (A-bewertet, 48kHz SR): -115 dBFS
• S/(N+D) (-1 dBfs, 48kHz SR): -102 dBFS
• Passband response (-0.02dB, 48kHz SR): 22 kHz
• Passband Ripple (Decimation-LPF, 48kHz SR): +/- 0.005 dB
• Stopband Attenuation (Decimation-LPF, 48kHz SR): 100 dB
• Crosstalk (1 kHz, 48kHz SR): -110 dBu
Mains Power Supply
• Operating voltage for analog audio: +/- 17 V
• Operating voltage for digital audio: +12 V, +5 V
• BTU (British Thermal Units, typical): 65 BTU/h
• BTU (British Thermal Units, max): 110 BTU/h
• Mains voltage: 90 – 264 V AC, 50/60 Hz Hz
• Power consumption: max. 35 W
Dimensions & Weight
• W x H x D (width x height x depth): 482 x 44 x 260 mm
19 x 1.73 x 10.24 inch
• Unit weight: 3.05 kg
6.72 lbs
• Shipping weight (incl. packaging): 5 kg
11.02 lbs
