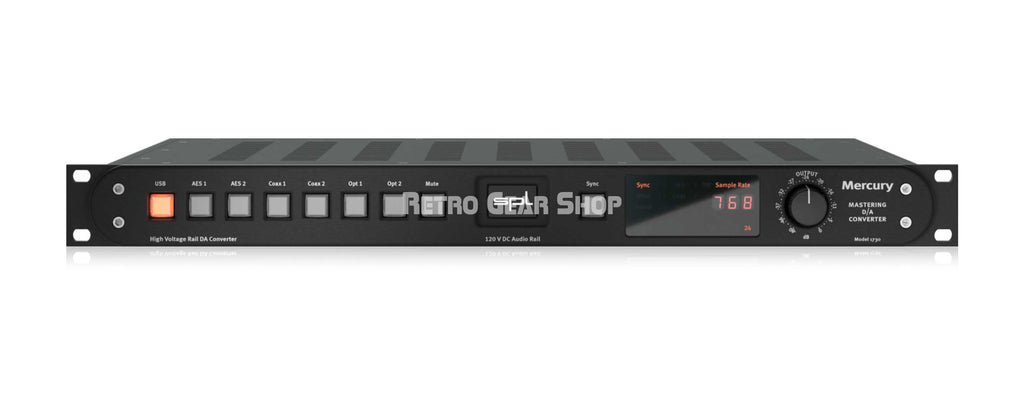

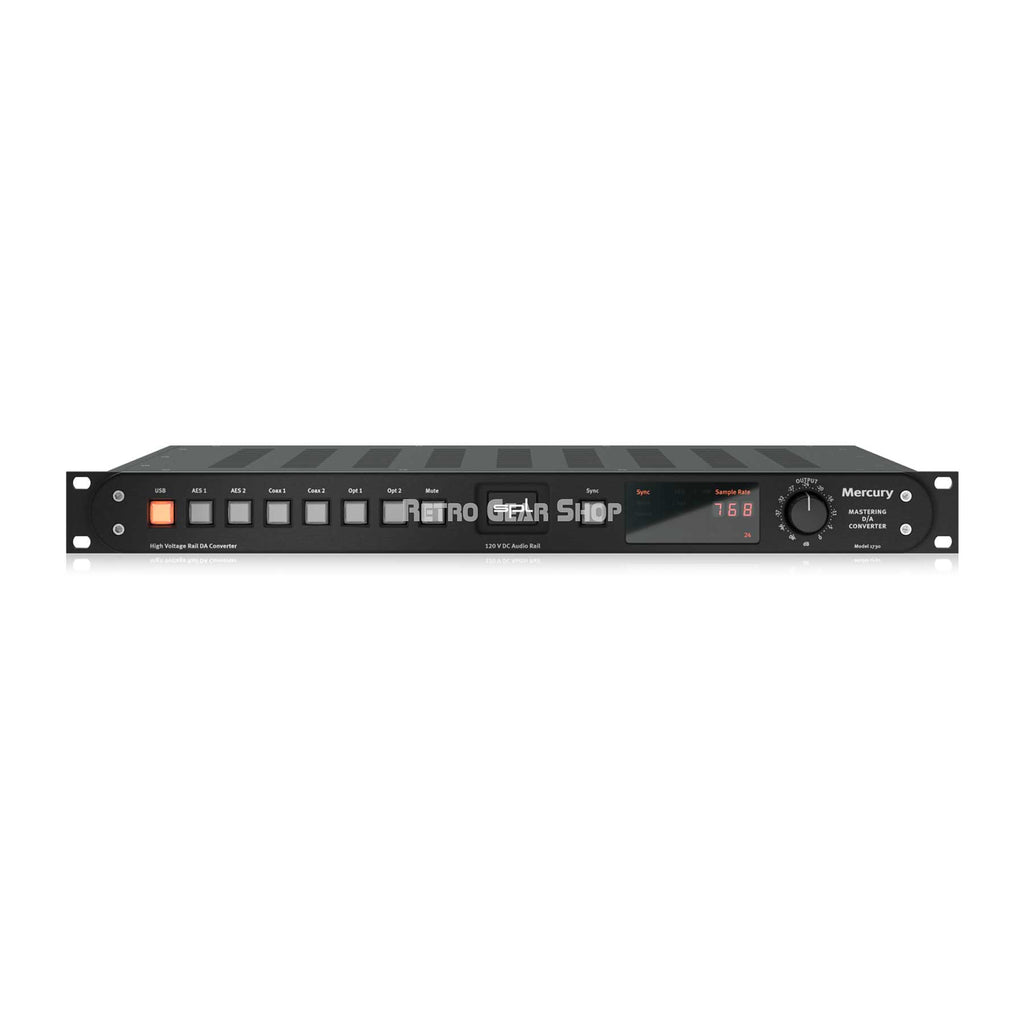

SPL Audio Mercury Mastering D/A Converter All Black

SPL Audio Mercury Mastering D/A Converter All Black

$3,299
×
SPL Audio Mercury Mastering D/A Converter All Black

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

SPL Audio Mercury Mastering D/A Converter All Black

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓Valid
Only plain are not allowed in the message Message length must be 250 characters allowed
Country is required
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

  • Free USA shipping.
  • New.
  • Authorized Dealer.
  • Pre-order. Contact us to order, for best possible price and for ETA.

Description

Mercury is the first mastering DA-converter in 120V technology. It offers seven digital stereo input sources, all of which can be synchronized with each other or with a word clock. The additional variable output qualifies Mercury as a monitor controller.


Features

Specifications

Analog inputs & output; XLR (balanced)
• Maximum input & output gain: 32.5 dBu
• Input impedance: 20 kΩ
• Output impedance: 75 Ω
• Common mode rejection: -82 dBu
• Frequency range (-3 dB): 4 Hz – 300 kHz
• Crosstalk (1 kHz): -108 dBu
• THD (0 dBu, 1 kHz): 0.000992 %
• Noise (A-weighted): -102.5 dBu
• Dynamic range: 135 dB

Digital Inputs, DAC768
• AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
• Coaxial SPDIF (Cinch), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
• Optisch SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/with Glass fibre <1 m: 176.4/192 kHz
• USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
• USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
• 0 dBfs calibrated to: 15 dBu

Internal Linear Power Supply with Shielded Toroidal Transformer
• Operating voltage for analog audio: +/- 60 V
• Operating voltage for relays and LEDs: + 12 V

Mains Power Supply
• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 500 mA
• Fuse for 115 V: T 1 A
• Power consumption: max. 40 VA
• Stand-by power consumption: < 0,3 W

Dimensions & Weight
• W x H x D (width x height x depth): 482 x 44 x 300 mm
19 x 1.73 x 11.8 inch
• Unit weight: 4.55 kg
10 lbs
• Shipping weight (incl. packaging): 6.7 kg
14.77 lbs
