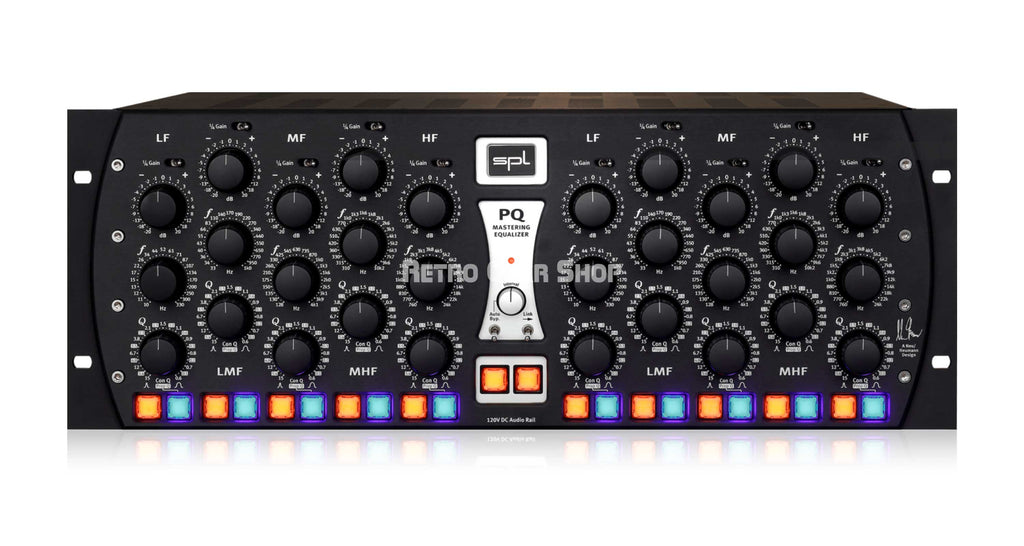

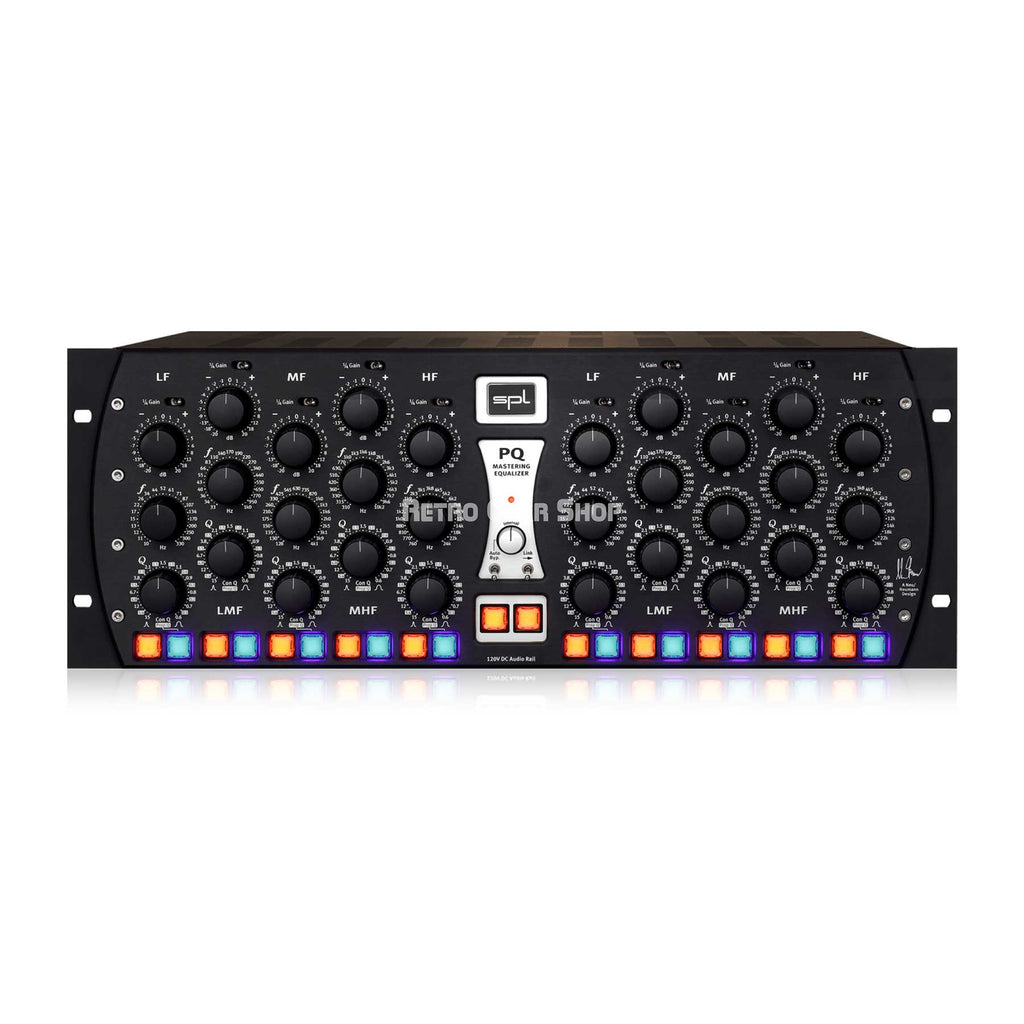

SPL Audio PQ Mastering Equalizer Black
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
This is a unique equalizer – for several reasons. It has two times five fully parametric filter bands, each of which can be switched between constant Q and proportional Q! And there’s sheer unlimited headroom and a very special kind of EQ sound – thanks to 120V technology.

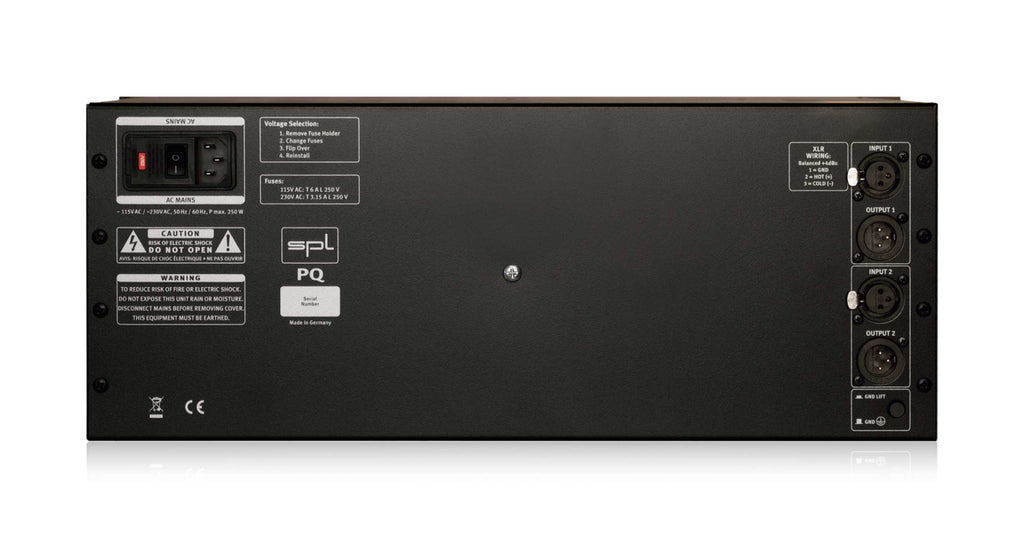

Analog inputs & output; XLR (balanced)
• Maximum input & output gain: 32.5 dBu
• Input impedance: 20 kΩ
• Output impedance: 75 Ω
• Common mode rejection: -82 dBu
• Frequency range (-3 dB): 10 Hz – 100 kHz
• THD & N (+30 dBu, 1 kHz): 0.0005 %
• Noise (A-weighted): -94.3 dBu
• Dynamic range: 135 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
• Operating voltage for analog audio: +/- 60 V
• Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 3.15 A
• Fuse for 115 V: T 6.3 A
• Power consumption: max. 100 VA
Dimensions & Weight
• W x H x D (width x height x depth): 482 x 177 x 300 mm
19 x 6.97 x 11.8 inch
• Unit weight: 15.2 kg
33.51 lbs
• Shipping weight (incl. packaging): 17.8 kg
39.24 lbs
