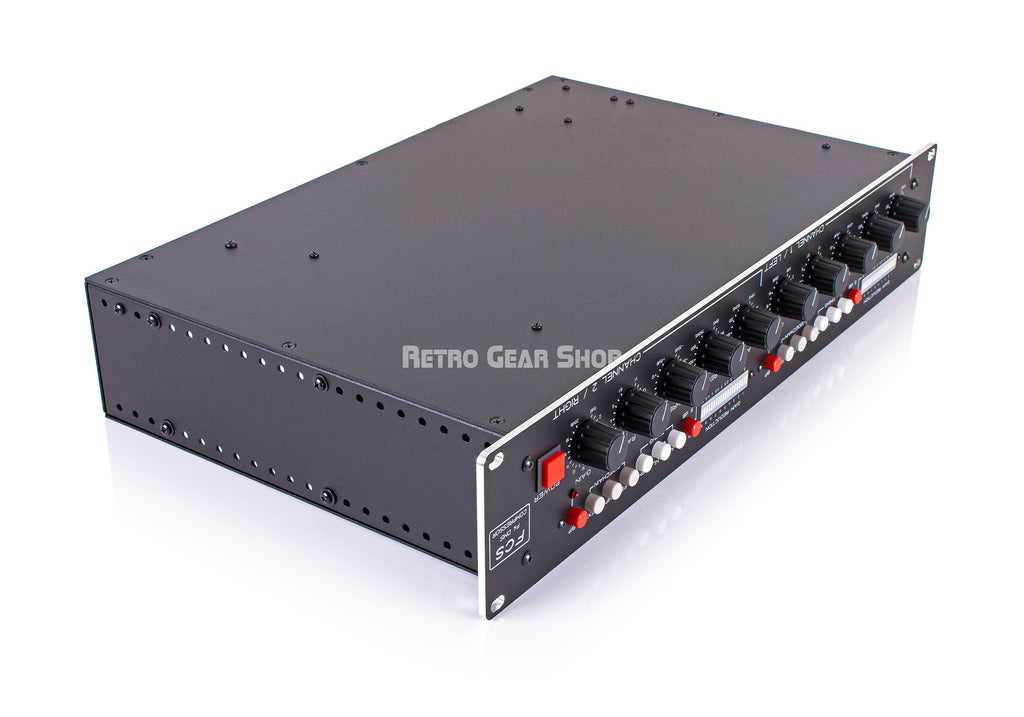

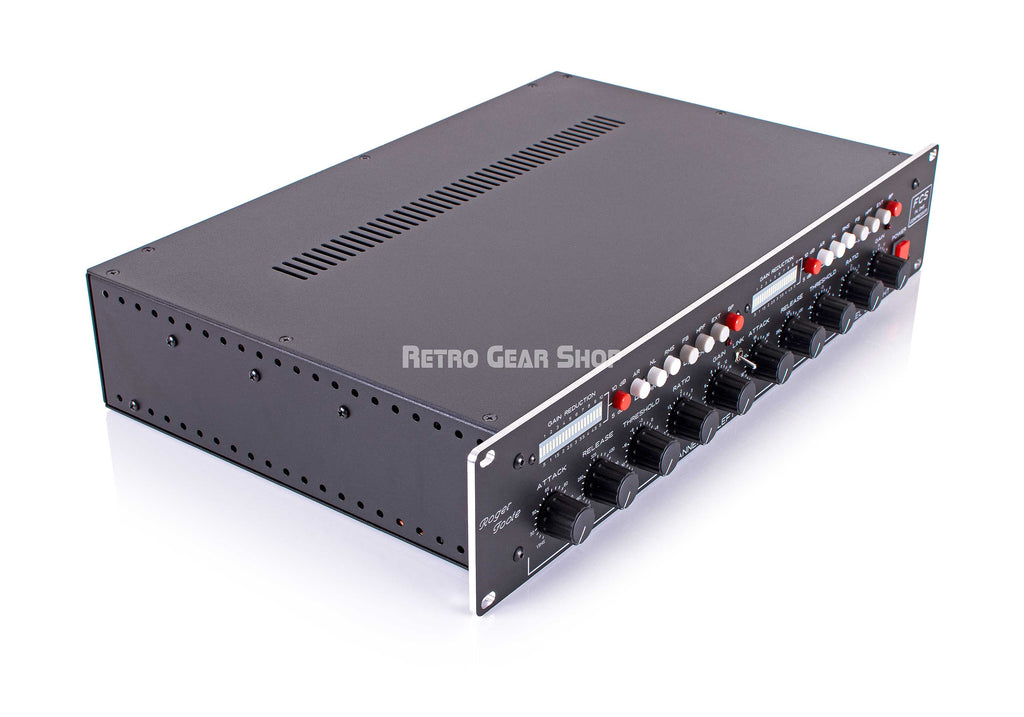

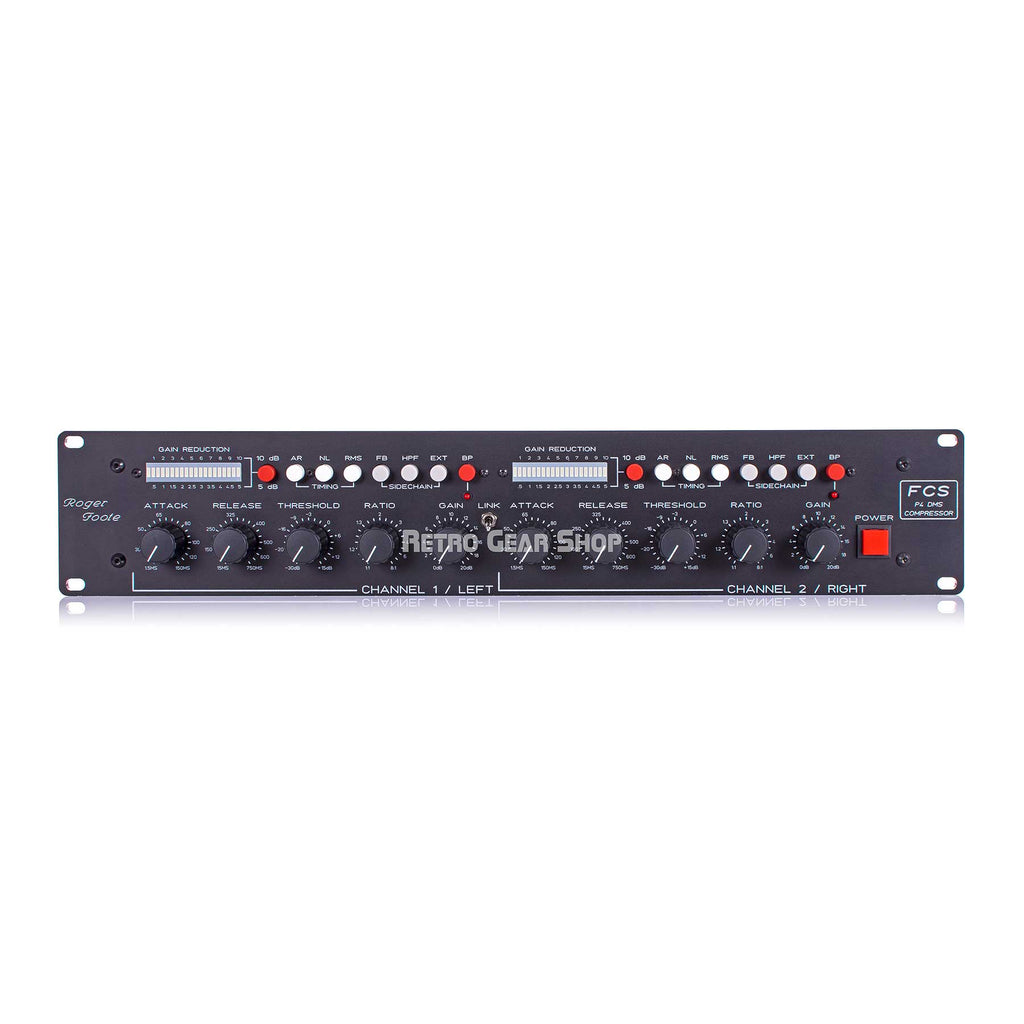

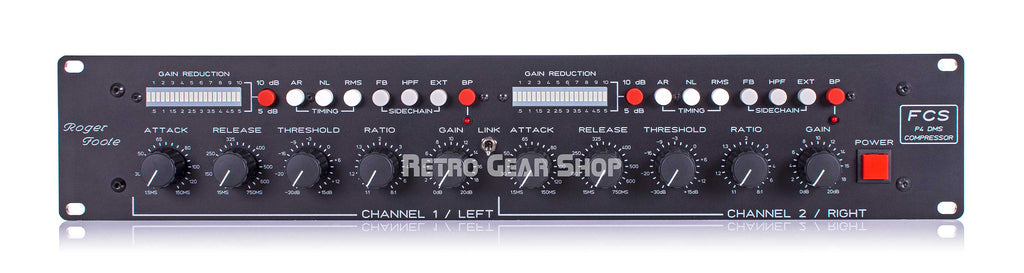

Foote Control Systems FCS P4 DMS Analog Stereo Compressor
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
Features shared by P4S ME, P4S SE, P4S Plus and P4DM Bus Compressor:
• Low noise internal power supply with front panel power switch.
• Black anodized 4mm thick front panels with digital laser printing.
• Elma collet knobs.
• Neutrik XLR and TRS connectors.
• Switchable HPF in the detector signal path.
• 1% 50ppm metal oxide resistors.
• High quality film, ceramic and electrolytic capacitors.
• Dual detector design utilizing True Power Summing for solid stereo field.
• FCS Class A discrete op amp IV and transformer driver.

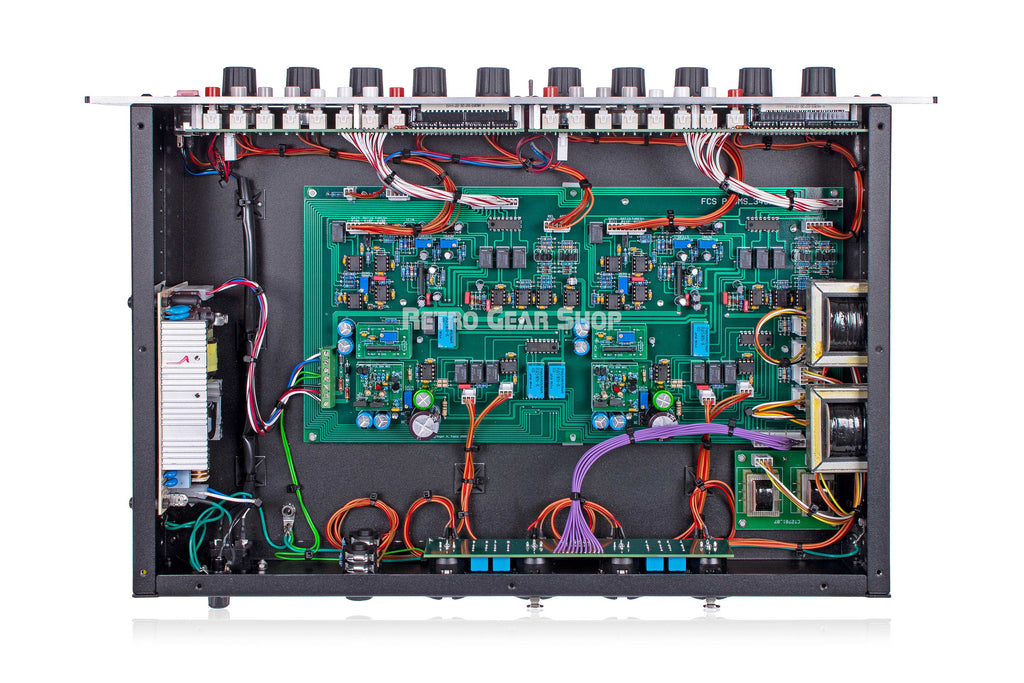

• 4 layer PC board for low noise operation.
• Transformer coupled inputs and outputs.

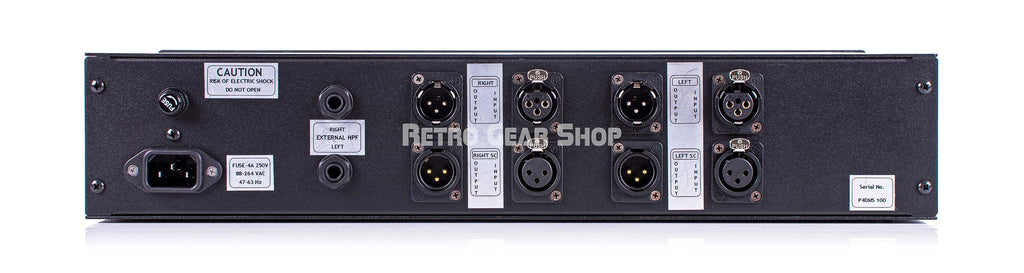

• Rear panel side chain inserts
• True hard wire relay bypass.
• Hand built by Roger Foote in California.
• RMS mode.
• Peak A/R mode with variable attack and release.
• Feedback mode for vintage compressor behavior.
• 20 segment LED GR metering.
• 4 THAT laser trimmed VCAs on 2 FCS VCA boards. 2 per channel on P4S ME and P4S SE
• Switched HPF frequencies on P4S ME, P4S SE
• Gain 0 dB to +11.5 dB in 24, 1/2 dB steps on P4S ME and P4S SE
Features for P4S Plus and P4DMS:
• Single THAT VCA per channel on P4S Plus and P4DMS
• High quality potentiometers
• Toggle switches on the P4S Plus
Differences between P4S ME, P4S SE, P4S Plus and P4DMS:
• Threshold -30 dB to +15 dB on P4S SE, P4S Plus and P4DMS
• Threshold -8 dB to +15 dB on P4S ME
• Ratio 1:1 to 8:1 on P4S SE, P4S Plus and P4DMS
• Ratio 1:1 to 4:1 on P4S ME
• Gain 0 dB to +23 dB in 24, 1 dB steps on P4S Plus
• Gain 0 dB to +20 dB in 24, 1 dB steps on P4DMS
• Gain 0 dB to +11.5 dB in 24, 1/2 dB steps on P4S ME and P4S SE
• Metering 1-5 dB in 20, 1/2 dB steps on P4S ME
• Metering 1-10 dB in 20, 1 dB steps on P4S SE and P4S Plus
• Metering switchable between 1-5 dB and 1-10 dB on P4DMS<
• Switched HPF frequencies on P4S ME, P4S SE adn P4S Plus
• Single HPF frequency on P4DMS with HPF connector on rear panel for optional Dual HPF Switcher
• RMS2 & Hard Knee modes on P4S SE
Attack and Release Timings on all P4S and P4DMS compressors:
• Attack: 0.15 to 15.0 ms/Db
• Release: 1.5 to 150 ms/dB
