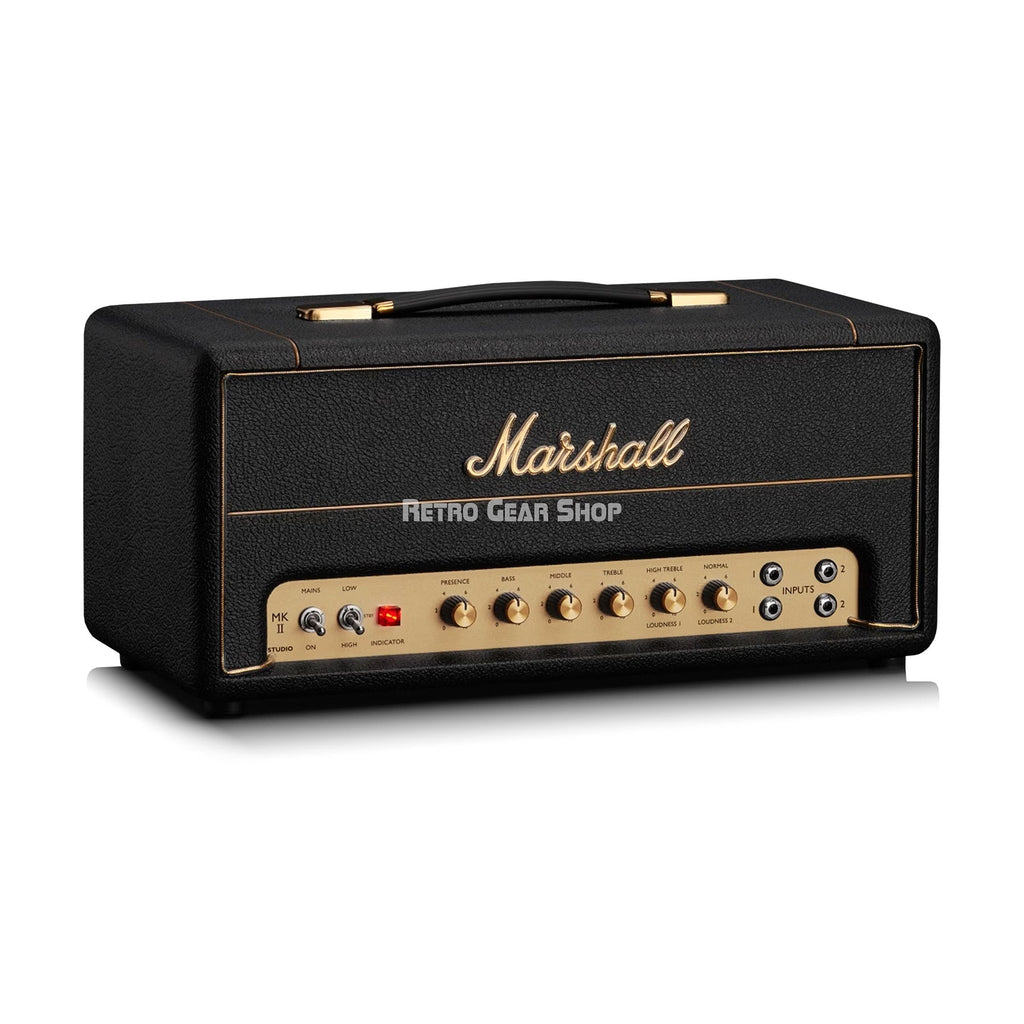

Marshall Studio Vintage Compact 20W Head

We’ve reworked the timeless elegance of the plexi era for the modern guitarist. Inspired by the beloved 1959, you can now get that same vintage sound at only 20W.

It’s also significantly smaller and lighter than its 100W counterpart, making travelling and touring a breeze.

Designed and engineered in UK. Made in UK.

• Built in our UK factory
• All-valve
• 20W to 5W at the flick of a switch
• Same warm blues tones as the original 1959
• Incorporate outboard effects using the effects loop
• The same familiar EQ found on the 1959

GENERAL
• Model: SV20H
• Range: Studio
• CHANNELS: 2, BRIDGEABLE
• TECHNOLOGY: VALVE

ELECTRONICS
• Output wattage: 20W (with power reduction option to 5W)

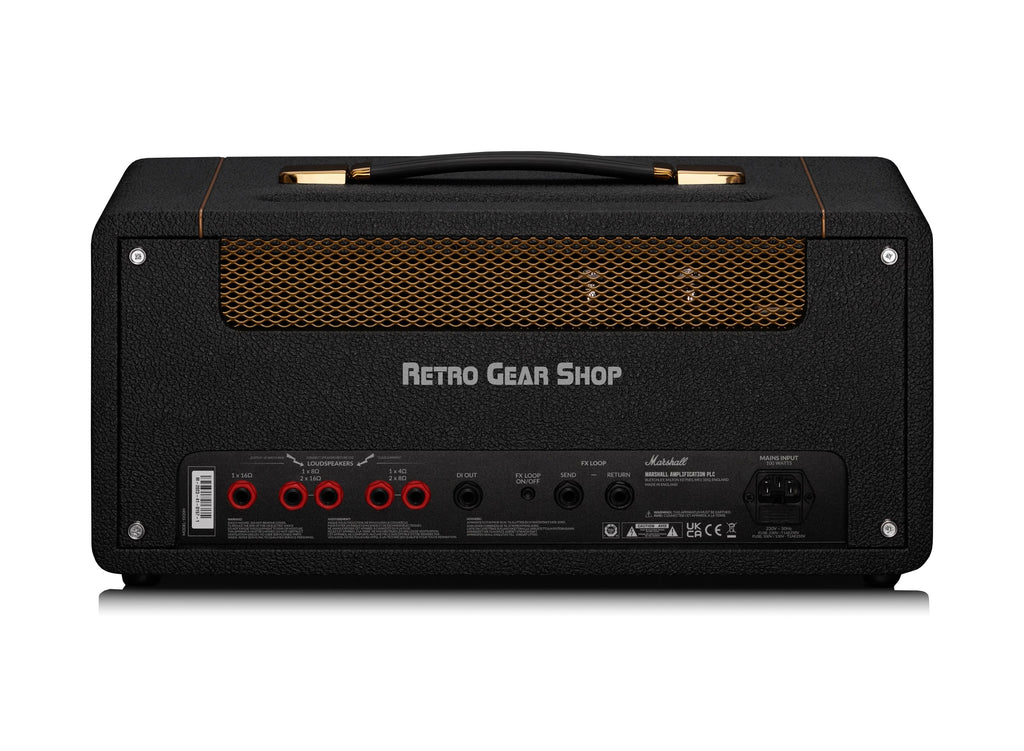

• OUTPUTS: SPEAKER OUTPUTS: 5 X 1/4" JACK SOCKETS (16Ω LOAD / 8Ω LOAD / 4Ω LOAD), DI (1/4" JACK)
• INPUTS: 4 X 1/4" JACK INSTRUMENT INPUTS (HIGH/LOW SENSITIVITY)

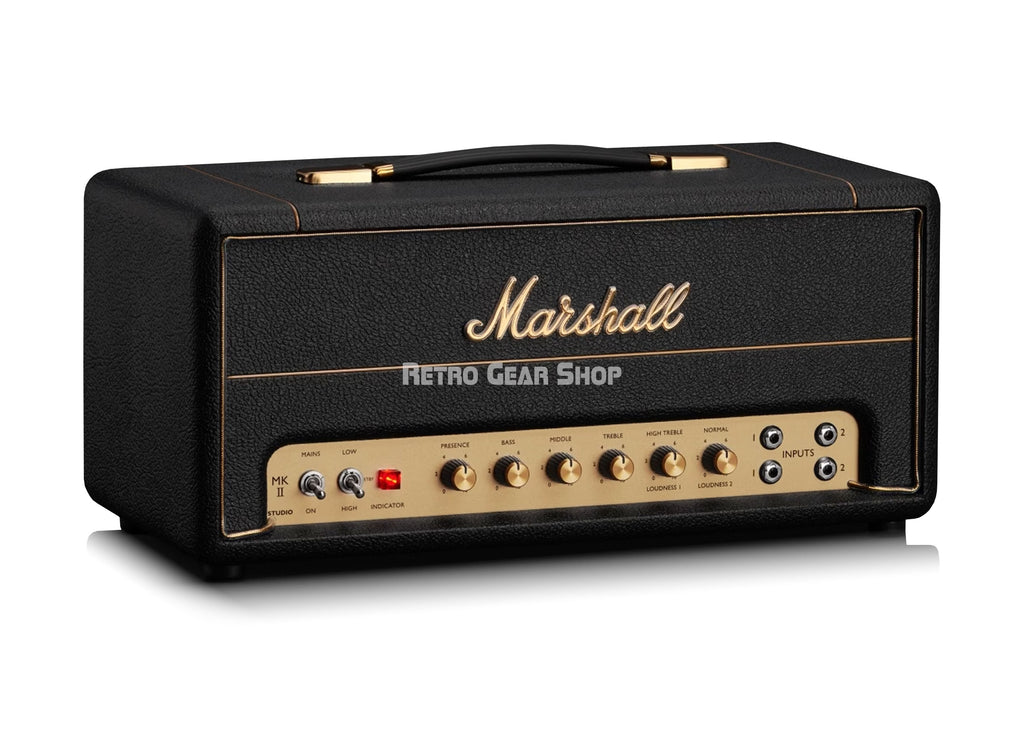

• Controls: NORMAL/LOUDNESS II, HIGH TREBLE/LOUDNESS I, TREBLE, MIDDLE, BASS, PRESENCE
• Effects: None
• Effects loop: YES, 1 X SERIES SWITCHABLE

VALVES
• Preamp valves: 2 x ECC83, 1 x ECC83 (phase splitter)
• Power amp valves: 2 x EL34

PHYSICAL UNIT
• Weight: 9.25 kg / 20.4 LB
• Width: 500 mm / 19.7"
• Height: 240 mm / 9.4"
• Depth: 230 mm / 9.1"
• Country of origin: Designed and engineered in UK. Made in UK.

INCLUDED IN THE BOX
• Detachable power cable included
• Speaker cable included
