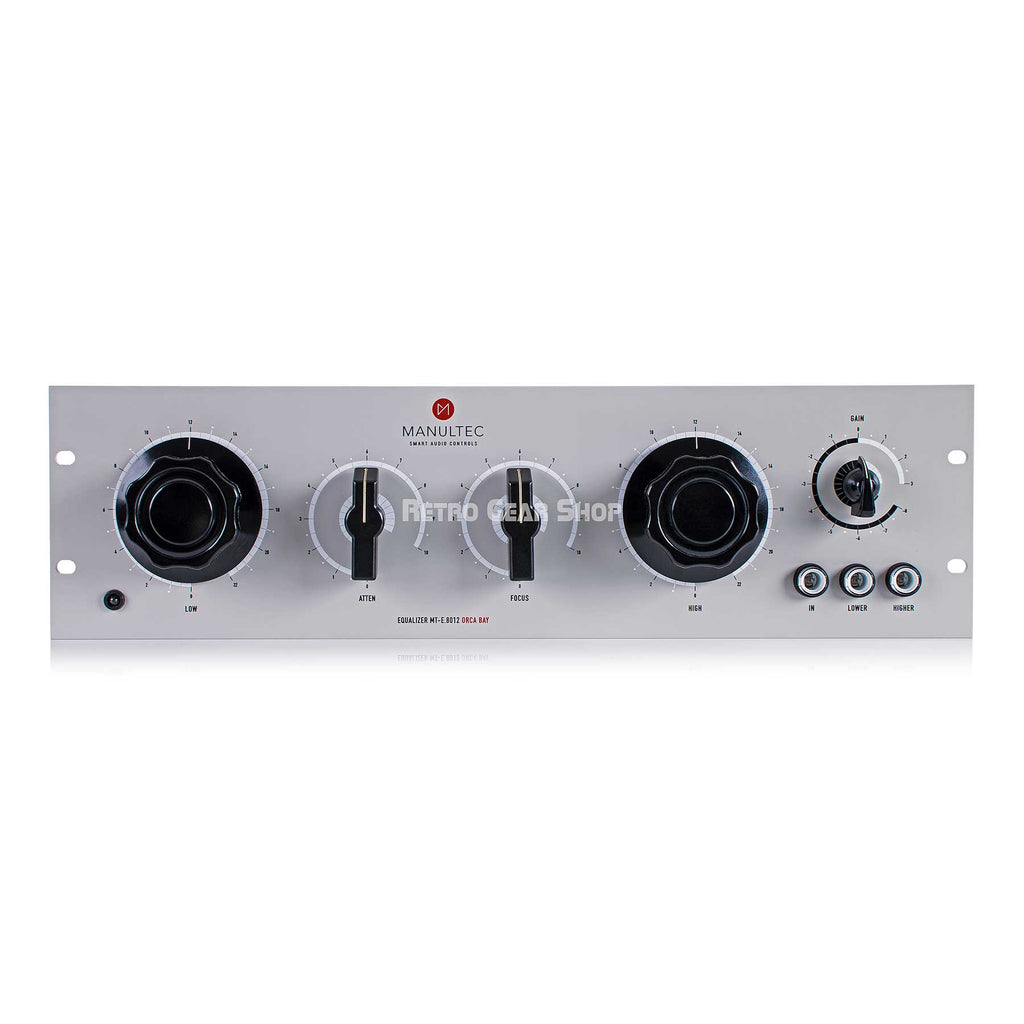

Manultec Orca Bay MT-E.8012 Mastering Edition EQ Analog Equalizer
Manultec Orca Bay Mastering Front
Manultec Orca Bay Mastering Rear

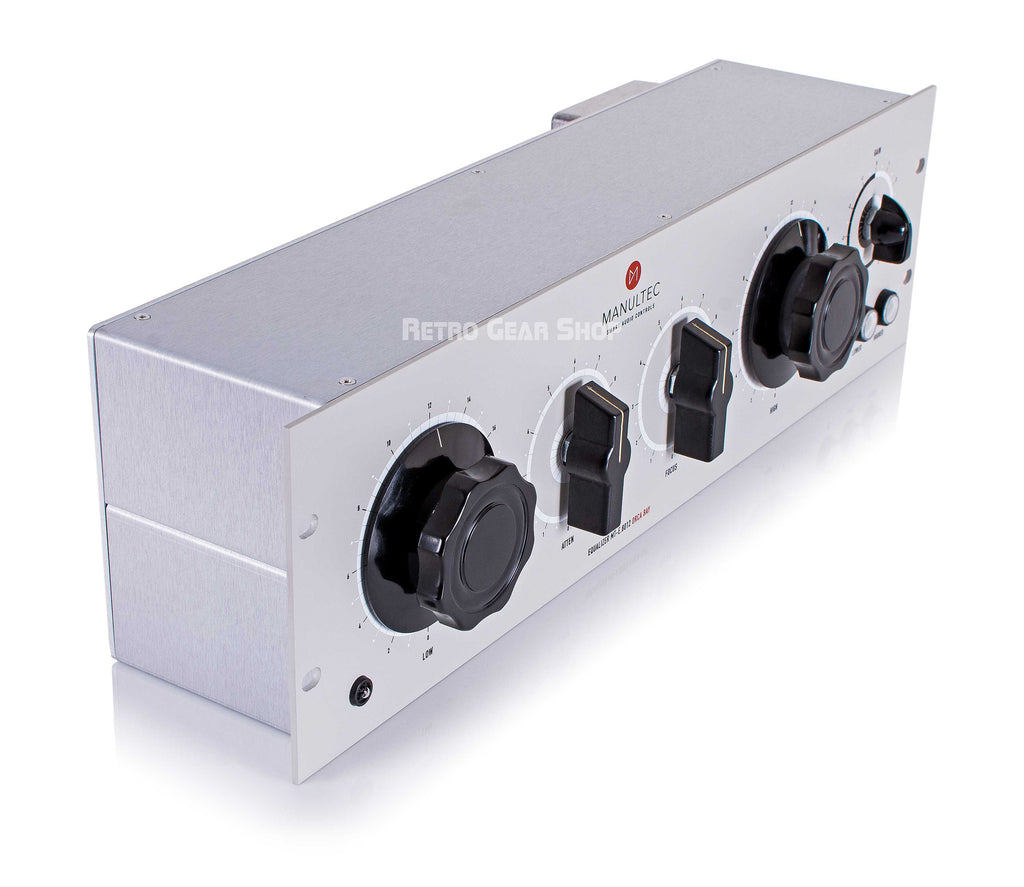

Manultec Orca Bay Mastering Top Left

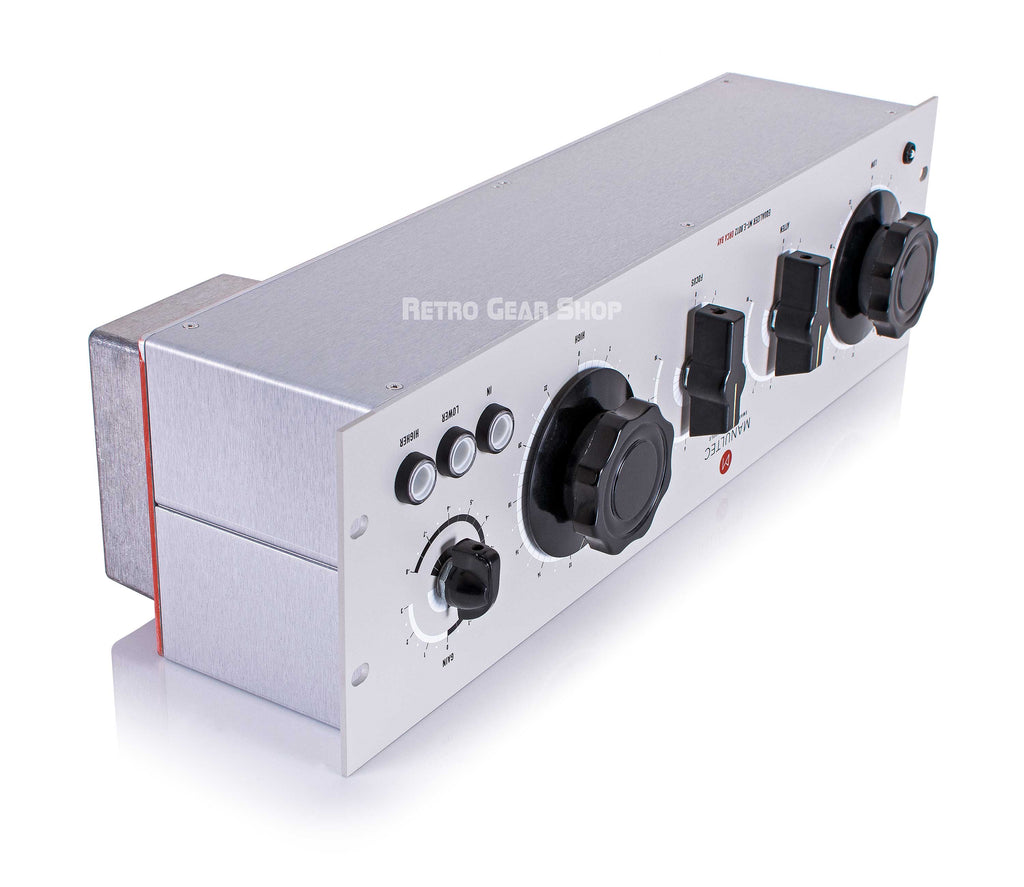

Manultec Orca Bay Mastering Bottom Right
Manultec Orca Bay Mastering Box

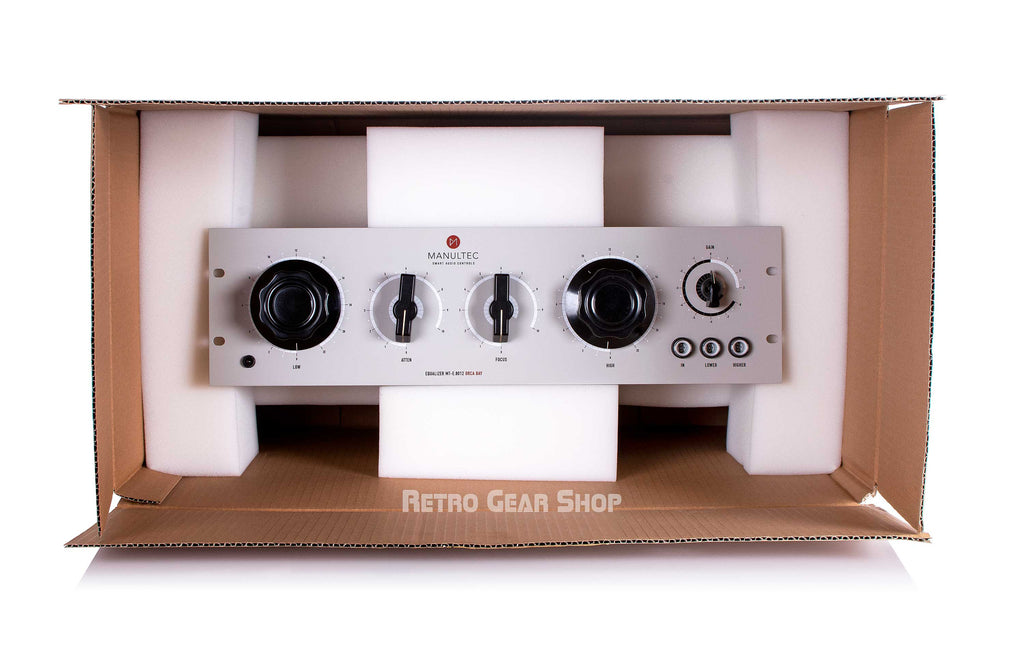

Manultec Orca Bay Mastering Box Open
Manultec Orca Bay Mastering Manual Extras
Manultec Orca Bay Mastering Rear

Manultec Orca Bay Mastering Edition

Regular price $4,999 now $4,649

HomeOutboard/RecordingEqualizersManultec

Manultec MT-E.8012 Orca Bay Equalizer Mastering Edition

This unit comes with stepped atten and focus controls.

The MT-E.8012 Orca Bay is the new flagship analog hardware equalizer from Manultec – Smart Audio Controls. The unit stands out with unique sonic character only met by its exquisite beauty. It takes the knowledge and research we cultivated in the last years to the next level, by re-examining every detail to enhance sound and feel. Manultec´s sophisticated circuit provides ultra tight low end and vibrant dynamic projection to highlight the distinct sound of the Orca. The minimal, yet beautiful design offers a timeless appearance and makes this equalizer an absolute joy to use.

Free shipping in the USA with Fedex Ground
Flat rate discounted shipping worldwide
Retro Gear Shop is an Authorized Manultec Dealer.
Brand New with full Warranty.
Any questions, contact us!
• Powerful stereo solid state equalizer with all passive tone sculpting circuit

• Manufactured with premium selected components

• Ease of operation through clearly arranged interface design

• Antique bakelite knobs for comfortable handling
>• Stepped atten and focus controls

• Subbass meter “DUBBY’s Lämple” indicating low frequency content

Components:
• Transformer balanced in- and outputs

• Hand-wound inductors for high boost

• Discrete opamp make-up gain powers the output transformers

• To handle high levels without overloading, the Gain control in 1/2 dB steps is placed before the output amplifier

• Strictly handwired with Vovox sound conductors (purum certified)

• Hand-crafted in Manultec´s boutique custom shop in Germany

Functions (from left to right):
• LAMP: Subbass meter “DUBBY’s Lämple” indicating low frequency content

• LOW: low boost (shelf), stepped, + 14 db – 80 Hz / 100 Hz

• ATTEN: low cut (shelf), – 14 db – 150 Hz / 330 Hz

• FOCUS: Bandwidth control, high boost (bell)

• HIGH: high boost (bell), stepped, switchable 3 KHz / 12 kHz, + 11 db (FOCUS: 0) / + 21 db (FOCUS: 10)

• IN: True Bypass, hardwired (switch out)

• LOWER: Frequency selector Low 80 Hz / Atten 150 Hz (switch in), Low 100 Hz / Atten 330 Hz (switch out)

• HIGHER: Frequency selector High 12 kHz (switch in) / 3 kHz (switch out)

• GAIN: + 3 dB, – 8 dB (half dB steps)
-Input Impedance: > 12 kΩ (transformer balanced with current booster) -Input-/Output transformer balanced
-Input Level (max): + 27 dBu (1% THD)
-Output Level (max): + 29,5 dBu (1% THD)
-Noise: -87 dBu (IEC-A, GAIN position @ +3 dB)
-Dynamic Range: 114 dB (GAIN position @ +3 dB)
-Frequency Response: 6 Hz - 70 kHz (0/-1 dB) / 20 Hz - 20 Khz (+/-0,2 dB)
-Mains Voltage: 120V or 240V
-Dimensions (W x H x D): 483 x 133 x 147 mm (19” / 3U)
-Weight: 4.2 kg
