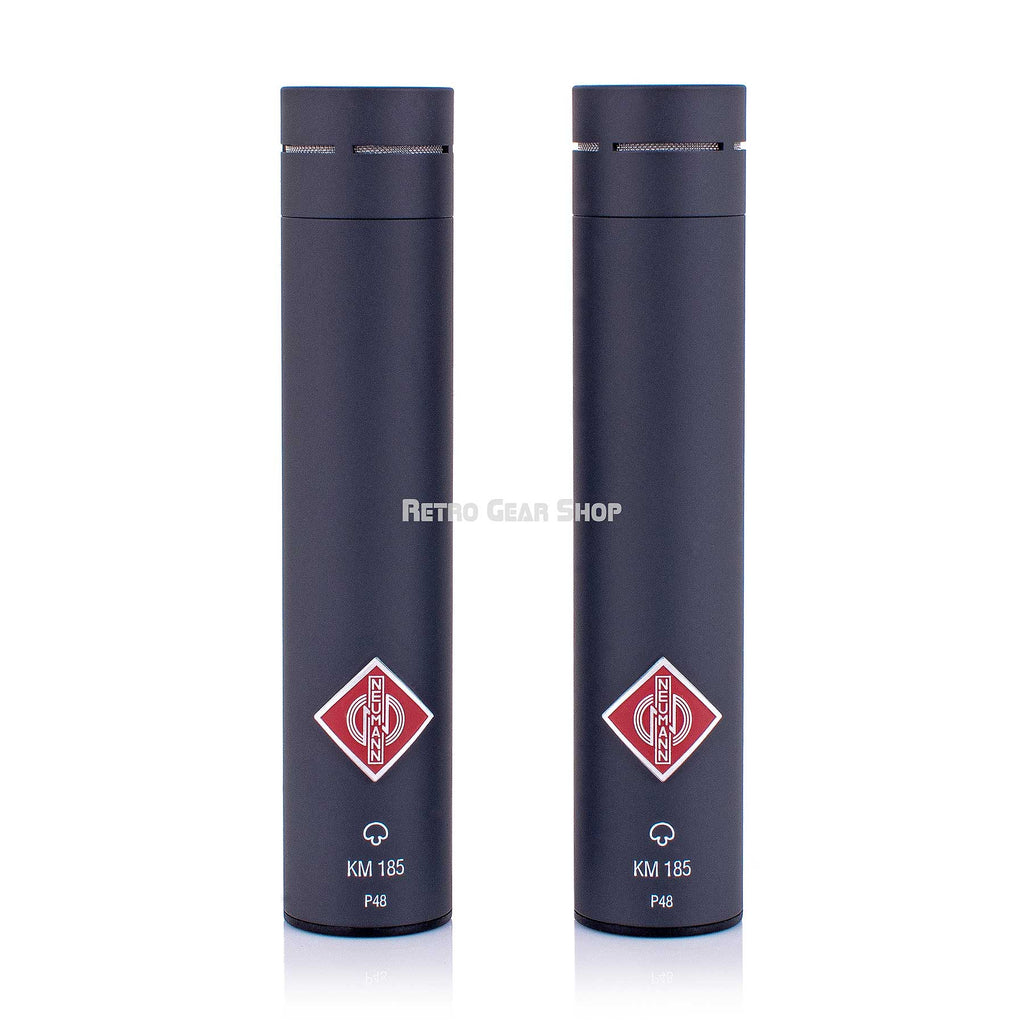

Neumann KM-185 Stereo Set Hypercardioid Microphones Matte Black

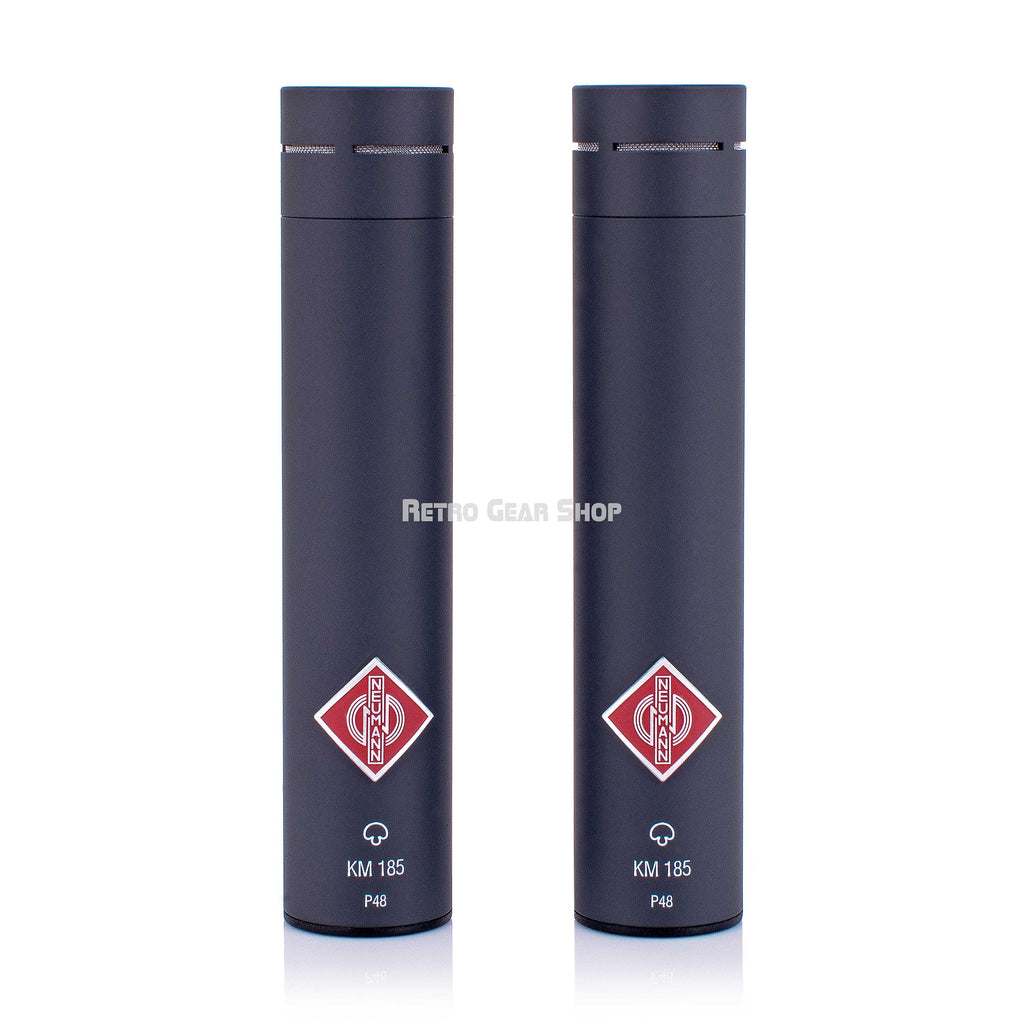

Neumann KM-185 Stereo Set  Matte Black Front

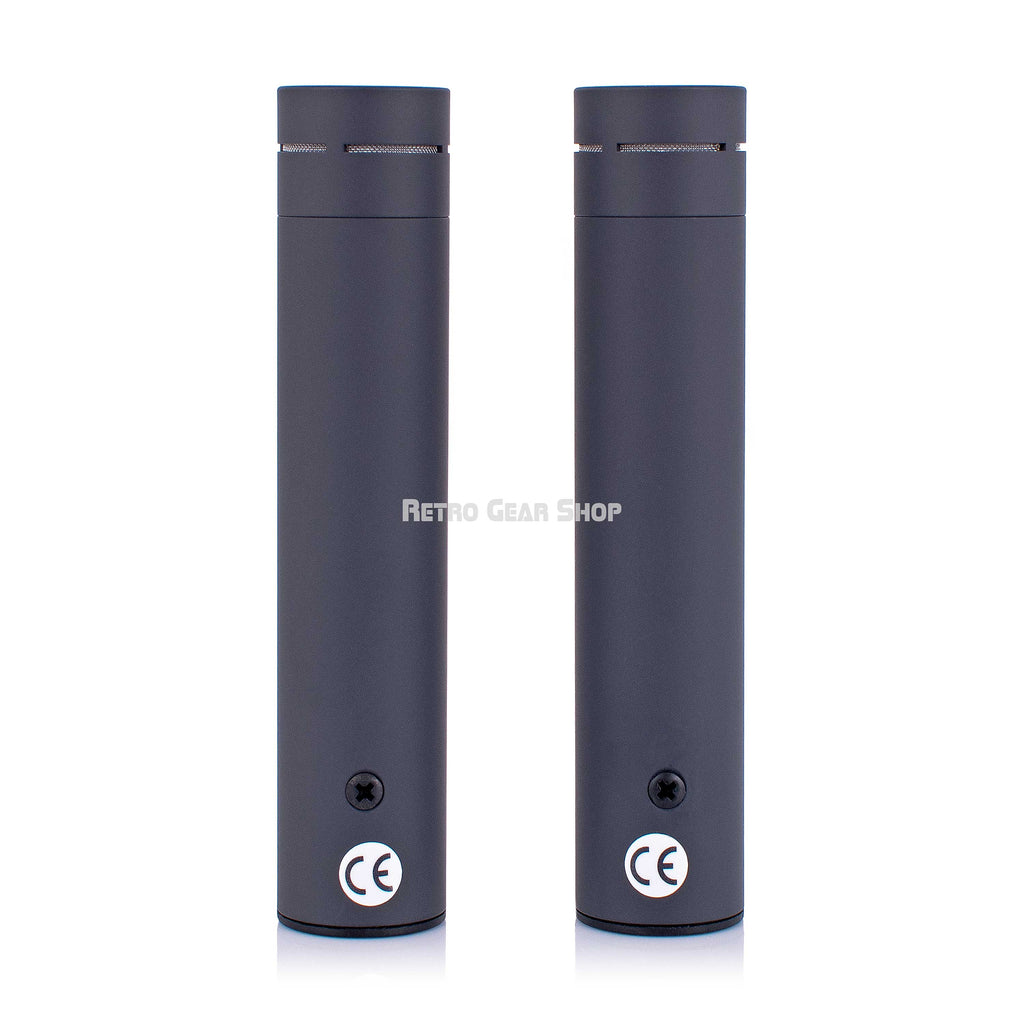

Neumann KM-185 Stereo Set  Matte Black Rear

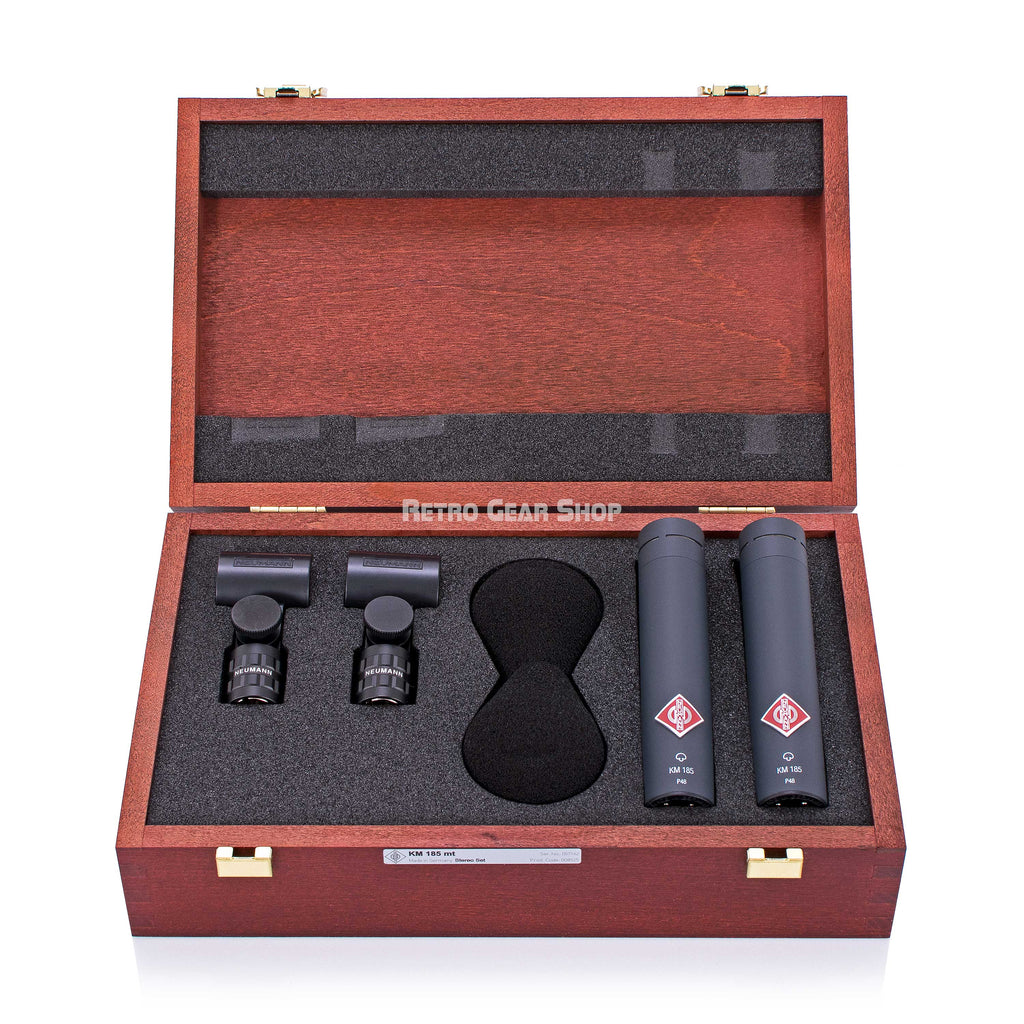

Neumann KM-185 Stereo Set  Matte Black Wooden Case
Neumann KM-185 Stereo Set  Matte Black Rear

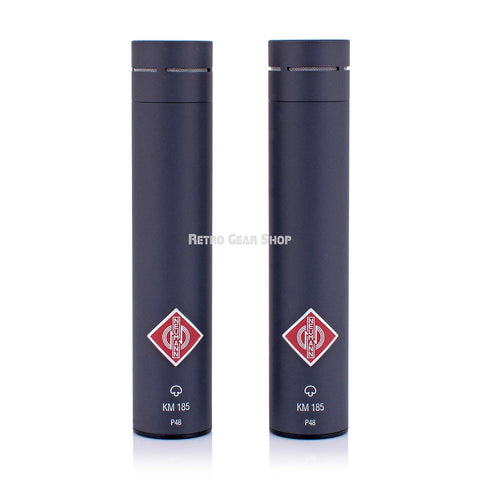

Neumann KM 185 Set Matte Black

Regular price $1,650

HomeOutboard/Recording MicrophonesNeumann

Neumann KM 185 Set Matte Black

Out of stock. Contact us to order and for ETA.

The KM 185 is a state-of-the-art small diaphragm condenser microphone with a frequency-independent omnidirectional polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 185 a worldwide studio standard for many applications ranging from classical piano to heavy metal drums.

Retro Gear Shop is an Authorized dealer for Neumann products.

Brand New with full Warranty.
Free shipping in the USA

Any questions, contact us!

- Uniform hypercardioid pattern without off-axis coloration
- High suppression of unwanted sound
- Linear frequency response with a slight treble lift
- Low self-noise (15 dB-A)
- Low impedance output for long cable runs without transmission losses
- Compact size, visually unobtrusive

While many microphones, these days, are designed to add some sonic imprint of their own, there are many applications that require a faithful reproduction of the original acoustic event, without adding or removing anything. That’s where the Neumann Series 180 comes in.

The Neumann Series 180 consists of three members with different pickup patterns: KM 183 (omni), KM 184 (cardioid), and KM 185 (hypercardioid), thus covering the majority of stage and studio applications. Because the Series 180 microphones are non-modular, they are more-cost effective than the modular Series KM A and KM D (which offer a wide range of interchangeable capsule heads for analog and digital output stages).

Despite its attractive pricing, the KM 185 offers state-of-the-art Neumann engineering. Its hypercardioid pattern is frequency-independent; rejection of rearward sound (120°) is excellent, even at low frequencies. In practical usage, there is no sound coloration over a wide pickup angle, which is crucial in multi-microphone setups and for precise stereo/surround imaging. The KM 185’s frequency response is very smooth and linear with a slight treble lift around 10 kHz for added brilliance. Its innovative transformerless head amplifier offers a wide dynamic range of 127 dB and is carefully designed to maintain the capsule’s sonic integrity. The KM 185 has a very low self-noise of only 15 dB-A and can handle high sound pressure levels of up to 142 dB free from distortion. Due to its low impedance output stage, the KM 185 can drive long cable runs of up to 300 meters (1000 feet) without transmission losses.

The KM 185 is a universal microphone for studio and stage applications. Its transparent sound makes the KM 185 a superb microphone for acoustic instruments, such as piano, acoustic guitar, upright bass, violin, cello, wind instruments, drums and percussion. Its high rejection at 120° without off-axis coloration makes the KM 185 a perfect problem solver in demanding applications, such as recording the snare drum while suppressing spill from the hi-hat. Although the KM 185 is not specially optimized for the human voice, it is often used for classical vocals and whenever sonic authenticity is paramount. Due to its small size, the KM 185 is visually unobtrusive and well suited to TV and radio applications.
Acoustical operating principle     Pressure gradient transducer
Directional Pattern     Hypercardioid
Frequency Range     20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm     10 mV/Pa ± 1 dB
Rated Impedance     50 ohms
Rated load impedance     1 kohms
Equivalent noise level, CCIR 1     24 dB
Equivalent noise level, A-weighted 2     15 dB-A
Maximum SPL for THD 0.5% 3     142 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 4     70 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 5     79 dB
Maximum output voltage     10 dBu
Supply voltage (P48, IEC 61938)     48 V ± 4 V
Current consumption (P48, IEC 61938)     3.2 mA
Matching connector     XLR 3 F
Weight     approx. 80 g
Diameter     22 mm
Length     107 mm

Neumann KM 185 Manual
