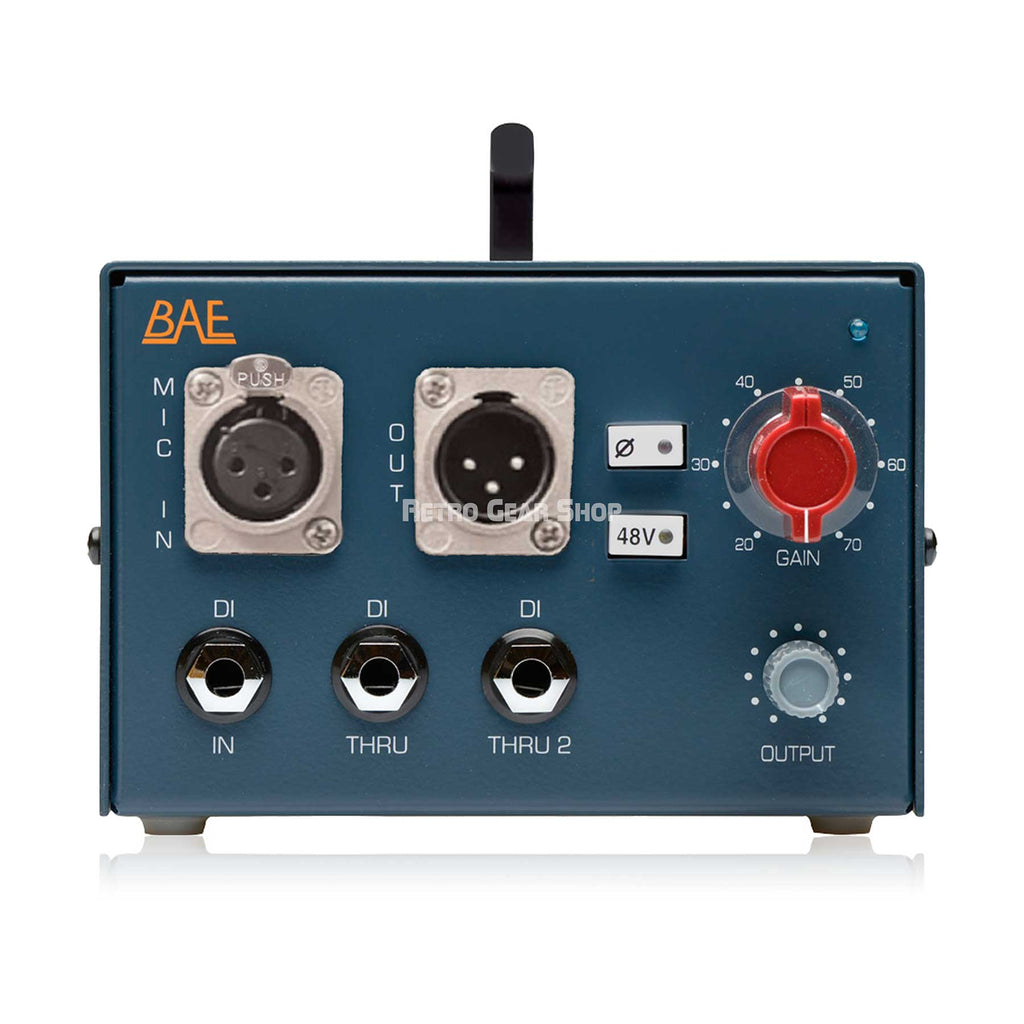

BAE 1073DMP Desktop Portable Mic Preamplifier
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.

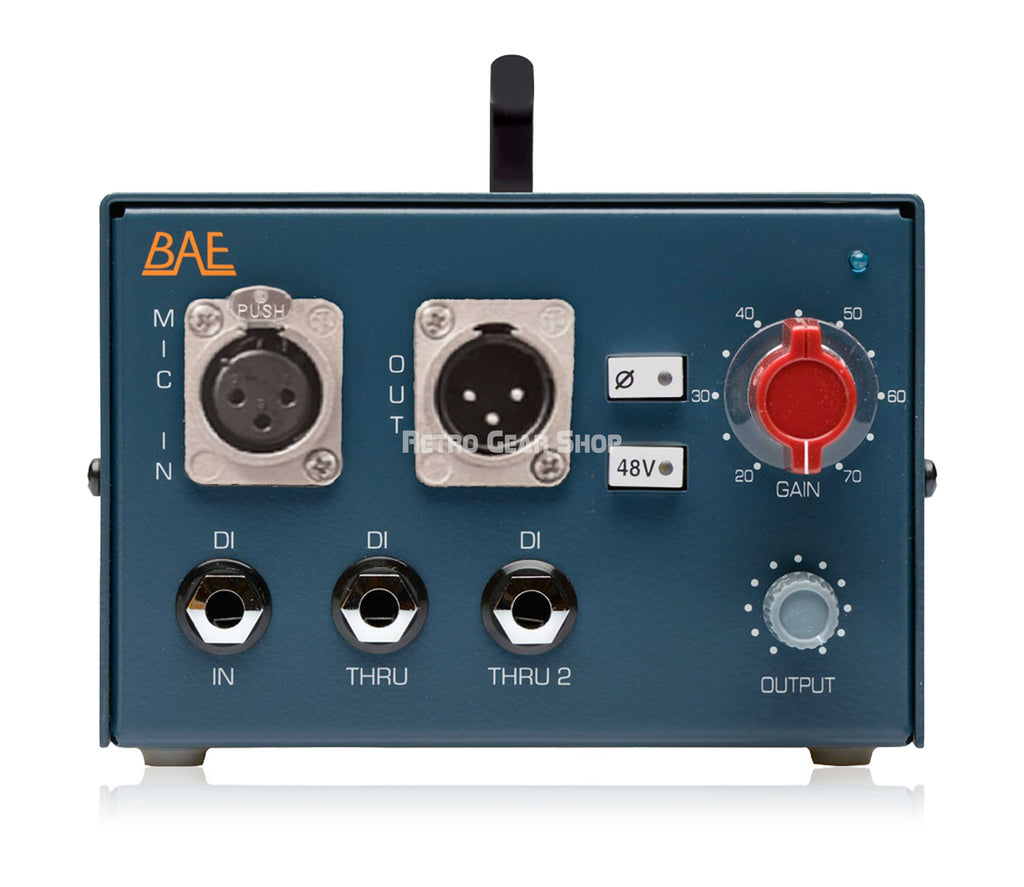

The 1073 DMP features the same pre-amp and the same Carnhill (St Ives) transformers as the 1073 and 1084.
All units come standard with the 'Bootsy Collins' mod which consists of an OEP Carnhill DI transformer to create the first 1073 direct box. The 1073DMP features include two DI thrus, phase reverse, 48V for phantom power, a built in PSU for extra portability and the same hand-wired modular design that BAE is known for.
• Built in PSU for extra portability.
• DI in and DI through.
• 48v for phantom power.
• Solid steel chassis.
• Same hand-wired modular design that BAE is known for.
• Frequency Response: 10Hz to -3dB at 55kHz
• Mic Pre Input Impedance: ≅1200 ohms
• DI Input Impedance: ≅150k ohms
• Output Impedance: 65 ohms
• Common Mode Rejection Ratio: 100dB min @ 60Hz
• Maximum Output Level: +27.4 dBu @ 600Ω
• Power Requirements: 115/230 VAC, 28W
• Gain Voltage: 0 to 33.4 Volts
• Gain dB: 0 to 71 dB
• Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
• Weight: 7.3 LBS/3.31 KG
• Dimensions (Inches): 5.3W x 4L x 11D
