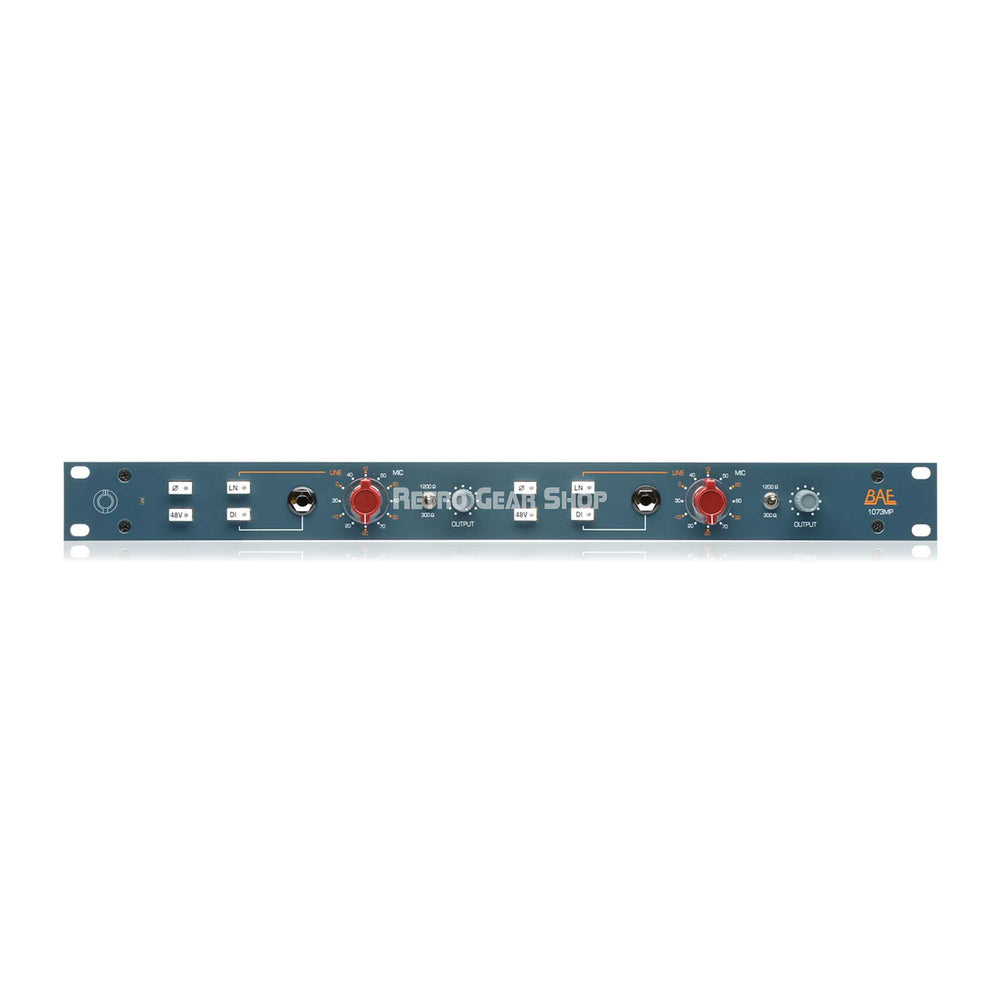

BAE 1073MP Dual Channel + PSU Rackmount Mic Preamplifier

This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

A Carnhill transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

• All Class A, transformer-coupled design in a 19" 1U chassis.
• Line level XLR inputs for extra versatility as a line preamp.
• High impedance DI for guitar and synth.
• The same Class A components as the 1073 and 1084.
• Illuminated phase reverse and phantom power push-buttons.
• Input impedance selector switch between 1200 and 300 ohms.
• Same modular design and hand-wiring BAE is known for.
• Regulated linear power supply will run up to four channels.

• Frequency Response: 10Hz to -3dB at 55kHz
• Mic Input Impedance: ≈1200/300 ohms
• Line Input Impedance: 10k ohms
• DI Input Impedance: ≈150k ohms
• Output Impedance: 65 ohms
• Common Mode Rejection Ratio: 100dB min @ 60Hz
• Maximum Output Level: +27.4 dBu @ 600Ω
• Power Requirements: 115/230 VAC, 30W
• Gain dB: 0 to 71 dB
• Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
• Weight (Single/Dual): 8 LBS/3.63 KG / 10 LBS/4.54 KG
• Dimensions (Inches): 19W x 1.75L x 9D
