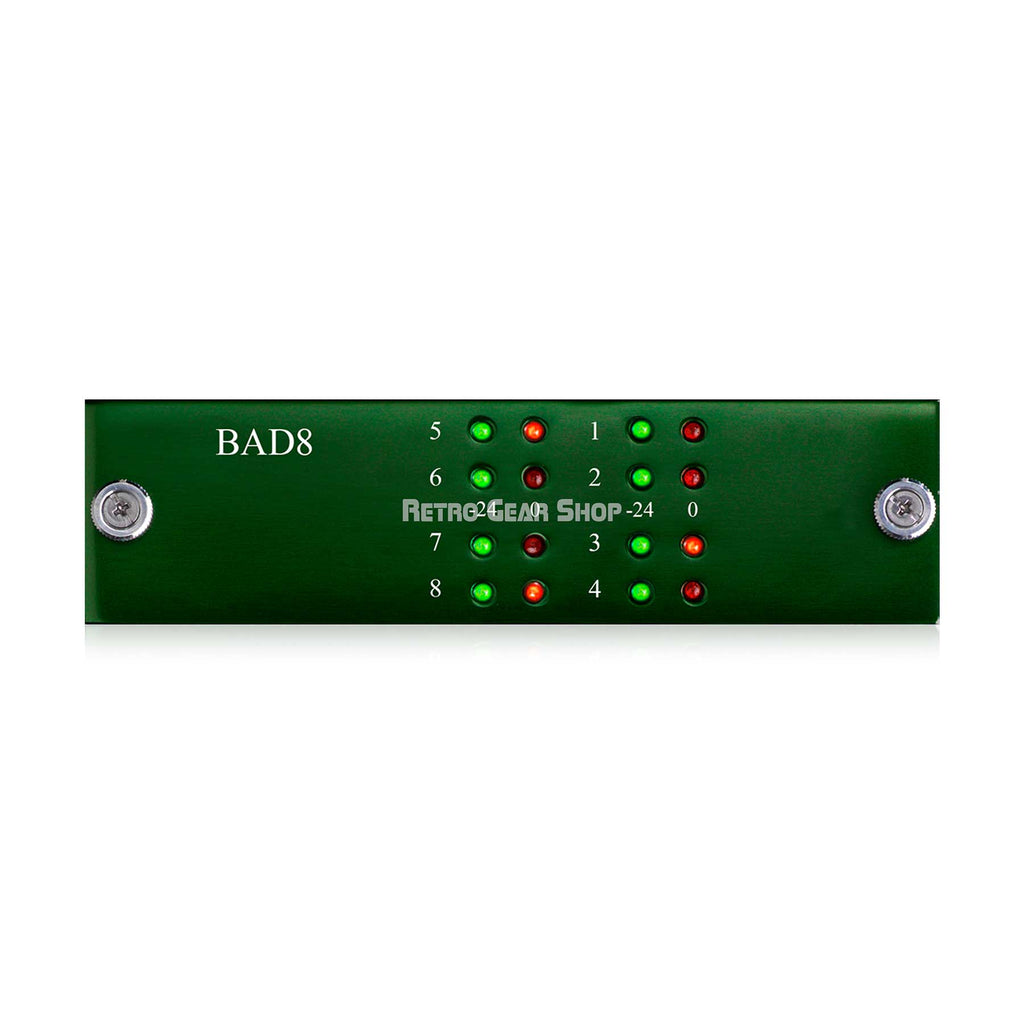

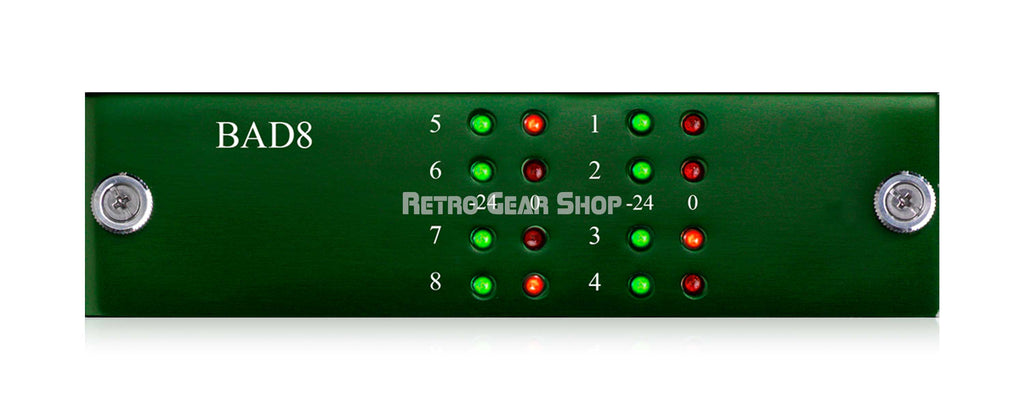

Burl Audio BAD8 for B16 8-Channel ADC Daughter Card

The BAD8, our 8-channel analog-to-digital daughter card for the B80 and B16 MOTHERSHIP is the result of over 25 years of R&D A/D design experience. Following on the overwhelming success of the B2 BOMBER ADC and the BAD4, the BAD8 employs a next-generation analog circuit path and the latest in analog to digital conversion. This is a no-compromise design utilizing all class-A, discrete transistor circuitry and the legendary BX1 transformer coupled input.

The BAD8 benefits from the new form factor of the BX1 transformer, allowing for more channel density. The BAD8 also boasts the latest analog-to-digital conversion technology giving it a great tone with even greater detail and amazing low latency.

• 8-channel ADC

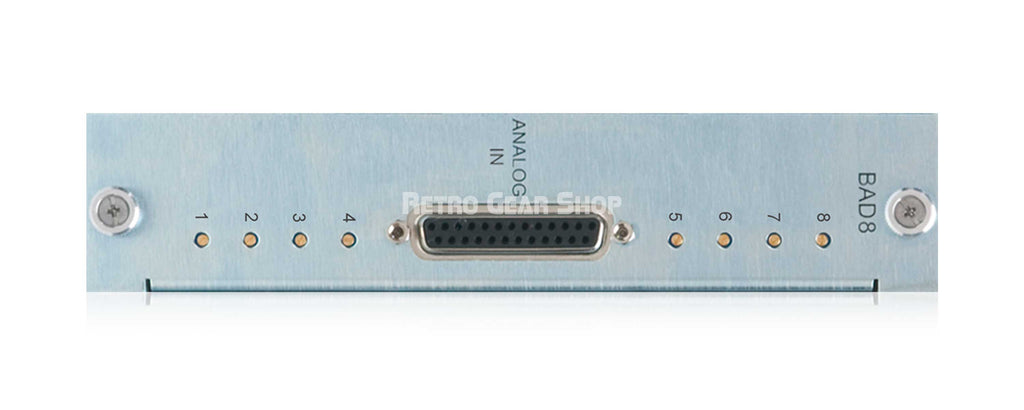

• 8-channel DB25 connectivity (Tascam style)
• All class-A, NextGen Analog
• Proprietary, high definition, BURL Audio BX1 transformer
• Avid delay matching
• ADC filter select
• Frequency response at 48kHz sample rate is 10Hz to 22kHz, +/- 0.1dB
• Frequency response at 96kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -0.3 dB @ 40kHz
• Frequency response at 192kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -1.5 dB @ 90kHz
• 115dB Dynamic Range
• -96dB THD+N, full scale output = +22dBU
