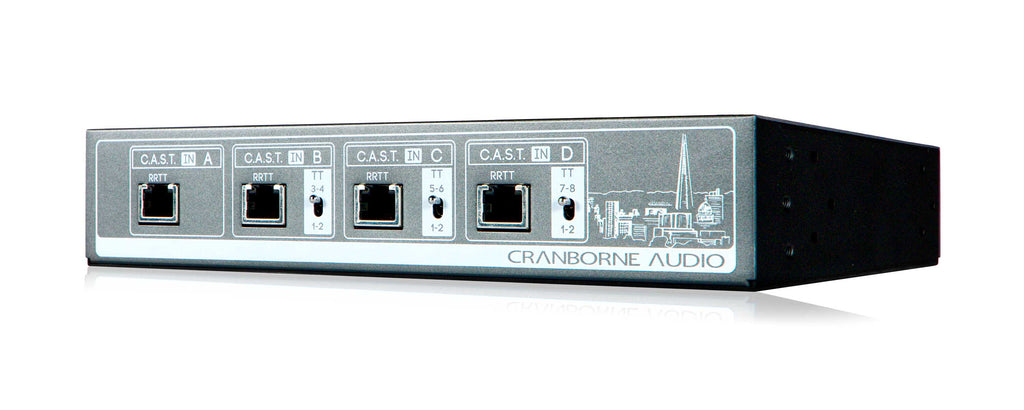

Cranborne Audio N8 C.A.S.T. Distribution Hub and Audio Over Cat 5 System

N8 is an advanced audio distribution hub that uses Cranborne Audio’s C.A.S.T. system to transform network cable (Cat 5e, Cat 6, or Cat 7) into 4-channel analogue snakes and breakout boxes that can be routed around the studio or stage.

Featuring Input and Output connectors on DB25, N8 converts 8 analogue inputs and 8 analogue outputs to Cranborne Audio’s proprietary C.A.S.T. system and creates ingenious, plug-and-play signal routing with any other C.A.S.T.-enabled product.

With 4 dedicated C.A.S.T. ports, N8 allows up to 4 Cranborne Audio breakout boxes to be connected at once for 16 channels of audio routing with any audio interface, mixer, or audio installation.

As each C.A.S.T. port is bi-directional, 2 inputs and 2 outputs are sent/received through each C.A.S.T. connector and cable to allow for dual recording and monitoring capabilities. Connect a Cranborne Audio N22H* to an N8 and you can put a performer, vocal mic, and headphones in one room, whilst receiving the vocal mic signal and sending a headphone mix from a completely different room - all with just one Network cable! Or use N8 with 4x N22H’s to send headphone mixer to musicians located around the live room or next door. As C.A.S.T. works at distances up to 100m/330ft, you can be connected anywhere at home or on the road.

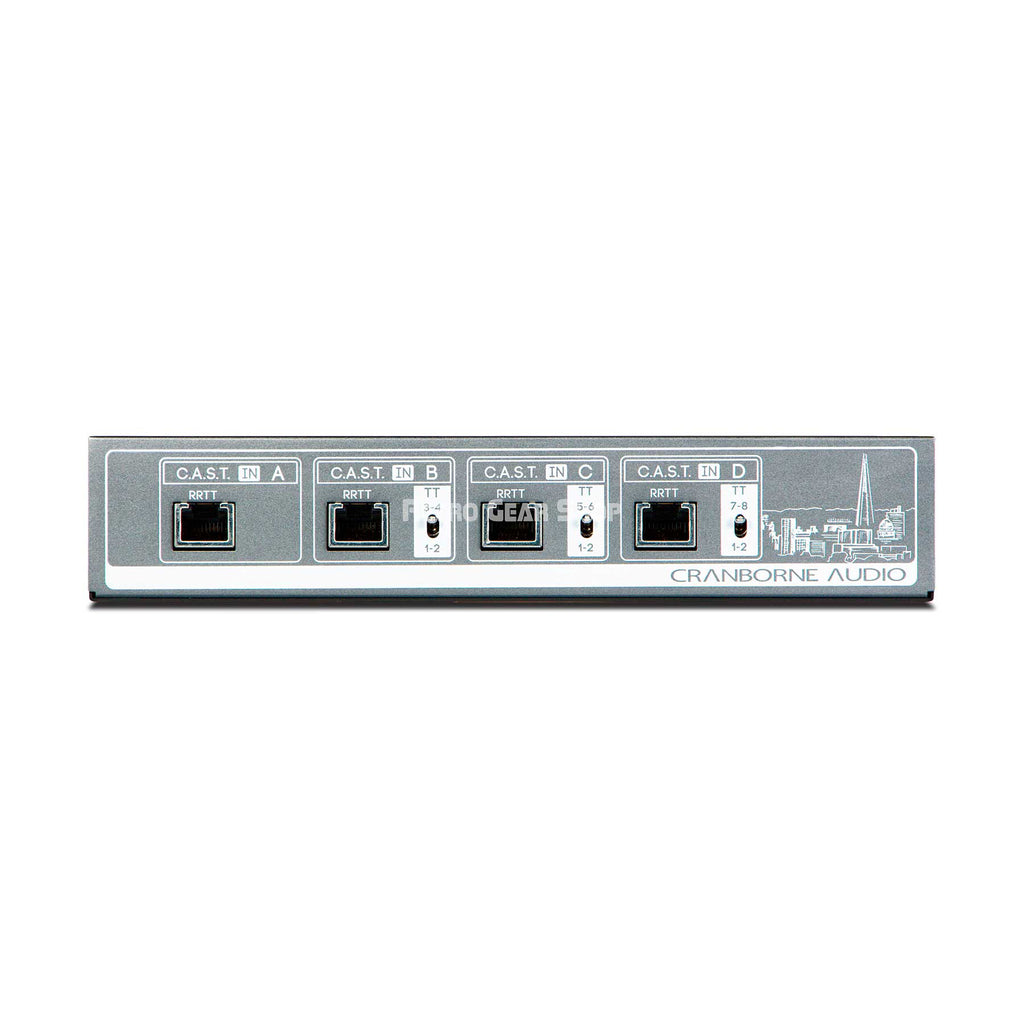

With dedicated C.A.S.T. output routing switches on the front panel, each C.A.S.T. connection on N8 can send the same stereo signal from inputs 1-2 to all connected C.A.S.T. devices or separate stereo signals to each if performers need to hear their own mix.

C.A.S.T. is a high-quality and plug-and-play method of transporting audio from A to B with the least amount of cabling mess. It also supports 48v phantom power in all directions for active DI boxes and condenser microphones. Best of all, as networking cable is common-place in people’s homes, a whole studio re-wire with Cat 5e, Cat 6, Cat 7, and C.A.S.T. is cheaper than equivalent XLR looms and copper snakes.

With a completely passive design, no power is required for full operation and C.A.S.T connectivity. N8 is rugged enough for the stage, small enough to hide in the rack, or rack-mountable with the optional Half-Rack Kit and it’s a cabling solution designed to transform your open space into a studio.

*N22H Sold Separately

• C.A.S.T. Distribution Hub and Audio Over Cat 5 System
• Completely passive operation
• Fully-balanced, high-quality audio paths

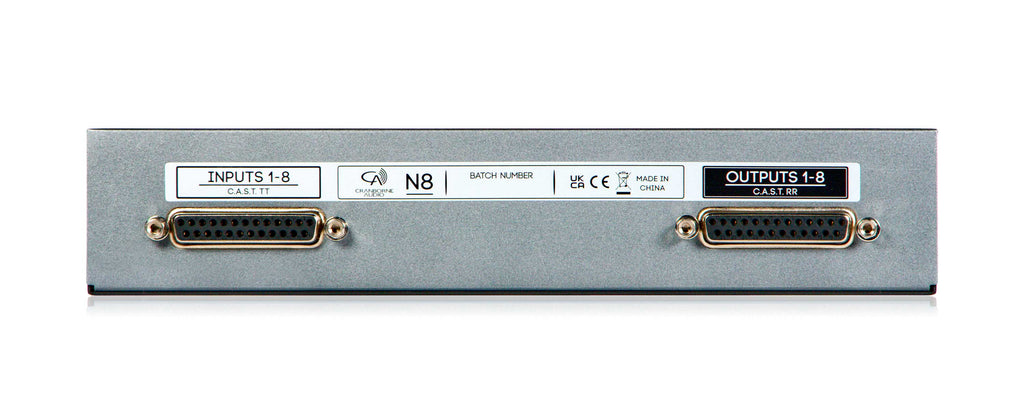

• 8 Inputs and 8 outputs over DB25 (Tascam wiring) (sold separately)
• C.A.S.T. IN A, B, C, and D ports on RJ45 with 2 dedicated Input and output paths each
• Compatible with any shielded Cat 5e/Cat 6/Cat 7 cable with distances up to 100m/330ft
• Improved crosstalk performance with high-performance Cat 6 and Cat 7 (recommended)
• Ruggedised metal enclosure
• Compatible with all Cranborne Audio C.A.S.T.-enabled devices including N22, N22H, Camden EC1, and Camden EC2
• Full-support of 48v phantom power
• Rack-mountable with optional Half Rack Kit (OBDRK001)
