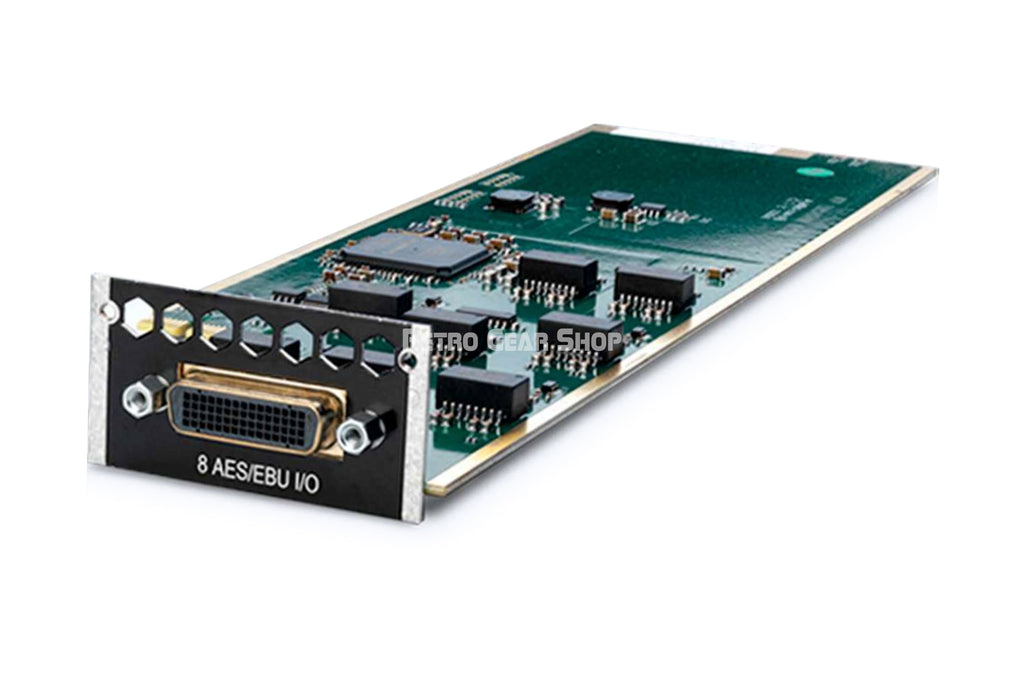

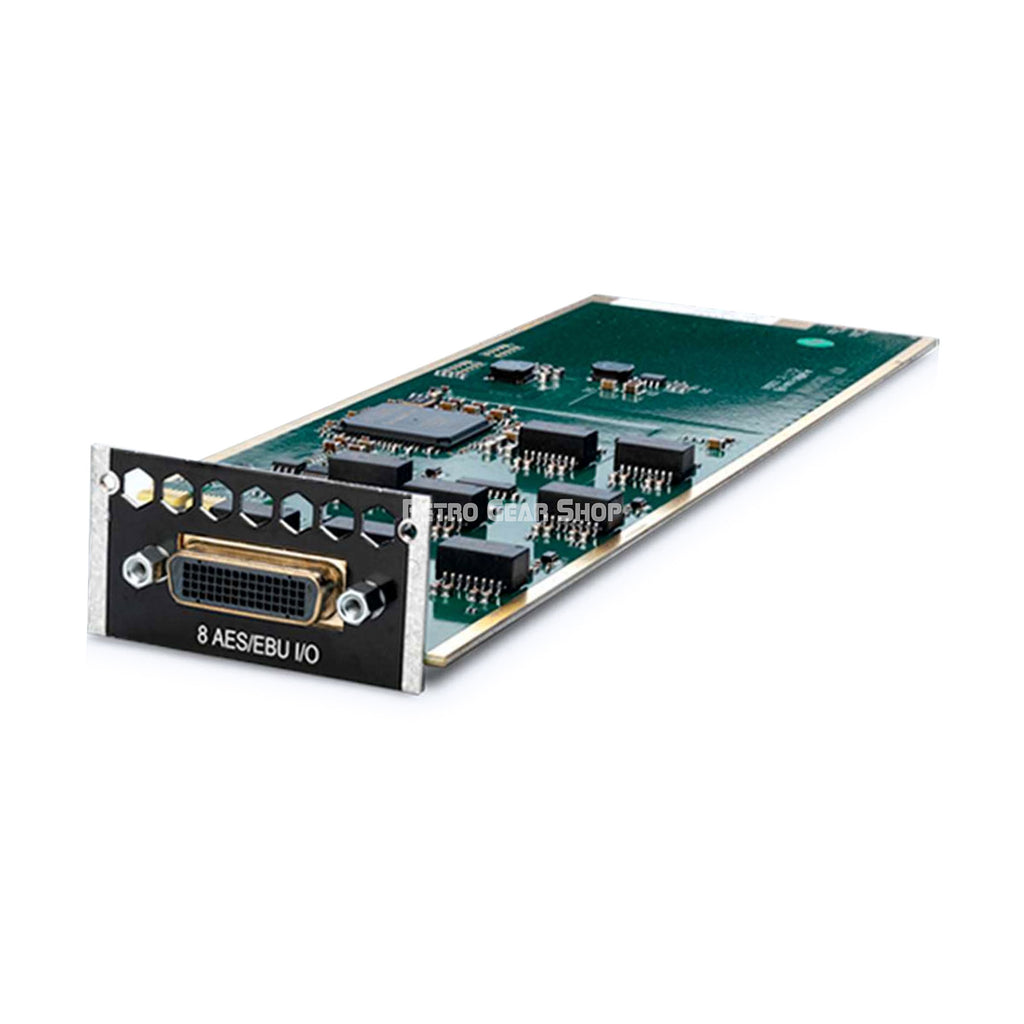

The 8 AES3 IO card has 8 bidirectional AES3 (AES/EBU) two channel streams, providing a total of 16 audio channels. The card has one high density connector providing connectivity for all channels.
The Card provides bidirectional connectivity via the high density LFH-type connector with 16 input channels and 16 output channels @ 48 to 192 kHz. Sample rate conversion can be enabled on the input
• 8 AES3 channels in and out
• 16 audio channels in and out
• Sample rates: 44.1 to 192 kHz
• Full channel count at all sample rates
• Support for AES3 high-speed mode
• Individual sample rate conversion on each AES3 input
• AES3 inputs synchronised to internal system clock, free running through sample rate converter
• AES3 outputs synchronised to internal system clock
• Latency on Sample Rate Conversion
In: 48->96 and 96->48: Approx. 0.8ms
Out: 48->96 and 96->48: Approx. 1.1ms
• Power Consumption: 3.0W
