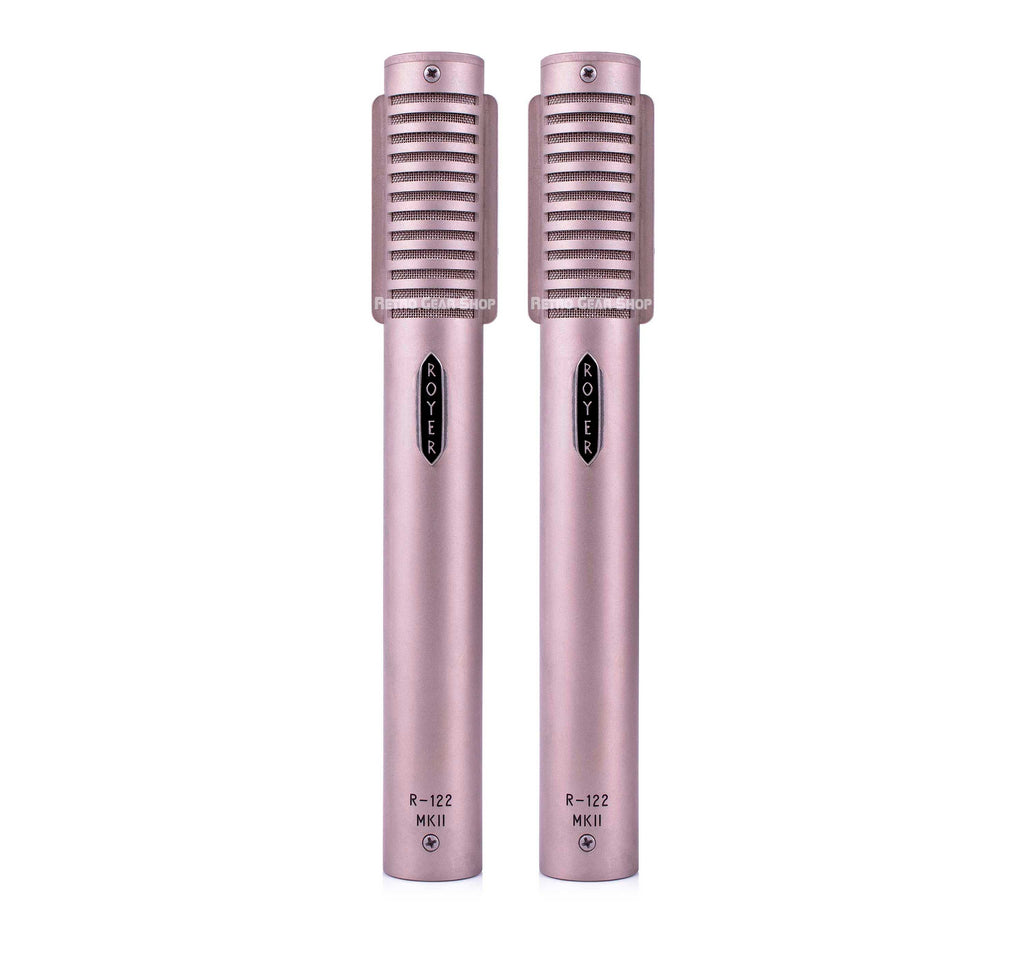

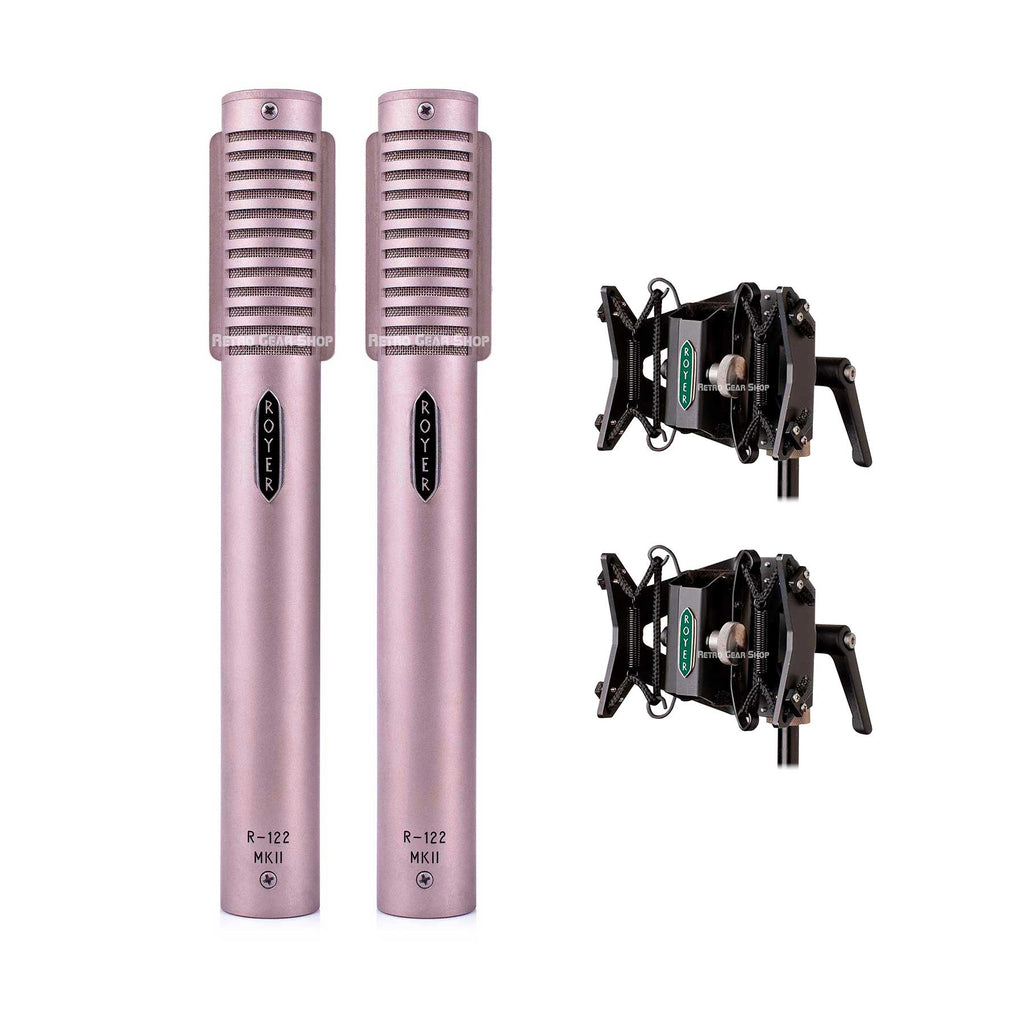

Royer Labs R-122 MKII Pair Active Ribbon Microphone with RSM-SS1 Sling-Shock Microphone Shockmount Bundle

R-122 MKII

In 2002 we introduced the R-122, the world’s first phantom powered, active ribbon™ microphone. It was a revolutionary development in ribbon mics, combining impedance matching circuitry with condenser-like output levels that allowed the R-122 to be used on even the quietest sound sources. It also allowed the mic to be paired to virtually any preamplifier.

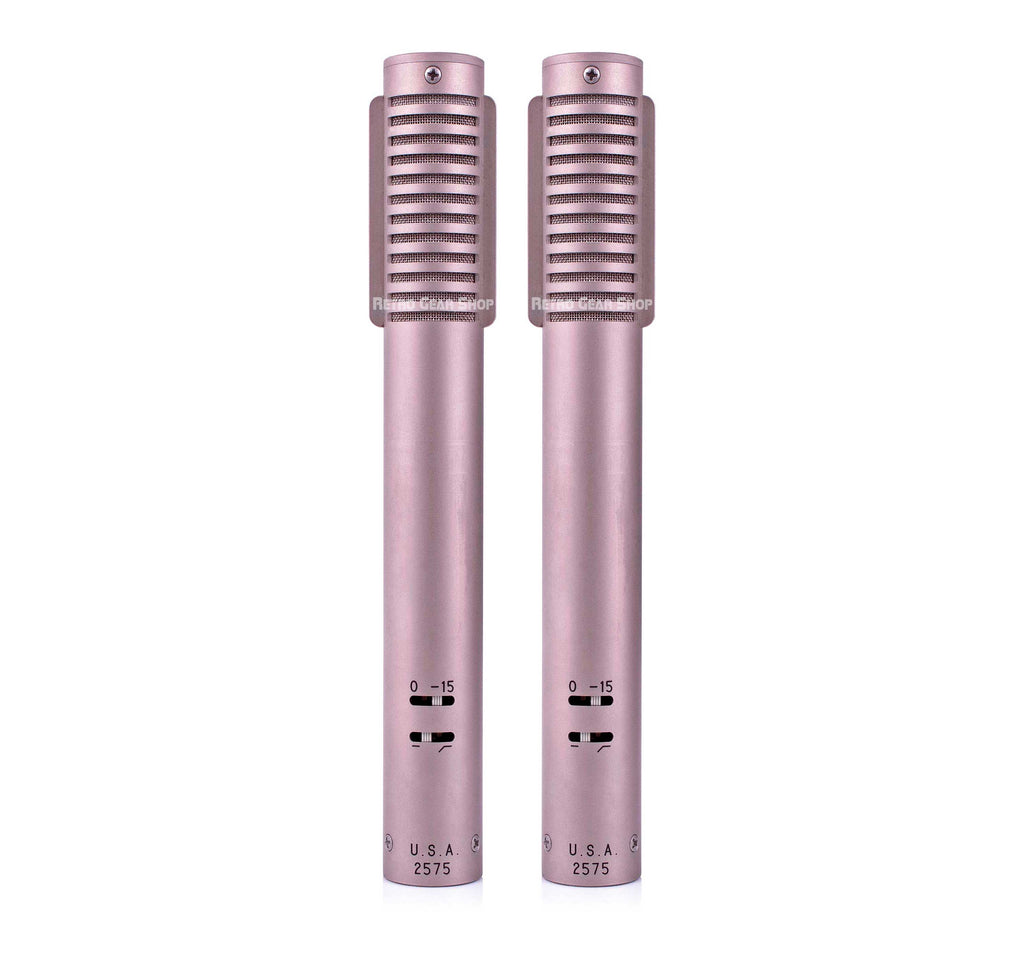

The R-122 MKll takes the R-122 to a whole new level, delivering unprecedented flexibility for ribbons via the addition of a switchable -15 dB pad and a switchable bass-cut filter. The switches are completely out of the circuit when disengaged so when both are off, the microphone is for all purposes an original R-122. The switches are located on the back of the microphone and recessed to prevent accidental activation.

The Pad
The R-122 MKll’s switchable -15 dB pad is positioned before the microphone’s electronics and, when engaged, eliminates any potential for headroom-related distortion on even the loudest sound sources. Wide-open electric guitars are no problem. With the pad in, the R-122 MKll’s output is actually 2 dB lower than our flagship R-121.

The R-122 MKll’s well-designed pad has no sonic imprint. Once levels are matched, the R-122 MKll reproduces sound exactly the same with the pad in as with the pad out.

The Bass Cut
When switched in, the R-122 MKll’s bass cut starts filtering at 100 Hz, 6 dB per octave, effectively reducing the mic’s bass buildup due to proximity effect. This smooth filter is extremely useful on vocals, many acoustic instruments, and close-miked electric guitars when less bottom end is desired.

The R-122 MKll’s electronics are hand-wired in our Burbank, CA factory. The microphone utilizes a special Royer-designed toroidal transformer that delivers a faster transient response than traditional ribbons, making it a first call ribbon mic for drum overheads, percussion, and all acoustic instruments.

Gain

Conventional ribbon microphones need high-quality, high-gain microphone preamplifiers to record softer sound sources. The R-122 MKll’s output level is much higher, allowing you to use practically any mic preamplifier or board pre’s to record even the quietest sounds. The R-122 MKll contains a fully balanced, hand-wired, discrete head amplifier system utilizing a specially wound toroidal transformer and ultra-low noise FET’s. This system is extremely quiet and brings the R-122 MKll’s sensitivity to 37 dB, all while allowing for high SPL recording! Go ahead and plug a MKll into any preamp with average gain – you’ll get full Royer performance and enough level to drive any recording medium.

There is no increase in self-noise in the R-122 MKll’s higher sensitivity. All of the mic’s additional output comes from its large, specially wound toroidal transformer – that wonderful thing called “free gain.” The phantom-powered circuitry provides impedance conversion only, adding no noise of its own.

Impedance Matching

The R-122 MK’s active electronics put a perfect load on the ribbon element at all times, allowing the microphone to deliver its full sonic potential regardless of the input characteristics of the following pre. Due to its low-impedance output, R-122’s can be used on extremely long cable runs with minimal signal loss. In addition, the ribbon element can’t be damaged by phantom power, miswired cables or electrical glitches.

Patented Offset Ribbon Technology

The R-122’s proprietary offset ribbon transducer (Patent # 6,434,252) positions the ribbon element closer to the front (logo) side of the microphone. This configuration gives the ribbon more room to move within the prime magnetic field while maintaining full frequency response during high SPL recordings. It’s an integral piece of the magic of all Royer R-series microphones.

_

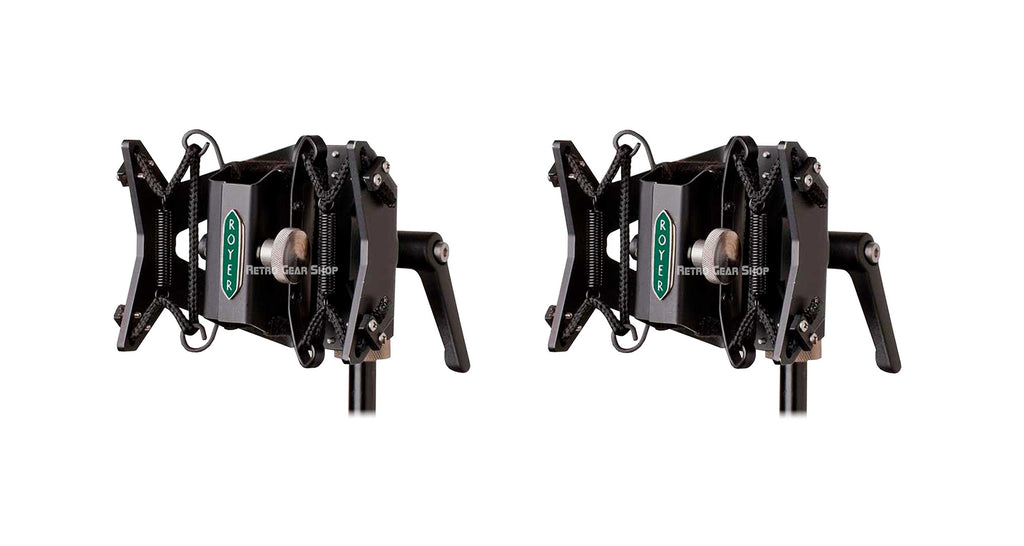

RSM-SS1

The Sling-Shock RSM-SS1 is sized to fit Royer’s 1-inch diameter ribbon mics; R-121, R-122 MKll, R-122V and SF-12 ribbon microphones. The RSM-SS1 will work with any cylindrical microphone measuring approximately one inch in diameter (+/- 1/8 inch).

The Sling-Shock™ (Patent No. 8,571,250) is a revolutionary departure from traditional shockmount designs. We’ve done away with unreliable rubberized parts and elastic cords, producing a durable shockmount that provides exceptional isolation from vibration, rumble and resonances. Our proprietary system of non-resonant nylon cable and damped steel springs acts to isolate the microphone from vibrations induced from the microphone stand. These vibrations appear as rumble and/or low-grade noise across the bandwidth and are greatly reduced by use of the Sling-Shock.

Sling-Shocks also eliminate the self-resonance that traditional shockmounts can generate on high SPL applications like close-miked electric guitar. Shockmount self-resonance creates harmonic interferences at various frequencies – Sling-Shocks eliminate the issue. The Sling-Shock’s superior vibration-reduction capabilities and lack of self-resonance allow engineers to capture performances free of vibration-related interference across the bandwidth.

A cable clip is included on each Sling-Shock. Loop a length of cable under the microphone, then secure the cable to the mic clip to minimize cable-related vibrations.

R-122 MKII

• Phantom powered circuitry provides high output and impedance matching
• -15 dB pad before the mic’s electronics gives more headroom when activated.
• Bass cut filter reduces proximity effect and bass below 100 Hz when activated
• High SPL Capabilities
• No distortion up to maximum SPL rating
• Extremely low residual noise
• Ribbon element is not affected by heat or humidity
• Absence of high frequency phase distortion
• Equal sensitivity from front or back of element
• Consistent frequency response regardless of distance
• Rear side of mic records slightly brighter when three feet or closer to sound source

Applications
• Electric Guitar Amps
• Acoustic Guitar
• Drum Overheads
• Percussion Instruments
• Brass and Woodwinds
• Horn Sections
• Acoustic Piano
• Acoustic Guitar
• Harp
• Solo Strings & String Sections
• Choirs and Orchestras
• Commercial Broadcast
• Voice Over

_

RSM-SS1

• Superior isolation from vibration, shock and rumble
• Lack of self-resonance on high SPL applications
• Felt-lined, scratch-free microphone chamber holds mic securely
• No rubberized parts to degrade or stretch
• Built in microphone cable clip minimizes cable-related vibration
• Flexible for easy microphone positioning
• Lifetime warranty

• Acoustic Operating Principle: Electrodynamic pressure gradient with active electronics.
• Polar Pattern: Figure-8
• Generating Element: 2.5-micron aluminum ribbon
• Magnets: Rare Earth Neodymium
• Frequency Response: 30 - 15,000 Hz ±3 dB
• Sensitivity: -36 dB (re. 1v/pa ±1 dB)
• Switchable Pad: -15 dB
• Switchable Bass Cut: 100 Hz (6 dB per octave)
• Self-Noise: < 18 dB
• Output Impedance: 200 Ohms, balanced
• Output Connector: Male XLR 3-pin (Pin 2 Hot)
• Rated Load Impedance: 1K-Ohm minimum
• Maximum SPL: >160dB @ 1kHz, >135 dB @ 30Hz
• Power Requirements: 48-Volt Phantom Only
• Supply Current: 4 mA
• Dimensions: 206mm L X 25mm W (8 1/8” L X 1” W)
• Weight: 309 grams (10.9 oz)
• Finish: Burnished Satin Nickel / Matte Black Chrome (optional)
• Accessories: Protective wood case, mic sock Optional Accessories: Wind screen, shock mount
• Microphone Warranty: Lifetime to original owner (repair or replace at Royer’s option)
• Ribbon Element Warranty: One Year
