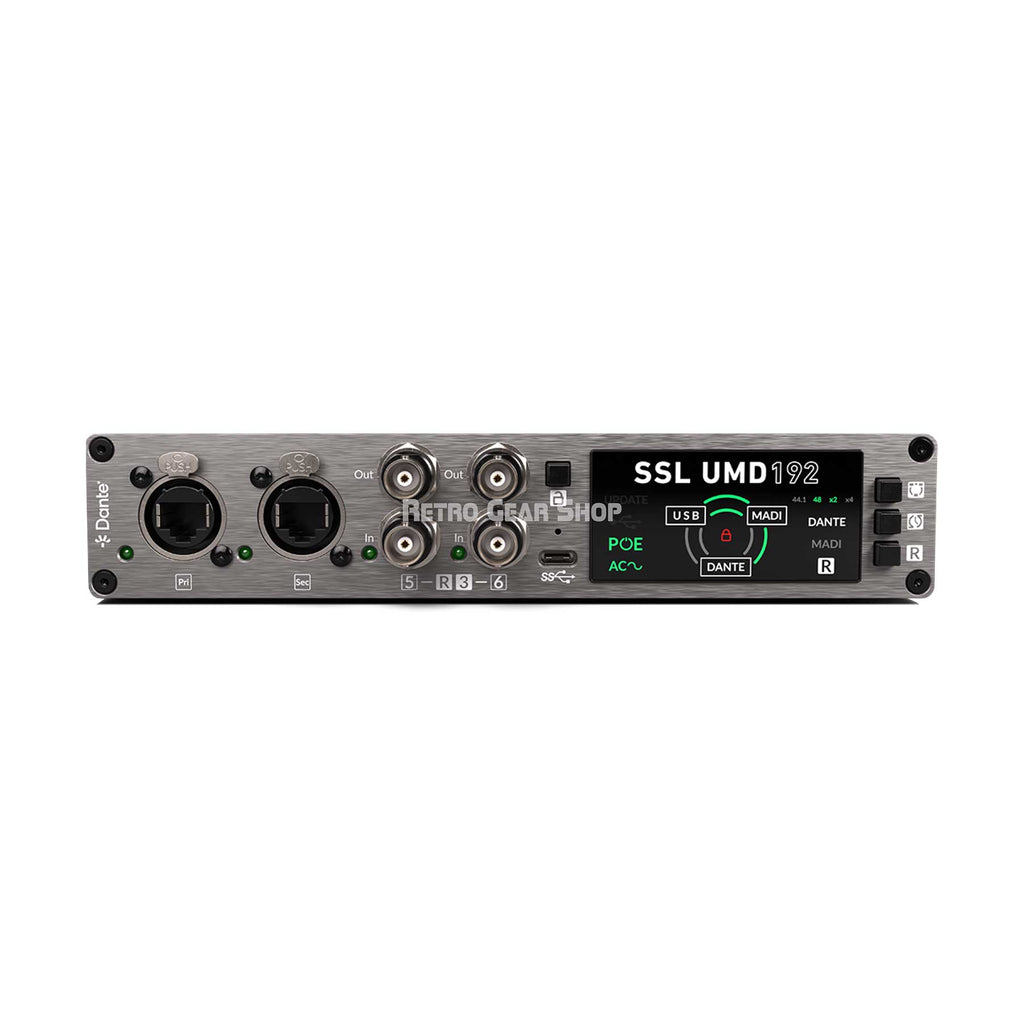

Solid State Logic SSL UMD192 USB Audio Interface
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
The most powerful MADI & Dante digital audio interface available. The All-in-One Solution for Live, Broadcast and Studio
Solid State Logic is proud to introduce the UMD192, a powerful and portable USB audio interface designed to meet the demands of high-spec studios, professional live sound, and broadcast environments. With seamless integration across MADI, Dante, and USB, the UMD192 offers flexible routing, high channel counts, and uncompromising performance for recording, playback, and format bridging. Providing 192 channels at both 96 and 48 kHz, or 128 channels at 192 kHz in a compact and portable ½RU form factor.
With unmatched flexibility and robust connectivity, the UMD192 is the perfect companion for engineers working across live sound, broadcast, postproduction, and studio environments. Whether used as a high-capacity interface or a format bridge, the UMD192 keeps workflows streamlined and future-ready.
The UMD192 versatility makes it equally valuable across a wide range of professional audio scenarios. From broadcast music recording and mixing—especially when paired with SSL System T—to high-channel-count studio sessions, the UMD192 delivers seamless integration and robust performance.
The UMD192 is a perfect match for SSL Oracle or ORIGIN installations with Dante or MADI conversion and an ideal computer interface for Harrison 32Classic systems with Dante. The UMD192 is a powerful solution for non-SSL console users in live sound, broadcast, studio and postproduction settings, or any DAW-based studio using Dante or MADI.
• 192 channels at 48/44.1 kHz, 192 channels at 96/88.2 kHz, and 128 channels at 192/176.4 kHz
• USB 3.0 class-compliant interface
• Mac OS compatible; Windows support via SSL driver
• 6x MADI BNC pairs with redundant mode for 3x dual-redundant MADI connections
• Fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support
• Ultra-low Dante latency—as low as 0.25ms
• Flexible clocking from MADI or Dante
• Ruggedised Ethernet ports (2x Primary, 2x Secondary) with Link & Activity LEDs

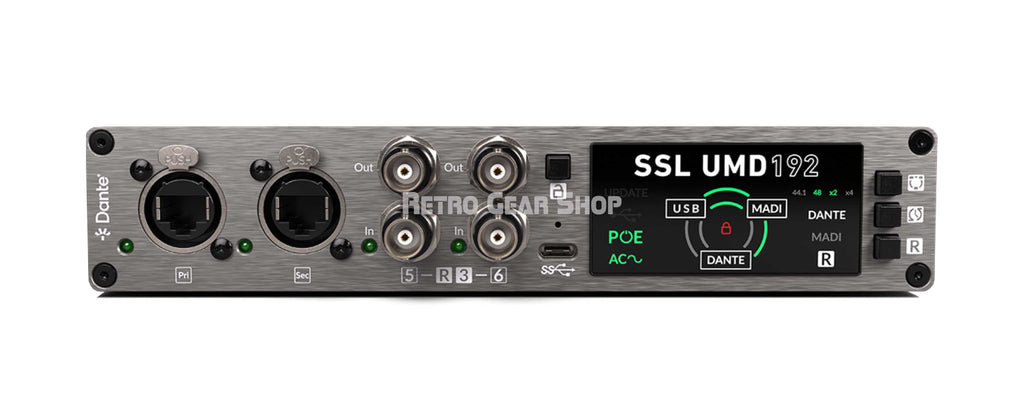

• Clear front-panel indicators for signal flow, sample rate matching, power status, and connectivity
• Intuitive front-panel controls, with a lockout feature to prevent accidental changes during operation.
• Multiple power options: AC, PoE, or USB—with redundancy support
• Lightweight and portable design for desktop, console-side, or rack-mounted use
• Included cables: USB-C to C, USB-A to C adapter, IEC power cable
