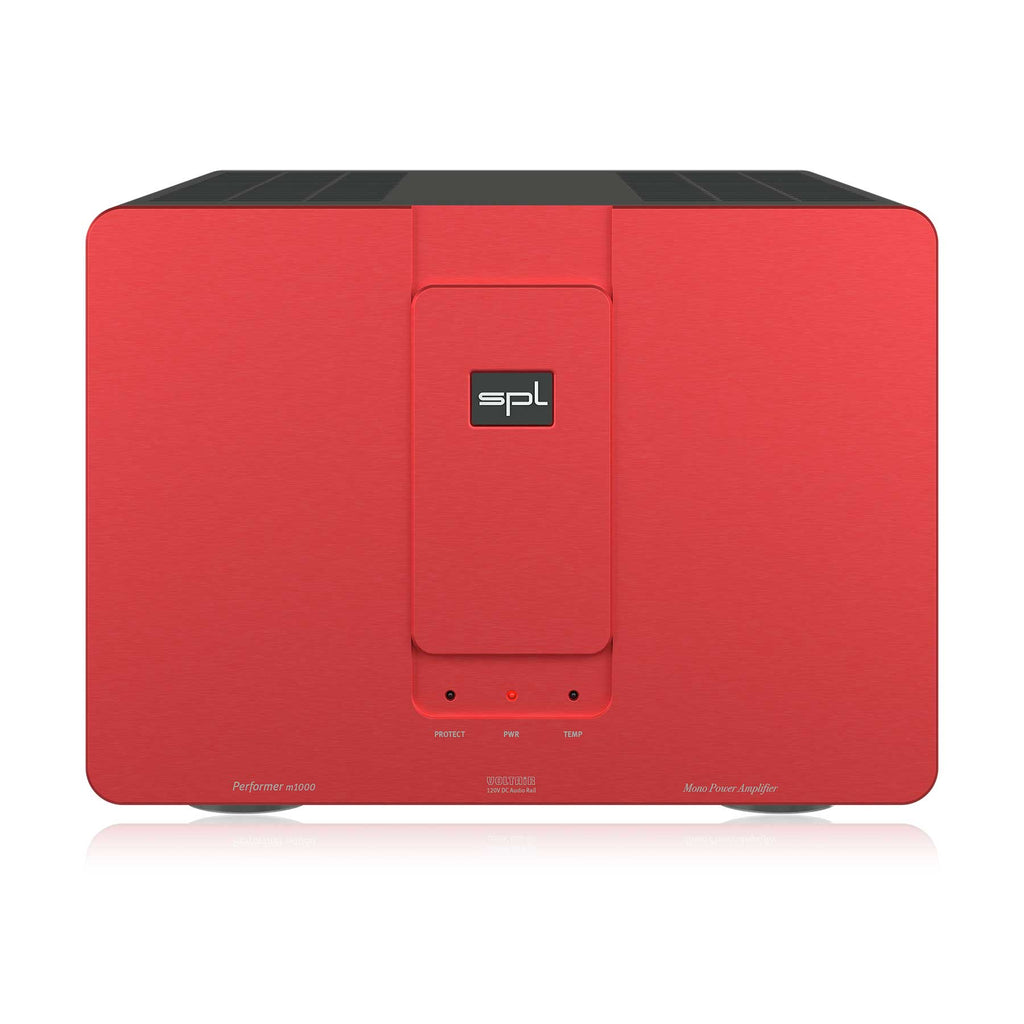

SPL Audio Performer m1000 Monoblock Power Amplifier Red
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
With a power amplification of 750 W (4 Ω) [1000 W (2 Ω); 420 W (8 Ω)], this completely analog amplifier easily controls any loudspeaker. Thanks to the VOLTAiR technology the performance of the m1000 is detail-rich, vivid, honest and plain simply beautiful.
In addition to the choice of the basic color black, red or silver, there are three more options for each to customize the Performer m1000 to individual design preferences with the black, red and silver decorative panels included in the scope of delivery. The decorative panels adhere with the help of a strong neodymium magnet. No tools are required to exchange them.
Analog Input & Thru: XLR (balanced)
• Input impedance (THRU not connected): 20 kΩ
• Common mode rejection (THRU not connected): -82 dBu
• Input sensitivity: 12.5 dBu
Loudspeaker Output: Binding posts with ø4mm cable hole (screwable) and banana plug
• Output power (RMS, 2 Ω): 1000 W
• Harmonic distortion (1 kHz, 2 Ω): < 0.08 %
• Output power (RMS, 4 Ω): 750 W
• Harmonic distortion (1 kHz, 4 Ω): < 0.05 %
• Output power (RMS, 8 Ω): 420 W
• Harmonic distortion (1 kHz, 8 Ω): < 0.03 %
• Output voltage (peak to peak): 180 V
• Output voltage (RMS): 64.6 V
• Output impedance (20 Hz – 20 kHz): < 0.031 Ω
• Amplification gain: 26 dB
• Damping factor (1 kHz, 8 Ohm): > 280
• Frequency range (-3dB): 10 Hz – 80 kHz
• Noise (A-weighted): -123 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
• Toroidal transformer: 1375 VA
• Operating voltage (Input stage): +/- 60 V
• Operating voltage (Power stage): +/- 91 V
• Operating voltage for relays, LEDs, AMP CTL: + 12 V
Mains Power Supply
• Mains voltage (selectable, see fuse chamber): 230 V AC / 50 Hz; 115 V AC / 60 Hz
• Fuse 230 V: T 6.3 A
• Fuse 115 V: T 10 A
• Power consumption: max. 1375 VA
• Idle power consumption: 50 W
• Stand-by power consumption: < 0.3 W
Dimensions & Weight
• Width x Height incl. feet x Depth (incl. controls and plugs): 278 x 205 x 345 mm (375 mm) mm
11 x 8 x 14.8 inch
• Unit weight: 24.8 kg
54.7 lbs
• Shipping weight: 29.3 kg
64.6 lbs
