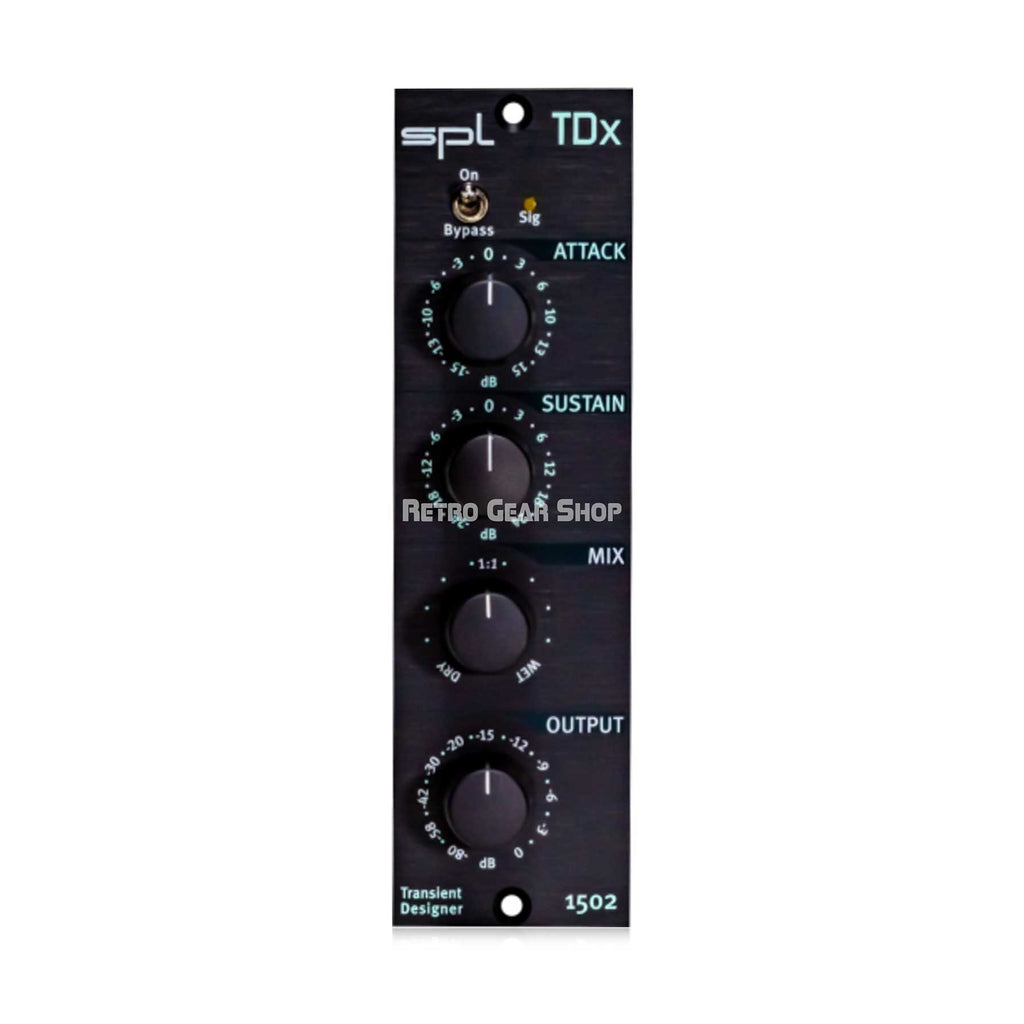

SPL Audio TDx 500 Series Transient Designer
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
The Transient Designer TDx brings level-independent dynamics processing to the world of 500 Series.
• The Differential Envelope Technology
Differential Envelope Technology (DET) enables, through differential envelopes, level-independent processing of dynamic signal characteristics.
Only two controls are needed to control the transient response.
Input & Output; balanced
• Maximum input & output gain: 21 dBu
• Input impedance: 20 kΩ
• Output impedance: 150 Ω
• Common mode rejection: > 82 dB
• Frequency range (-3 dB): 10 Hz – 100 kHz
• THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
• Noise (A-weighted): -92.3 dBu
• Dynamic range: 113 dB
Dimensions & Weight
Single-spaced module for 500 Series
• Unit weight: 0.65 kg
1.43 lbs
• Shipping weight (incl. packaging): 0.9 kg
1.98 lbs
