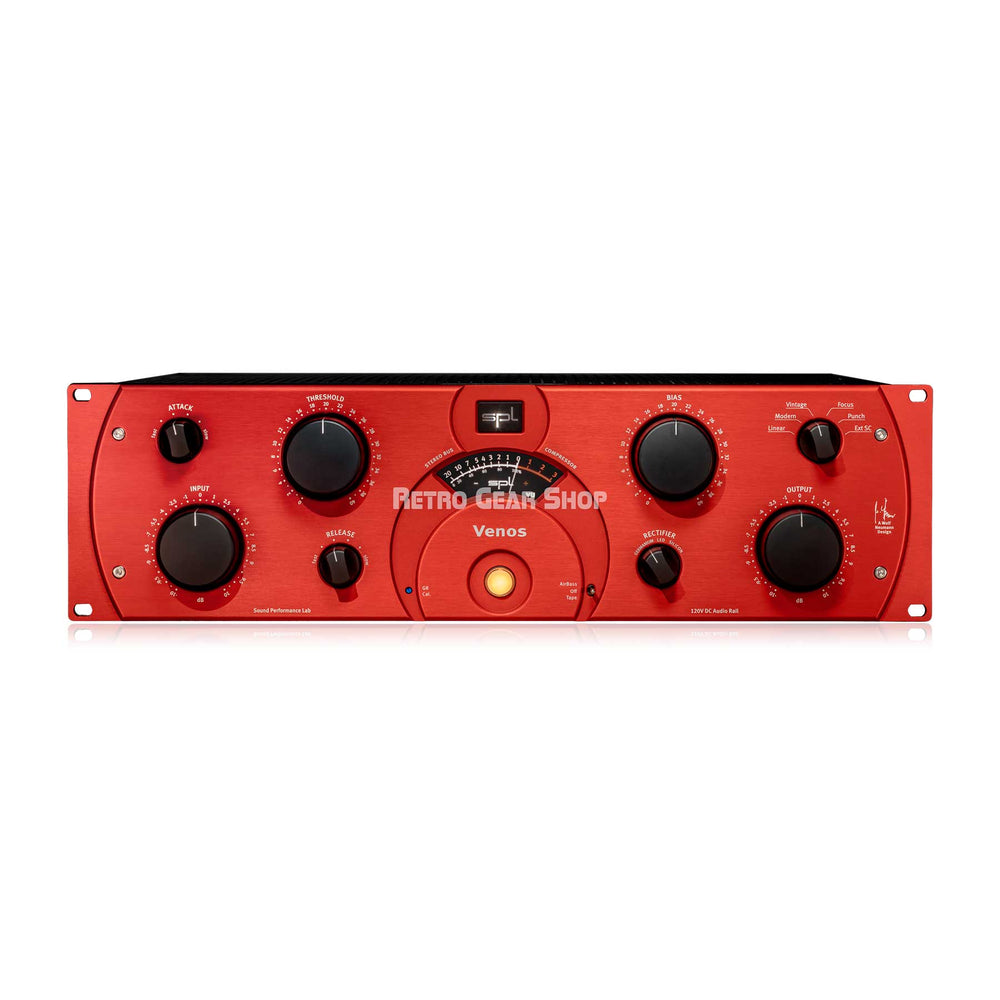

SPL Venos Stereo Bus Compressor Red

The Venos stereo bus compressor is based on the same design as many legendary vintage tube compressors.

Venos expands this impressive sonic signature with two revolutionary hyper-compression modes, opening up new dimensions of sound. With SPL 120V technology this sound is crowned king of dynamics.

The Venos stereo bus compressor is basically a variable bias tube compressor. Venos works on the principle of a bias-controlled remote cutoff tube, but expands the sonic versatility of this concept with the new hyper-compression modes “Focus” and “Punch”.

Once the ideal input level is dialed in, comparing different parameter settings works like a charm. The parameters have been fine-tuned in countless listening sessions to make the compressor intuitive to use.

All parameters are set using switches or detented potentiometers. A single control element manages both the left and right channel, allowing for easy recall!

Analog inputs & output; XLR (balanced)
Maximum input & output gain: +32,5 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Common mode rejection (0dBu, 1kHz): < 80 dB
Frequency range (-3 dB): 10 Hz–40 kHz
Crosstalk (1 kHz): -108 dBu
THD (+10 dBu): 0,002 %
Noise (A-weighted): -98 dBu

Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V

Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 1 A
Fuse for 115 V: T 2 A
Power consumption: max. 9,9 VA

Dimensions & Weight
W x H x D (width x height x depth): 482 x 132 x 300 mm / 19 x 5.2 x 11.8 inch
Unit weight: 3.85 kg / 8.49 lbs
Shipping weight (incl. packaging): 4.9 kg / 10.8 lbs
