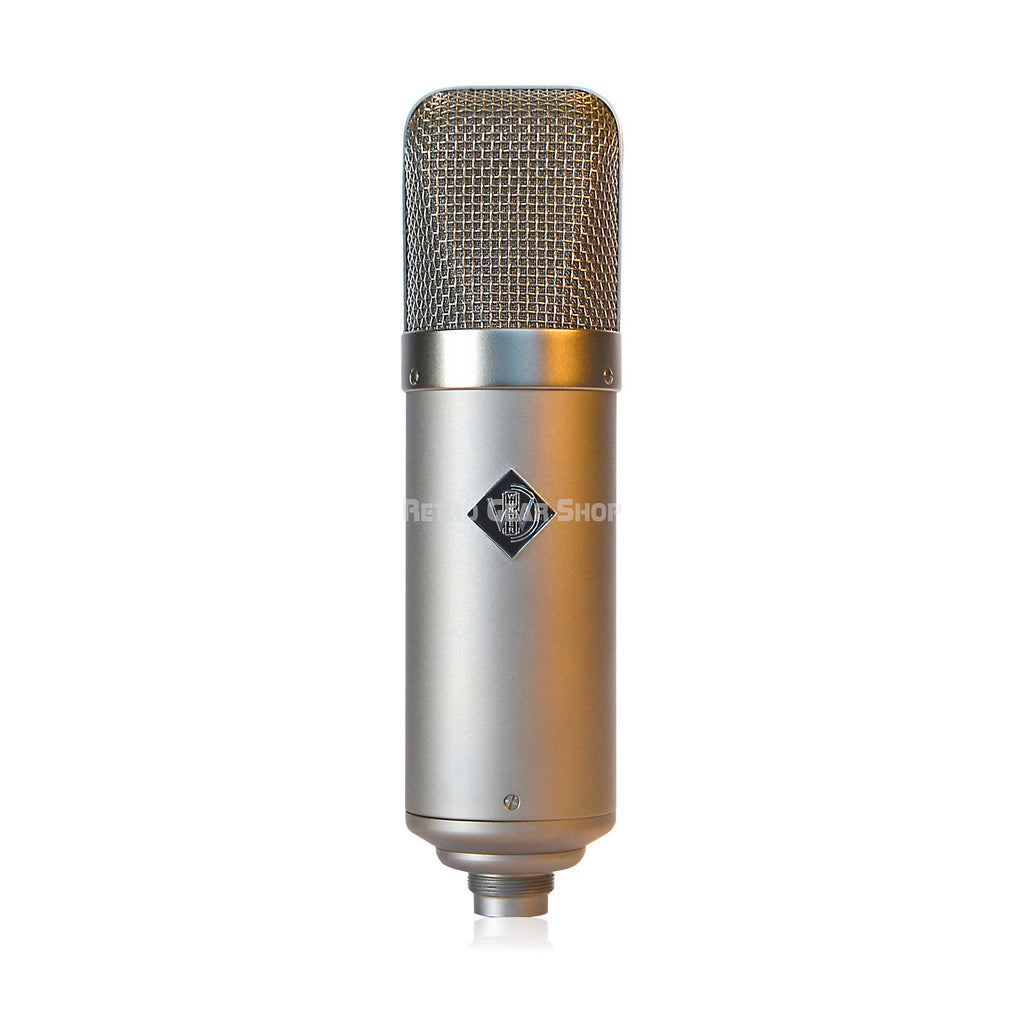

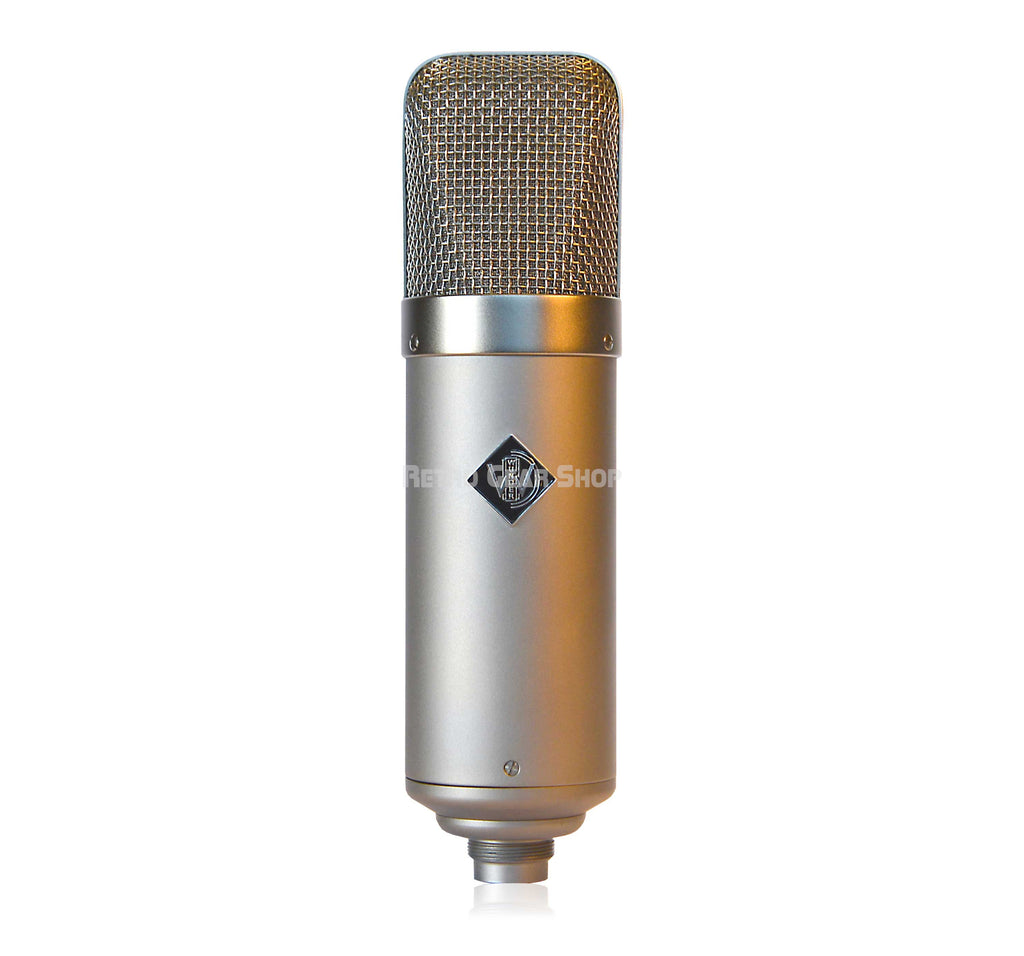

Wunder Audio CM67 Suprema Tube Microphone

The Wunder Audio CM67 S is an exceptional microphone for vocals when a smoother sound is desired. It is also excellent for drums (toms, snare, overheads), acoustic guitar and electric guitar. The CM67 S is a serious pro-studio workhorse because it has a very nice top and bottom end, and brings out a natural sound from any source. As a modern upgrade, we’ve engineered a switchable cardioid mode relay on the inside of the mic instead of on the outside of the grille. This mode produces a smoother more full-bodied sound. The pattern switch is still on the PSU, but the actual switch point in the circuit is directly below the capsule compartment. At the same time, it retains the eight different polar patterns, so it is like having two mics in one!

Capsule
The capsule in the CM67 S includes a two-piece back plate, allowing both diaphragms to be tuned individually and then matched for an equivalent response. We utilize a white porcelain mounted ringed capsule. Our porcelain has low permeability and elasticity, considerable strength, hardness, resonance, and a high resistance to chemical attack and thermal shock, improving on the white plastic rings, which were prone to discoloring, becoming soaked with impurities over the years and affected its electrical resistance thus creating noise.

Tube
The CM67 Suprema gives you a choice of one of two new old stock EF86 tubes that are excellent in this mic, both are fantastic and both are unique in their own way:
• One is the German made vintage Telefunken EF86, which emphasizes the highs.
• The other is a vintage special select Phillips tube, which lends warmth to the sound.

Transformer
The transformer in the CM67 Suprema is true to vintage and is somewhat unique. It makes use of an elaborate feedback network known as a tertiary winding, which creates negative feedback through the capsule to the tube for High-Frequency de-emphasis. It creates a roll-off in the HF response in order to compensate for the natural HF peak due to the design of the capsule. It takes a very special transformer to accomplish this task while simultaneously achieving such an impressive sound.

Capacitor
We’ve optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable.

Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used in the 1960’s. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.

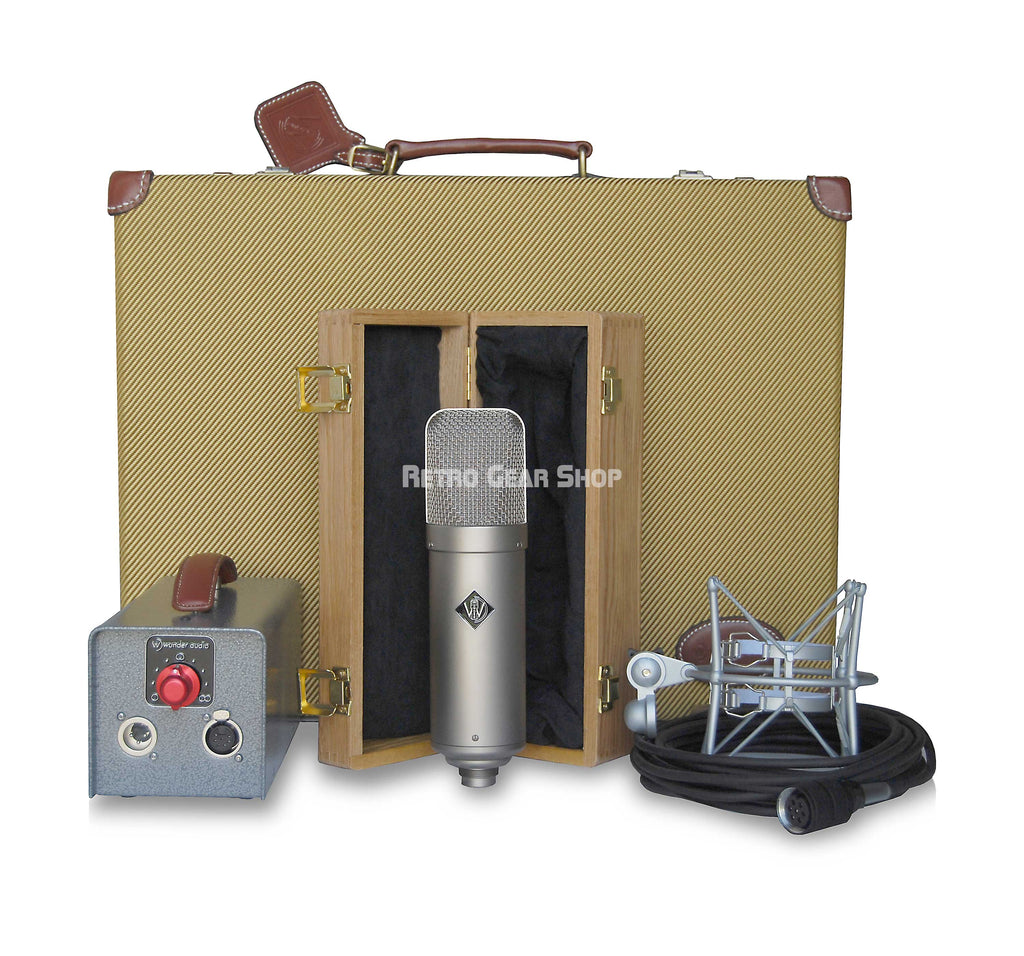

Box and Carrying Case
Your Wunder Audio CM67 S is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely encased in a precision velvet-lined thick foam tweed case that also holds your PSU, your shock mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage Fender guitar case which amplifies the vintage period of the vintage-style CM67 S microphone, and it is trimmed with top grain leather and fine stitching. The CM67 S case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.

Package includes:
CM67 S, K67 capsule, vintage Telefunken EF86 tube or vintage special select Phillips tube, Plush Oak Microphone Box, Wunder Audio Power Supply, shock mount, Tuchel microphone cable, Tweed Carrying Case.
