BAE 312A Dual Channel Microphone Preamp with PSU
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
The 312A is available as a 500 series module or a single or dual channel 19" rackmount.
Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.
Made with the highest quality parts including Jensen input and output transformers and the BAE 2015 opamp. The 312A also includes a high impedance DI for instruments.
• Made using BAE 2015 opamps
• Supplied with Jensen input and output transformers.

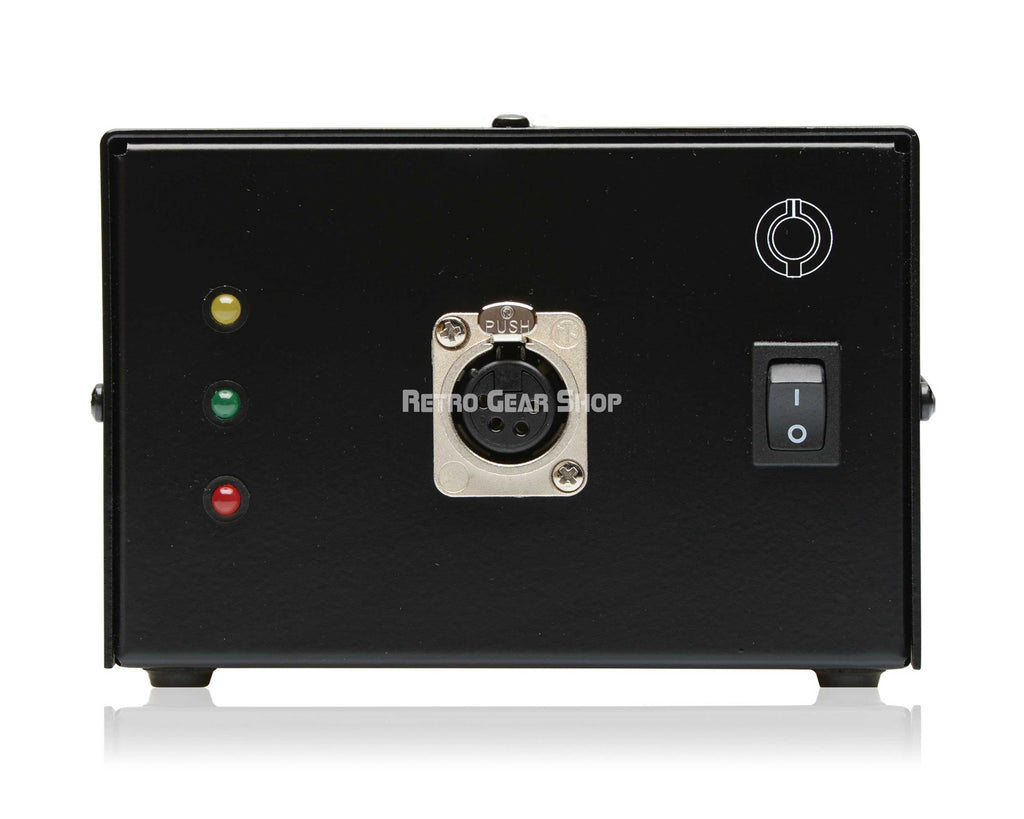

• Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality.
• Switches have gold contacts for long life.
• XLR connectors on the back for mic input and output and phone jack in front for direct input.
• High impedance direct input for guitar and synthesizer.
• Separate front panel switches for phantom power.
• Frequency Response: 5Hz to 75kHz (-3dB)
• Mic Input Impedance: ≈1400 ohms
• Line Input Impedance: 10k ohms
• DI Input Impedance: ≈250k ohms
• Output Impedance: 75 ohms
• Common Mode Rejection Ratio: 110dB min @ 60Hz
• Maximum Output Level: +27.1 dBu @ 600Ω
• Power Requirements: 115/230 VAC, 27W (Rackmount) / 40mA per Rail (Module)
• Gain dB: 10 to 66 dB
• Equivalent Input Noise: -120 dBu; Unweighted 300kHz Bandwidth
• Dimensions in Inches (Rackmount/Module): 19W x 1.75L x 9D (Rackmount) / 1.5W x 5.5L x 6D (Module)
• Weight (Module/Rackmount)
1 LBS / 0.45 KG (Module)
7 LBS / 3.18 KG (Single Rackmount)
8 LBS / 3.63 KG (Dual Rackmount)
