BAE Hot Fuzz Guitar Pedal

BAE Hot Fuzz Guitar Pedal

$250
×
BAE Hot Fuzz Guitar Pedal

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

BAE Hot Fuzz Guitar Pedal

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓Valid
Only plain are not allowed in the message Message length must be 250 characters allowed
Country is required
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

  • Free USA shipping.
  • New.
  • Authorized Dealer.
  • Pre-order. Contact us to order, for best possible price and for ETA.

Description

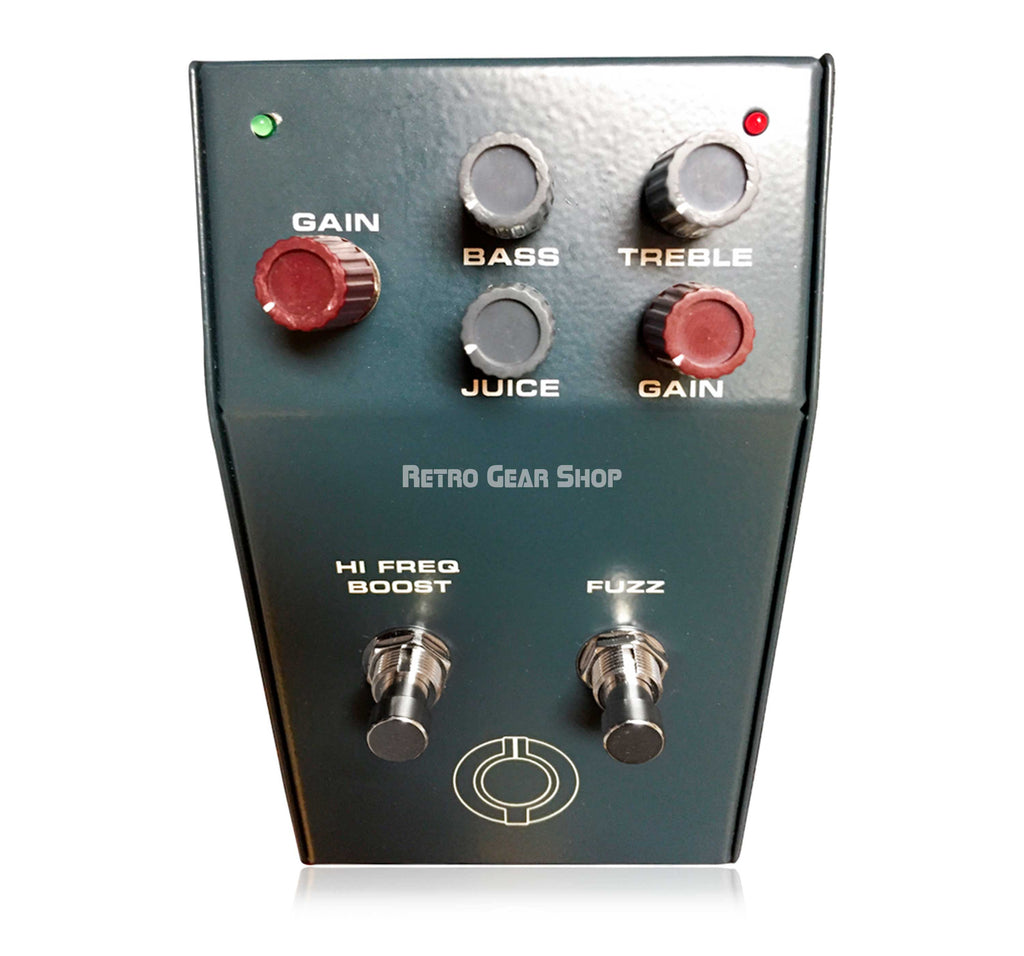

The Hot Fuzz pedal is essentially two pedals in one. The left side is a high frequency boost and the right side is an English 1970's style fuzz box. The Hot Fuzz can be used independently or in series to create a high frequency distortion.


Features

• All Solid State design with 4 Bipolar, low noise transistors.
• Transistor Noise Figure <2 dB across the entire audio band.
• Individual sections for High Frequency Boost and Fuzz; each section has true bypass foot switch.
• High Frequency Boost: single stage. Up to 5kH
• Fuzz: triple stage.
• Sonically selected film, ceramic, mica, and electrolytic capacitors.
• Individual gain pots for each section. Fuzz section also has control pots for Juice, Bass, and Treble.
• Output fully adjustable from 0 to 3.5Vrms, referenced to a 40mV input signal and all controls full.
• Power: Single 9V battery; can be bypassed with external power supply and 2.5mm power jack - center Negative; battery need not be removed.
• Total Maximum current draw: <6 mA.
• Unit is powered when input is connected, whether LEDs are on or off. Remove plug from Input jack to conserve battery power.
• Handbuilt in the USA
• BAE build quality throughout.

Specifications

• Power Requirements: 9V
• Dimensions in Inches: 2.5H x 6L x 3.5W
