The CX Module is a 8 Channel Line Level Adjuster/Booster & Preamp to work cohesively with the PATCH Series Analog Routing systems, allowing any type of Analog signal to be boosted and routed through the PATCH Series for the cleanest transparent signal possible. The CX Module can also be used outside of the PATCH Series as a dedicated Preamp or Signal Booster using the CX Standalone Application.
HARDWARE DESIGN

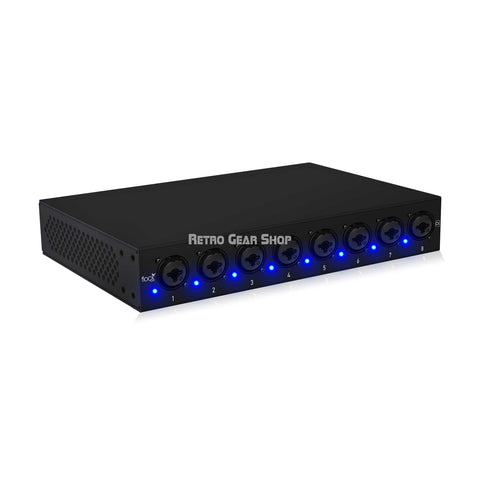

A simple & straightforward design hosting 8 Total - XLR/TRS Combo Inputs with 8 accompanied & individually assignable 48V LED Indicators, CX’s front panel is perfect balance of function & form. The Rear panel includes a single 8 Channel DB25/DSUB Connector for Line Level Out to your PATCH Series Models Inputs, Interface or Live Sound Mixer.
USB-B Connection (Optional Threaded USB Connector) for Host Control and Threaded Locking Power Connector + Power Switch. CX can easily be placed on a desk, rack top, recording booth, live stage or for those preferring rack mounting, Optional Rack Ears are Included with each CX Module. • 8 Channel Mic/Instrument Level XLR/TRS Combo Inputs (Front Panel)
• 8 Channel Line Level DB-25/D-SUB Output (Tascam Standard Pinout Format Connectors) 8 Assignable Independent Channels of 48V Phantom Power w/ LED Indicator
• 10 Ft. - USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)
• 8 Channels - 48V Phantom Power (Independently Assignable)
• PATCH APP & PATCH APP DX - CX Menu - (OSX, Windows, iOS) Compatibility
• CX Standalone Application (OSX/Windows) for use outside of the PATCH Eco-System Create, Store & Recall Mic/Instrument Levels
• Direct Levels Line Level Pass-Through (No I/O Sacrificed)
• No AD/DA Conversion - No Latency
• Multiple Analog Audio Signal Levels Support
• Microphone Level: -60 / -40 dBV - Level Supported
• Instrument Level: -17.7 Bu to +7 Bu - Level Supported
• Consumer Level: -10 dBV - Level Supported
• Maximum Gain Level: 60 dBu
• Stand Alone Desk Module or Rack Ear Mountable Package Design (Ears Included) External 65w Power Supply w/ Threaded Locking Connector (IEC Cable Included)
• Unit Dimensions: 1.75”(H) x 11” (L) x 7.5” (D) - 8 lbs
