Motion Sickness Awaits
This is the Deep Animation and it's so good it hurts. This crazy goofball responds to how you play, enveloping and filter sweeping and overdriving. Finally, the perfect wave-thumper moving with how hard you hit your strings. It multiplies your dynamics into a hyper, exaggerated dance. Or it adds just the right amount of movement to punch through the mix. Or it moves around with an external trigger to lock you in. The sounds are wild, the thump is thick, and the animation is deep.

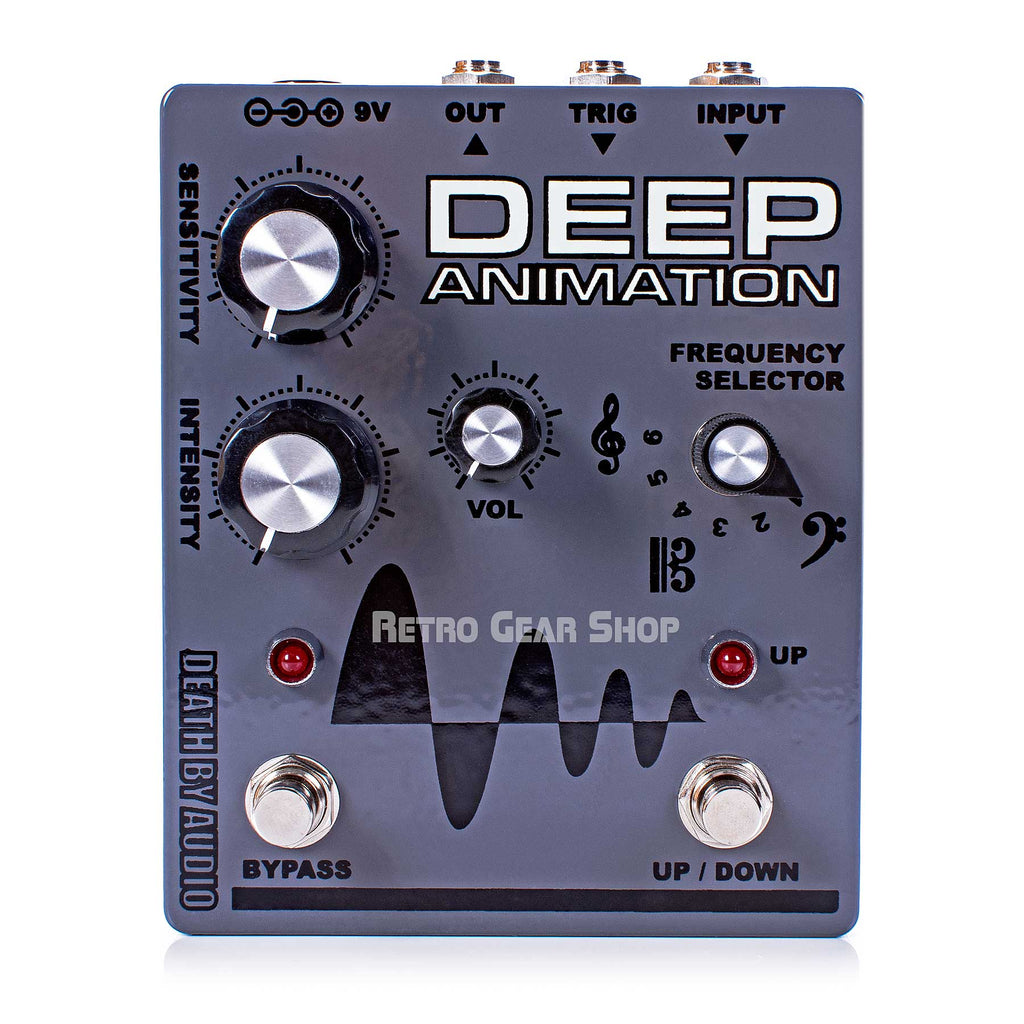

Controls
Input: Plug an instrument in to this jack.
Trig: Plug another instrument in to this jack to trigger the filter sweep with that instrument.
Out: Connect this to the amplifier.
Sensitivity: Determines the point at which the filter kicks in and how dynamic the filter shifts to the input amplitude.
Intensity: Simultaneously blends in the resonance, amount, and grit of the filter.
Vol: Adjusts the output volume of the DEEP ANIMATION.
Frequency Selector: Selects the frequency range of the filter.
Bypass: True bypass the effect.
Up / Down: Controls the direction the filter travels when decaying after being triggered. UP sweeps the frequency from higher frequencies to lower ones.
Additional Features: There is a subtle light which indicates when the trigger is being triggered behind the main bypass LED.
Dimensions: 5.9" x 4.6" x 2.5" (includes knobs and jacks).
Weight: 20 oz.
Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).
Current Draw: 18 mA.
