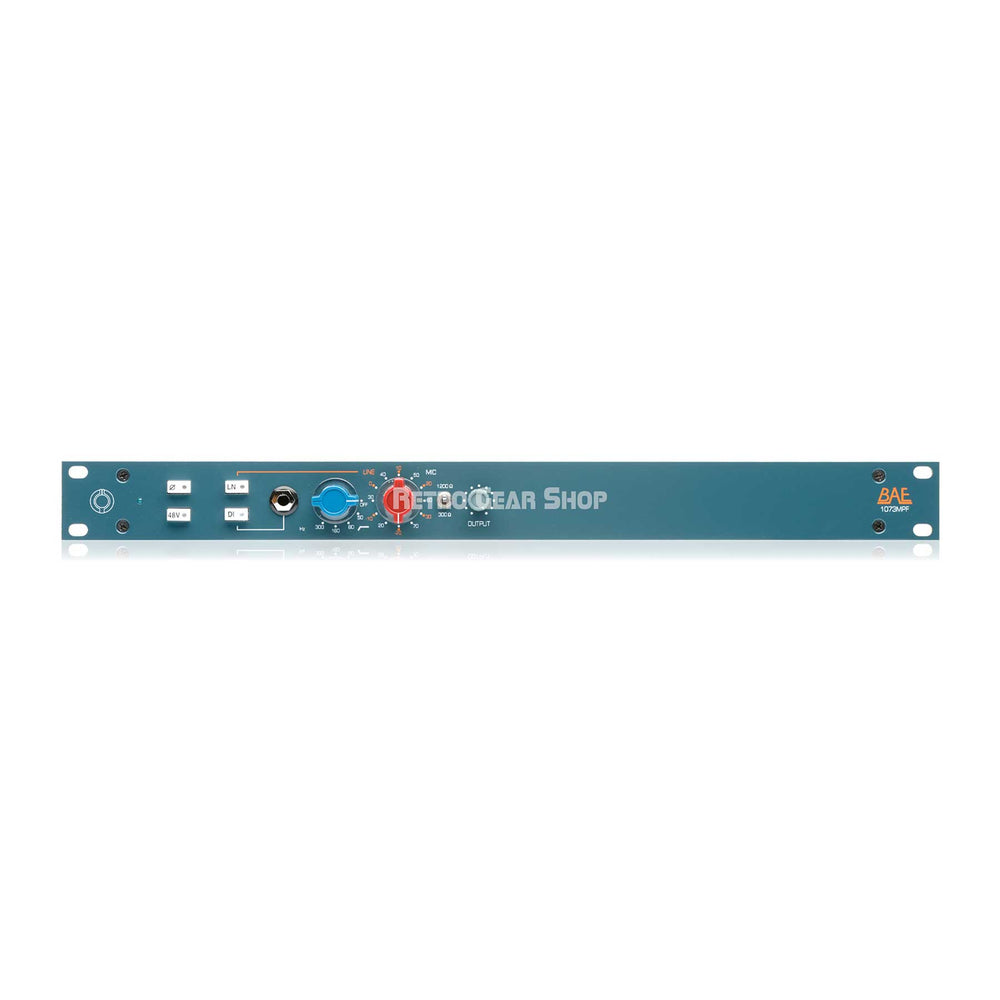

BAE 1073MPF Single Channel Rackmount Mic Preamplifier
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids.
A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.
There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.
As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.
• All Class A, transformer-coupled design in a 19" 1U chassis.
• Inductor based high pass filter
• Line level XLR inputs for extra versatility as a line preamp.
• High impedance DI for guitar and synth.
• The same Class A components as the 1073 and 1084.
• Illuminated phase reverse and phantom power pushbuttons.
• Input impedance selector switch between 1200 and 300 ohms.
• Same modular design and hand-wiring BAE is known for.
• Regulated linear power supply will run up to four channels.
• Frequency Response: 10Hz to -3dB at 55kHz
• High Pass Filter: 50Hz, 80Hz, 160Hz, 300Hz
• Mic Input Impedance: ≈1200/300 ohms
• Line Input Impedance: 10k ohms
• DI Input Impedance: ≈150k ohms
• Output Impedance: 65 ohms
• Common Mode Rejection Ratio: 100dB min @ 60Hz
• Maximum Output Level: +27.4 dBu @ 600Ω
• Power Requirements: 115/230 VAC, 30W
• Gain dB: 0 to 71 dB
• Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
• Weight (Single/Dual): 8 LBS / 3.63 KG / 10 LBS / 4.54 KG
• Dimensions (Inches): 19W x 1.75L x 9D
