Rockruepel Comp.Two V2
Home → Outboard/Recording → Compressors → Rockruepel

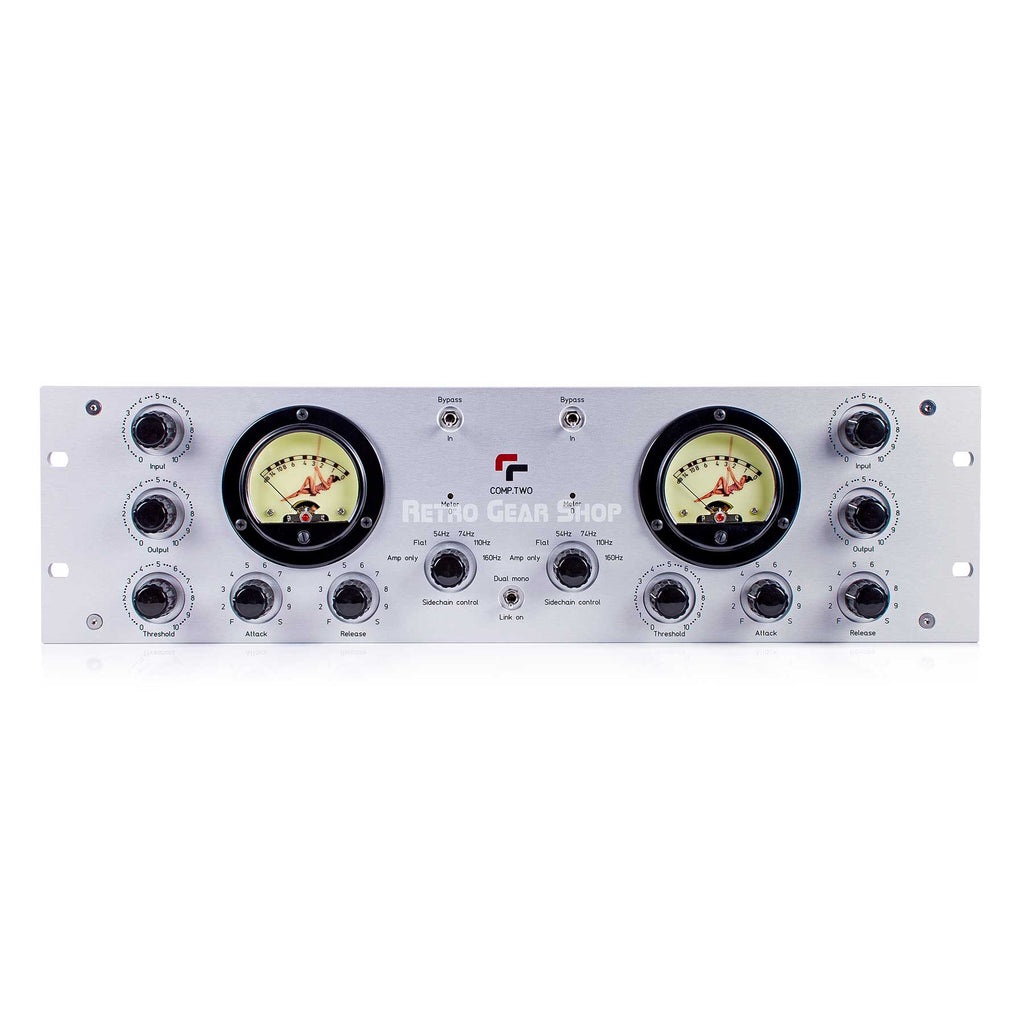

Rockruepel Comp.Two Tube Compressor Version 2
Out of stock. Contact us to order.
The Rockruepel Comp Two is a vari-mu stereo compressor, featuring unique tubes and some of the highest grade components to produce a truly world class sound.
Retro Gear Shop is an Authorized dealer for Rockruepel products.
Out of stock. Contact us to order.
The Rockruepel Comp Two is a vari-mu stereo compressor, featuring unique tubes and some of the highest grade components to produce a truly world class sound.
Retro Gear Shop is an Authorized dealer for Rockruepel products.
Brand New with full Warranty.
Free shipping in the USA with Fedex Ground
Flat rate discounted shipping worldwide
- Audiophile, full-balanced circuitry design
- Aluminum chassis with rugged front plate (6 mm)
- SOWTER-transformers
- ALPS-potentiometers
- VU-meter
- Output-tube: 6CG7
- Input-tube: NOS 6N3
- High-end coupling capacitors
- Amp-only-mode
- True hard bypass
- True dual mono with separate power supply
- Sidechain-control (54, 74, 110 Hz)
- THD+N: -68 dB
- Attack-time: 600 μs -70 ms
- Release-time: 0,2 ms -4 s
Ultra fast, musical and precise
‐ sidechain-filter (54, 74, 110 Hertz)
‐ 32 dB of amplification without compression
‐ high-speed-control-process (0,6 ms), release (200,ms)
‐ hardwire-bypass
‐ “real” dual mono with separate power supply
‐ link-on-mode (channel with higher level dictates compressions process)-
‐ for perfect channel balance, threshold, attack and release values have to be equal
‐ trimpots for calibration of the VU-meters
‐ logarithmic scale with zoom-in-effect up to 4 dB
Exquisite connection
- High-end SOWTER-transformers for in-and outputs
- Professional XLR-connectors with locking mechanism
- Aluminum chassis with rugged front plate (6 mm)
- SOWTER-transformers
- ALPS-potentiometers
- VU-meter
- Output-tube: 6CG7
- Input-tube: NOS 6N3
- High-end coupling capacitors
- Amp-only-mode
- True hard bypass
- True dual mono with separate power supply
- Sidechain-control (54, 74, 110 Hz)
- THD+N: -68 dB
- Attack-time: 600 μs -70 ms
- Release-time: 0,2 ms -4 s
Ultra fast, musical and precise
‐ sidechain-filter (54, 74, 110 Hertz)
‐ 32 dB of amplification without compression
‐ high-speed-control-process (0,6 ms), release (200,ms)
‐ hardwire-bypass
‐ “real” dual mono with separate power supply
‐ link-on-mode (channel with higher level dictates compressions process)-
‐ for perfect channel balance, threshold, attack and release values have to be equal
‐ trimpots for calibration of the VU-meters
‐ logarithmic scale with zoom-in-effect up to 4 dB
Exquisite connection
- High-end SOWTER-transformers for in-and outputs
- Professional XLR-connectors with locking mechanism
Frequency Response
40Hz –15 kHz ± 0,70 dB
20Hz –20 kHz± 1,25 dB
Amplification
32dB
Max Output Level( 40Hz kges ‐40dB )
+24dBu
Supply Voltage
115/230V AC
Power Consumption
40W
Dimensions 483 mm (19“) 132.5 mm (5.2“) 295mm (11.5“)
Weight
8,7 kg (19lbs)
Input Data:
Input - balanced,floating
Impedance over frequency range ⪴19kOhm
Common‐Mode Rejection Ration (CMMR)@ 15kHz ⪴40dB
Output Data:
Output - balanced, floating
Impedance over frequency range ⪴600Ohm
Common‐Mode Rejection Ration (CMMR) @ 15kHz⪴35dB
Signal-to-noise ratio (workinglevel: + 4dBu, input and output conrol: 5)
pGer ⪴-82 dBqs ( CCIR 486 )
pFr ⪴‐86 dBq ( Bandwidth 10Hz –30 kHz )
Rockruepel Comp.Two V2 Manual
40Hz –15 kHz ± 0,70 dB
20Hz –20 kHz± 1,25 dB
Amplification
32dB
Max Output Level( 40Hz kges ‐40dB )
+24dBu
Supply Voltage
115/230V AC
Power Consumption
40W
Dimensions 483 mm (19“) 132.5 mm (5.2“) 295mm (11.5“)
Weight
8,7 kg (19lbs)
Input Data:
Input - balanced,floating
Impedance over frequency range ⪴19kOhm
Common‐Mode Rejection Ration (CMMR)@ 15kHz ⪴40dB
Output Data:
Output - balanced, floating
Impedance over frequency range ⪴600Ohm
Common‐Mode Rejection Ration (CMMR) @ 15kHz⪴35dB
Signal-to-noise ratio (workinglevel: + 4dBu, input and output conrol: 5)
pGer ⪴-82 dBqs ( CCIR 486 )
pFr ⪴‐86 dBq ( Bandwidth 10Hz –30 kHz )
Rockruepel Comp.Two V2 Manual
