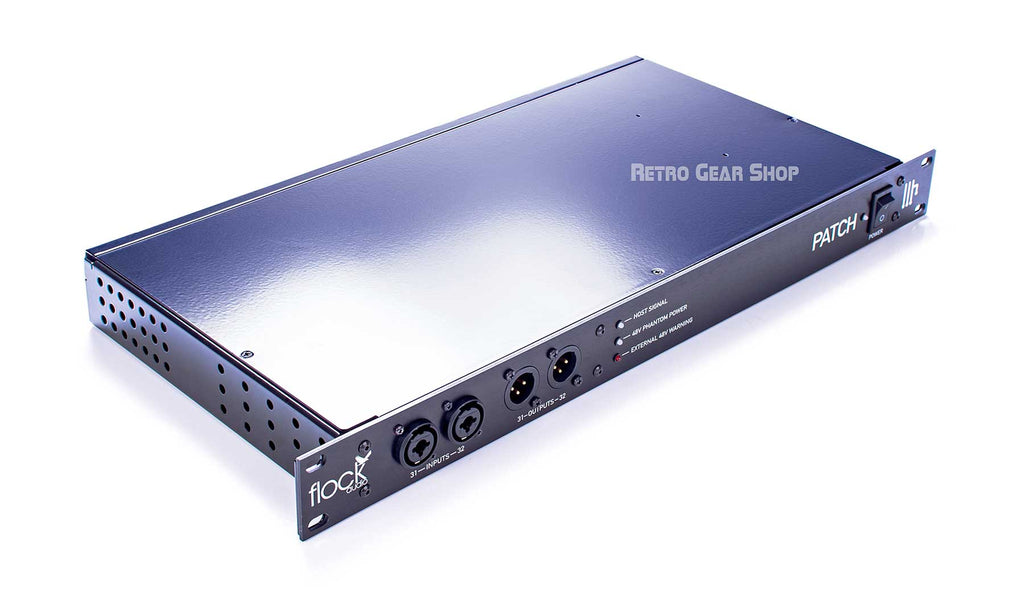

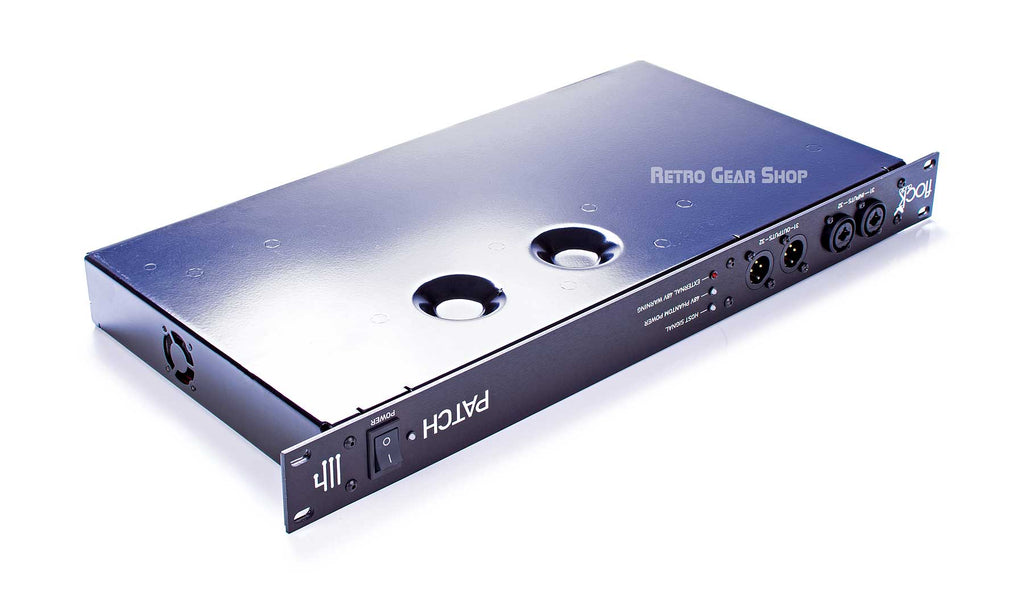

Flock Audio Patch 64 32x32 Open-Box
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked

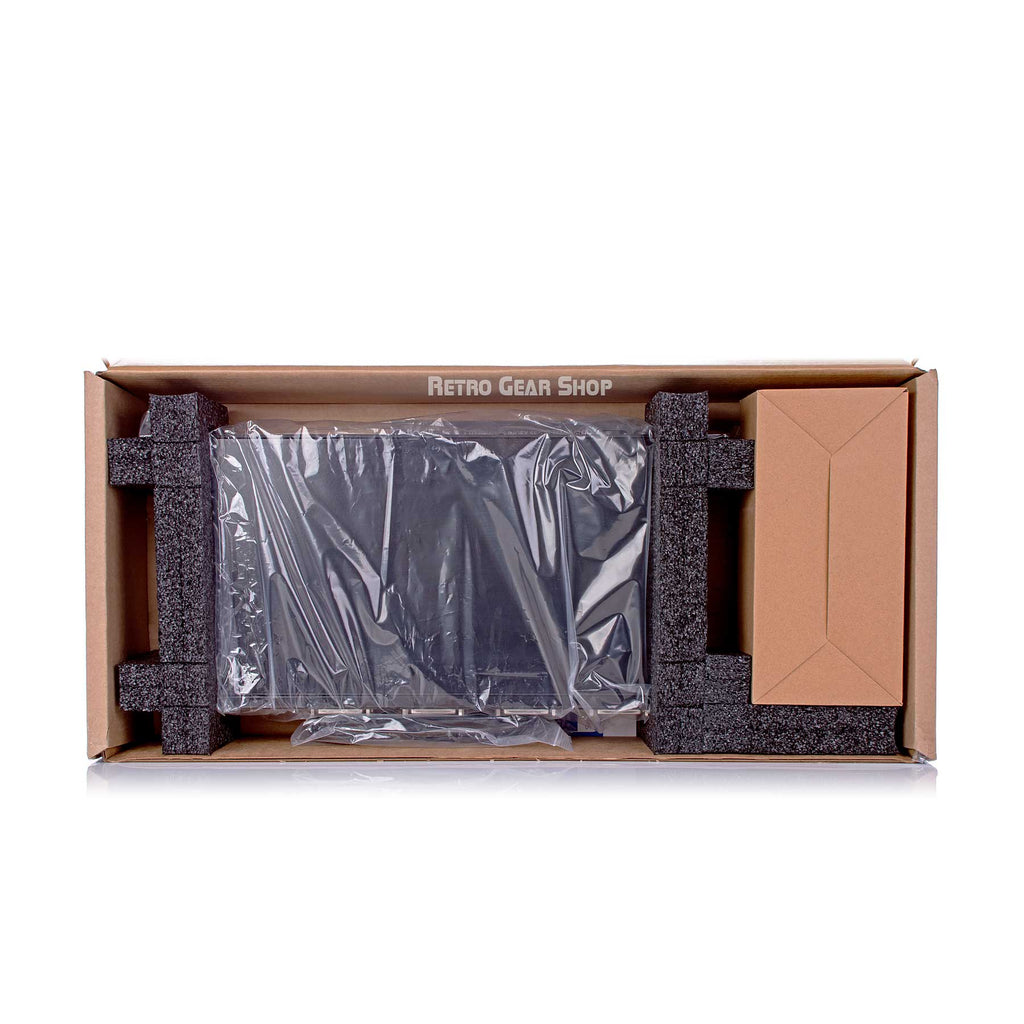

Like new unit in original packaging with full warranty. Retails for $3099 new, save some here.
The worlds most advanced digitally controlled 100% analog audio patch bay routing system.
The Flock Audio PATCH System is a digitally controlled, 100% analog audio patch bay routing system. A combination of Software known as the PATCH APP and a 64 Point Connection PATCH Hardware component, combined allows users to easily route and control analog audio routings without having to resort to the use of manual patch cables. The PATCH APP software application (OSX & Windows Compatible) is designed with familiarity in mind. PATH’s in the application represent audio signal flows from top to bottom. Signal flows are divided up into single vertical columns allowing users to drag + drop available analog audio equipment connected to the PATCH’s Hardware component. This analog audio equipment is cataloged in the Hardware Index located to the left side of the PATCH APP. The PATCH Hardware component is a 1U rack mountable unit that acts as the center piece hub of an audio equipment processing setup. Utilizing digital control over analog audio signals is what makes the PATCH System unique and unlike anything else in the audio industry.
64 point connections (32/32) 32 Channels 48V Phantom Power
2 Input / 2 Output Front Panel Connections
Create, store and recall routings
Advanced multi-ing capabilities
Multiple system expansion (8 Unit Support)
OSX & Windows compatible software
Software and firmware updates
Safeguard warning notifications
DB-25 Connectors
No label templates required
No patch cables required.

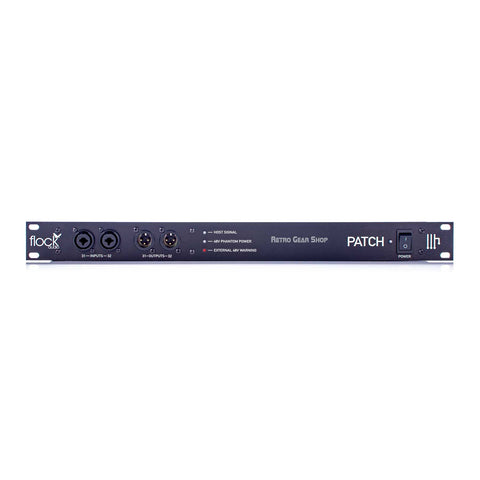

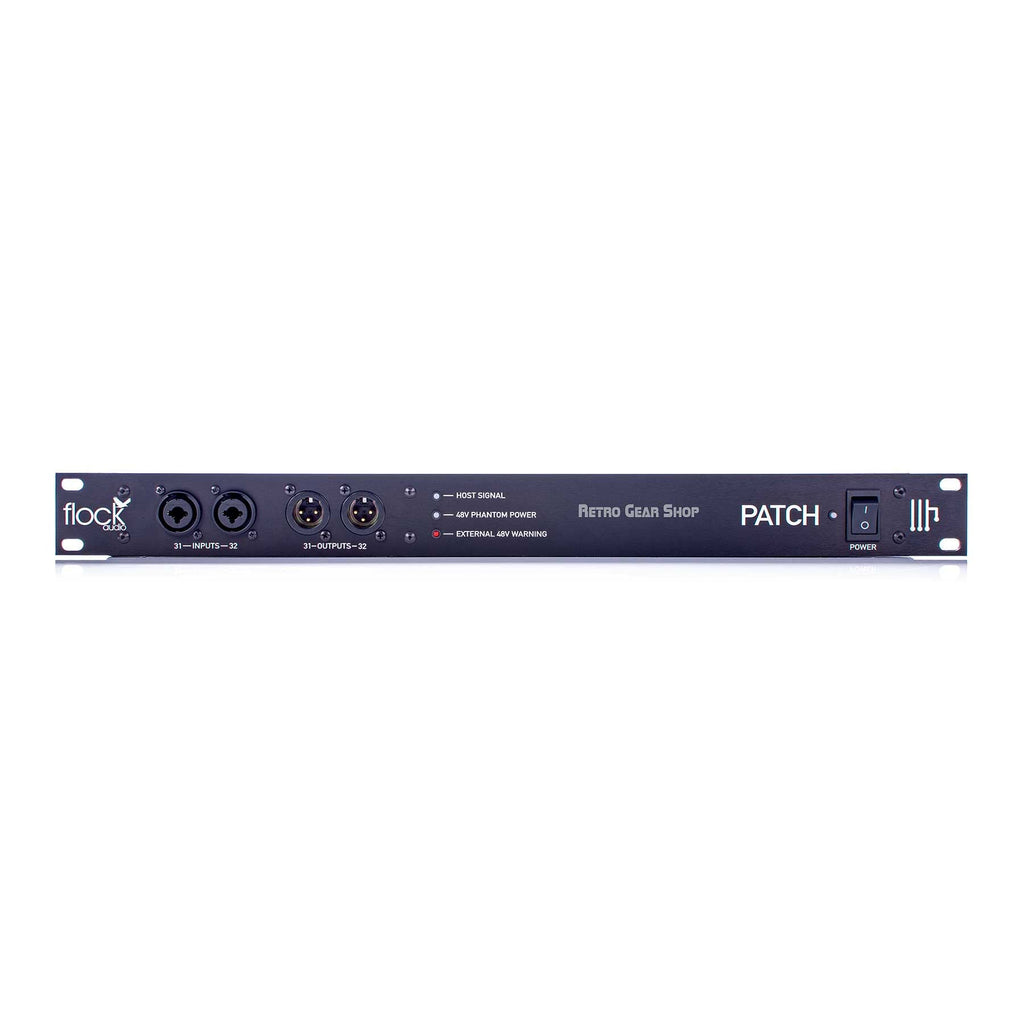

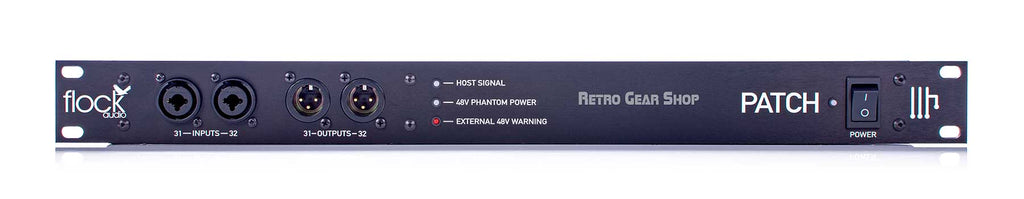

Controls
Front Inputs 31-32 Neutrik XLR/TRS Combo Jacks (Activated using Software)
Front Outputs 31-32 Neutrik XLR Male Jacks (Activated using Software)
External 48V Warning LED Indicator
48V Phantom Power LED Indicator

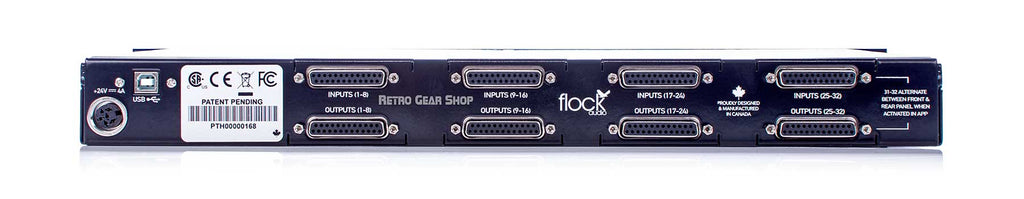

Rear Inputs 1-32 DB-25/D-SUB Connectors Inputs: 1-8, 9-16, 17-24, 25-32 (8 Balanced Audio Channels per Connector) Tascam 25 Pinout Wiring Standard
Rear Outputs 1-32 DB-25/D-SUB Connectors Outputs: 1-8, 9-16, 17-24, 25-32 (8 Balanced Audio Channels per Connector) Tascam 25 Pinout Wiring Standard
Inputs & Outputs (31-32) Channels 31-32 can be routed to the Front Panel Inputs & Outputs using the PATCH APP Software.
24VDC Power Connection 6 Pin Connector with threaded locking sleeve
Weight 8.8lbFlock Audio Patch Manual
