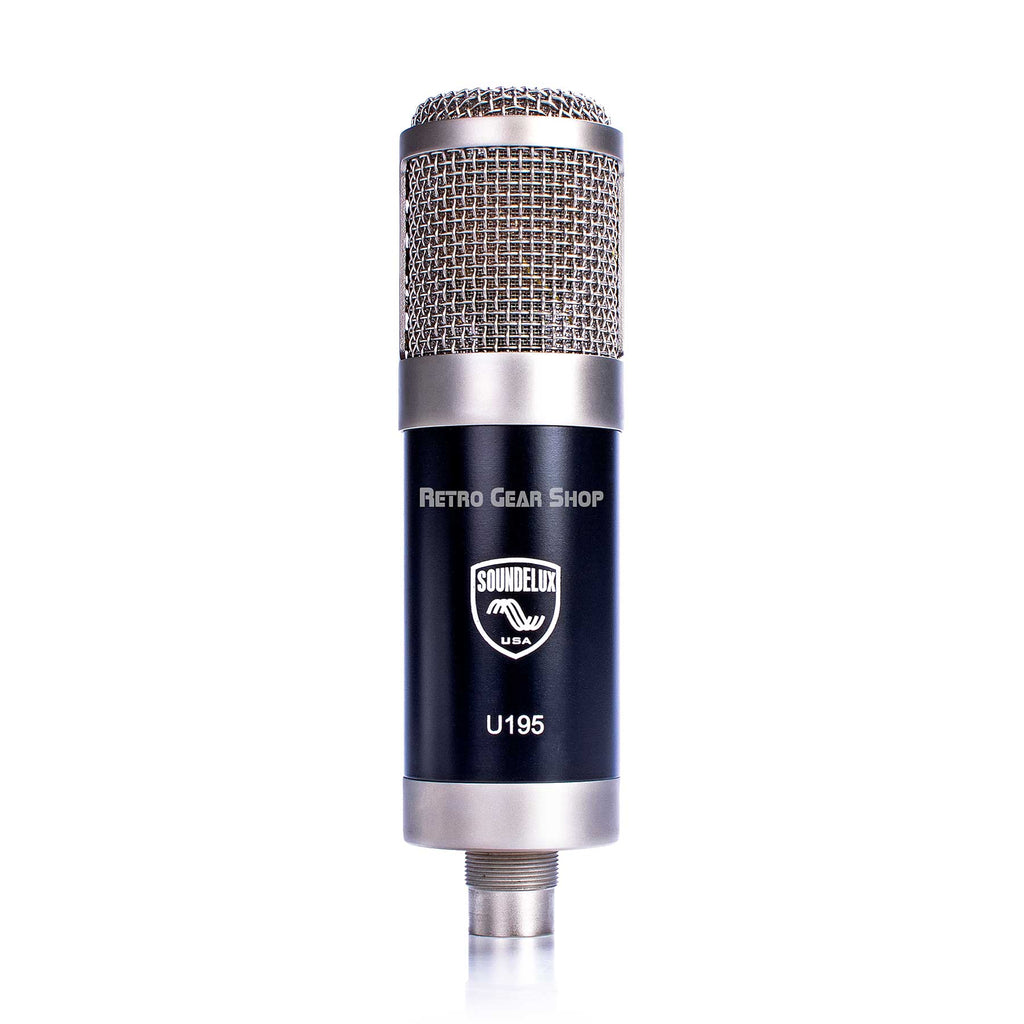

Soundelux U195 Large Diaphragm Condensor Cardioid FET Microphone
Soundelux U195 Large Diaphragm Condensor Front
Soundelux U195 Large Diaphragm Condensor Rear

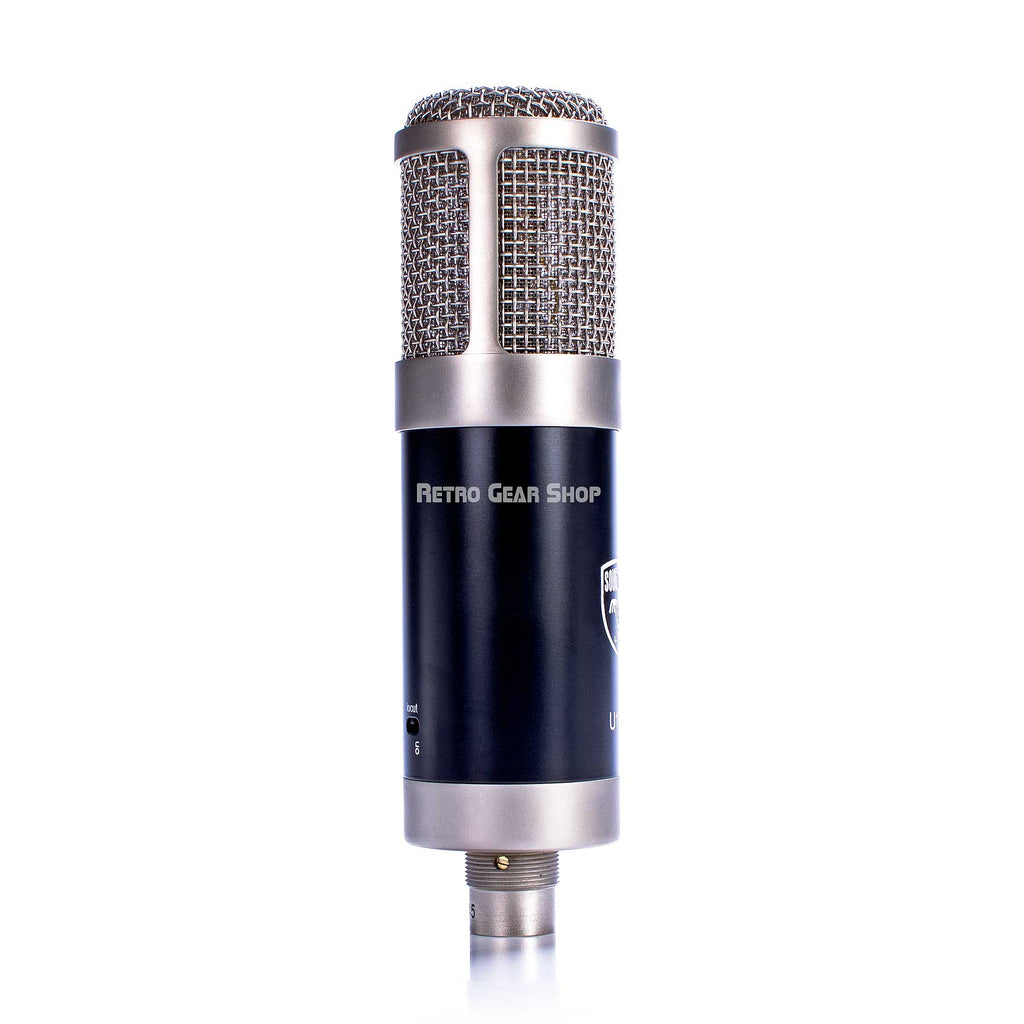

Soundelux U195 Large Diaphragm Condensor Left

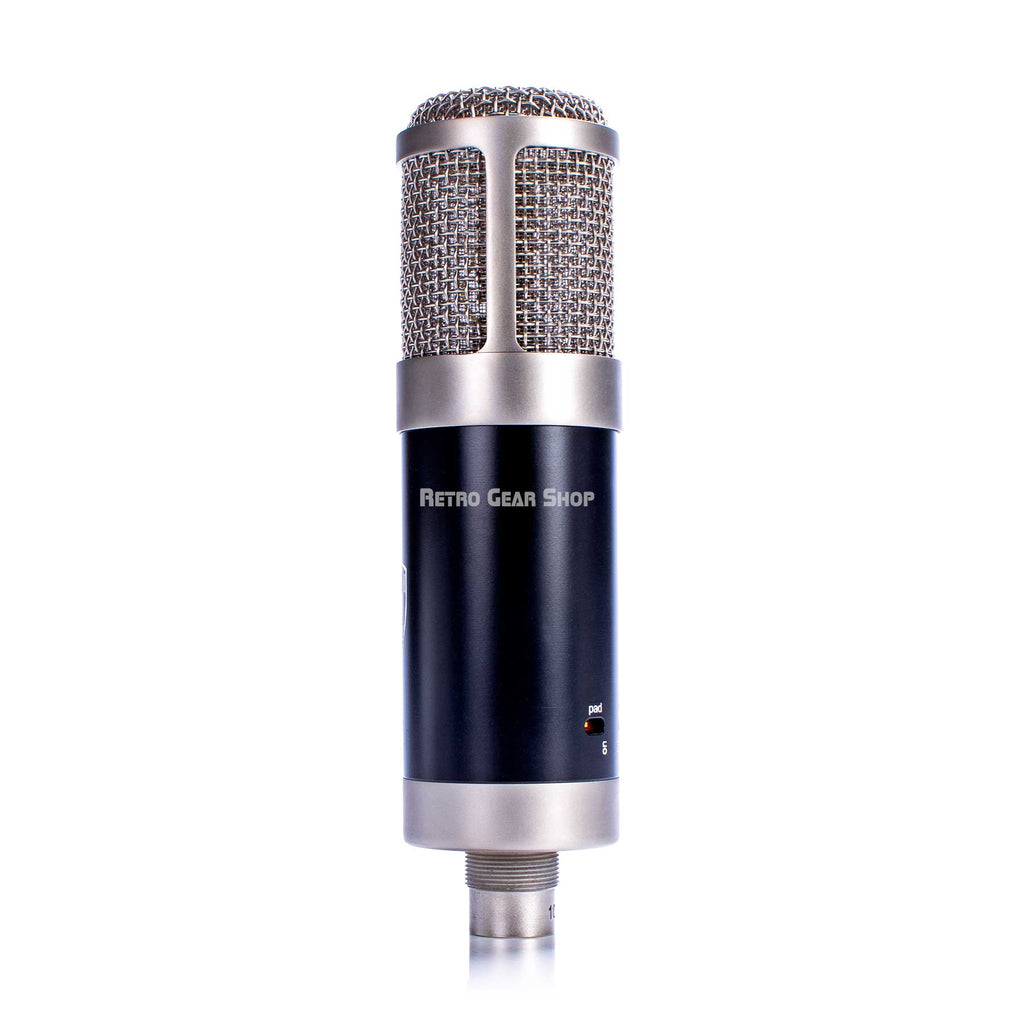

Soundelux U195 Large Diaphragm Condensor Right

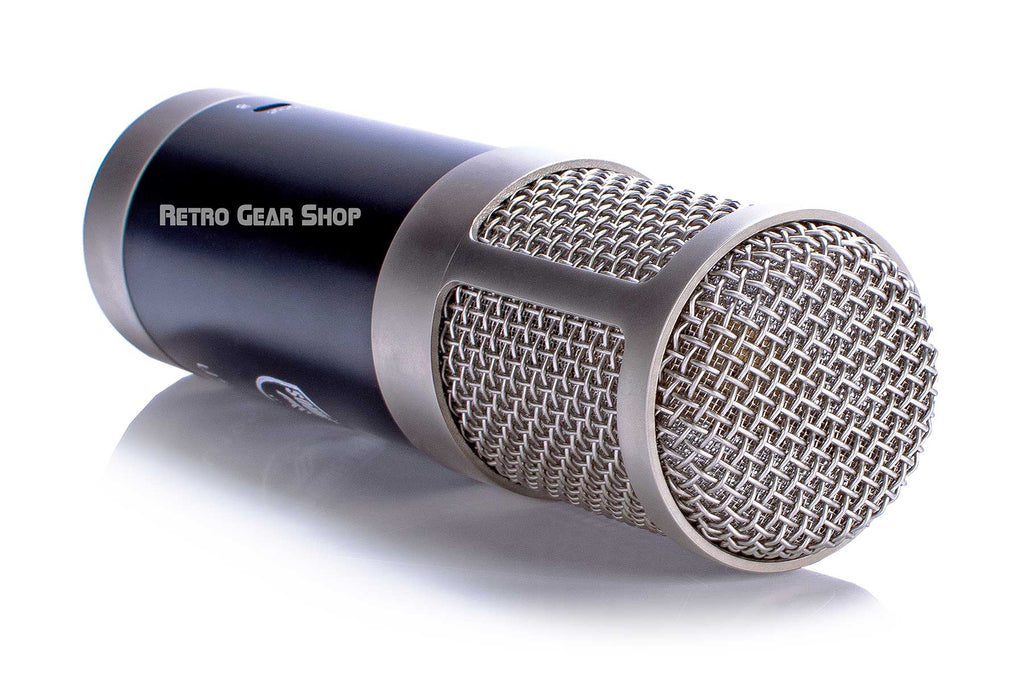

Soundelux U195 Large Diaphragm Condensor Top Left

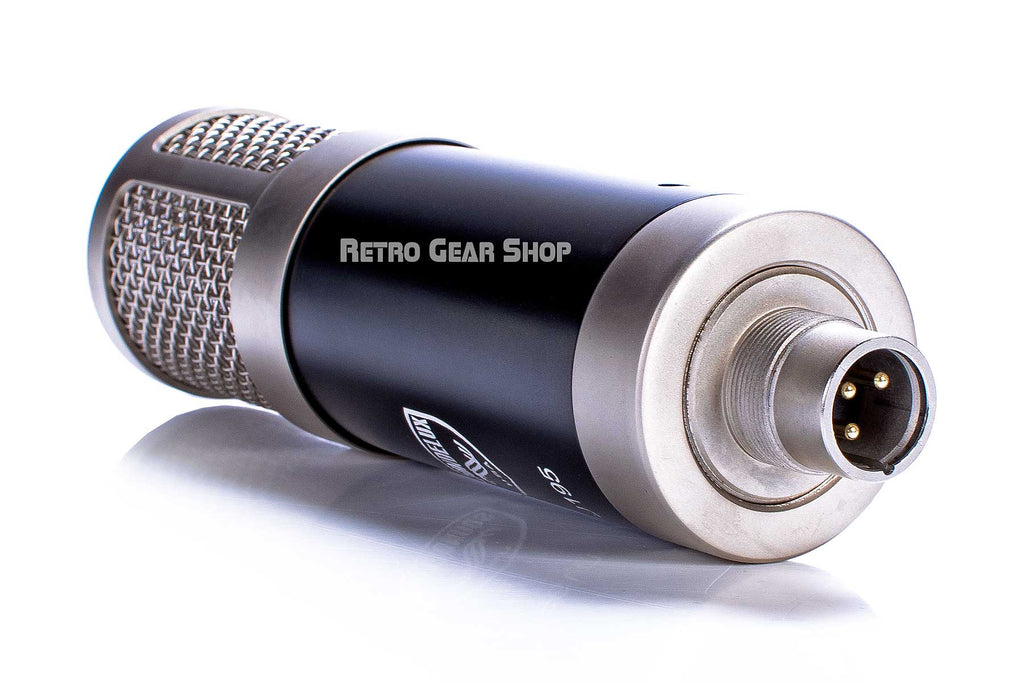

Soundelux U195 Large Diaphragm Condensor Right Rear

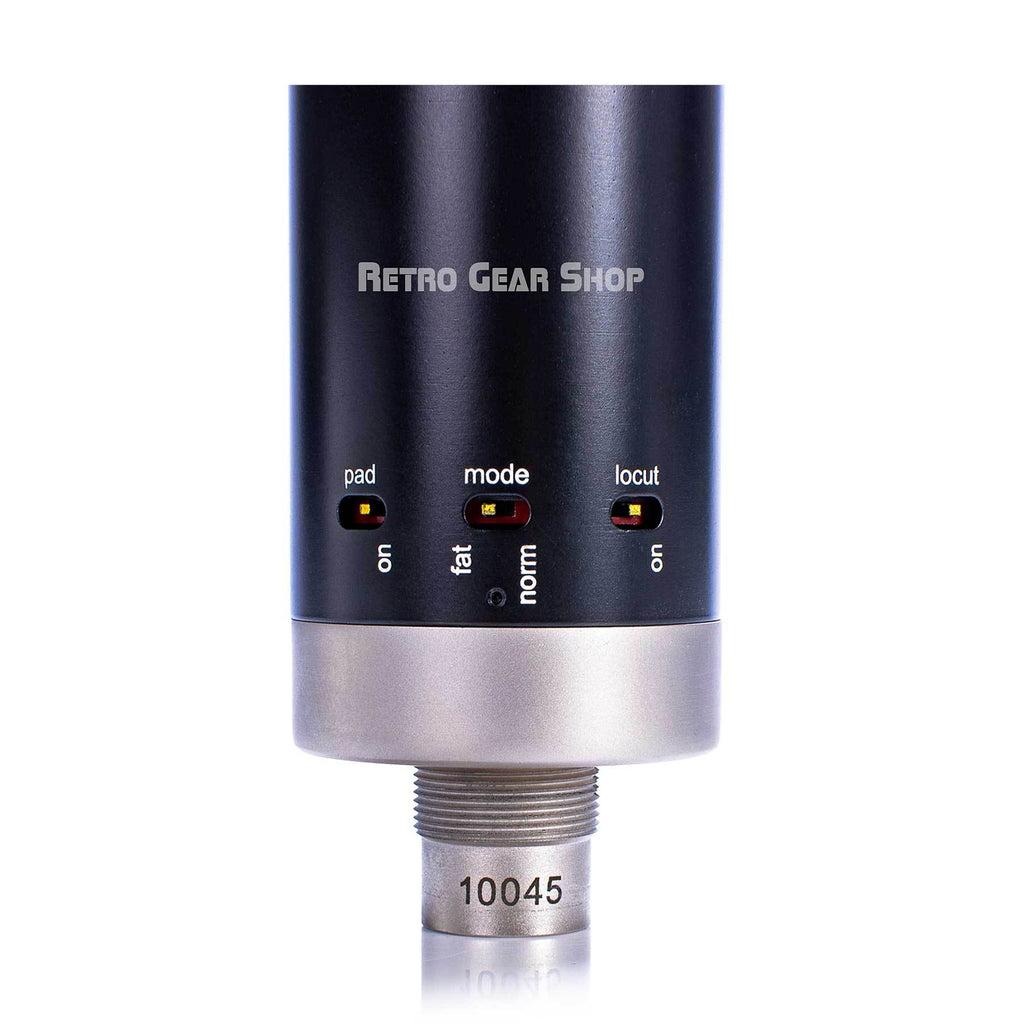

Soundelux U195 Large Diaphragm Condensor Rear Detail

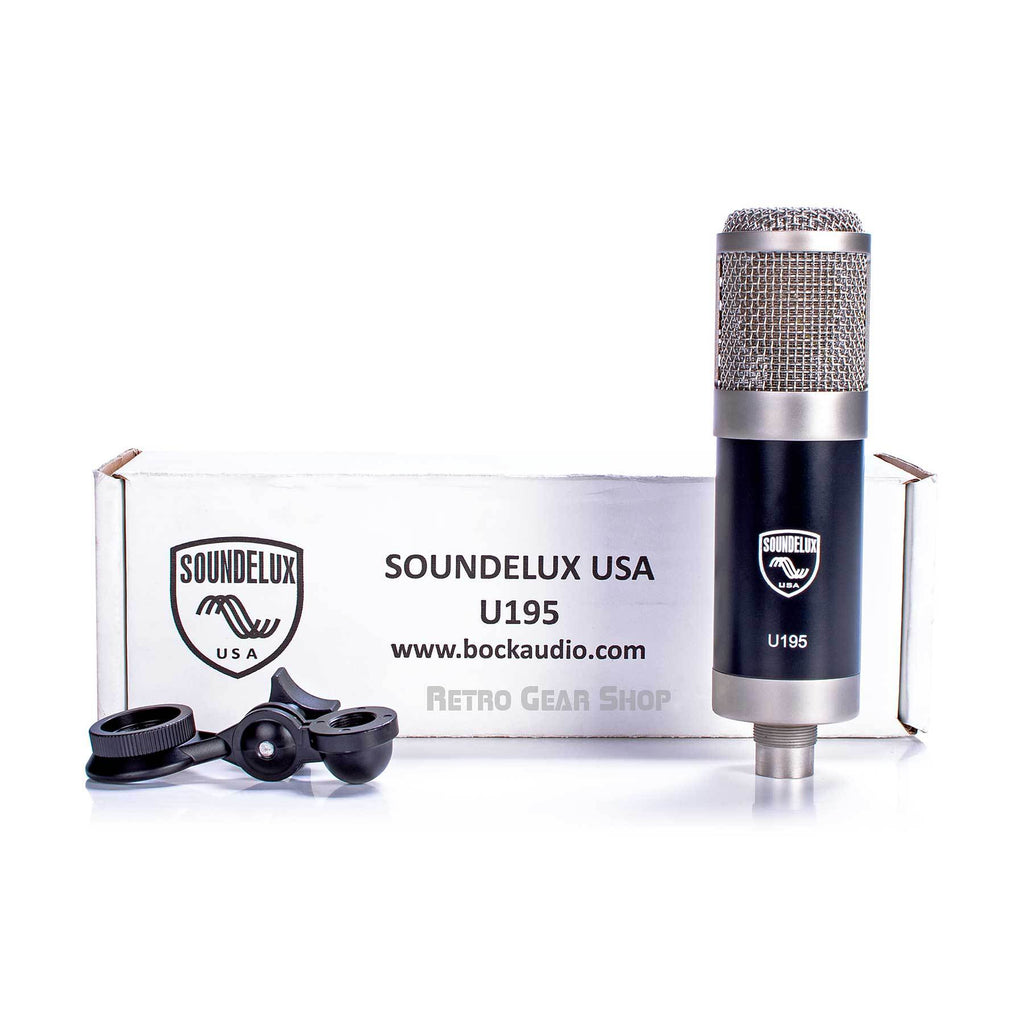

Soundelux U195 Large Diaphragm Condensor Box Clip
Soundelux U195 Large Diaphragm Condensor Box

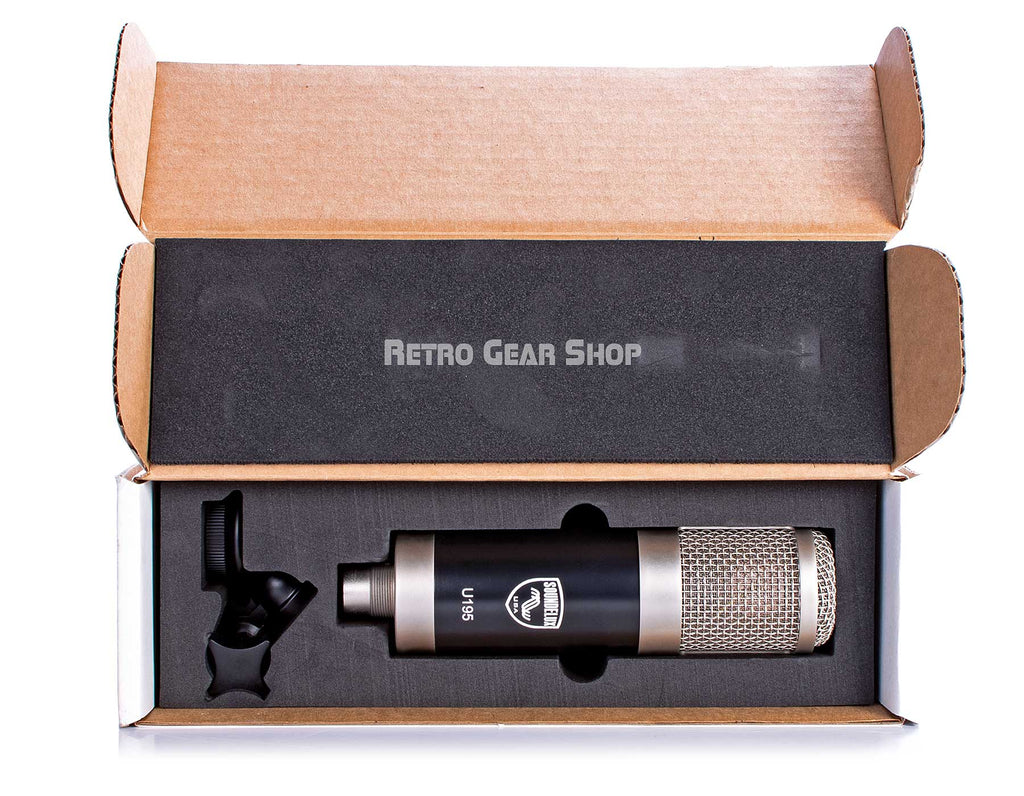

Soundelux U195 Large Diaphragm Condensor Box Open
Soundelux U195 Large Diaphragm Condensor Rear

Soundelux U195

HomeOutboard/RecordingMicrophonesSoundelux

Soundelux U195 Condensor Microphone

Out of stock - contact us to order

Free shipping in the USA with UPS Ground
Flat rate discounted shipping worldwide
Retro Gear Shop is an authorized Soundelux Dealer.
Brand New with full Warranty.
Any questions, contact us!
The U195 is a cardioid patterned, phantom powered, large diaphram FET microphone. In designing the U195, Soundelux set out to create a microphone able to satisfy a wide range of demands in critical music recording, broadcasting, and post applications.

For budget-conscious studios facing a wide range of demands, a U195 serves as the “do-it-all” premium condenser microphone. It delivers superb results on lead vocal tracks as well as in VO/ADR use, providing remarkable fullness and presence with exceptionally low background noise.

Unique to the U195 is the “Fat/Norm” switch. The “Norm” position provides an extended flat response with slightly elevated high end typical of FET condensers, while “Fat” creates a low end boost between 10Hz and 400Hz for the distinctive sound of older tube classic cardioid condensers. The U195 also provides a pad (-10dB) and rumble filter (-10dB at 20 Hz). The combinations of tone switches allows for unmatched versatility in a professional studio mic.

The U195’s unique amplifier circuitry produces superior response to dynamic signals without the typical transistor low-level high¬order harmonics (a painfully obvious artifact) commonly found in other fet mics.

The U195 also contains a unique to the industry output transformer– where other mfg’s have wondered how small they can make theirs, we asked, “can we make it bigger” and designed a transformer that takes up half the room in the mic body! We did this not just to prove that bigger is better, but to increase the low frequency headroom beyond that of other transformer coupled mics.
Patterns: Cardioid only

Frequency range: 20Hz-16kHz, +/-2dB

Sensitivity: 8mV/Pa (-42dB=94dB SPL)

Equivalent Noise: 13dB (“A” weighted)
22dB (unweighted)

Distortion vs. SPL @ 1kHz:
126dB = 0.5% THD
127dB = 1% THD
129dB = 2% THD
(increasing distortion is exponential, complex 3rd harmonic)

Impedance: 200 Ohms true transformer balanced

Recommended load: 1.2k Ohms

Dynamic range: 111dB

S/N (94dB-noise): 81dbB “A”, 72dB unweighted

Capsule size: 1″ diameter, dual symmetrical backplate k67 type

Amplifier type: Minimalist Class A fet / transformer, no switching supplies or oscillators

Amplifier controls: “fat/norm” bass contour switch, “locut” rumble filter switch, “pad” -10dB sensitivity switch

Dimensions: 2.04″ dia x 7.7 ” oal (51x195mm)

Weight: 1lb 9.6oz (1.6lbs) = 725g

Shipping weight: 6lbs

Power supply: P48 phantom powered, user provided; minimum 45v for proper operation

U195 Manual
