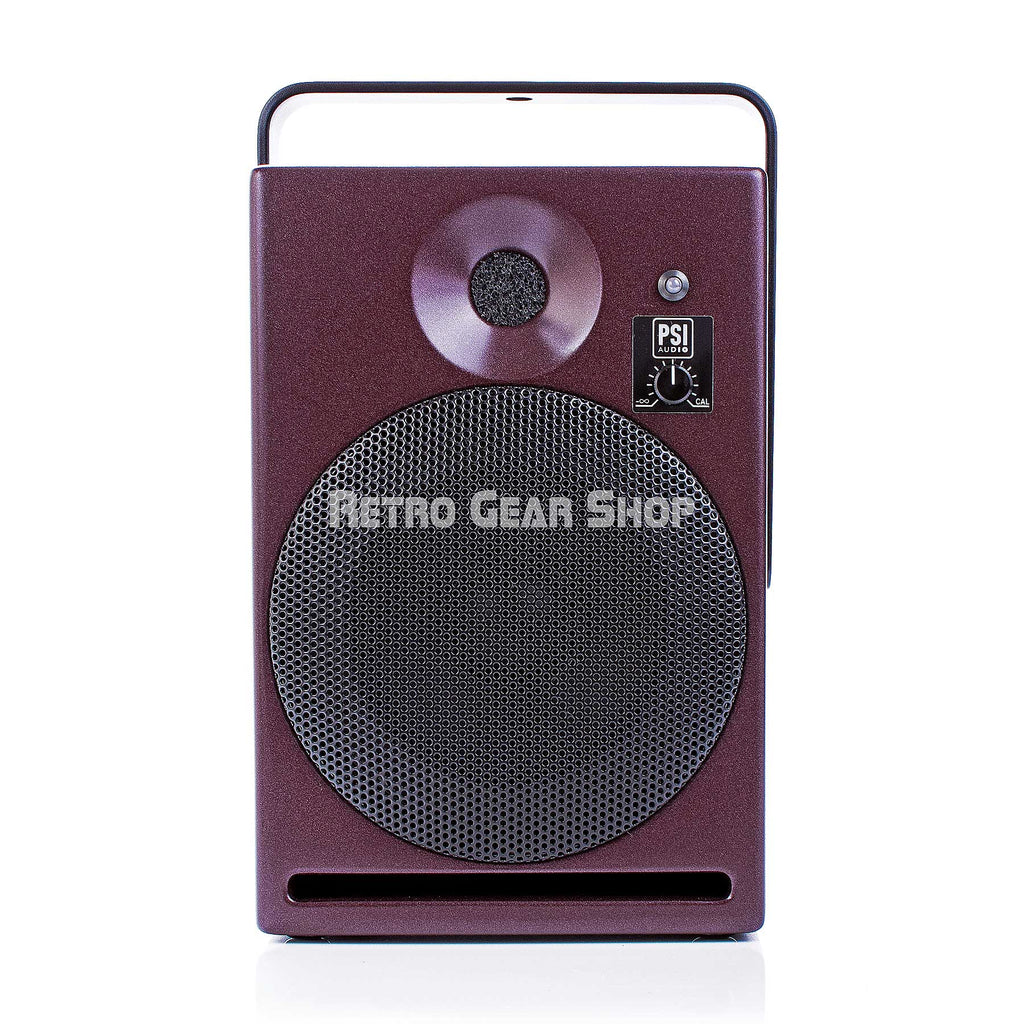

PSI Audio A14-M Broadcast Front

PSI Audio A14-M Broadcast

$1,589
 More payment options
  • Free USA shipping

Description

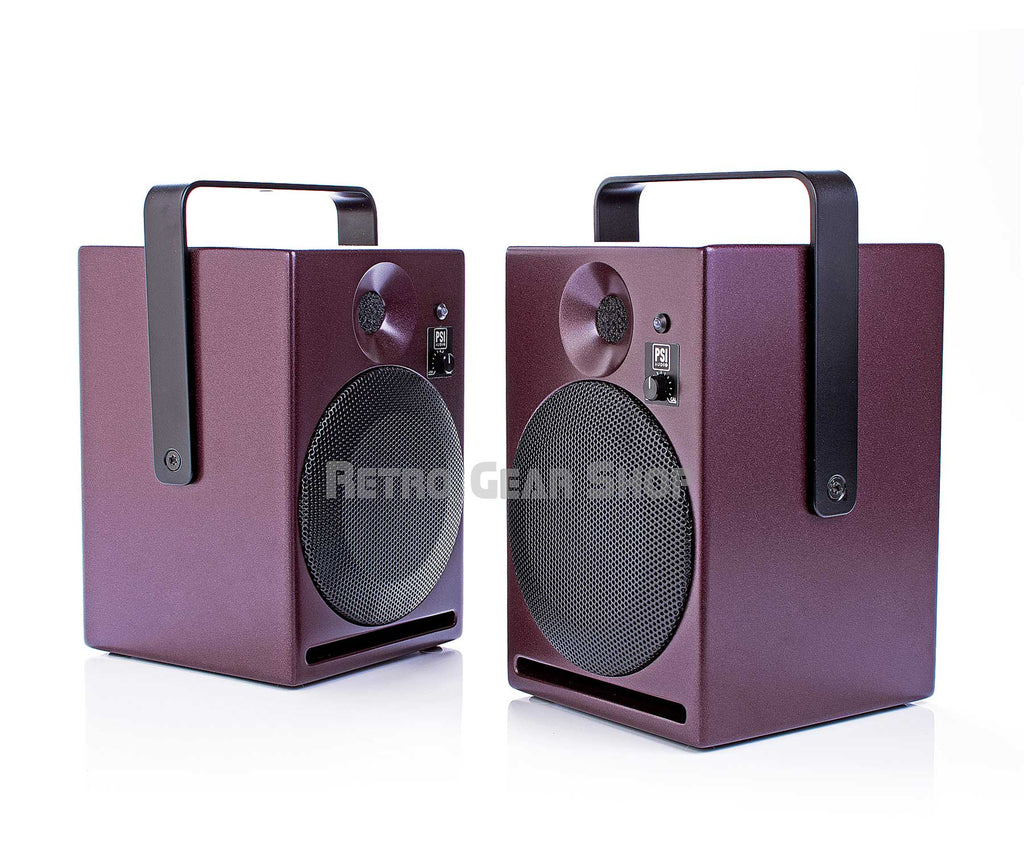

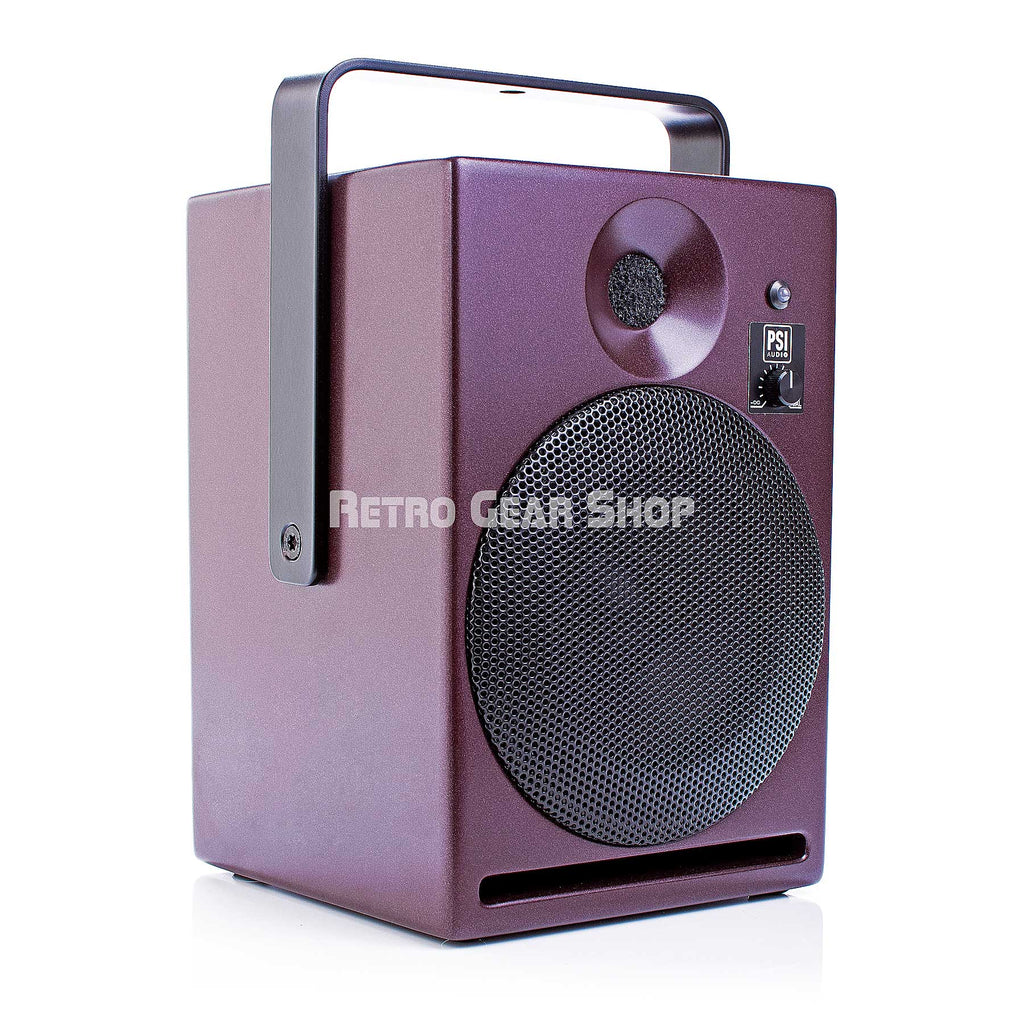

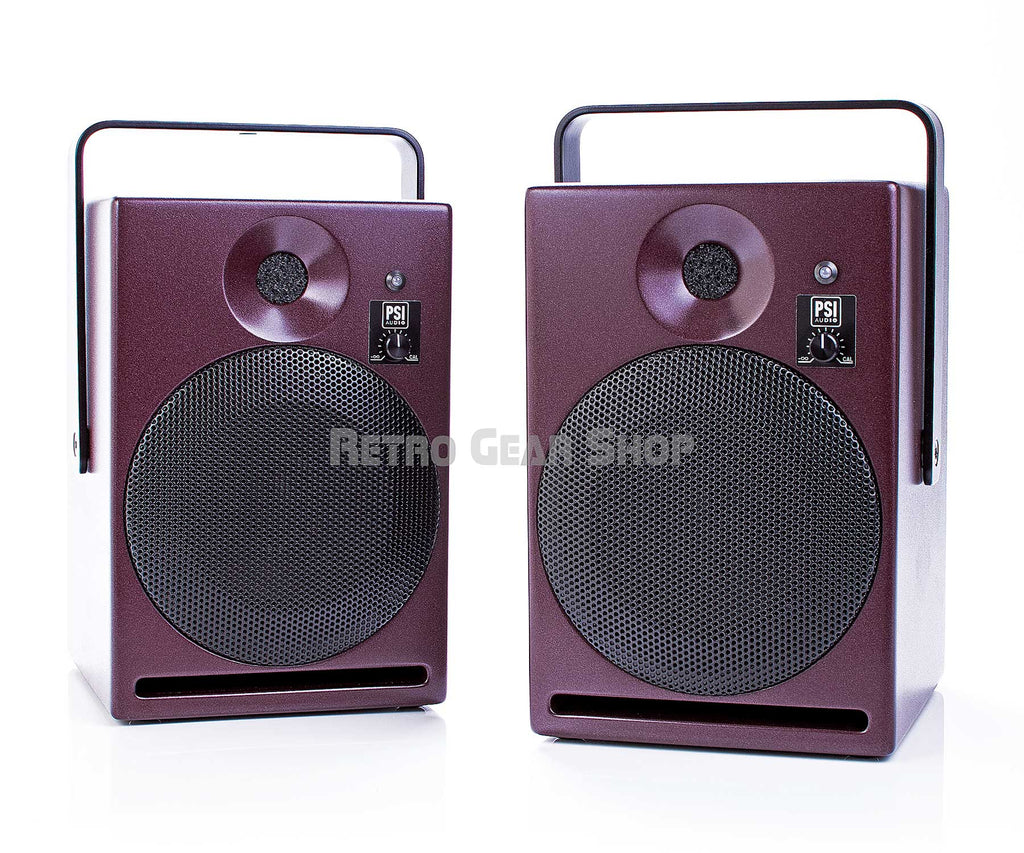

PSI Audio A14-M Broadcast speaker is a perfect studio near-field reference monitor with accurate frequency response. Tons of detail and packs a lot of bass for such a small package! Broadcast model comes with handle and grille making this is great portable travel choice monitor.
Price is for a single monitor.
Available in black color for an additional $71.
Custom colors are available for an additional 20%, contact us if interested.


Features

Flat frequency response.
Optimised directivity by phase coherency.
Volume control on the front panel.
Metal handle for easy handling and for mic. stand or installation.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
AOI Technology.
ALG Technology.
CPR Technology.
PSC Technology.

The A14-M Broadcast full range speaker is the smallest member of the PSI Audio A-Series professional studio monitor range. Housed in an extremely compact cabinet, the A14-M Broadcast is designed to implement highest possible SPL and broad bandwidth. The A14-M Broadcast is ideal for studio application where the ultimate in precision and portability is required. Packed into its compact dimensions, is all the technology of its larger brothers. The powerful bi-amplified output features the unique “AOI” output stages, while the active crossover, with integrated “CPR”, delivers unprecedented impulse behavior with excellent stereo imaging. The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area. Designed to work in harmony with the full range of A series monitors the A14-M Broadcast also makes ideal rear speakers in a surround sound setup, or can be developed in to a more powerful system by adding the A225-M sub thus protecting your investment.

Specifications

Power RMS: 70 + 30W
Program Power: 100W
Input Impedance: Sym, 10k Ohms
Sensivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 101 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 112 dB (pair)
Response at -6dB: 56 - 22000 Hz
Tolerances: ±2.5 dB (65Hz - 18kHz)
Distortion THD: less than 1.8% (95Hz-15kHz)
Phase tolerances: ±45° (260Hz - 16kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 100° x 100° (H x V)
System: 2 Way(s)
Crossover frequency: 3.5 kHz
Woofer's dim. Ext. / Diaphragm: Ø147mm / Ø104mm
Tweeter's dim. Ext. / Diaphragm: Ø70mm / Ø24mm

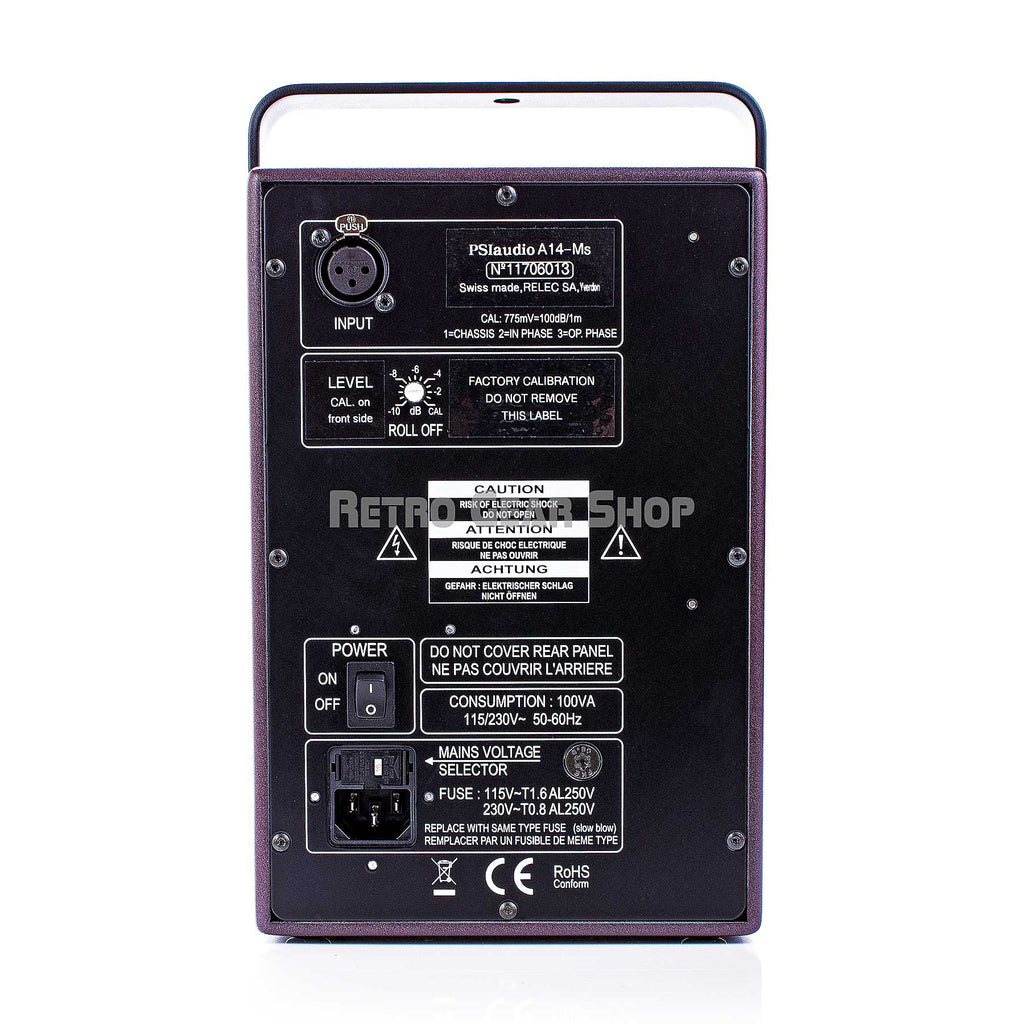

Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Material: MDF
Dimensions W x H x D mm: 163 x 243 x 170
Gross / Net Weight: 6.2 / 5.5 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
Mean / Max Humidity: less than 75% / less than 90%
External Temperature: 5 - 40°C
