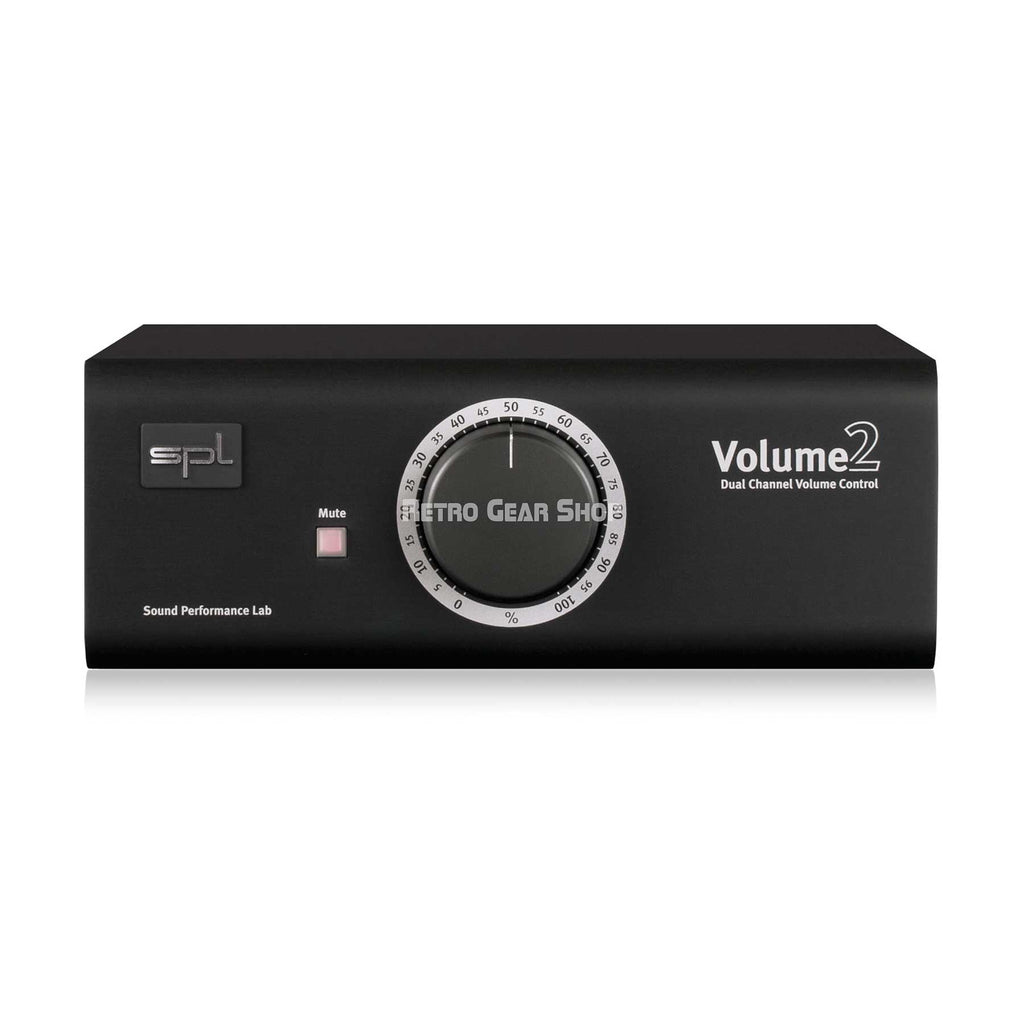

SPL Audio Volume 2 Stereo Volume Controller

Volume 2 is an active DAW monitoring controller and a puristic high-end preamplifier.

• High-end volume potentiometer and illuminated mute switch from ALPS; the potentiometer controls directly (no VCA or DAC circuits)
• The mute switch allows a quick reaction when speakers or ears need to be protected (e.g. in case of a computer crash)
• In contrast to digital volume control, where the bit resolution is continuously reduced as the volume decreases, the signal does not deteriorate with analog volume control.
• In contrast to passive volume control, active volume control does not affect the phase and frequency response. The monitoring signal sounds reliably the same at any monitoring volume.

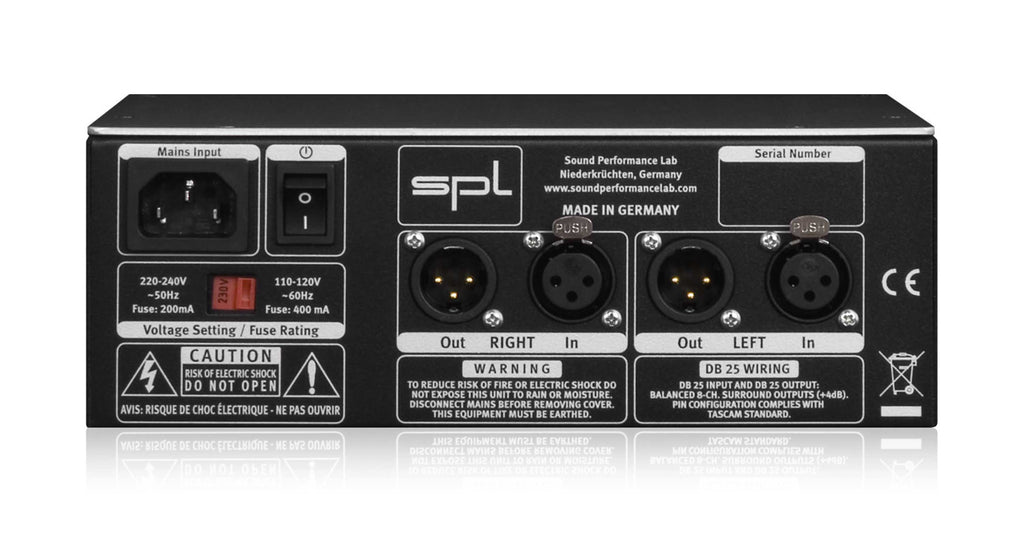

• Balanced XLR input and output connectors
• High-quality balancing stages with very high common-mode rejection (minimizing interference/interference in the signal paths)
• High-quality power supply unit with toroidal transformer

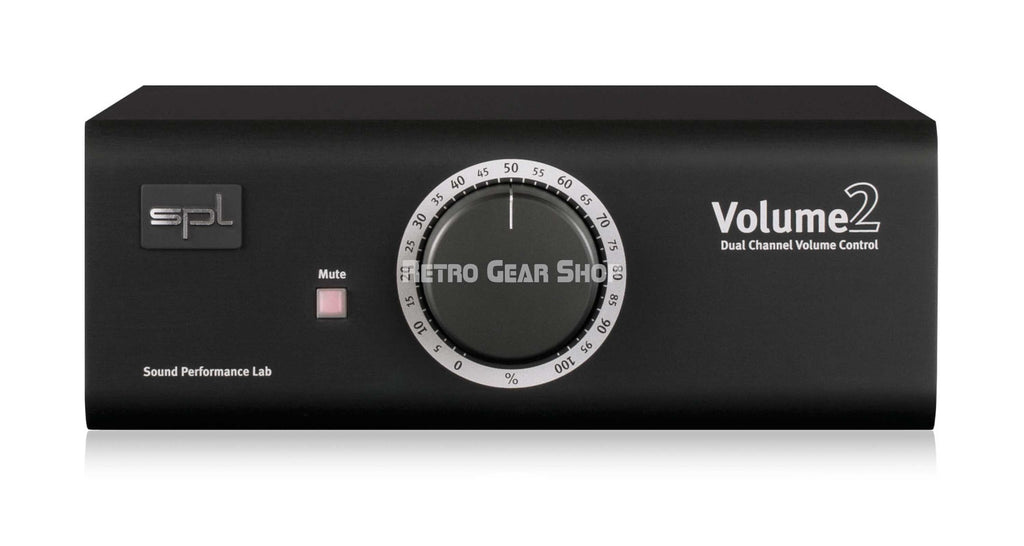

• Solid aluminium knob with 45mm diameter for smooth, sensitive operation
• Elegantly designed and compact housing for flexible desk positioning close to the screen.

Analog inputs & outputs; XLR (balanced)
• Maximum input & output gain: 21 dBu
• Input impedance: 22 kΩ
• Output impedance: 100 Ω
• Frequency range (-3 dB): 10 Hz – 100 kHz
• THD + N (10 Hz – 22 kHz, 15 dBu): -100 dBu
• Noise (A-weighted): -102 dBu
• Crosstalk (1 kHz): 80 dB
• Common mode rejection (1 kHz): 60 dB
• Dynamic range: 123 dB

Internal Linear Power Supply with Toroidal Transformer
• Operating voltage for analog audio: +/- 15 V
• Operating voltage for relays and LEDs: +12 V

Mains Power Supply
• Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 250 mA
• Fuse for 115 V: T 500 mA
• Power consumption: max. 15 W

Dimensions & Weight
• W x H x D (width x height incl. feet x depth): 215 x 91 x 220 mm
8.46 x 3.58 x 8.66 inch
• Unit weight: 1.6 kg
3.53 lbs
• Shipping weight (incl. packaging): 2.85 kg
6.28 lbs
