Universal Audio 4-710d
Home → Outboard/Recording → Preamps → Universal Audio

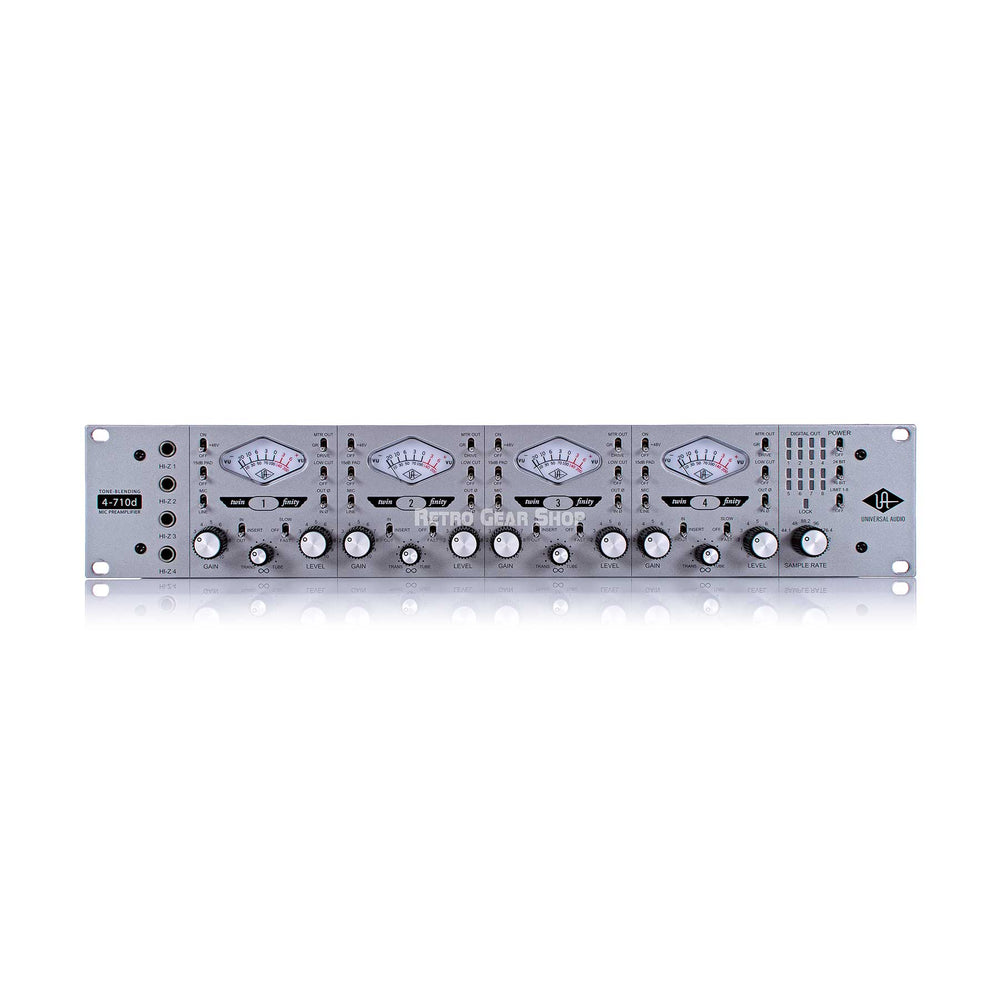

Universal Audio 4-710d Microphone Preamp
Retro Gear Shop is an Authorized dealer for Universal Audio products.
Retro Gear Shop is an Authorized dealer for Universal Audio products.
Brand New with full Warranty
Free shipping in the USA.
- Track through meticulously designed UA tube preamp circuitry
- Blend tube and solid-state textures for tons of flexibility
- Harness classic 1176-style compression on each mic channel
- Add 8 inputs to any Apollo interface via ADAT optical connection
A Legendary Compression Circuit
Each of the 4-710d’s four channels features true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. This enables quick, on-the-fly tweaking for fattening up a vocal, hold a bass guitar in place, or for adding sizzle and texture to synths and horns.
Add Inputs and Professional A/D Conversion
With eight analog inputs, the 4-710d is perfect for expanding your studio. Digitized via ultra high-quality 24-bit A/D converters at selectable sample rates up to 192 kHz, the 4-710d easily connects to most interfaces with its dual ADAT optical or AES/EBU DB-25 connectors.
- Blend tube and solid-state textures for tons of flexibility
- Harness classic 1176-style compression on each mic channel
- Add 8 inputs to any Apollo interface via ADAT optical connection
A Legendary Compression Circuit
Each of the 4-710d’s four channels features true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. This enables quick, on-the-fly tweaking for fattening up a vocal, hold a bass guitar in place, or for adding sizzle and texture to synths and horns.
Add Inputs and Professional A/D Conversion
With eight analog inputs, the 4-710d is perfect for expanding your studio. Digitized via ultra high-quality 24-bit A/D converters at selectable sample rates up to 192 kHz, the 4-710d easily connects to most interfaces with its dual ADAT optical or AES/EBU DB-25 connectors.
Four TEC Award-winning 710 Twin-Finity™ microphone/line preamps, each featuring:
Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
Newly designed 1176-style compression circuit per preamp channel
JFET Direct Input with 2.2MΩ ultra Hi-Z impedance w/auto input override
Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction
Balanced send/return inserts (half-normalled)
48V phantom power
75 Hz low cut filter
Polarity switch
Monolithic balanced output stage
Analog-to-Digital Conversion
Eight channels of high quality 24-bit A/D conversion:
Selectable sample rates up to 192 kHz
Digital output via dual ADAT optical and AES/EBU DB-25 connectors
8-channel soft limiter (switchable for all channels)
Ultra-low jitter clock subsystem
LED metering array with clip/hold indicators
75Ω BNC work clock I/O
Digital outputs anti-pop protection on power-up
Other
Universal voltage internal power supply
Heavy-duty metal construction, two-space rack unit
One year warranty including parts and labor
Universal Audio 4-710d Manual
Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
Newly designed 1176-style compression circuit per preamp channel
JFET Direct Input with 2.2MΩ ultra Hi-Z impedance w/auto input override
Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction
Balanced send/return inserts (half-normalled)
48V phantom power
75 Hz low cut filter
Polarity switch
Monolithic balanced output stage
Analog-to-Digital Conversion
Eight channels of high quality 24-bit A/D conversion:
Selectable sample rates up to 192 kHz
Digital output via dual ADAT optical and AES/EBU DB-25 connectors
8-channel soft limiter (switchable for all channels)
Ultra-low jitter clock subsystem
LED metering array with clip/hold indicators
75Ω BNC work clock I/O
Digital outputs anti-pop protection on power-up
Other
Universal voltage internal power supply
Heavy-duty metal construction, two-space rack unit
One year warranty including parts and labor
Universal Audio 4-710d Manual
