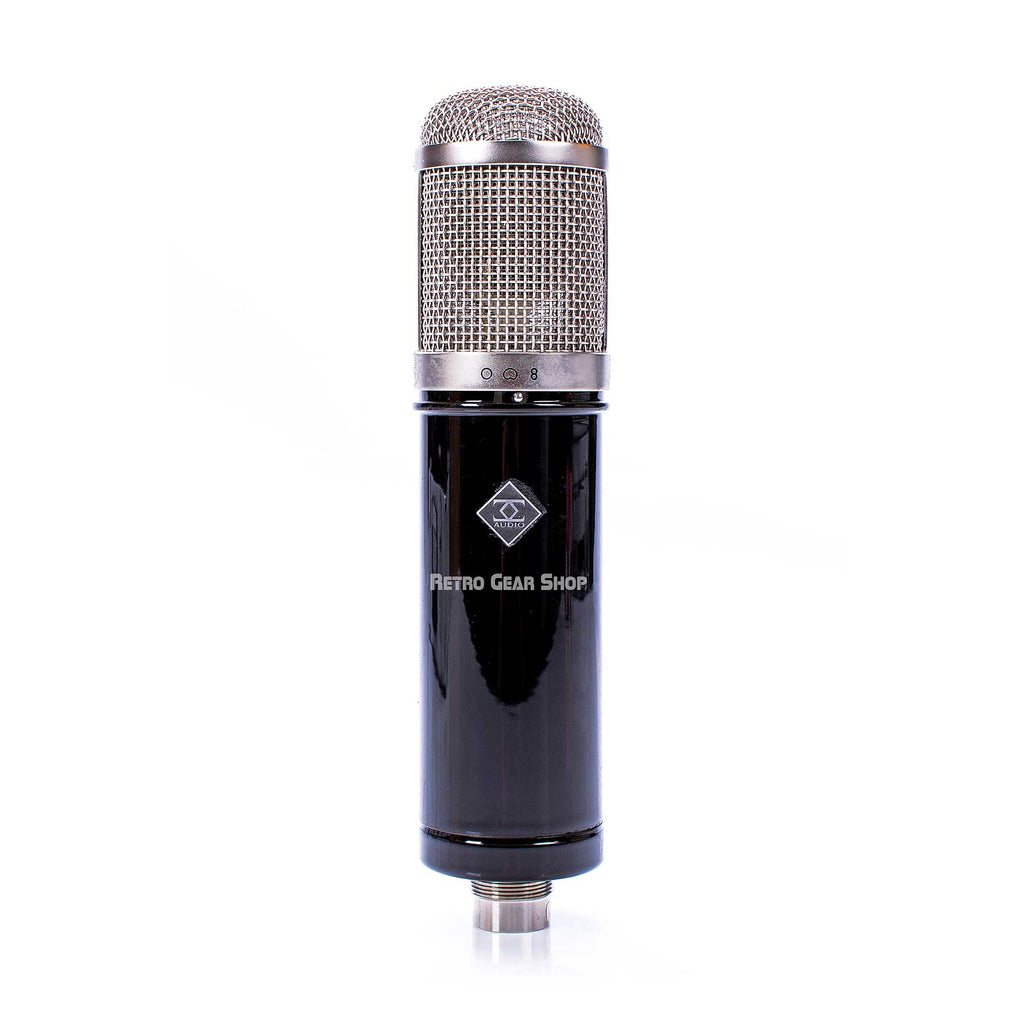

ADK Frankfurt 49T Microphone
ADK Frankfurt 49T Front

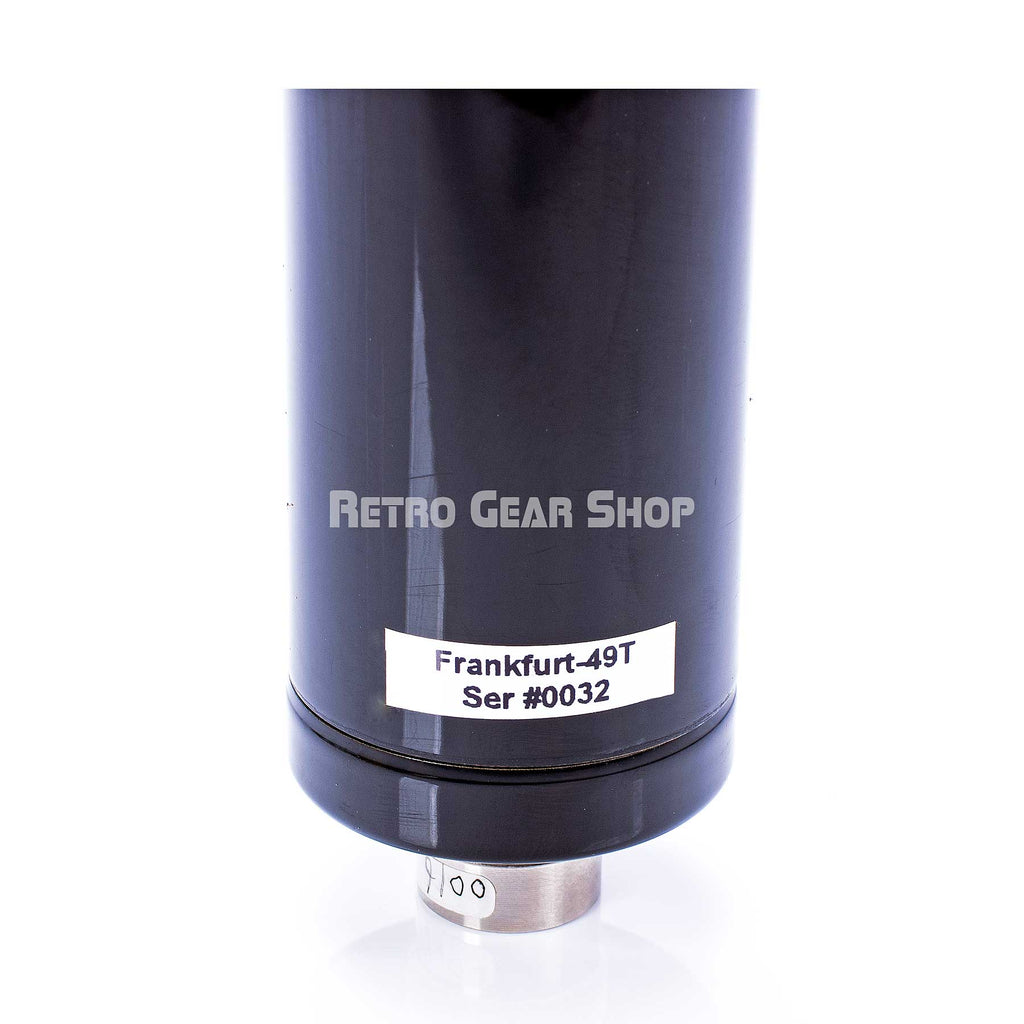

ADK Frankfurt 49T Serial Number

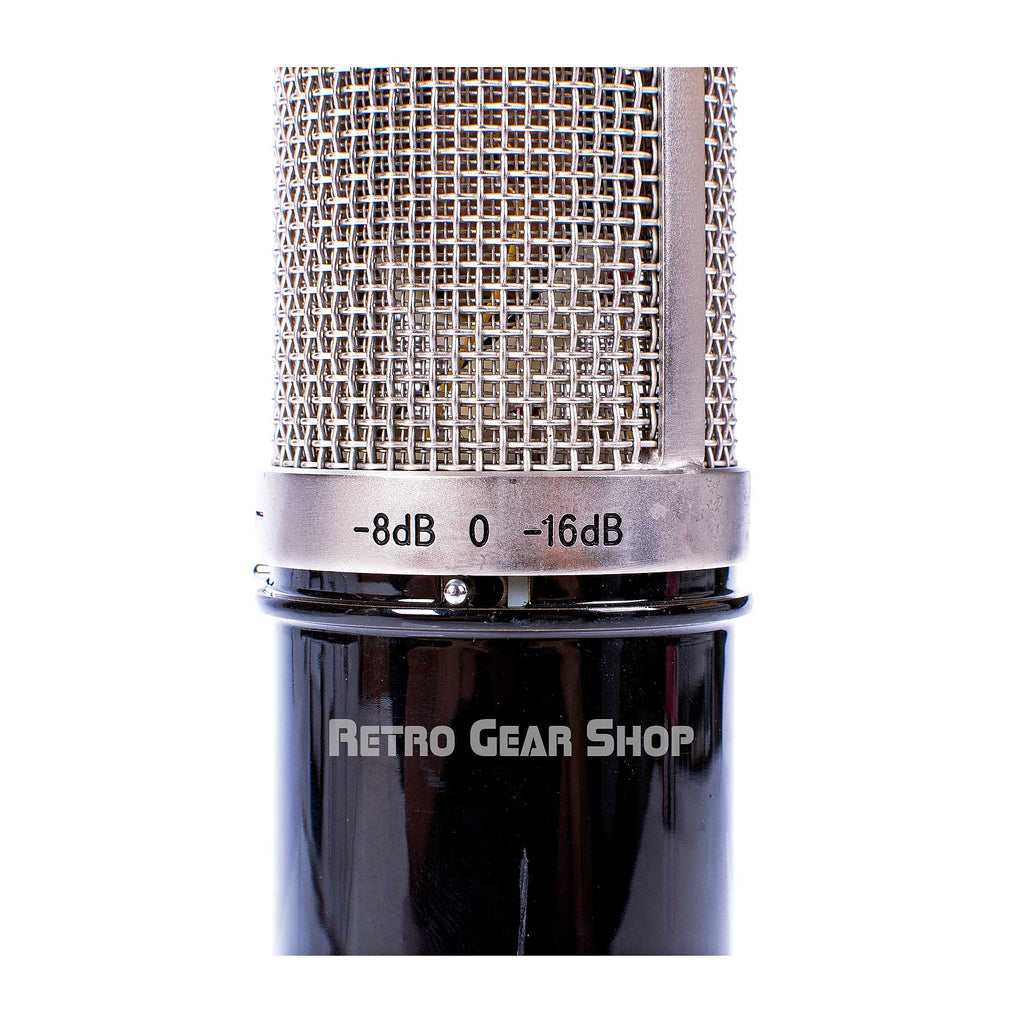

ADK Frankfurt 49T DB Pad

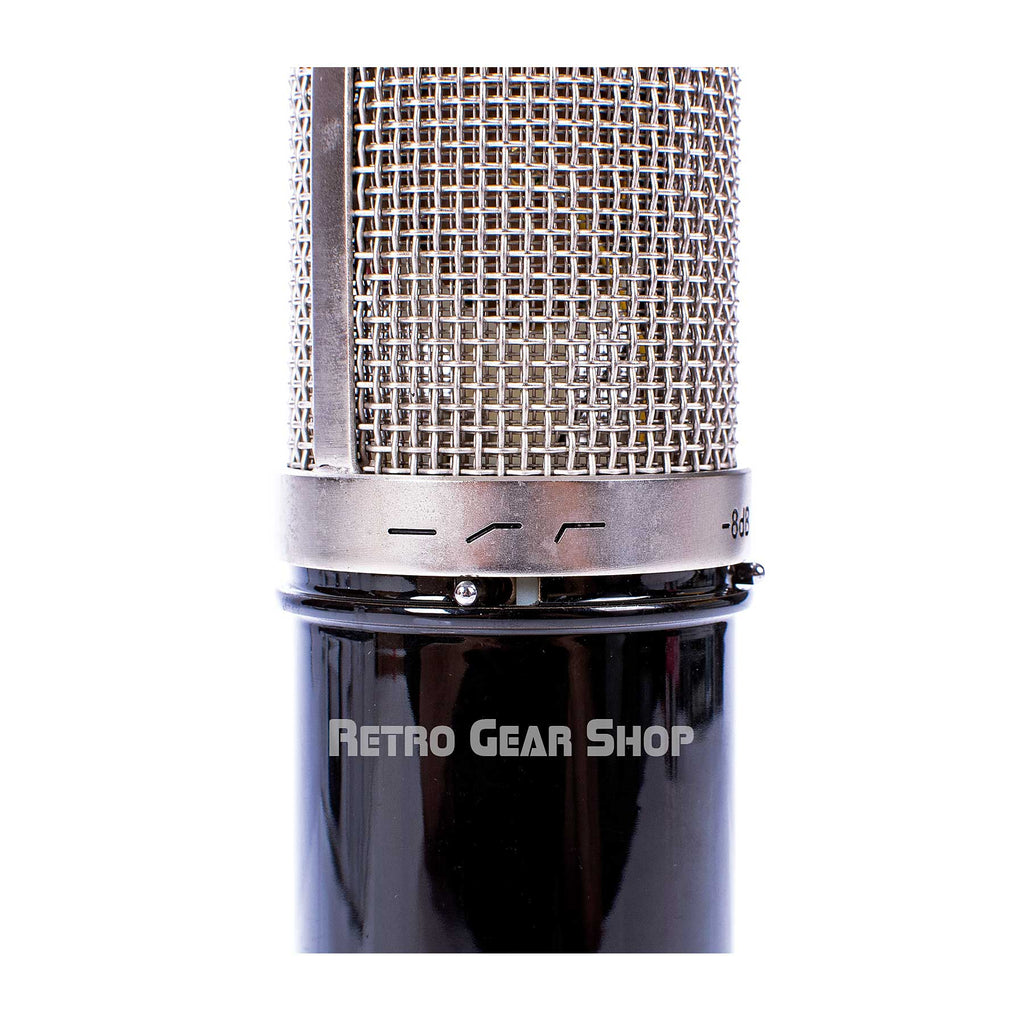

ADK Frankfurt 49T FL Cutoff

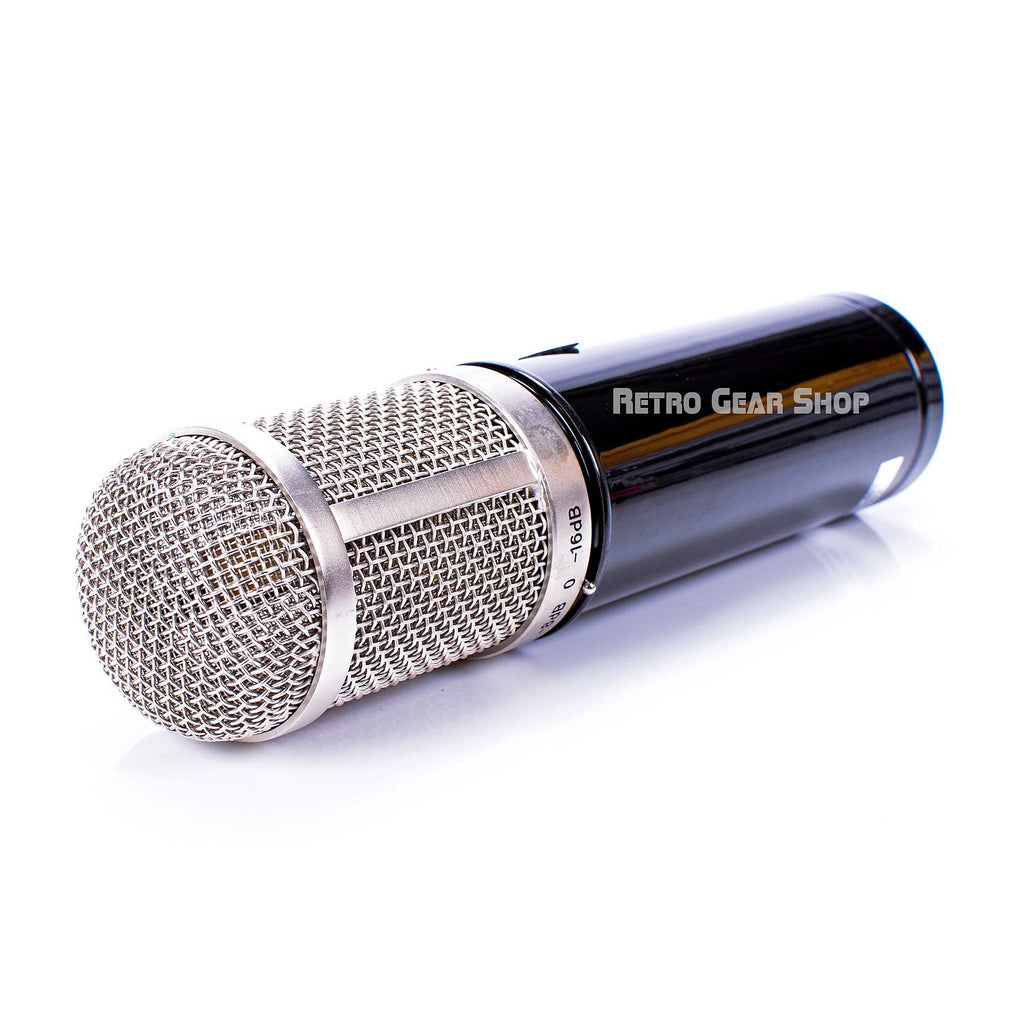

ADK Frankfurt 49T Top Grille

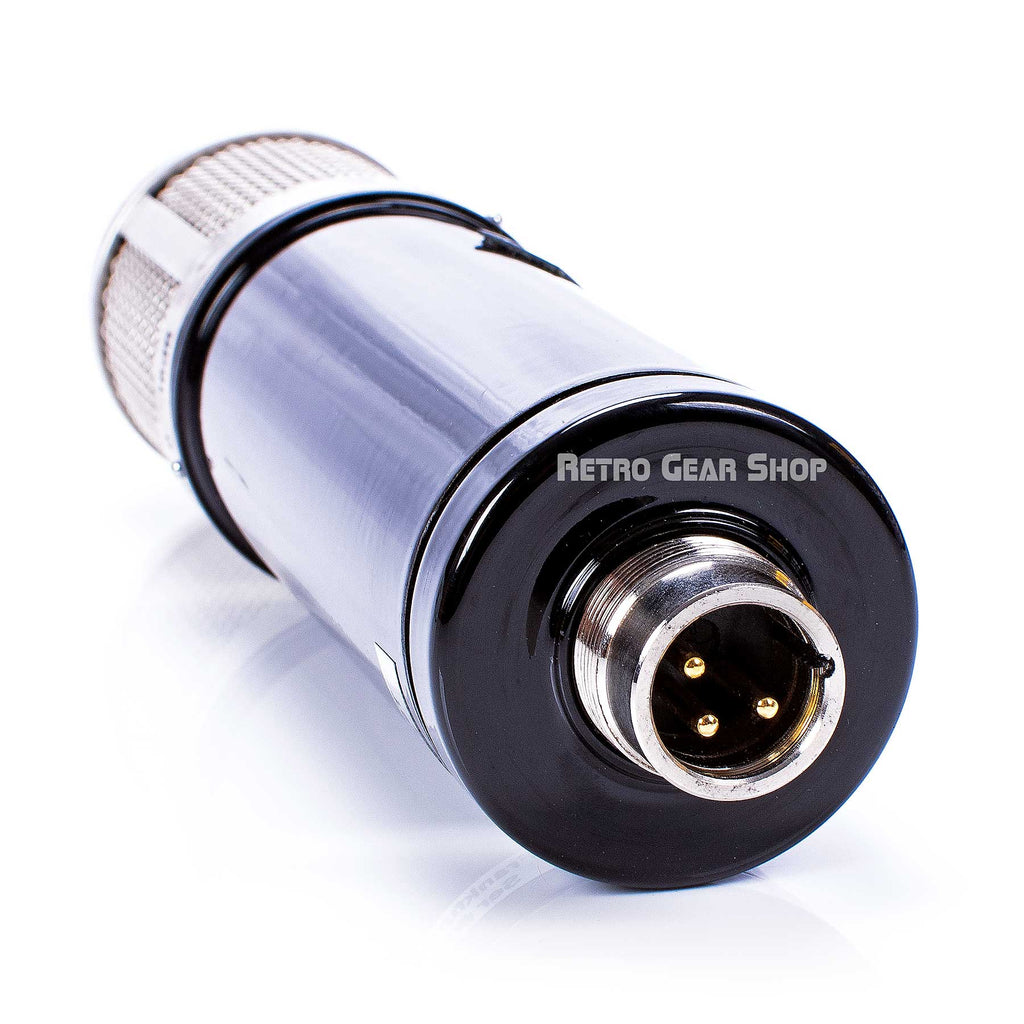

ADK Frankfurt 49T Bottom Connector

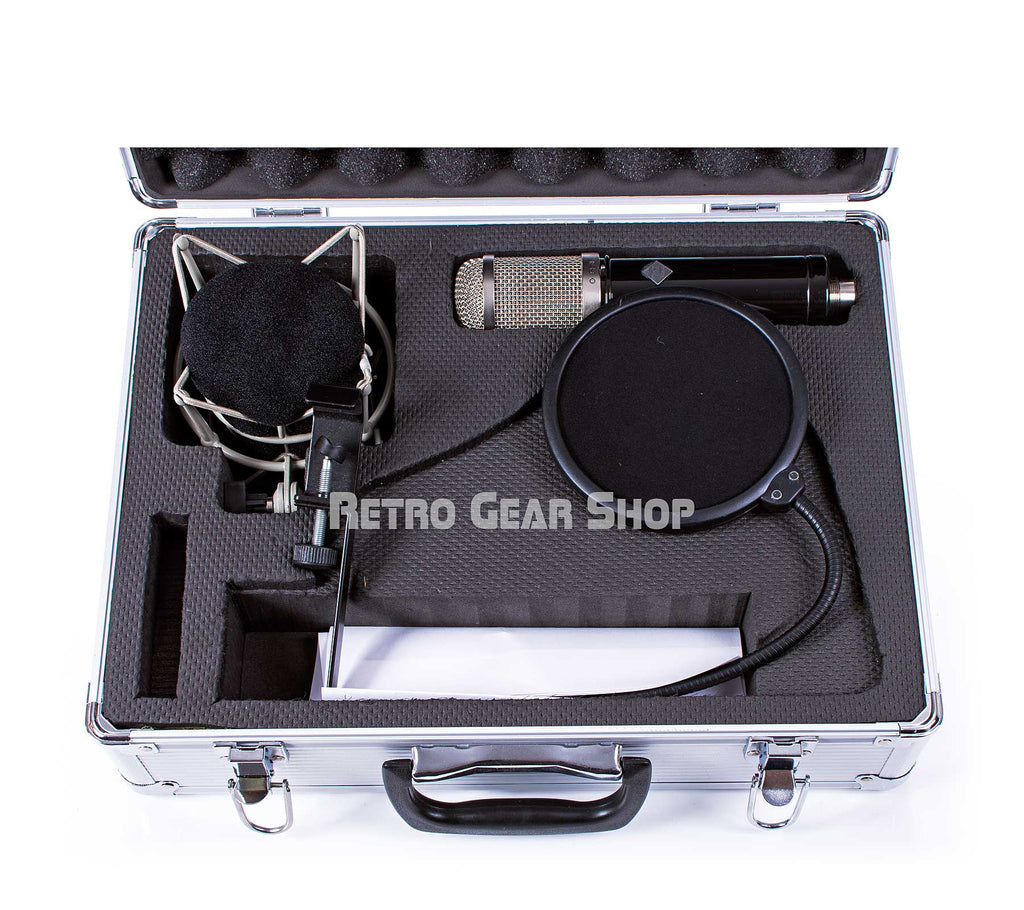

ADK Frankfurt 49T Flight Case Open Accessories

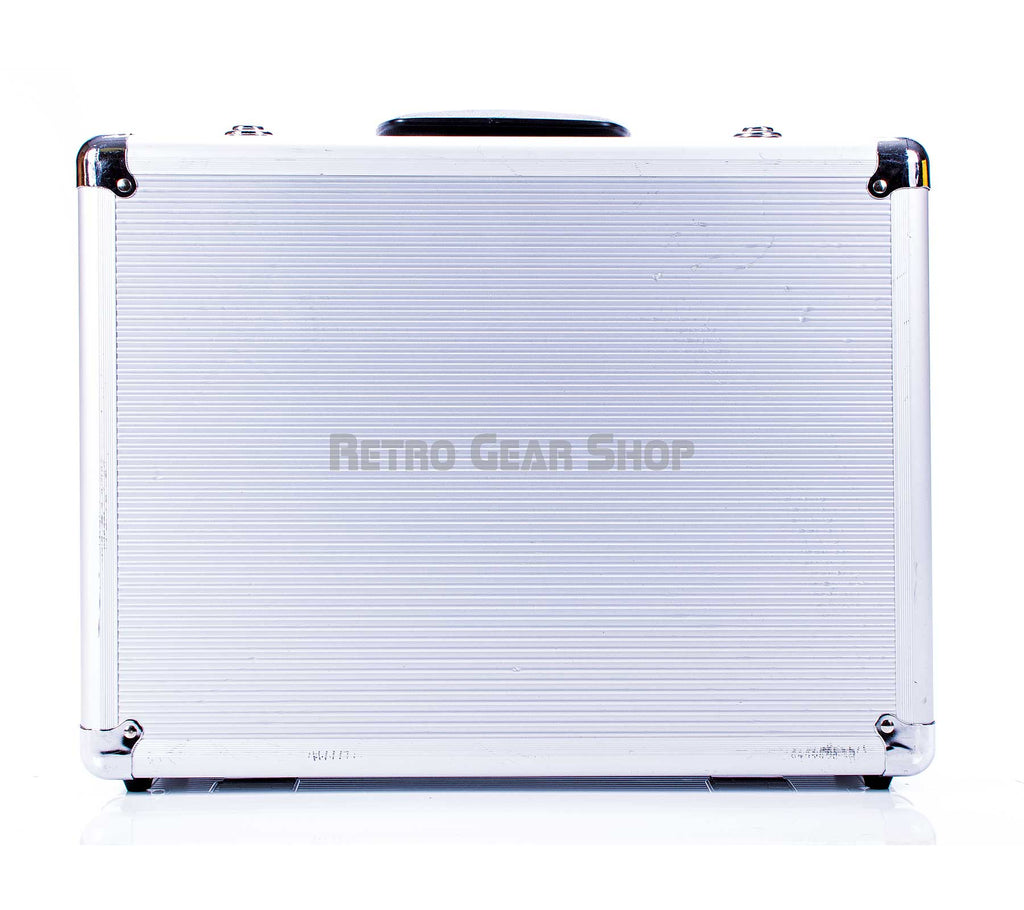

ADK Frankfurt 49T Flight Case
ADK Frankfurt 49T Serial Number

ADK Frankfurt 49T

HomeSales ArchiveSold Microphones

ADK Frankfurt 49T microphone - used
Near Mint condition. Includes original case, power supply, etc. Mic is super clean shape, very minimal signs of use. Only the outer carry case shows a little wear. These don't come up for sale used too often, save a bunch here off the new price!

The ADK Custom Shop Frankfurt 49-T Microphone is part of the ADK Custom Shop FET series, which are based on a unique FET circuit that saturates gradually (unlike most condenser microphones which tend to clip abruptly). Key to the Tonality -a Belgian-American-Australian-Designed Capsule, British Oxford Transformers, Hi-End Phillips Norelco Uber-FET. Manufactured with Hi-Fi Methods and Materials, including a $6 Resistor! It took three microphone experts including a PhD in Physics, a Design Genius in Belgium and a 40 year-old Mic Locker to create them! Two-Way Attenuation Pads & Two Way HP Filter to enable end-user to tailor the dynamic behavior of the microphone and create new textures, with rarely the need for outboard processors or even EQ. The Frankfurt 49-T is a tri-polar microphone with selectable Cardioid, Figure-8, and Omni pickup patterns.

All Class-A F.E.T. design manufactured in 3 Zigma Aerospace Manufacturing facility with British Oxford Transformer, and premium quality Low-Noise 3 Zigma capsules with Vintage Voicing Curves. The audiophile circuitry differs from lesser-designs in that it is designed for Soft-Saturation at extremely high SPL as instead of going into the “crunch” and unpleasant distortion (not the good kind of distortion!) of hard-clipping. The Frankfurt 49-T features a very smooth, dark top, but a full mid and bottom end. Great for getting that extremely vintage vibe on would-be harsh sources. Perfect for strings.

ADK Custom Shop Frankfurt 49-T Microphone Includes

- Premium Aluminum Flight Case
- Shock Mount
- Ring Mount
- Foam Windscreen
- Pop Filter
- Award-Winning Accusound XLR Cable

ADK Custom Shop Frankfurt 49-T Microphone Specifications

Acoustical operating principle: 27.5mm large diaphragm pressure gradient transducer
Directional pattern: Cardioid, Figure 8, Omni
Frequency range: 20Hz~20kHz
Sensitivity: -37dB (14.1mV/Pa)
Output impedance: 200 ohms
Equivalent noise A-weighted: 13 dB
S/N ratio (A-weighted, rel 1Pa): 81dB
Maximum SPL: 138dB with 16dB pad
Dynamic range: 125dB
Supply voltage: 48 volts (P48)
