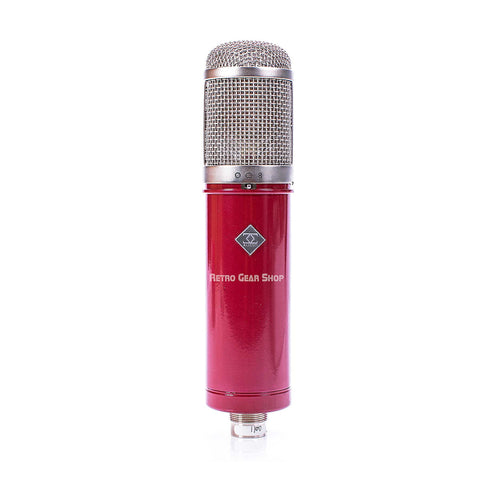

ADK Vienne 12T Microphone
ADK Vienne 12T Front
ADK Vienne 12T Serial Number
ADK Vienne 12T LF Cutoff
ADK Vienne 12T DB Pad
ADK Vienne 12T Top Grille
ADK Vienne 12T Bottom Connector
ADK Vienne 12T Flight Case Open Accessories
ADK Vienne 12T Flight Case
ADK Vienne 12T Serial Number

ADK Vienna 12T

HomeSales ArchiveSold Outboard/Recording

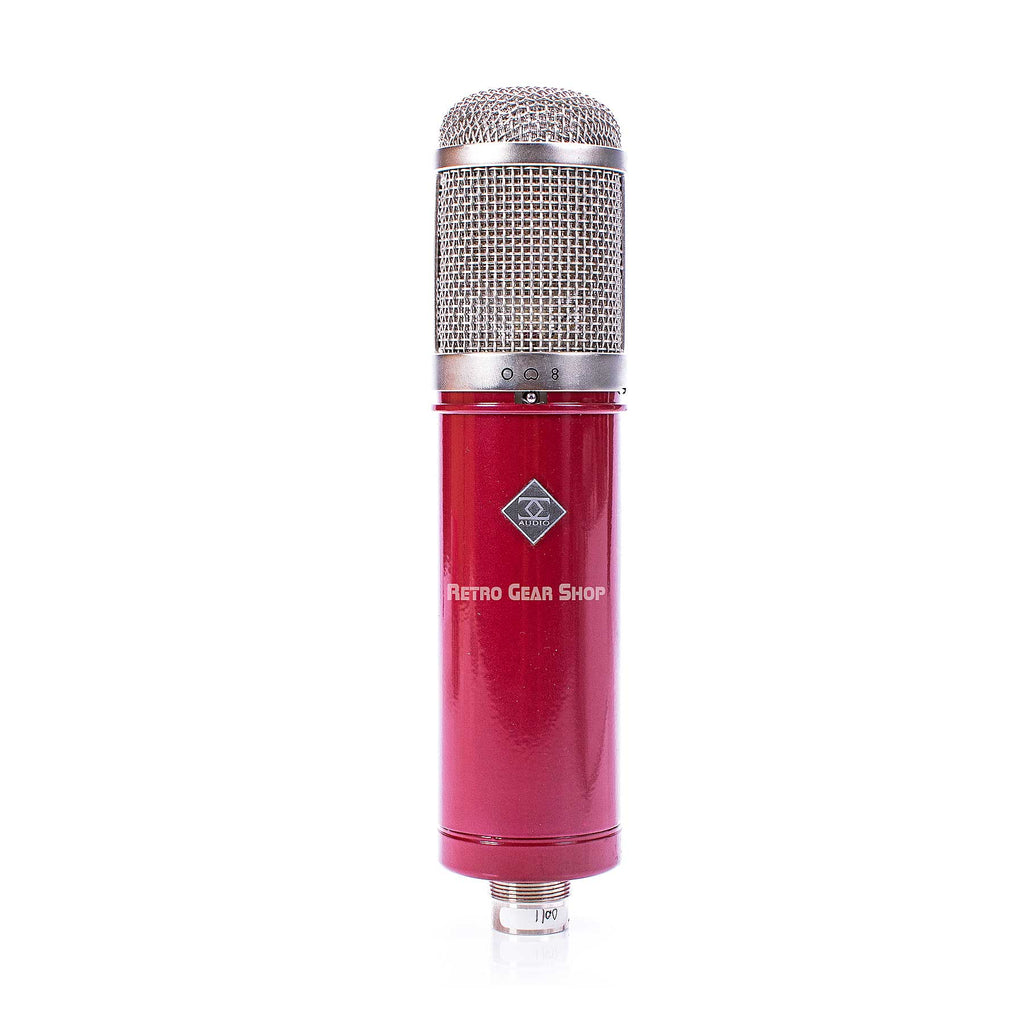

ADK Vienna 12T microphone - used
Near Mint condition. Includes original case, power supply, etc. Mic is super clean shape, very minimal signs of use. Only the outer carry case shows a little wear. These don't come up for sale used too often, save a bunch here off the new price!

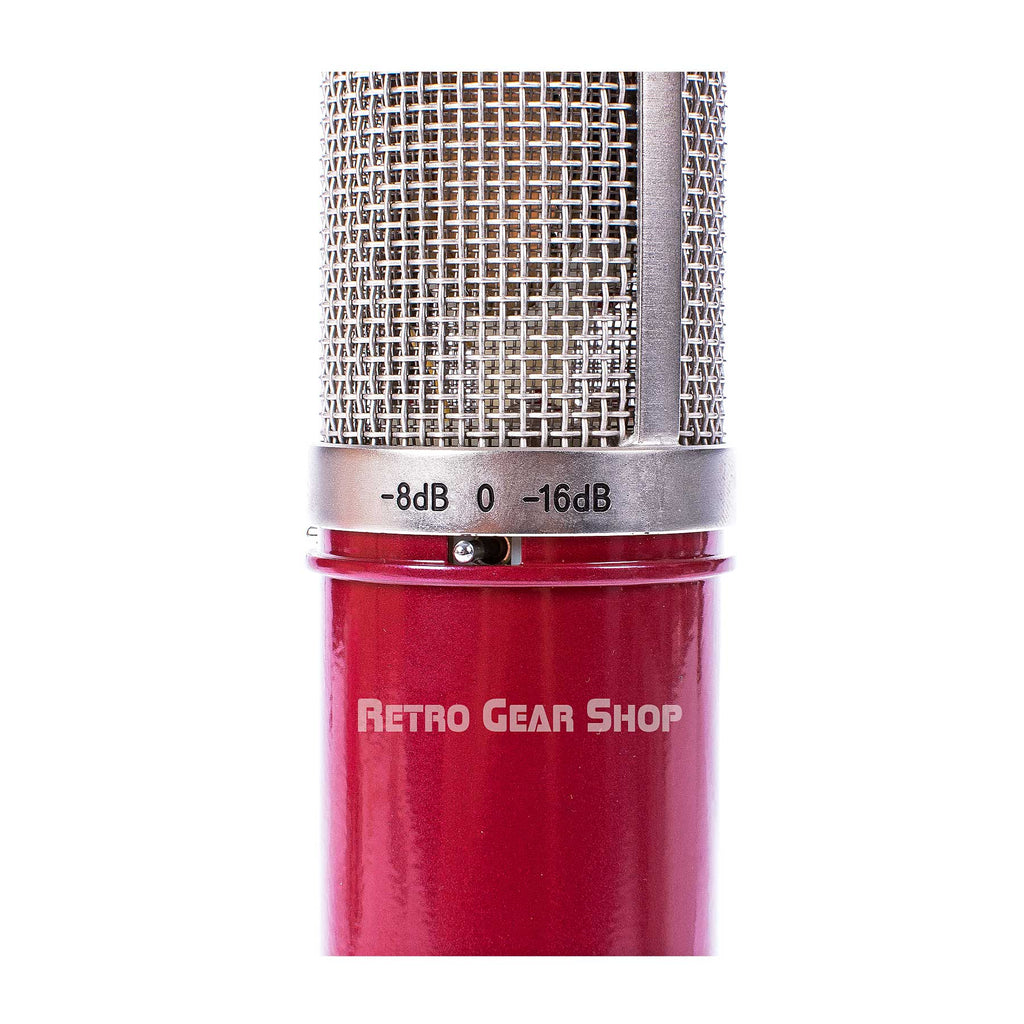

The ADK Custom Shop Vienna 12-T Microphone is the most brilliant of all ADK Custom Shop FET microphones. It has an almost effervescent high-end. It is a tri-polar microphone with selectable Cardioid, Figure-8, and Omni pickup patterns. The Vienna 12 model is based on a unique FET circuit that saturates gradually (unlike most condenser microphones which tend to clip abruptly). The microphone boasts an Australian-designed capsule, British Oxford transformer, hi-end Phillips Norelco uber-FET. manufactured with methods and materials usually found with hi-fi equipment, including even a $6 resistor – expensive considering most resistors cost just a few pennies each. It took three microphone experts including a PhD in Physics, a design genius in Belgium and a 40 year-old microphone collection to create it! Add two-way attenuation pads (8 and 16 dB) to enable end-user to tailor the dynamic behavior of the microphone to the situation and obtain new textures, with rarely the need for outboard processors or even equalization.

All Class-A F.E.T. design manufactured in 3 Zigma Aerospace Manufacturing facility with British Oxford Transformer, and premium quality Low-Noise 3 Zigma capsules with Vintage Voicing Curves. The audiophile circuitry differs from lesser-designs in that it is designed for Soft-Saturation at extremely high SPL as instead of going into the “crunch” and unpleasant distortion (not the good kind of distortion!) of hard-clipping.

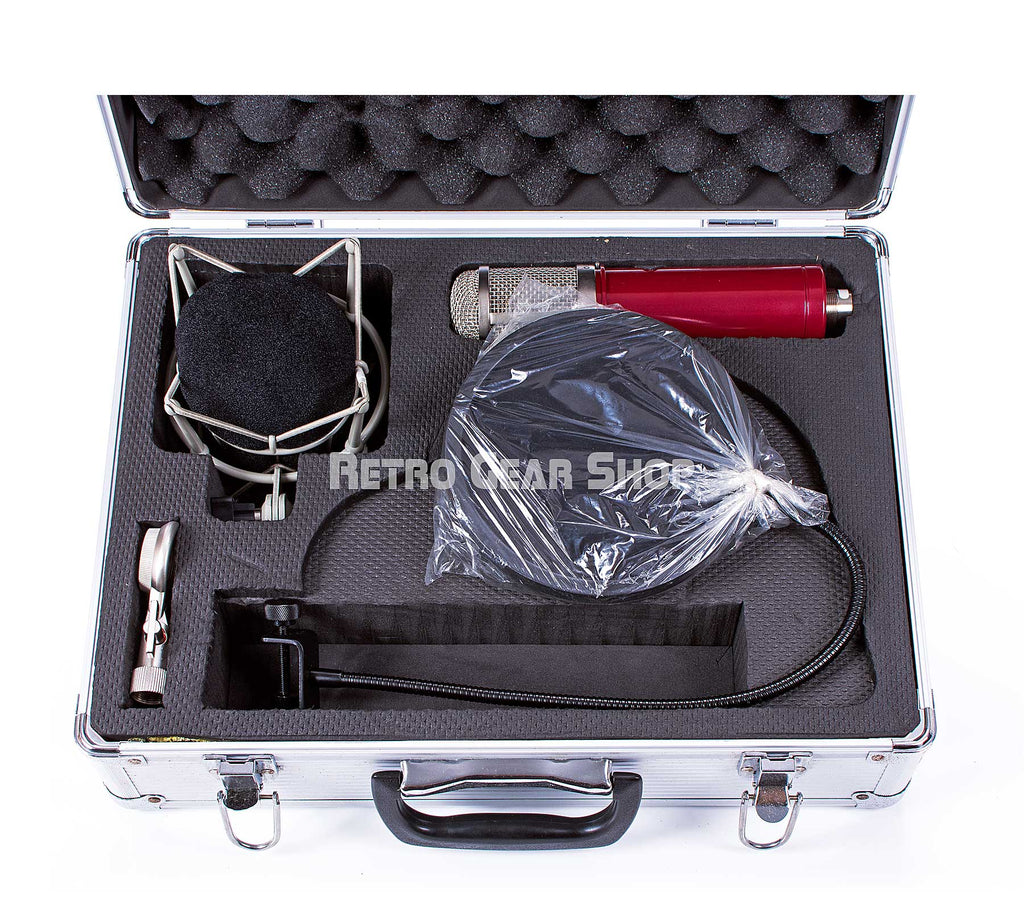

ADK Custom Shop Vienna 12-T Microphone Includes

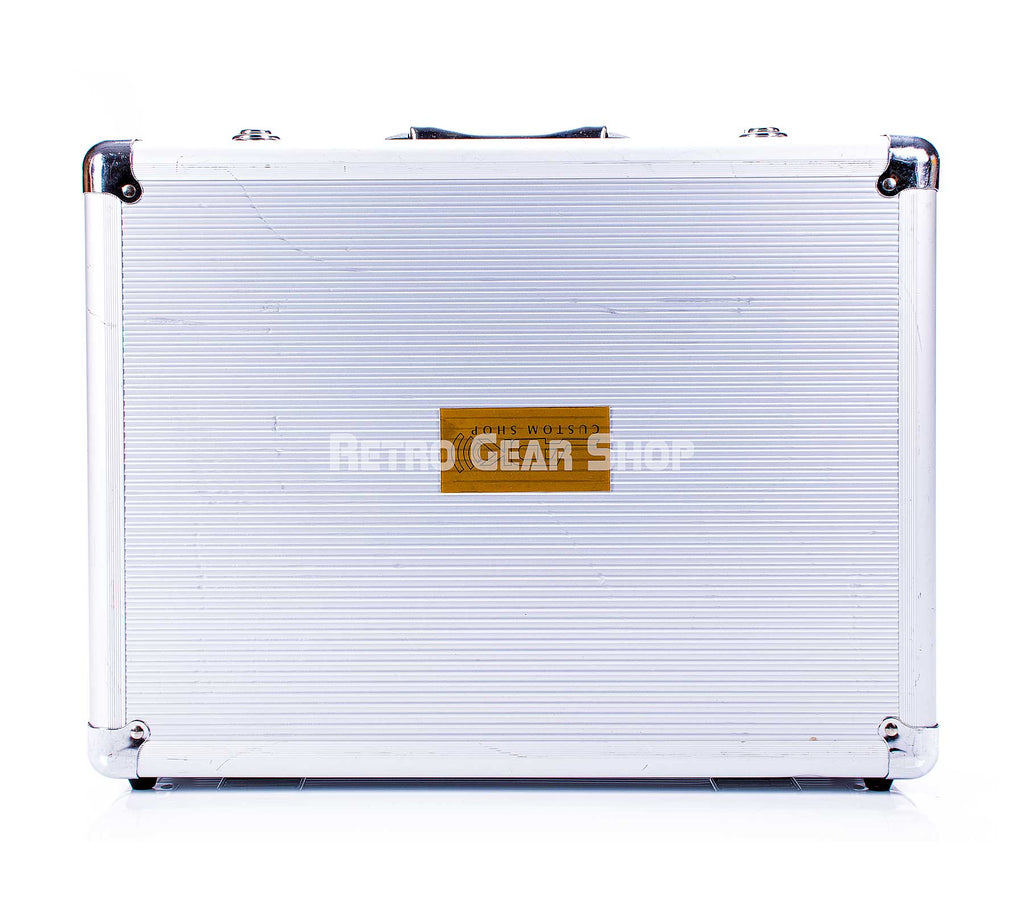

    - Premium Aluminum Flight Case
    - Shock Mount
    - Ring Mount
    - Foam Windscreen
    - Pop Filter
    - Award-Winning Accusound XLR Cable

    ADK Custom Shop Vienna 12-T Microphone Specifications

      - Acoustical operating principle: 27.5mm large diaphragm pressure gradient transducer
      - Directional pattern: cardioid
      - Frequency range: 20Hz~20kHz
      - Sensitivity: -35dB (17.8mV/Pa)
      - Output impedance: 200 ohms
      - Equivalent noise A-weighted: 11 dB
      - S/N ratio (A-weighted, rel 1Pa): 83dB
      - Maximum SPL: 136dB with 16dB pad
      - Dynamic range: 125dB
      - Supply voltage: 48 volts (P48)

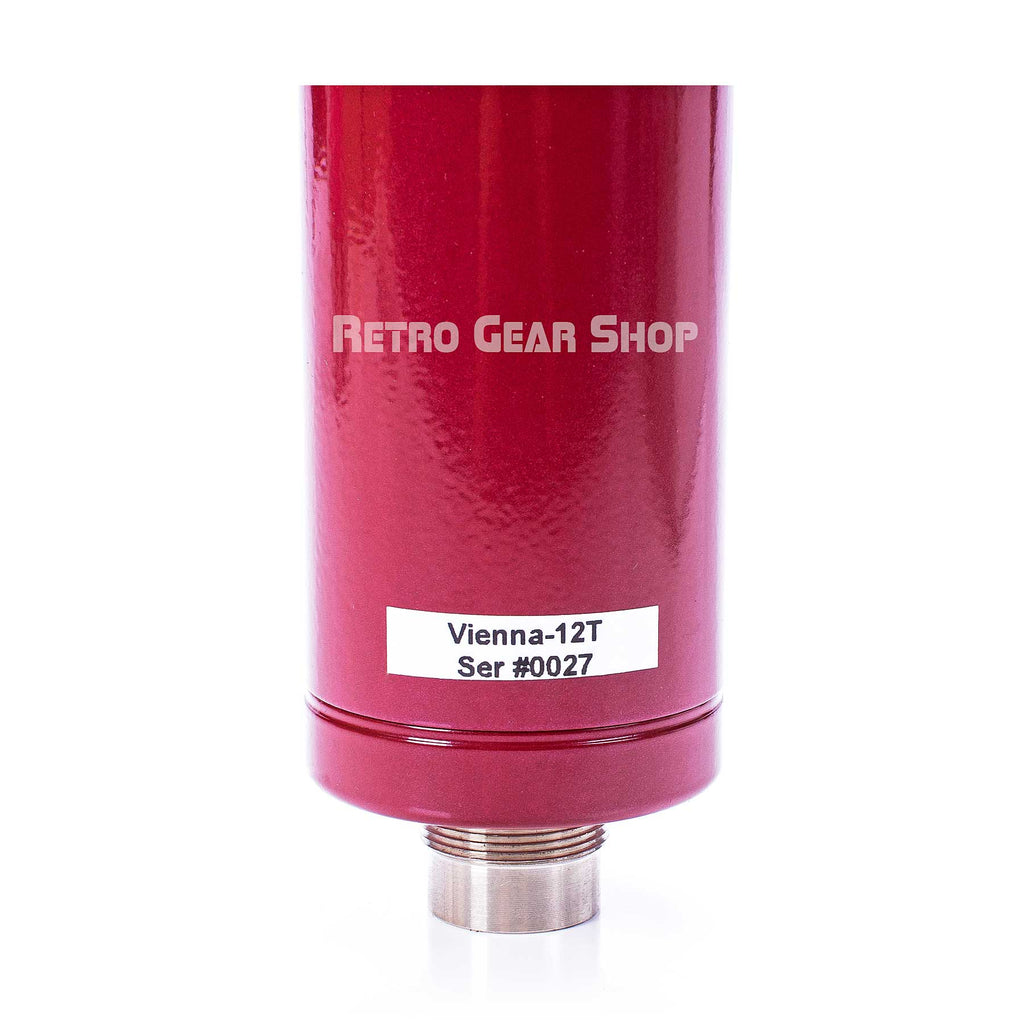

      ADK Vienne 12T Serial Number

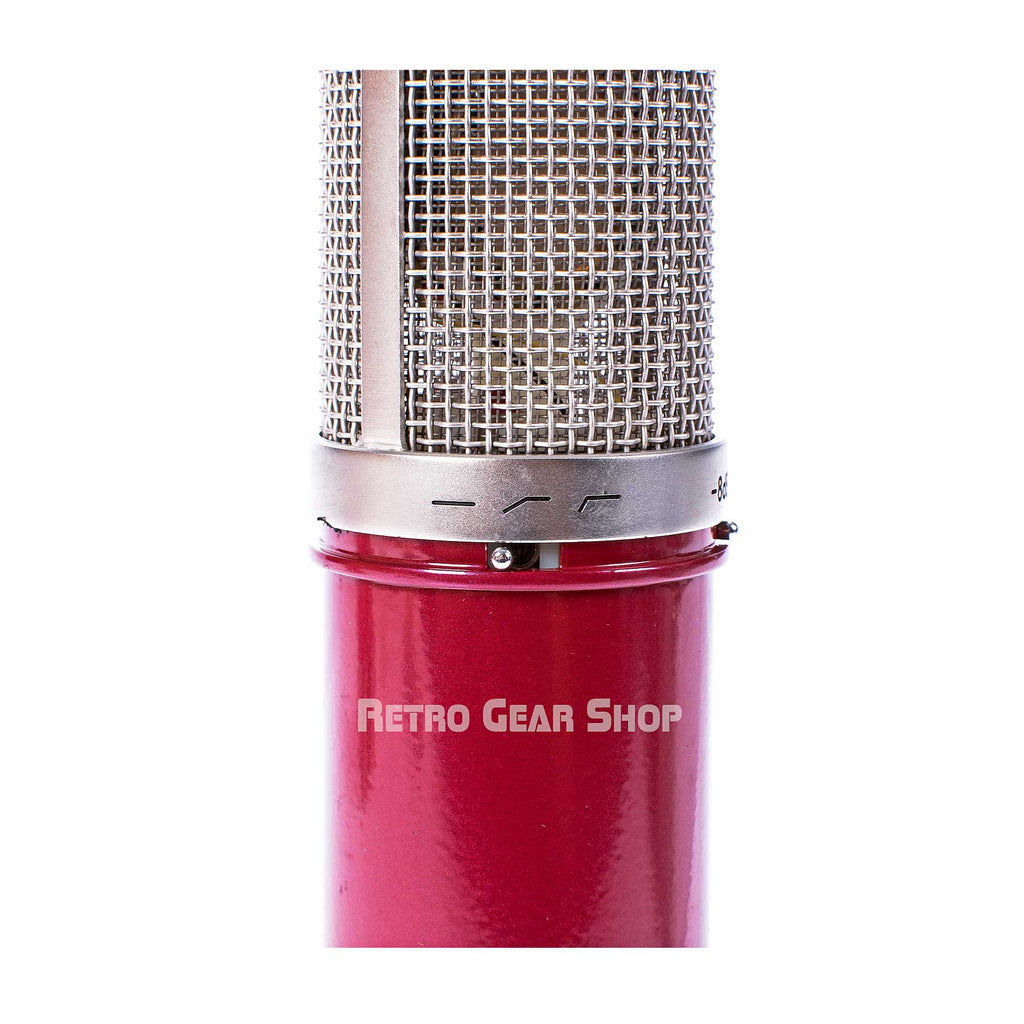

      ADK Vienne 12T LF Cutoff
      ADK Vienne 12T DB Pad

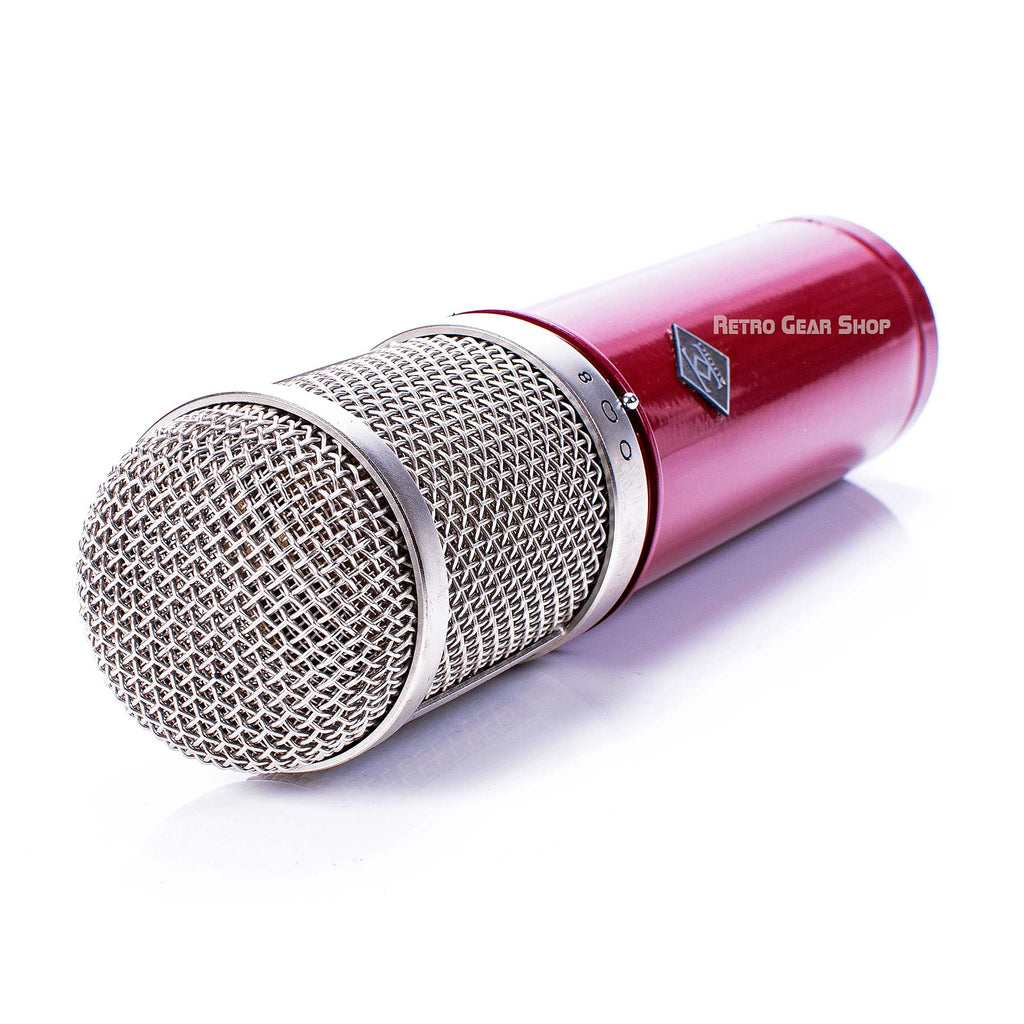

      ADK Vienne 12T Top Grille

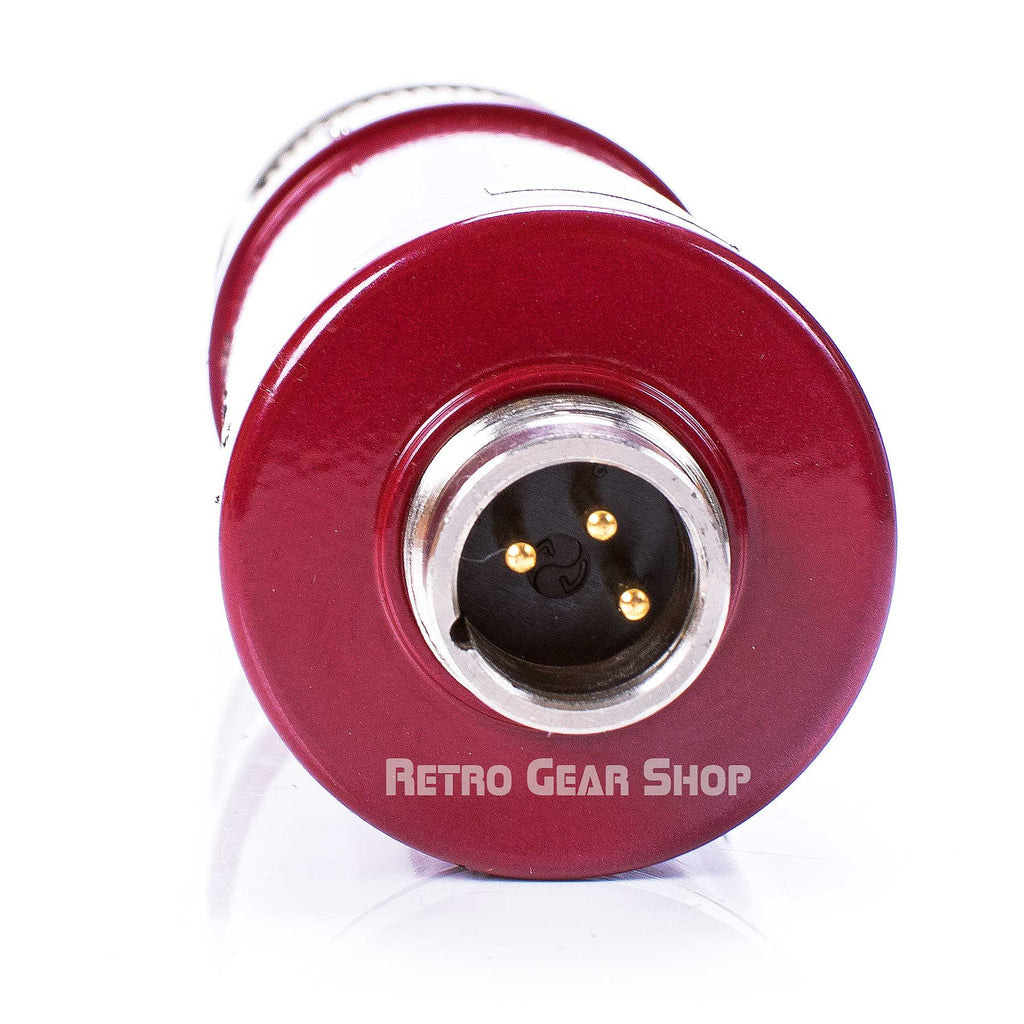

      ADK Vienne 12T Bottom Connector
