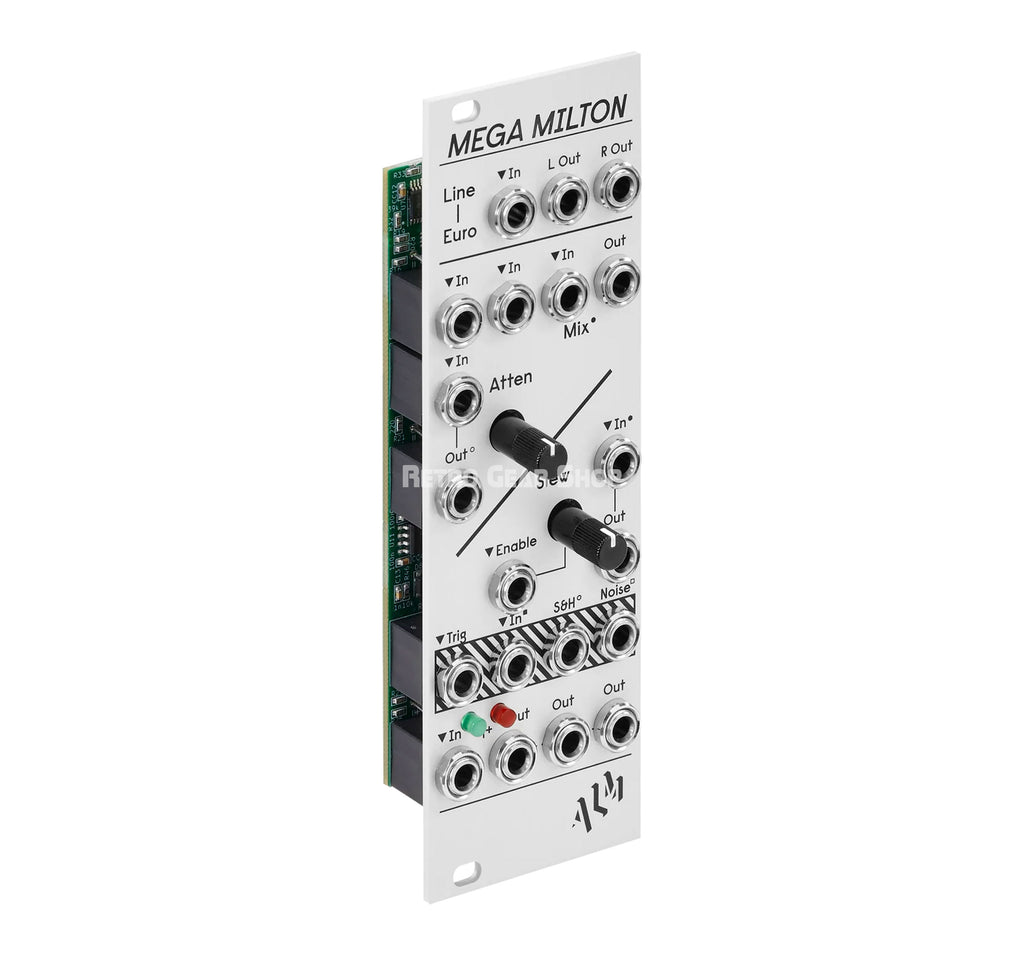

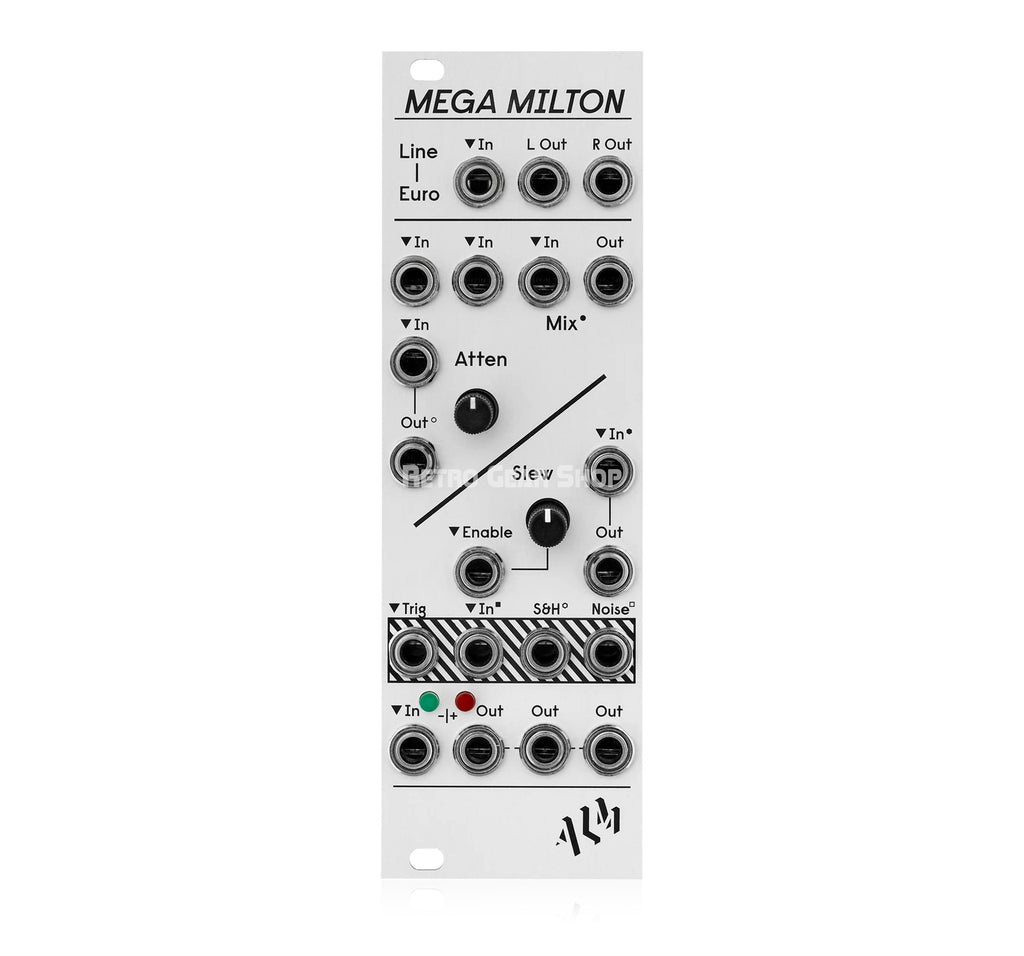

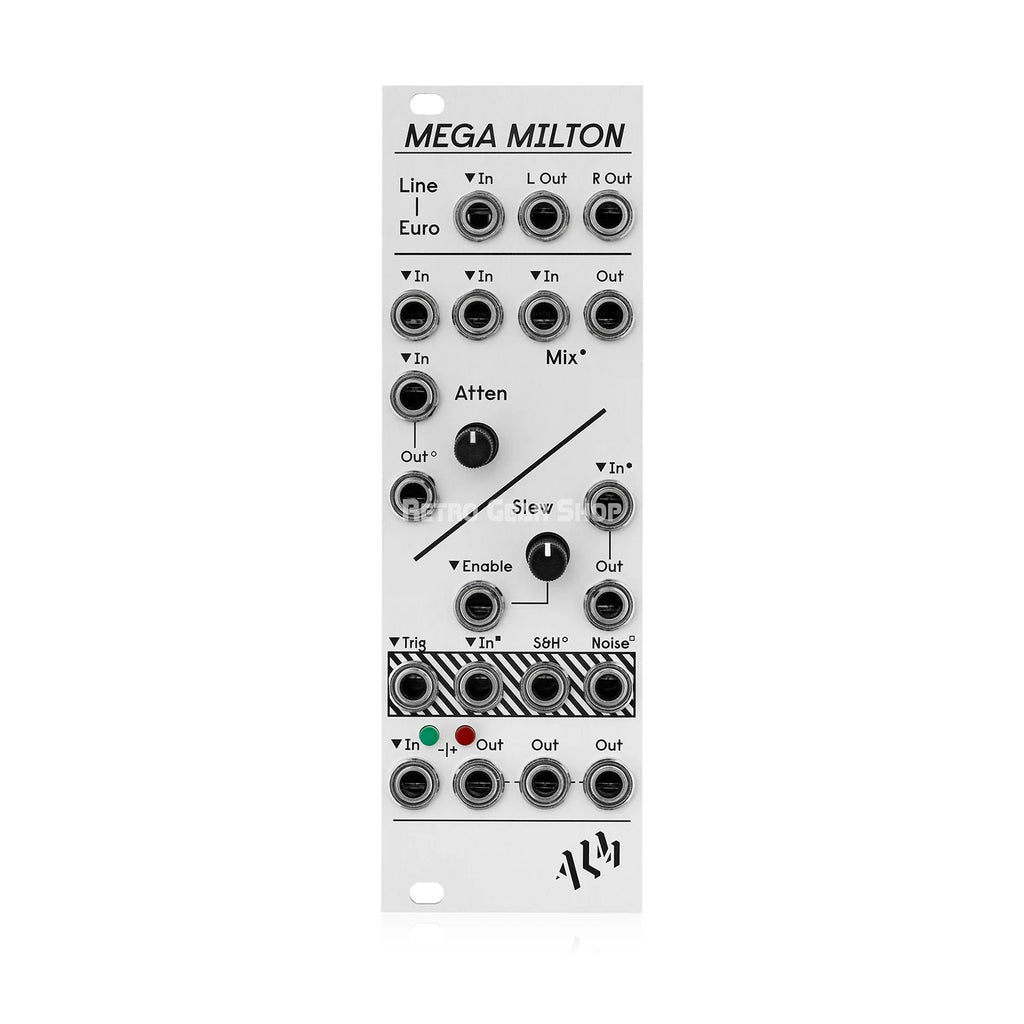

ALM Busy Circuits MEGA MILTON Compact Utilities Eurorack Module

The ‘MEGA MILTON’ is a smorgasbord of handy all analog utilities in just 8HP that will greatly extend the functionality of your Eurorack system.

It includes a stereo line input converter for incorporating line level external sources into a Eurorack system, a fixed 4 input mixer with breakout attenuator for combining signals, a gated slew limiter for adding slides to sequences, a sample and hold with analog white noise with a myriad of uses such as generative melodies or producing percussive textures and finally a buffered mult for droop free signal distribution with handy LEDs to monitor.

All sections are normalised to help with typical use cases such as generating random CV from the sample & hold section, a smooth random source from the slew output and breaking out a standalone attenuator from the fourth mixer input.

The ‘MEGA MILTON’ provides essential classic synthesizer building blocks for patching in any Eurorack system.

• Stereo line in to Eurorack level converter & mono splitter.
• Four input summing mixer with break out attenuator.
• Slew limiter circuit with gate input for switching on and off.
• High quality sample & hold circuit with low ‘droop rate’.
• Analog White noise generator.
• Buffered multiple with LED polarity indicators.
• Normalisation between sections for simplified patching.
• Skiff friendly with reverse power protection.
• 2 Year Warranty.
• Made in England.

• Supply: +12V 70mA / -12V 70mA
• Size: 8HP
• Depth: 32mm
