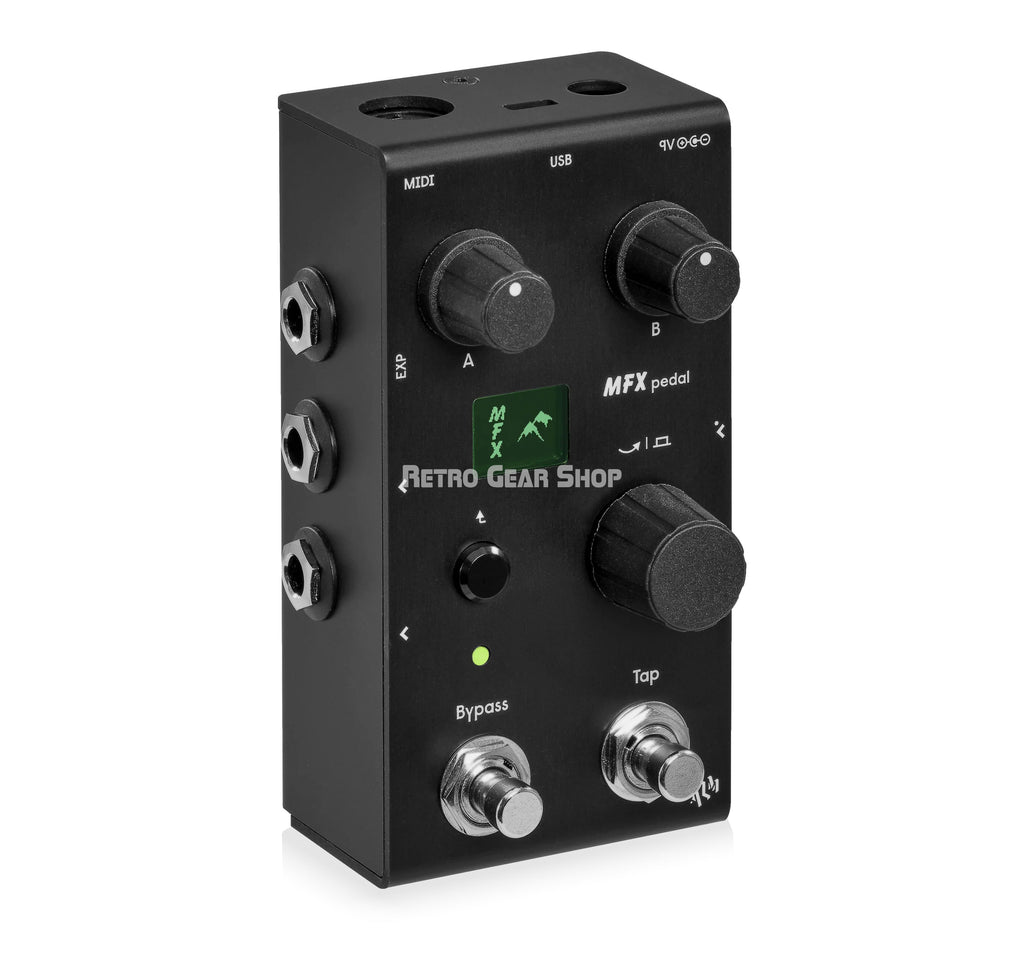

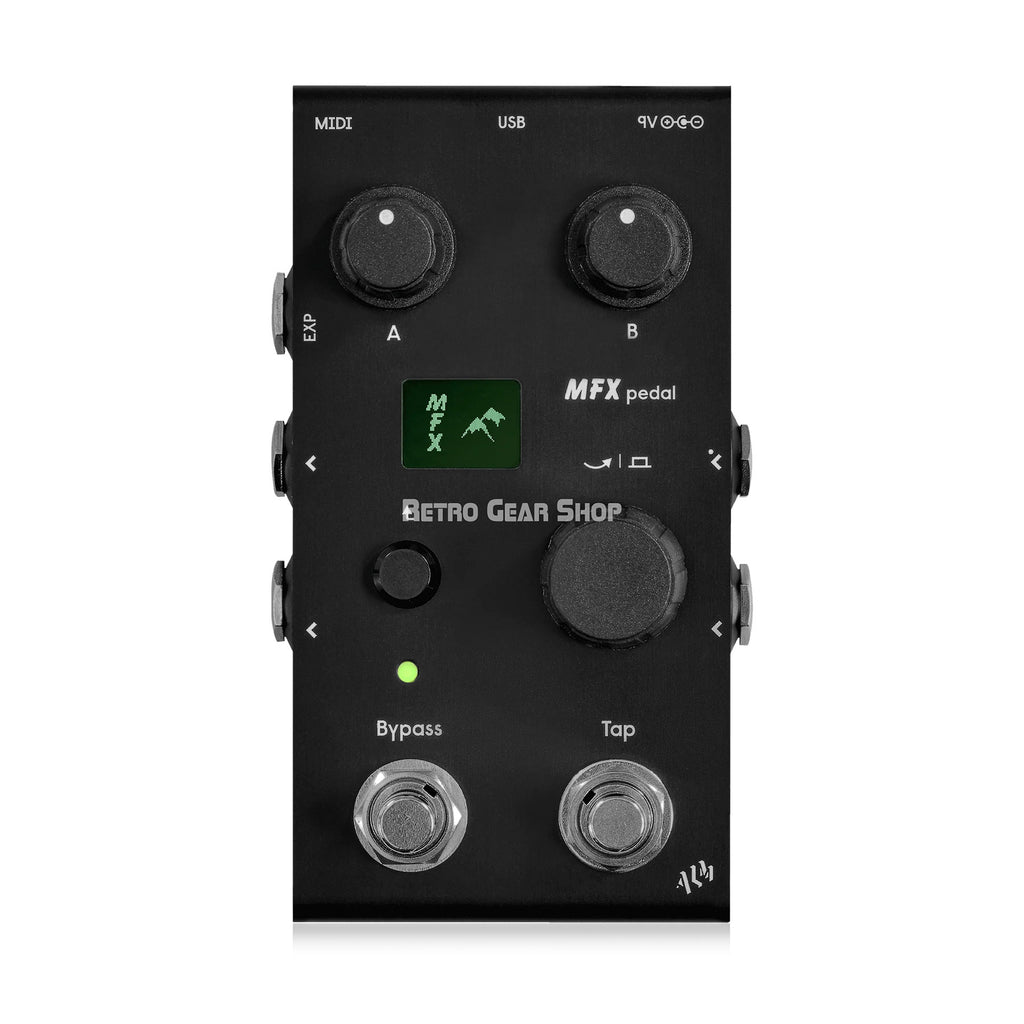

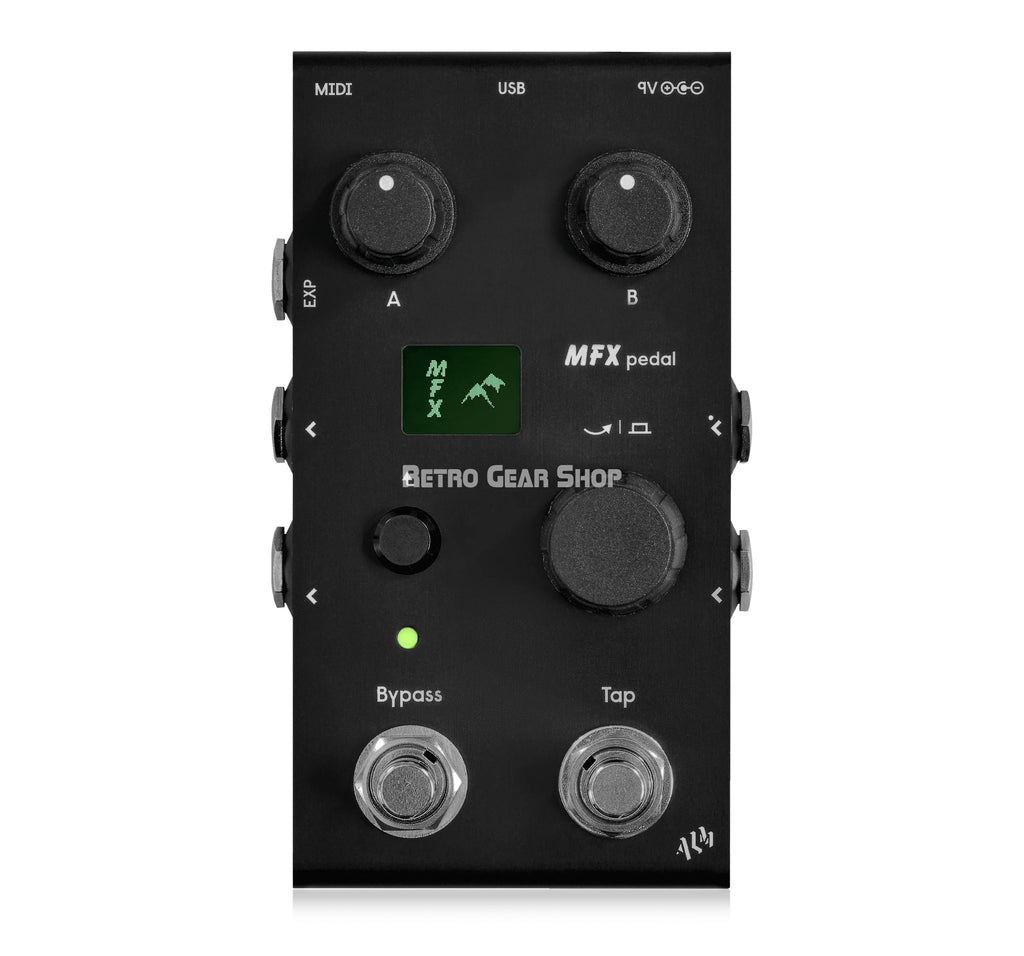

ALM Busy Circuits MFX Pedal Standalone Stereo Multi Effects Processor

The ‘MFX Pedal’ brings all the effects and functionality of our popular Eurorack MFX module to both guitars and synths in standalone form with 18 different fully featured effects programs and additional MIDI, Knob and Expression pedal control, tap tempo, an optional analogue gain stage and true relay (or DSP) based bypass.

Inspired by our favourite classic hardware effects processors, the MFX incorporates DSP effect technologies from the dawn of digital effects in the 70s to the present day. Reshape sounds with the distortion and dynamics engines. Bend time space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one of a kind granular and glitch engines.

The MFX Pedal user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to knobs, MIDI or expression control. Each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Available for the first time outside of modular, the MFX pedal easily brings the character and uniqueness of ALM effects to your guitar rig, DAWless setup, mixer effects send or synth collection.

• A large varied collection of 18 effects programs, all with numerous controllable parameters.
• Effect parameters freely assignable to panel knobs, expression input or MIDI control.
• Works well with guitar, line and ‘pro’ level instruments.
• Inbuilt optional analogue gain stage (+10dB) for low level signals.
• Global selectable True Bypass and buffered dsp bypass with foot switch control and LED indication.
• Stereo I/O paths with all Neutrik jacks.
• Clip level indication LED.
• Tap Tempo and triggering via foot switch.
• Din MIDI input for MIDI beat clock synchronisation, user, preset selection, remote bypass and MIDI CC control.
• All settings remain between power cycles.
• Factory and user saveable presets per effect.
• USB-C for quick and easy ‘drag and drop’ firmware updates via computer.
• Rugged lightweight black anodised aluminium enclosure.
• 2 Year Warranty.
• Made in England.

• Power: 9v DC power, center negative (not included)
• Current Draw: 100mA (200mA+ supply recommended)
• Input Impedance: 1MOhm
• Output Impedance: 1KOhm
• Max Input level: +8 dBu (2 Vrms ~ approx 5Vpp)
• Optional Gain Stage: +10 dB
• Bypass: True Relay & Buffered DSP based
• Dimensions: 125x65x70mm
• 16 Bit / 44.1kHz Stereo processing with 32 bit floating point DSP
• ARM CPU based DSP
