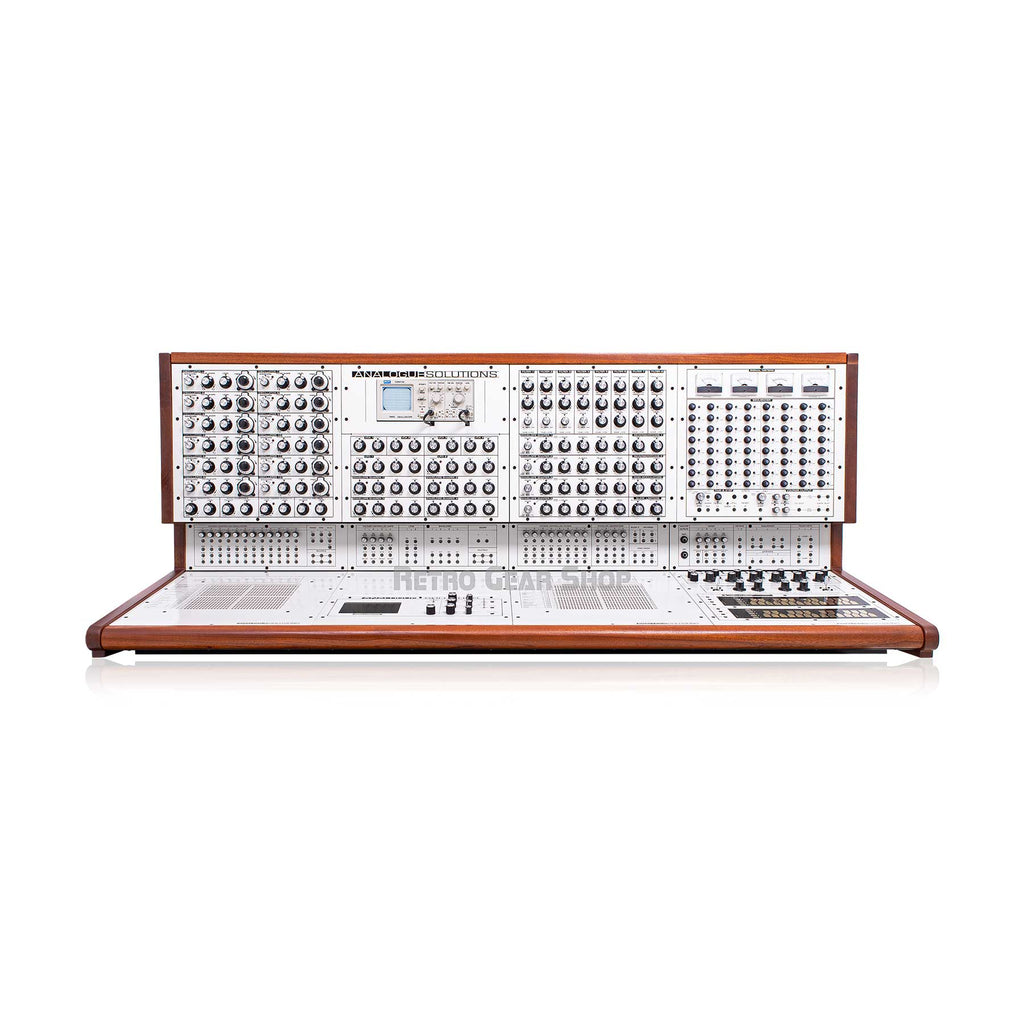

Analogue Solutions Colossus Classic Semi Modular Synth

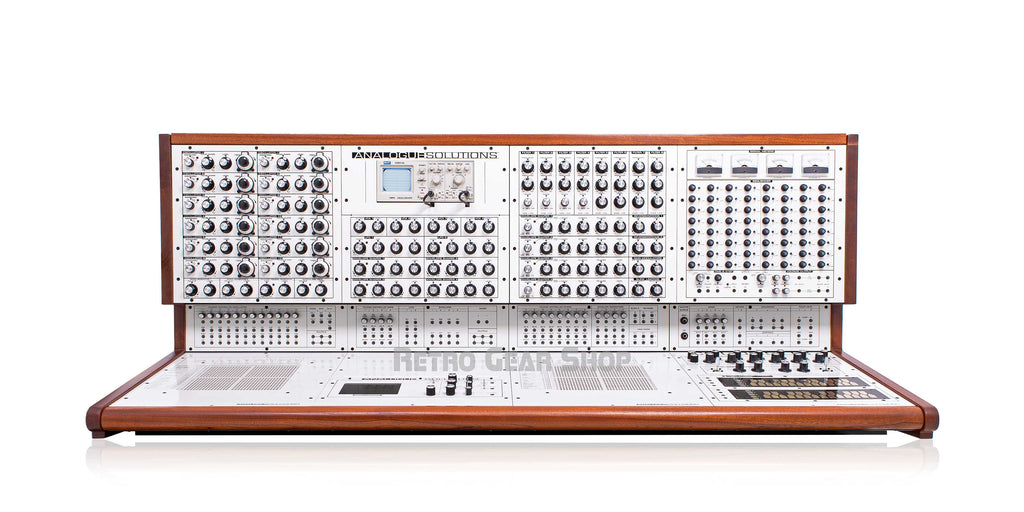

Analogue Solutions Colossus Front

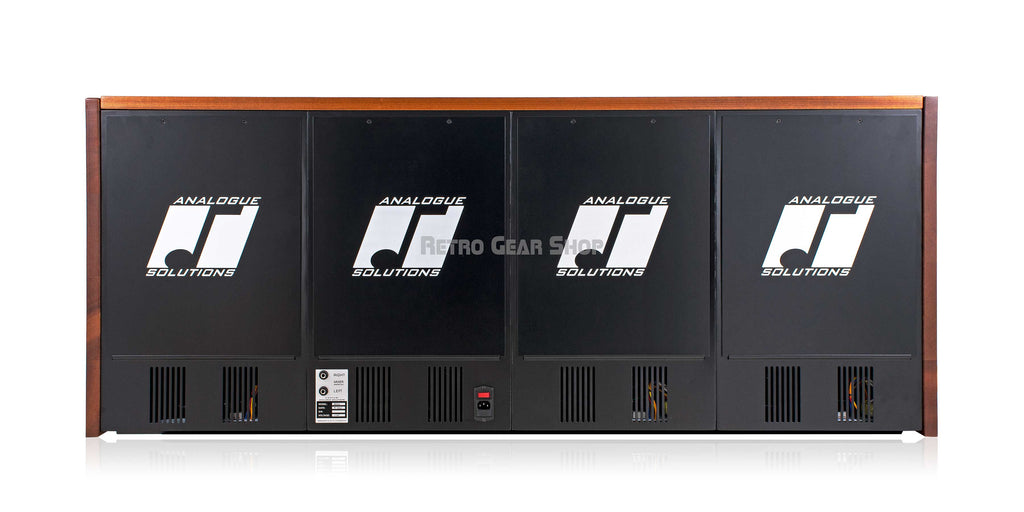

Analogue Solutions Colossus Rear

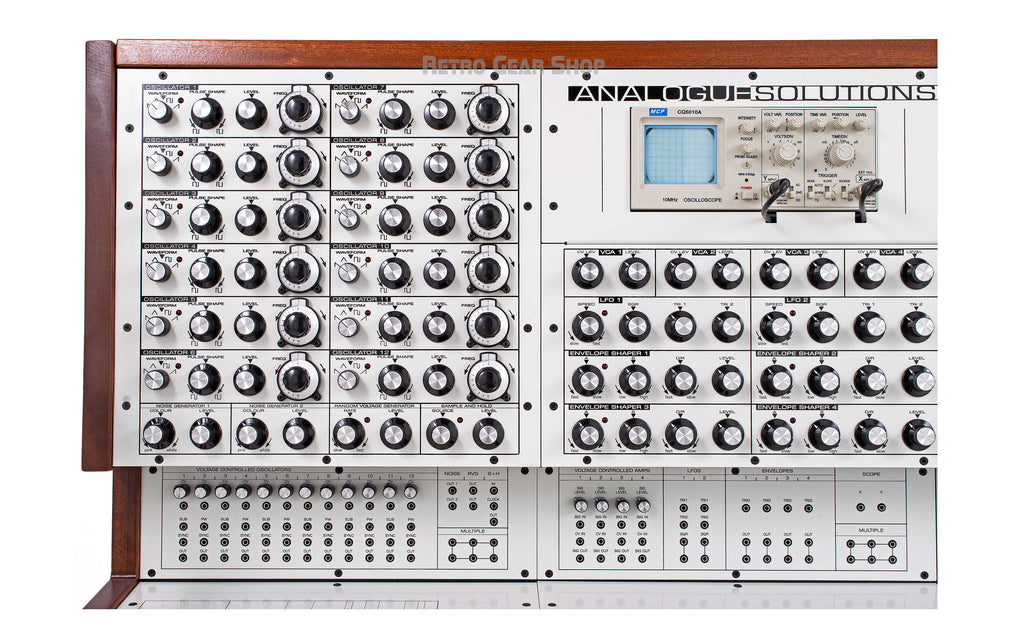

Analogue Solutions Colossus Front Left Detail

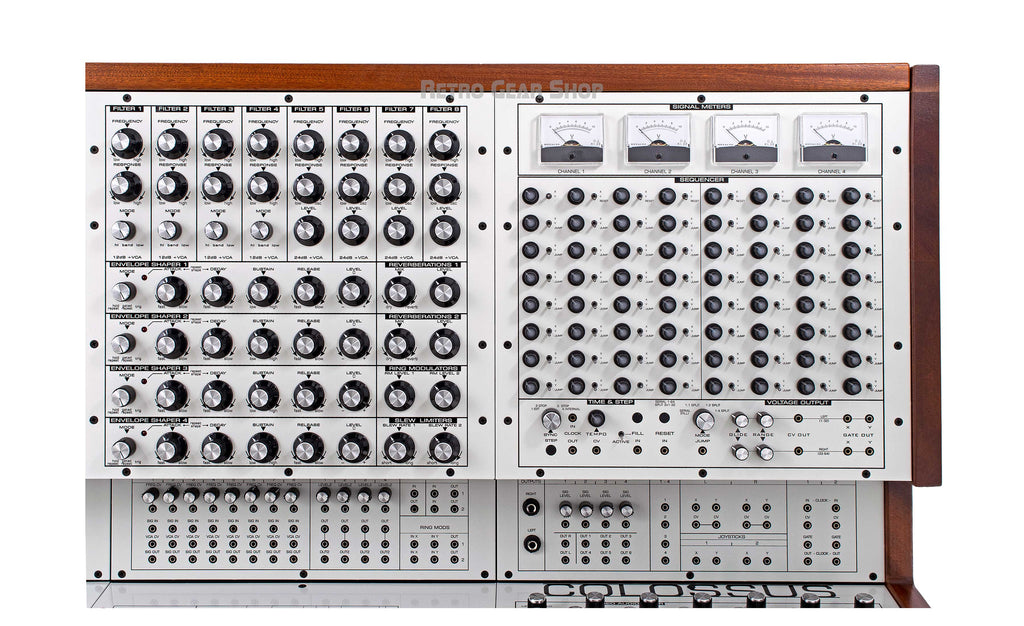

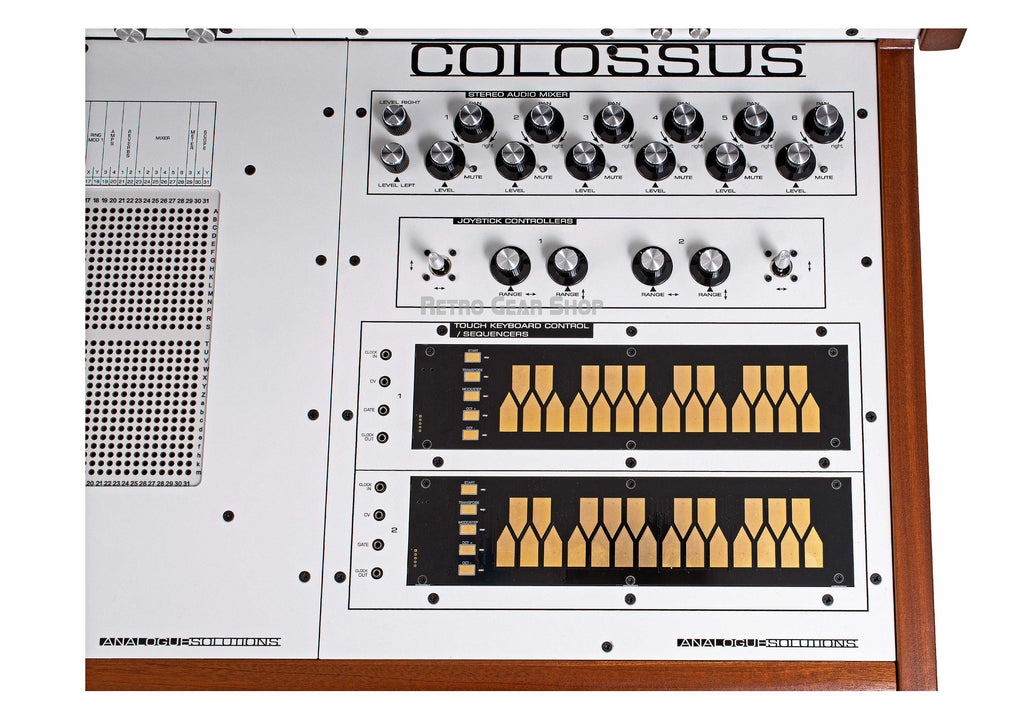

Analogue Solutions Colossus Front Right Detail
Analogue Solutions Colossus Front Right Detail
Analogue Solutions Colossus Classic Semi Modular Synth
Analogue Solutions Colossus Classic Semi Modular Synth
Analogue Solutions Colossus Accessories
Analogue Solutions Colossus Rear

Analogue Solutions Colossus

Regular price $40,000 now $34,500

HomeSynthesizersAnalogue Solutions

Analogue Solutions Colossus

In stock, kept in our showroom, never used. Includes original crate for safe shipment.

Introducing Colossus, an exciting mega-synth with a design ethos truly from the dawn of analogue synths. It is more than a powerful analogue ‘workstation’ - it is also art, architecture, exquisite studio furniture.

Inspired by the EMS Synthi 100, the AS100 a modern beast of an instrument and truly beautiful awe-inspiring synthesizer. Includes second oscilloscope upgrade and professional crate for safe freight shipping.

Retro Gear Shop is an Authorized Analogue Solutions Dealer.
Includes full Warranty.

Buyer pays actual shipping costs. Contact us for a shipping estimate.

Any questions, please ask!
VCO Panel
- 12 x Analogue VCOs. The pitch range is very high and these can be used as LFOs also.
- Four waveforms, Pulse Width, Osc Sync, Sub Osc.
- Precision control using high quality multi-turn vernier dials.
- Sample and Hold Generator.
- Random Voltage Generator.
- 2x White/Pink Noise Generators.

Scope Panel
- Oscilloscope. Type may vary from pictures.
- 2x LFO (in addition to the VCOs).
- 4x VCA (in addition to the VCF VCAs).
- 4x A(D)SR Envelopes.

Note! VCOs can be used as LFOs. So Colossus has in fact a potential total of 14 LFOs! Each of the eight VCFs have VCAs hard wired inline, so these plus the individual VCAs means there are in fact a total of 12 VCAs!

Filter Panel
- 4x Multimode filters - Low, Band and High pass 12dB filters. Each with serial VCAs.
The circuit was originally based on the Oberheim SEM - though we have
done some heavy modifications. But ‘Oberheim SEM’ gives you an idea of
the type of sound.
- 4x Low Pass filter - 24dB transistor ladder filters. These filters have a ‘Moog’ style sound.
Each VCF has a serial VCA.
(8 VCF/VCA combinations in total.)
- 2x Analogue mechanical Spring Reverbs. Each one features a triple
spring tank.
- 2x Ring Modulators.
- 2 Voltage Slew Generators.
- 4x ADSRs with repeat and hold-repeat feature.

Sequencer Panel
- 4x large 10V signal level meters that are backlit.
- 64 step / 2x 32 step Analogue CV/Gate sequencer.
With clock generator, glide, jump, reset, CV, gate and other control
features.

Touch Panel
- 6 channel stereo audio mixer with level, pan and mute.
- 2x Joystick Controllers.
- 2x Touch Keyboards with digital note sequencers.

Matrices
- 2x Broadcast quality CV and Audio Pin Matrix panels.

Jack Socket Patch Panels
- 4x minijack patch panels - providing I/O from all circuits.

Rear Panel
- Mixer output jacks; Left and Right.
- IEC power socket.
- Neon lit power switch.
- Fuse holder.
