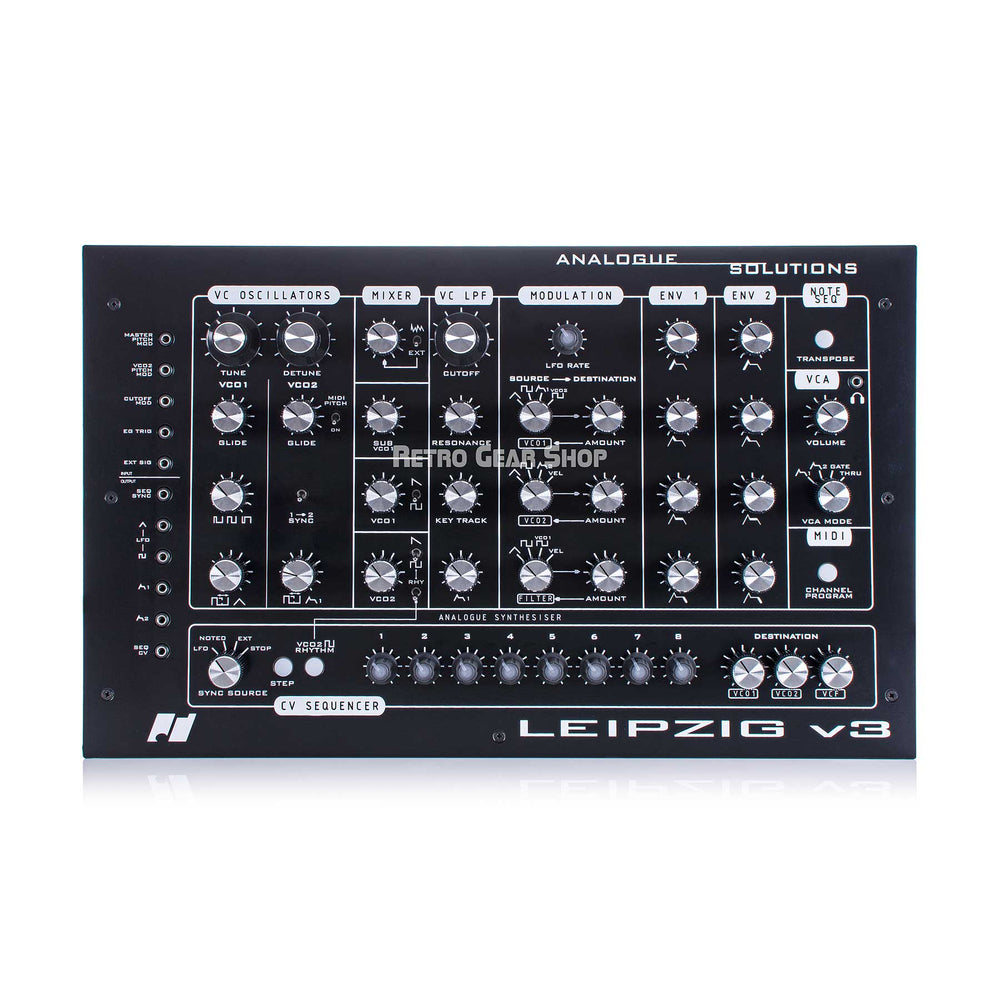

Leipzig-v3 is a 100% analog synth using circuits that date back to the 1970s and 1980s – these give Leipzig a really old sound that is rich and full of character.
•Pure analogue voice and modulation circuitry.
•Fat analogue Moog style transistor ladder filter – 24db/Octave 4 pole.
•Two analogue VCOs with individual Glide (portamento).
•Sub-VCO for extra depth and power.
•Osc Sync & Cross-Mod.
•Option to overdrive the mixer and filter.
•Plenty of modulation routing possibilities.
•Versatile analogue CV step sequencer – with plenty of clocking options.
•16 step note sequencer, with transpose feature.
•Use the analogue sequencer as a modulation source.
•Versatile CV patch bay.
•Rugged steel/aluminium construction.
•MIDI In for DAW/software sequencing.
•Headphone output.
•All the sound character of the renowned previous version Leipzig-S.
The new version has been entirely redesigned to improve reliability, quality and other manufacturing considerations.
The format is now the more popular desktop type. This version is not rack mountable.
Sound wise it is the same - it retains that wonderful angry pure analog sounds the previous version had. We kept the sound the same - it’s what people love - we just added some useful new features.
Headphone output.
Patch input and outputs.
Extended the capabilities of the sequencer.
The sequencer can turn off VCO2 square wave on selected beats.
Other subtle tweaks, including adding an illuminated power switch
Power
18V regulated DC, 500mA or higher.
Power plug 2.1mm. Center positive.
Weight (mass) Approx. 3Kg.
Size 432 x 262 x 63 mm (WxDxH).
