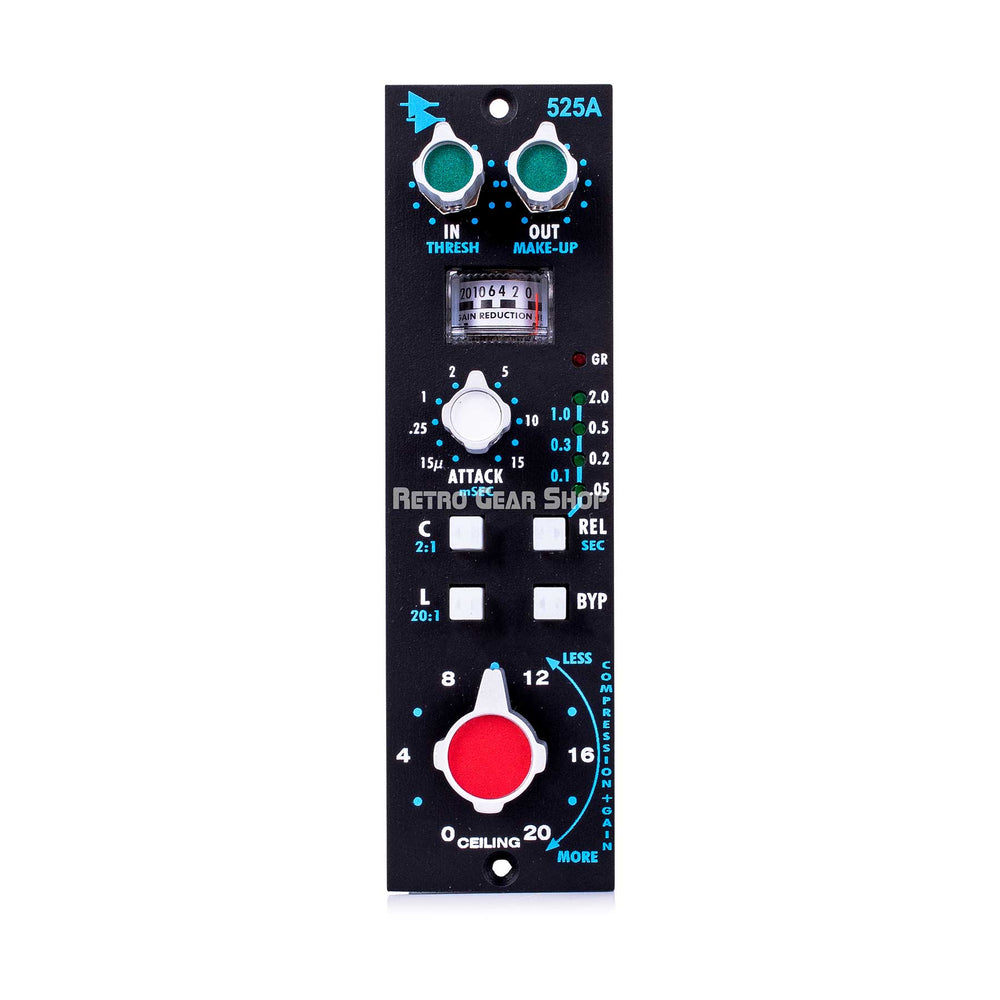

Since the early 1970s and the subsequent re-issue over 20 years ago, the 525 Discrete Compressor has become one of the most trusted vintage-style compressors in the industry. Building on the powerful core circuitry of the original 525, the new 525A maintains the discrete audio path and expands the feature set for even more applications in the modern studio. It artfully combines API’s proprietary transformers, 2510 and 2520 opamps, retaining the sonic characteristics of the original while exhibiting the reliability, long life, and uniformity which is characteristic of all API products.
• NEW – Variable Attack adjustable from 15 microseconds to 15 milliseconds
• NEW – 7 selectable Release Modes (.05 to 2.0 Seconds)
• Unique Ceiling Control simultaneously combines Threshold and Make-up Gain
• Classic 1970s style analog gain reduction VU meter
• Traditional API discrete audio path circuit design
• Equipped with 2520 and 2510 opamps
• Proprietary API output transformer
• Balanced Input/Output
• Hardware Bypass
• Connector: API 500 Edge Connector - VPR Alliance Compliant
• Input Impedance: 80K Ohms, Balanced
• Output Impedance: 75 Ohms, Transformer coupled, Balanced
• Maximum Input Level: +27 dBu
• Maximum Output Level: +28 dBu
• Attack Time: 15 microseconds to 15 milliseconds
• Release Times: 0.05, 0.1, 0.2, 0.3, 0.5, 1.0, 2.0 seconds
• Slopes: Compression 2:1, Limit 20:1
• Maximum Gain Reduction: 25 dB
• Metering: Illuminated Analog Gain Reduction dB meter with gain reduction LED indicator
• Frequency Response: ± 0.5 dB, 20 Hz to 40 kHz
• Signal to Noise Ratio: 112 dB
• Power Requirements: 3 Watts - VPR Alliance Compliant
• Unit Size: 1.5" x 5.25" x 7"
• Shipping Size: 4.5" x 6.5" x 10"
• Unit Weight: 1.5 lbs.
• Shipping Weight: 2 lbs.
