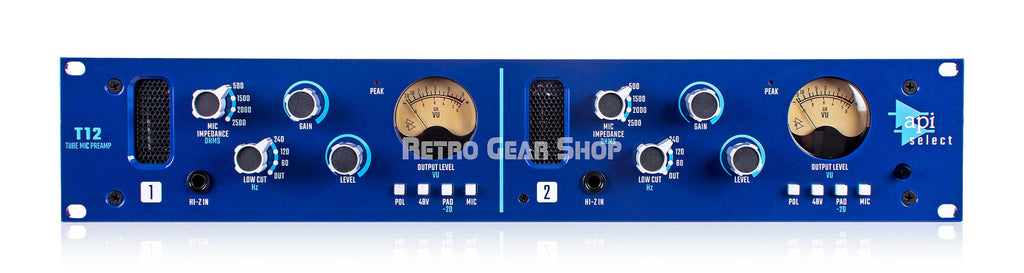

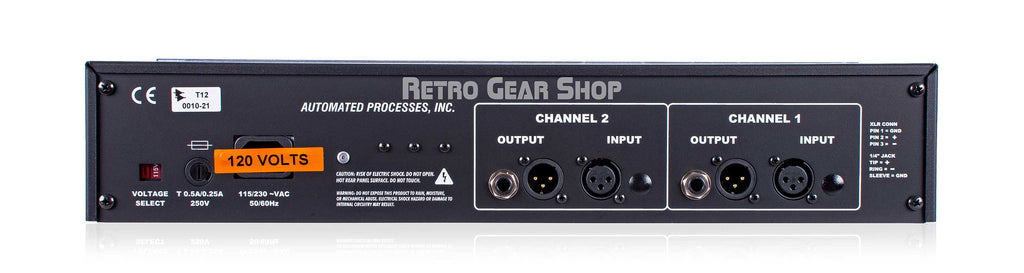

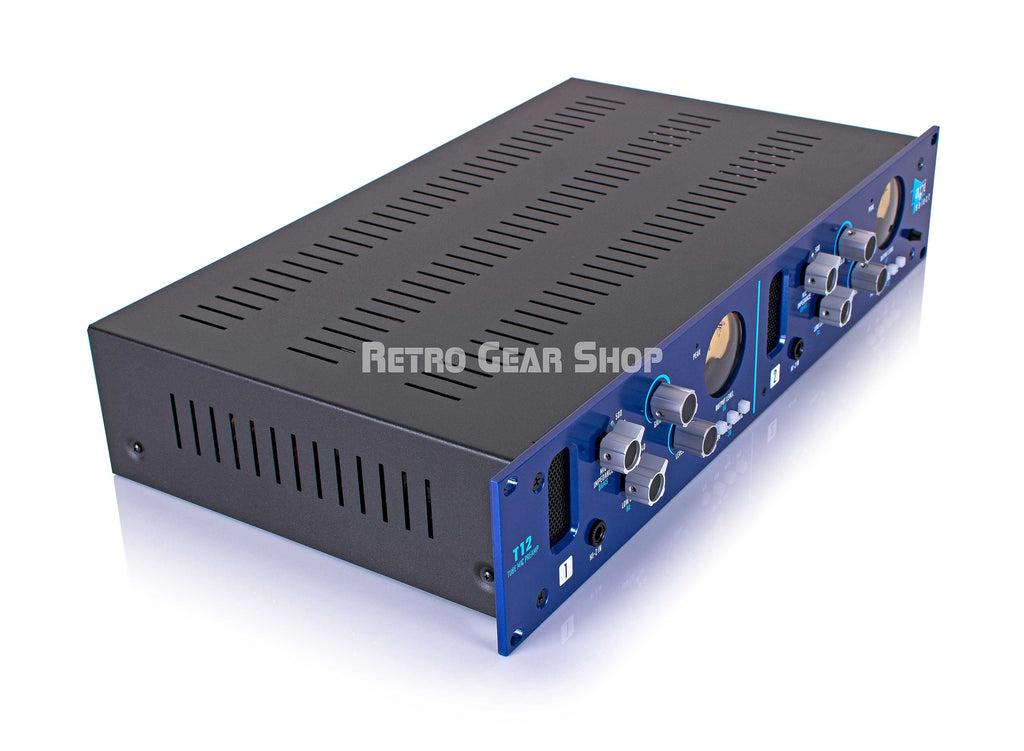

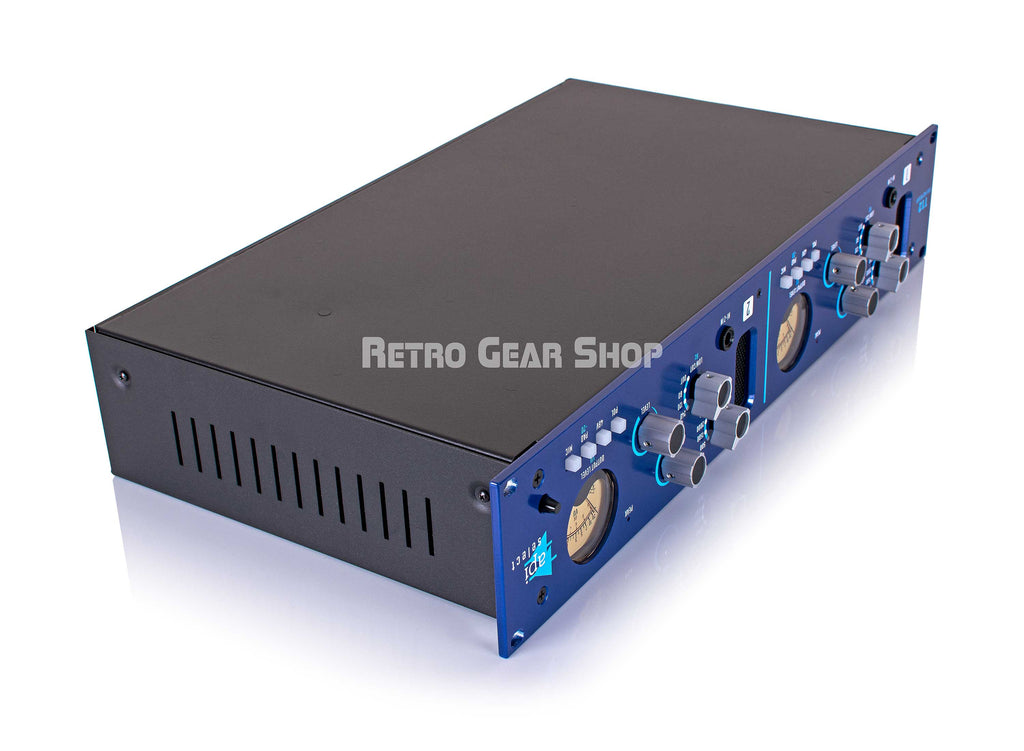

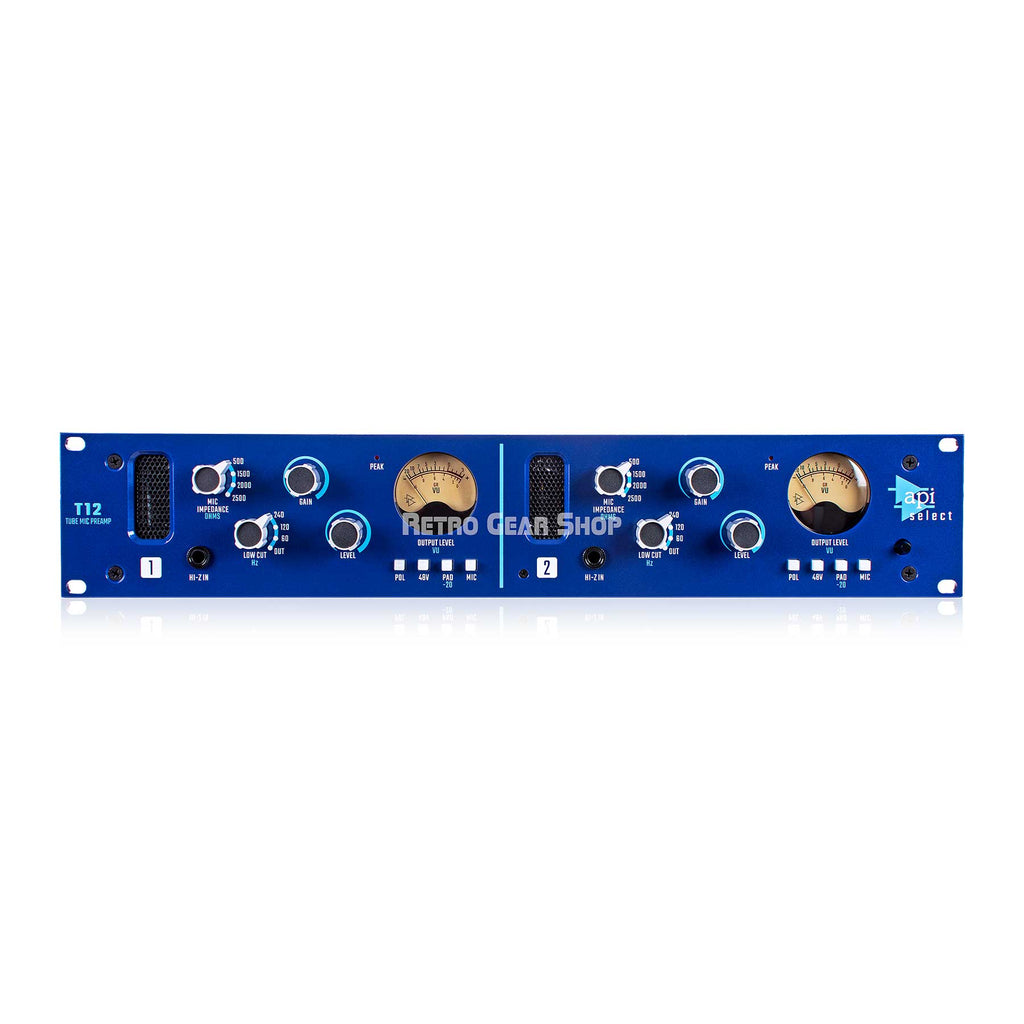

API Audio Select T12 Tube Mic Pre Microphone Preamp Stereo Two Channel
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
The API Select T12 is a classic 2-channel, all-tube, Class-A microphone preamplifier designed with API’s proprietary AP2516 transformer in the input stage and a custom API transformer on the output stage. Built with 12AT7WC and 12BH7 dual-triode vacuum tubes, the T12 represents a new and exciting variation in API’s preamplifier technology and provides the user with unique tonal options. The T12 can handle a wide range of production applications including stereo operation. Carefully engineered to deliver classic tube performance and sound, the T12 delivers API’s famous warmth, punch and clarity in an all-new way and features our industry-exclusive Five Year Warranty.
• All-tube, Class-A microphone preamplifier
• Proprietary AP2516 input transformer
• Audio circuit uses 12AT7WC and 12BH7, dual-triode vacuum tubes
• Custom API output transformer
• Variable microphone input impedance
• Switchable 48-volt phantom power
• High-impedance, unbalanced ¼” instrument input
• MIC/HI-Z input switch
• -20dB input pad
• 11-step detented preamp gain control
• Low-cut filter with 3 fixed frequencies
• 11-step detented output trim with 0.5dB steps for precise control
• Detented controls for accurate recall and channel matching
• LED peak indicator
• Classic analog VU meters for output
• XLR and ¼” TRS output connections
• Input Impedance:
o Microphone: 500W, 1500W, 2000W, & 2500W (variable)
o HI-Z: 500kW
• Output impedance: 75 ohms, can drive 600 ohm loads
• Maximum input level: +24dBu with -20dB PAD engaged and gain set to 20dB
• Gain Range: 0db to +70dB
• Maximum output level: +24dBu
• SNR: 98dB
• Frequency Response: 20Hz – 30kHz (+0dB / -1dB)
• Power Consumption: 40W
• Size: 19” x 3.5” x 12” Deep
• Size (Boxed for Shipping): 21” x 9” x 15”
• Actual Weight: 14 lbs.
• Shipping Weight: 17 lbs.
