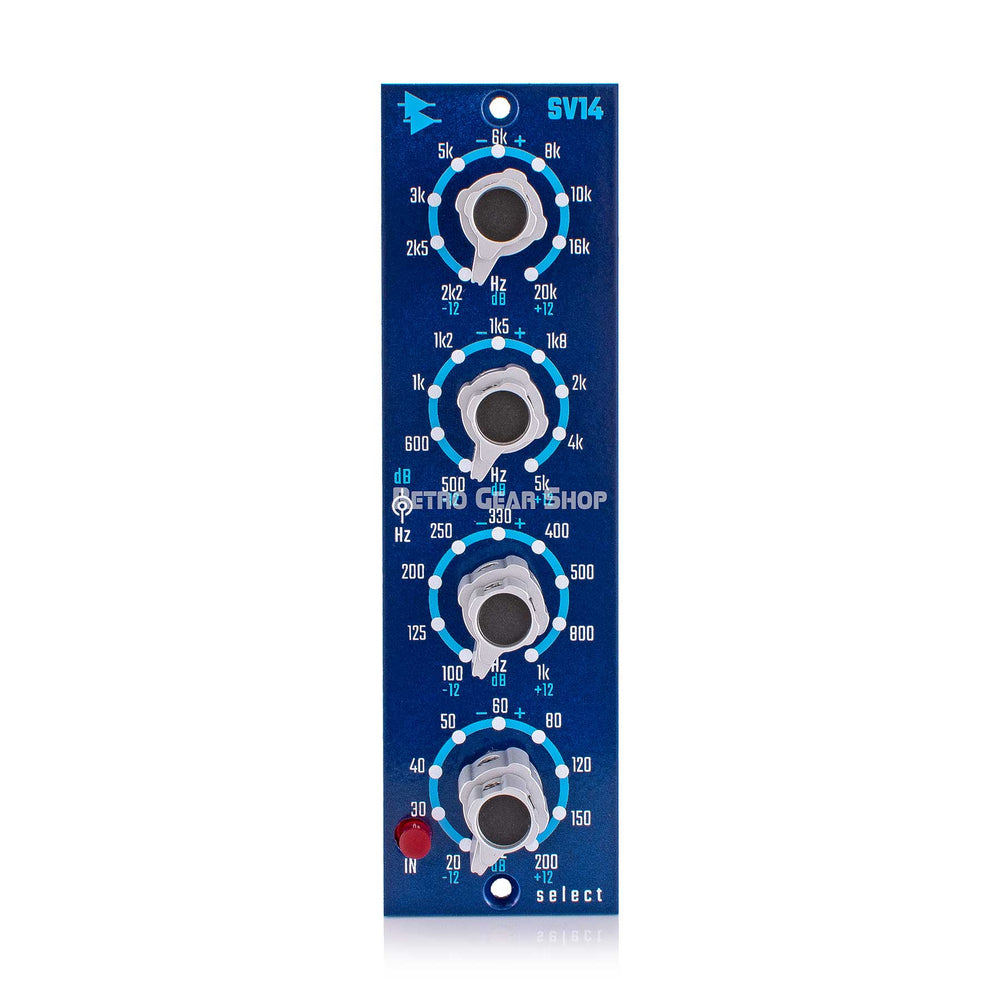

API Select SV14 500 Series 4-Band Parametric EQ

API SV14 500 Series 4-Band Parametric EQ

$565
×
API SV14 500 Series 4-Band Parametric EQ

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

API SV14 500 Series 4-Band Parametric EQ

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓Valid
Only plain are not allowed in the message Message length must be 250 characters allowed
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

  • Free USA shipping.
  • New.
  • Authorized Dealer.
  • Pre-order. Contact us to order, for best possible price and for ETA.

Description

The API Select SV14 EQ circuit design is rooted in API's history. Faithfully re-engineered from the highly sought-after APSI 562 EQ's which were distributed by API during the 1970's and 1980's, the SV14 provides parametric equalization at an affordable price point. The SV14 also features an EQ in/out switch, transformer balanced output, and dual concentric knobs which provide continuously variable control of boost/cut and frequency selection.

Features

• 4 Band EQ based on the classic APSI 562 EQ
• Each band offers continuously variable control of frequency and gain
• 12 dB of boost/cut per band
• All 4 bands are peak/dipping parametric configuration
• Custom transformer balanced output
• High headroom +24 dB clip level
• Designed to fit API's 500 VPR Rack or lunchbox®

Specifications

• Connectors: API 500 Edge Connector VPR Alliance Compliant
• Input Impedance: 15KOhms Balanced
• Output Impedance: 75 Ohms, Transformer Balanced
• Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz
• THD+N @ 1kHz, +4dBu: <0.02%
• Maximum Level: +24 dBu
• Signal-to-Noise Ratio: -115 dB
• EQ Bands: 4 bands, all +/-12dB Peak/Dip type
• Lo: 20Hz - 200Hz
• Lo-Mid: 100Hz - 1kHz
• Hi-Mid: 500Hz - 5kHz
• Hi: 2kHz - 20kHz
• Power Consumption: +/- 16 VDC @ 35 mA
• Unit Size:1U 500 Module, 1.5" X 5.25" X 7.0"
• Shipping Size:4.5" X 6.5" X 10"
• Unit Weight:1.5 lbs
• Shipping Weight:2.0 lbs

Downloads

API SV14 Manual

×
