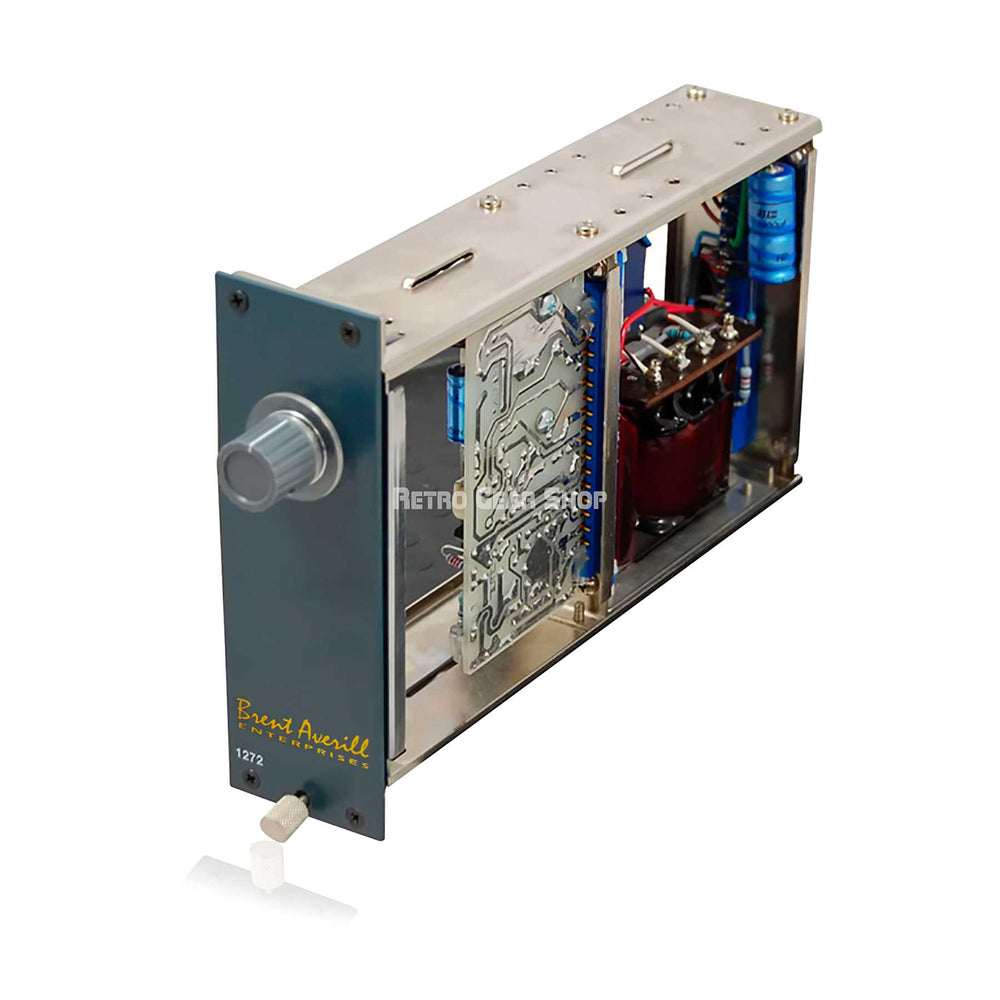

BAE 1272 Module Console Mic Preamp / Line Amplifier
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
The 1272 module made by BAE is built to specifications to be used in original Neve® consoles.
• Built to specifications for Neve® consoles.
• The same hand-wired construction that BAE is known for.
• Frequency Response: +/- 0.5dB 20Hz-20kHz
• Frequency Response: +/- 0.5dB 20Hz-20kHz
• Mic Input Impedance: 1200 or 300 ohms
• Output Impedance: 50 ohms
• Common Mode Rejection Ratio: 100dB min @ 60Hz
• Maximum Output Level: +27.4 dBu @ 600Ω
• Power Requirements: 80mA @24VDC
• Gain: 39dB External Gain Optional
• Equivalent Input Noise: Better than -85dBu
• Weight: 4.25 LBS / 1.93 KG
• Dimensions (in Inches): 5.25W x 1.8L x 8.5D
