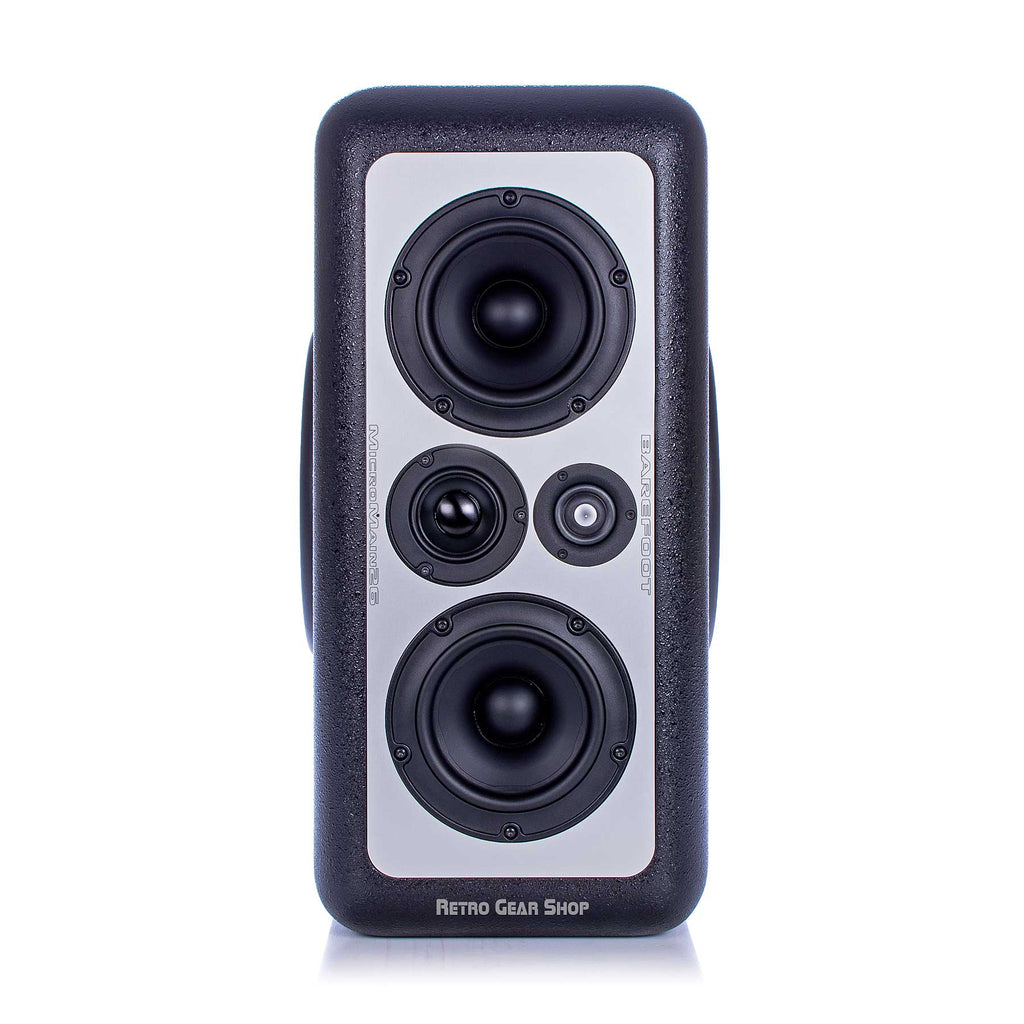

The MicroMain26 is a 4-way active system with 6 drive units housed in sealed enclosures spanning 30Hz to 45kHz with vanishingly low distortion, breathtaking dynamic range and ultra-fast transient response. The ring radiator tweeter is incredibly detailed and produces very wide dispersion out to its highest frequencies. The 2.5” aluminum cone midrange is housed in a cutting edge 3D printed waveguide enclosure. The 5.25″ woofers feature a phalanx of advanced technology, yielding upper bass and lower midrange detail that rivals any driver on the planet. Barefoot has teamed up with the brilliant Bruno Putzeys of Hypex to develop the powerful and completely transparent amplifier stage used in every Barefoot monitor. Melding the system together is a groundbreaking new DSP crossover that took Thomas Barefoot more than 4 years to develop. With beautifully designed high end converters and cutting edge proprietary filtering techniques the MM26 sound stage is seamlessly coherent and deeply revealing.

MEME™ Technology: Despite the advantages of high resolution monitors, Thomas Barefoot realizes that many engineers still use their NS10M’s † and mix cubes as secondary references. These speakers have long traditions and people find them familiar and useful for focusing in on certain aspects of their mix. However, crowding one’s console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, they are no longer manufactured, they need amplifiers, cable runs, and they consume more studio space. The solution is to make the MM26 sound and translate like those speakers. With the turn of a knob one can switch from the MicroMain26′s brutally revealing “Flat” response to the warmer and sweeter “Hi-Fi” setting, generically emulating the sound of some high end consumer audio gear. More specifically the “Old School” setting closely emulates the sound of the NS10M nearfield, while the “Cube” setting emulates the mid-centric sound of classic mix cubes The idea is not to perfectly replicate every subtle quirk of these venerable old speakers. That would be impossible. But the MM26 can capture the essence of how they behave and translate, modeling their frequency, phase and transient responses, dynamic compression and even specific distortion components. If you know how to work on these speakers you will feel very comfortable working on the new MM26′s emulation settings.

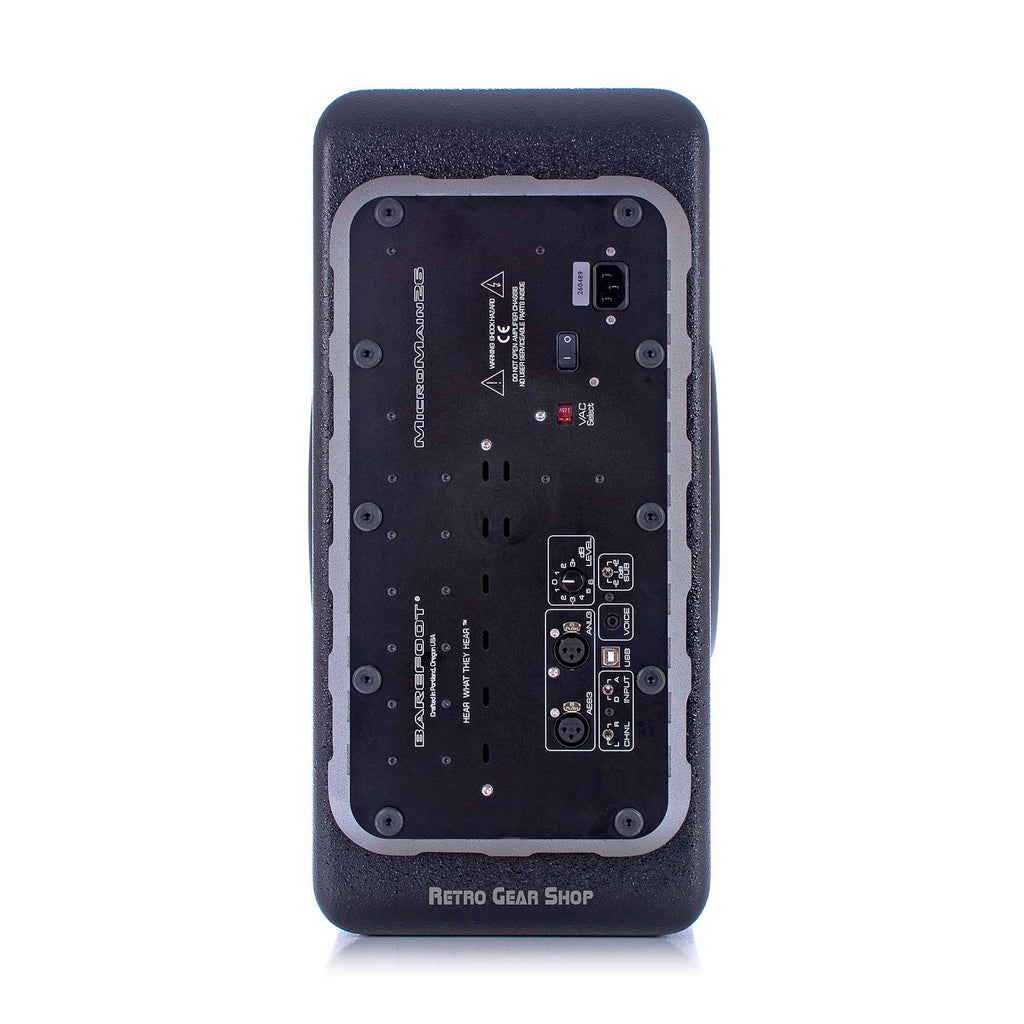

Controls: Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select

Input Impedance: 50k Ohm

Frequency Response:
30Hz – 45kHz (±3dB)
40Hz – 40kHz (±1dB)

Bass Response: -3 dB @ 30Hz, Q = 0.707
Slope = 12 dB/octave

Cabinet: 32 liters total internal volume, Sealed subwoofer, woofer and mid enclosures, Machined aluminum baffle plate, Aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout

Crossover Frequencies: 100 / 800 / 4000 Hz

Tweeter: 1″ ring radiator, Advanced geometry motor, Rear waveguide chamber
Amplifier: 180W Hypex

Midranges: 2.5″ aluminum cone, Advanced geometry motor, +/- 2 mm linear excursion
Amplifier: 180W Hypex

Woofers: 2 x 5.25″ poly/paper cone, Advanced geometry neodymium motor, +/- 5 mm linear excursion
Amplifier: 250W Hypex

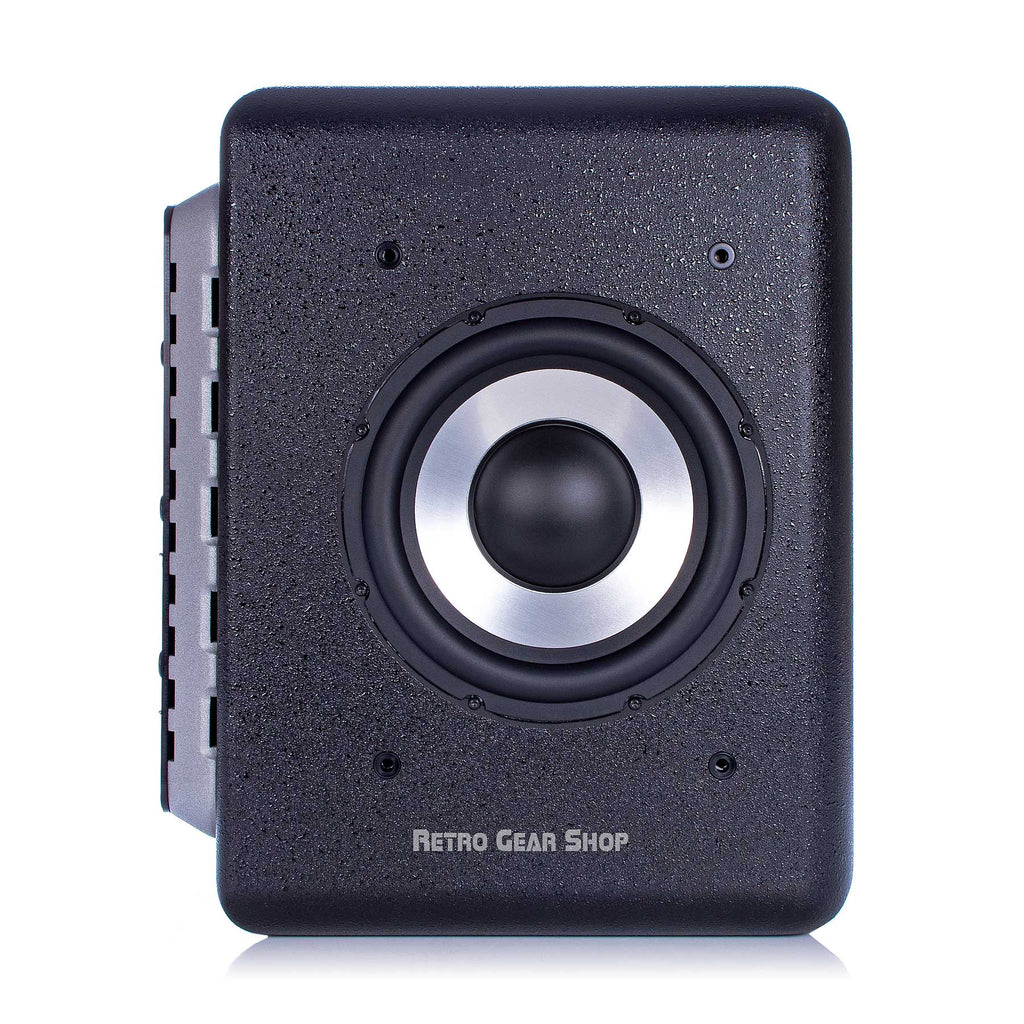

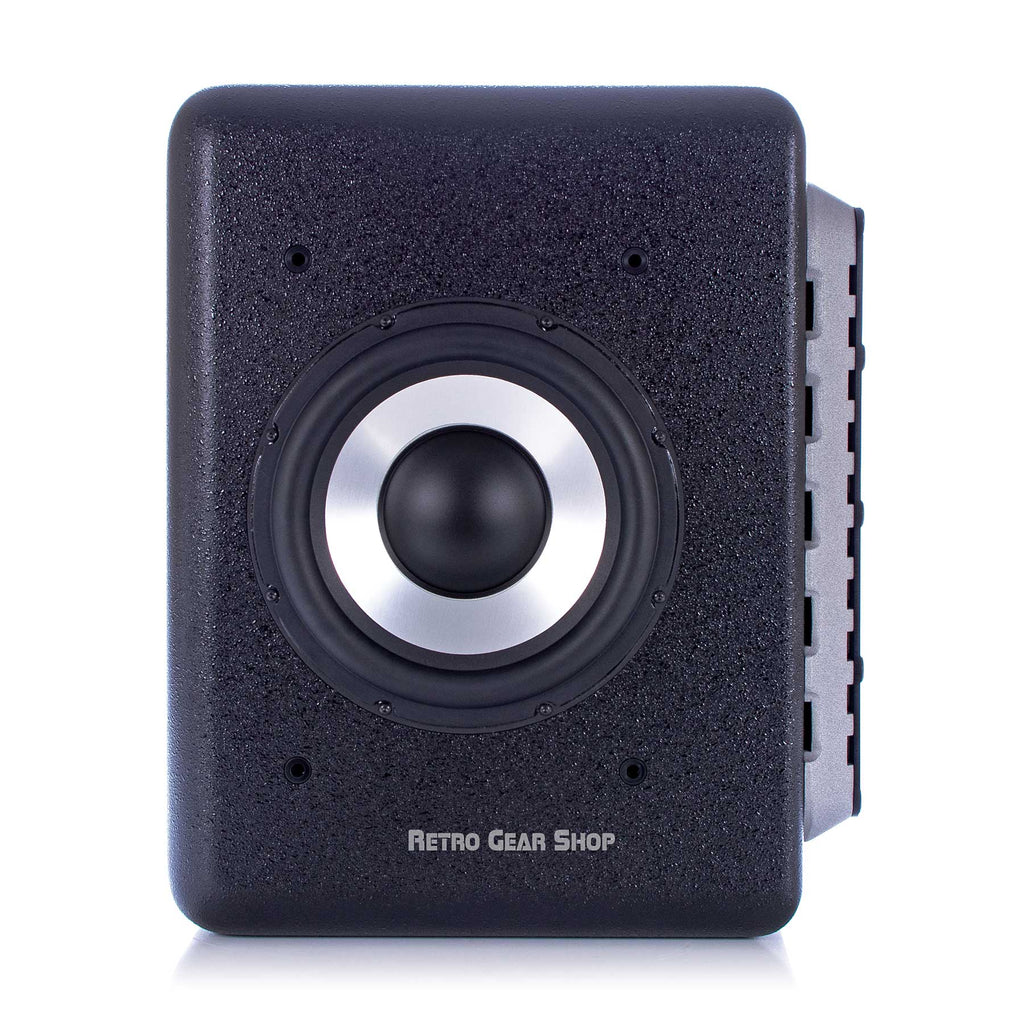

Subwoofers: 2 x 10″ aluminum cone with high linearity motor, +/- 13 mm linear excursion
Amplifier: 500W Hypex

AC Power Input:
Nominal 115 VAC or 230 VAC selectable

Power Consumption:
Idle: 30W, Maximum: 650W

Weight: Speaker: 71 lbs each (32 kg)
Shipping: 83 lbs each (38 kg)

Dimensions HxWxD: Cabinet: 20.5 x 9.5 x 15.5 inches (521 x 241 x 394 mm)
Overall: 20.5 x 10.5 x 17.4 inches (521 x 267 x 442 mm)

Barefoot MicroMain26 Manual
