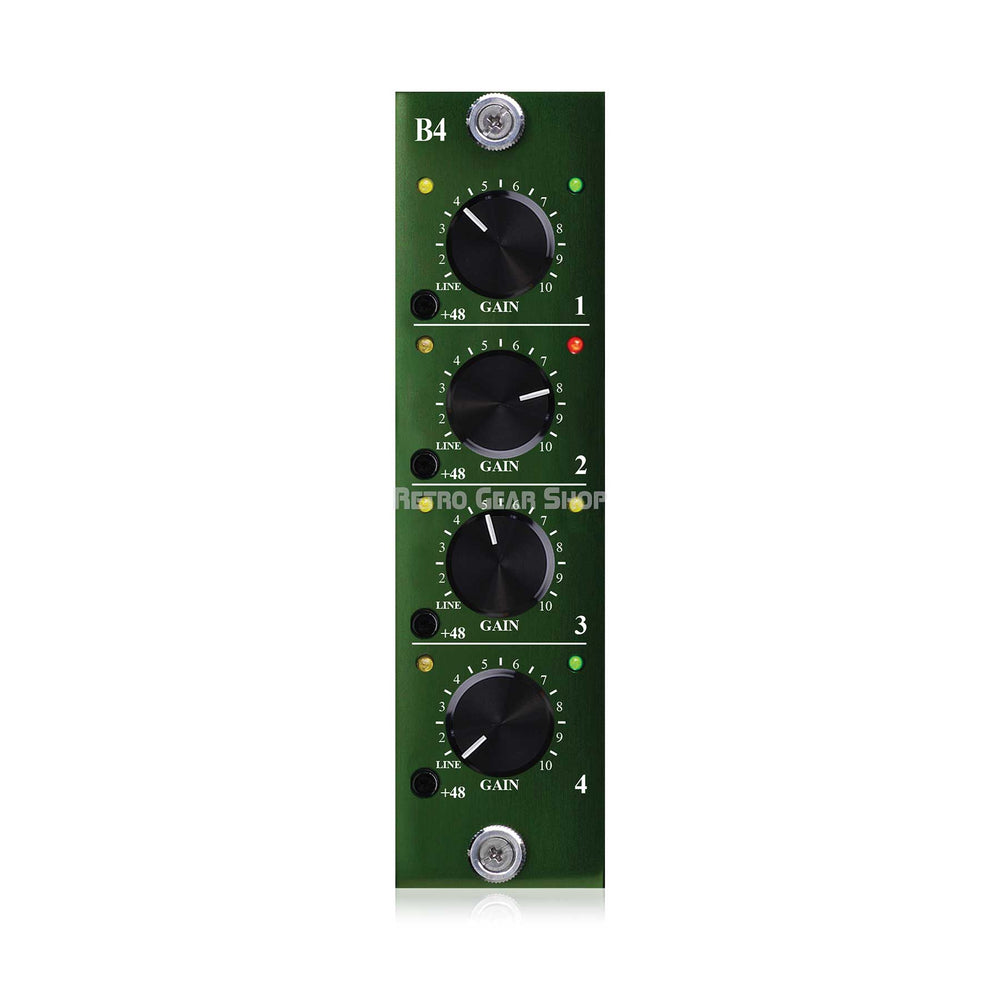

Burl Audio B4 for B80 4 Channel Mic/Line ADC Daughter Card
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
AT LONG LAST… BURL Audio is proud to announce the new B4 4-channel MIC/LINE input daughter card for the B80 and B16 MOTHERSHIPs. The B4 boasts the new BX6 input transformer designed for true MIC/LINE input impedance. The B4 maintains a no compromise, class-A analog circuit, followed by the same ADC we use in the BAD8. Using a single B80 chassis, 40 input channels of audiophile MIC/LINE inputs can be realized. With digital control and SoundGrid or Dante, the B80 MOTHERSHIP with the B4 MIC/LINE daughter card is the ultimate studio grade stage box.
Frequency Response
LINE level, 0dB Gain, -0.03dB @ 10Hz, -1.5dB @ 30kHz
Full Gain, 59dB Gain, -0.03dB @ 10Hz, -2.5dB @ 30kHz
Input Impedance
LINE 10k Ohms
MIC 2.5k Ohms
• 4-channel MIC / LINE ADC
• 4-channel XLR connectivity
• All class-A, NextGen Analog BOPA14 op-amps
• NEW BX6 input transformers
• 40 total MIC / LINE input channels per B80
• Avid delay matching
• ADC filter select
• Fully balanced signal path for extremely low noise floor
