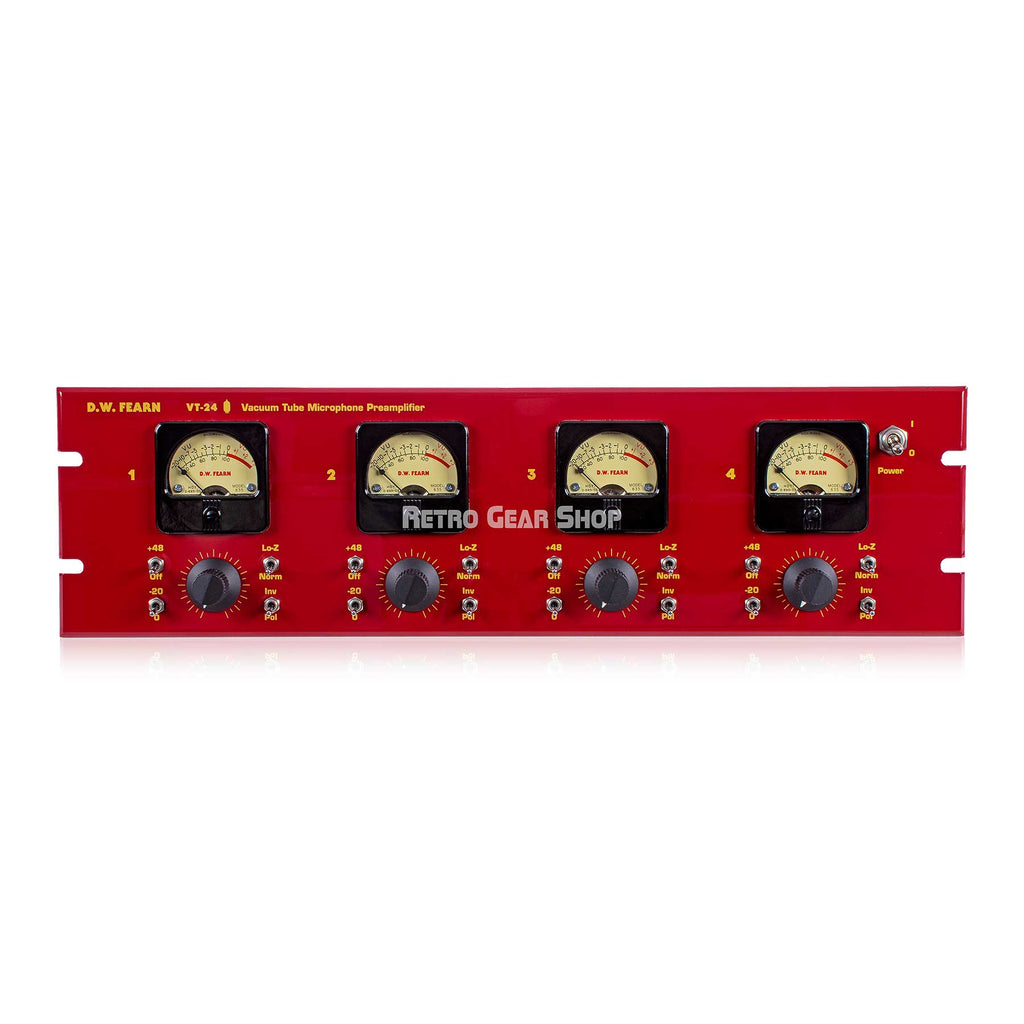

DW Fearn VT-24 Four Channel Vacuum Tube Microphone Preamplifier

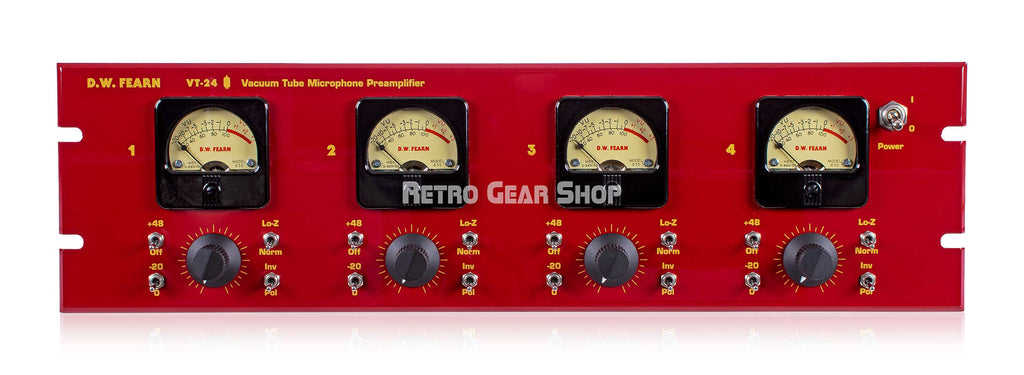

DW Fearn VT-24 Front

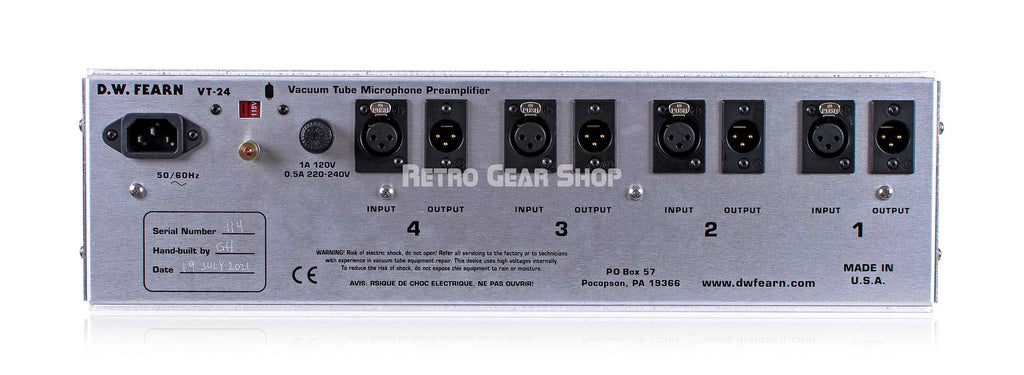

DW Fearn VT-24 Rear
DW Fearn VT-24 Rear

D.W. Fearn VT-24

HomeOutboard/RecordingPreampsD.W. Fearn

D.W. Fearn VT-24 Preamp

This product has been discontinued.

VT-series microphone preamplifiers have long been the go-to weapon of choice as an ultra-high fidelity mic pre. Any microphone and any sound will benefit from the improved clarity, definition, and lack of solid-state artifacts that D. W. Fearn products bring to your session.

Free shipping in the USA with Fedex Ground
Flat rate discounted shipping worldwide
Retro Gear Shop is an Authorized D.W. Fearn Dealer.
Brand New with full Warranty.
Any questions, contact us!
In designing the VT preamp, no compromise in sonic quality, reliability, or ruggedness was permitted. Like the best tube equipment of the 1950s and ’60s, the VT preamp is built on a heavy-gauge aluminum chassis, utilizing point-to-point wiring.

Each vacuum tube is selected for minimum noise and microphonics, and maximum sonic clarity. The front panel switches control sealed, gold-contact precision relays for all audio switching, eliminating the possibility of dirty contacts degrading the sound and minimizing the internal audio path.
Four class-A triode amplifier sections (in two tubes) in each channel comprise the entire active circuit. This surprisingly simple circuit, along with top-quality components and careful design optimization, results in the sonic superiority that the VT preamp has become known for.

- All vacuum-tube design
- Lo-Z input position for superior performance with transformerless mics
- Phase (polarity) reverse switch
- +48 volt phantom power (completely disconnected when off)
- Custom-design Jensen input and output transformers
- 20 dB input pad (switchable)
- True VU meters (amplifier isolated)
- All point-to-point audio wiring
- Gold input and output XLR connectors
- Polypropylene and polystyrene coupling capacitors
- All audio switching through gold-contact, sealed precision relays
- International operation on 100, 120, or 220 VAC, 50/60 Hz
- CE certified, RoHS-compliant
- +4 dBm output
- Conservatively rated precision components and rugged construction for stability and long life
- Input 150 ohms
- Input Load Impedance 1.5k ohms
- Minimum Input Level -65 dBm nominal
- Maximum Input Level @ 20 cps -30 dBm without pad, -5 dBm with 20 dB pad
- Gain 53 dB
- Frequency Response +/-0.25 dB 20 cps to 20 kc; -3 dB @ 0.5 cps and 55 kc
- THD+Noise less than 0.25% 20 cps to 20 kc
- Intermodulation Distortion SMPTE less than 0.02%
- Signal to Noise Ratio 74 dB minimum
- Equivalent Input Noise -124 dBm maximum
- Output low-Z, transformer-balanced
- Maximum Output Level +22 dBm, 20k ohm load
- Power Requirements 100, 120, or 220 VAC, 50/60 Hz
- Dimensions 19” (48.26cm) W, 5.25” (13.34cm) H, 14” (35.56cm) D
