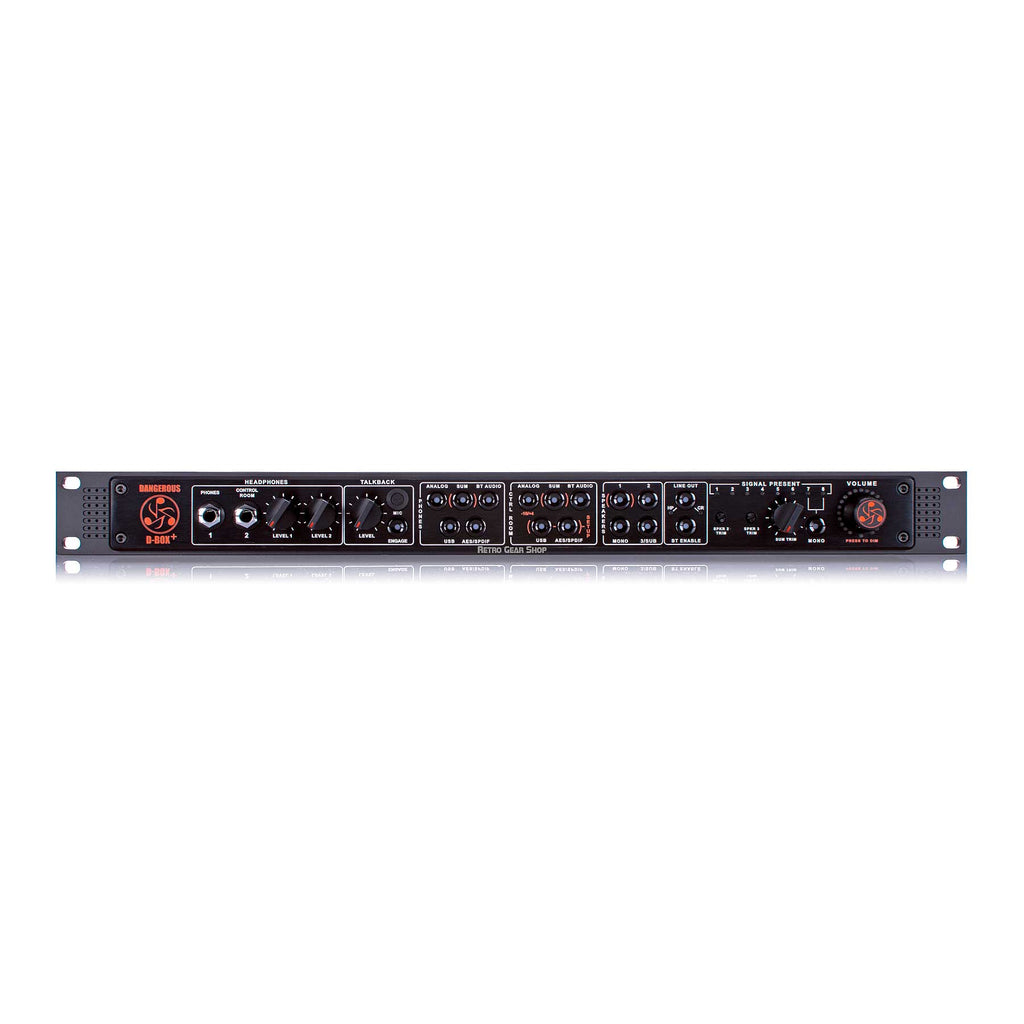

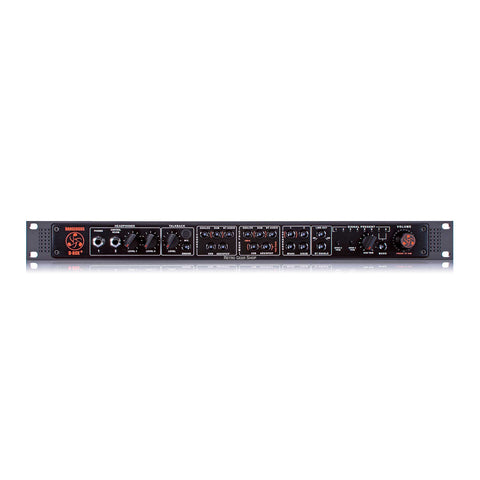

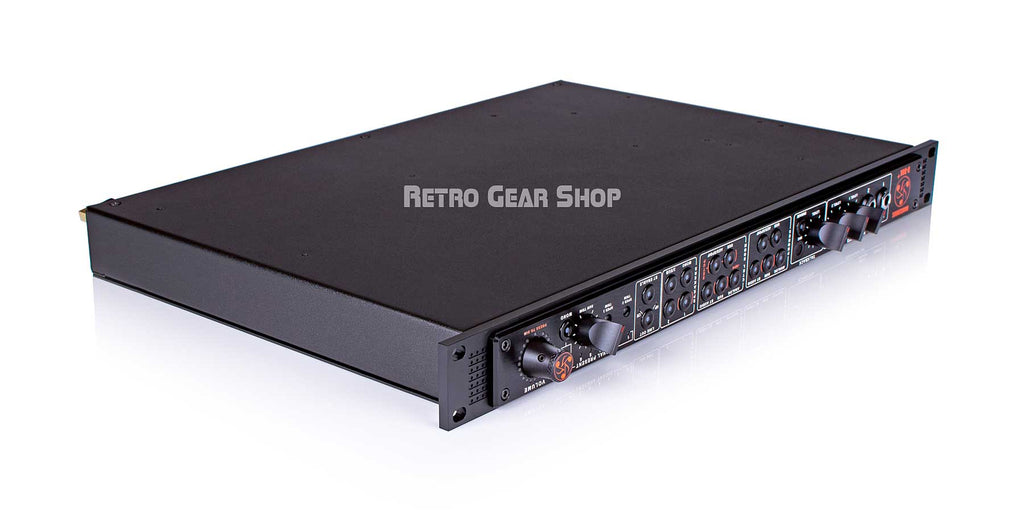

Summing and Monitoring System with 8-channel Analog Summing Mixer, 5 Analog Inputs, 5 Digital Inputs, Bluetooth Wireless Streaming, Talkback, Dual Headphone Amplifiers, 3 Speaker Outputs, Programmable Speaker Selector, and Remote Operation
- Newly upgraded 8-channel analog summing mixer delivers enormous soundstage and superior sonic impact
- Five analog and digital inputs at your fingertips (analog stereo, analog sum, USB, AES/SPDIF, Bluetooth)
- Bluetooth wireless audio streaming
- Free D-BOX+ app offers remote control of all major functions (volume, dim, talkback, I/O select, and more)
- Dedicated app runs on current macOS, Windows, IOS and Android devices and computers
- Driverless USB connectivity for macOS; simple USB driver installation for Windows

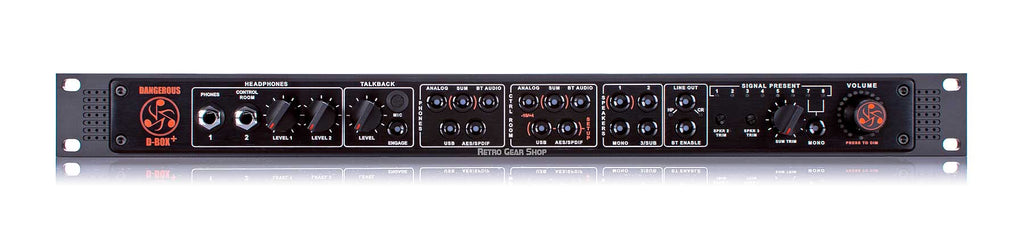

- On-board talkback mic with push-button activation (on front panel or remotely from app)
- Dual best-in-class headphone amplifiers with independent source selection and level control (front panel or app)
- Three independent speaker outputs (selected from front panel or from app)
- Programmable speaker selector allows for dedicated mono and/or sub inclusion on all outputs
Summing Section
-Frequency Response Flat within 0.1dB from 10Hz to 50kHz
-THD+N @ +4dBu 0.0019%
-IMD 0.0020%
-Crosstalk Rejection >114dB @ 1kHz
-Noise floor @ unity gain 22Hz to 22kHz <-90dBu
-Maximum Input Level +27dBu
Selected Line Output
-Frequency Response Flat within 0.5dB from 10Hz to 50kHz
-THD+N @ +4dBu 0.0027%IMD 0.0027%<
-Crosstalk Rejection >110dB @ 1kHz-
-Noise Floor 22Hz to 22kHz <-89dBu
-Maximum Input Level +26dBu
Monitor Section
-Frequency Response Flat within 0.5dB from 10Hz to 50kHz
-THD+N @ +4dBu 0.0049%IMD 0.0090%
-Crosstalk Rejection >106dB @ 1kHz
-Volume off signal rejection >120dB
-Noise floor at unity gain 22Hz to 22kHz <-90dBu
USB & AES DACs, measured at 96kHz sample rate
-Frequency Response Flat within 0.5dB from 10Hz to 30kHz
-THD+N @ -14dBfs 0.0027%-
Crosstalk Rejection >115dB @ 1kHz
-Dynamic Range >106dB
Headphone Amps
-4 ohm minimum load per amplifier (6-8 pairs of typical studio dynamic headphones)
-Power Output 3 Watts / Channel
-THD+N 0.0066%
-Crosstalk Rejection >100dB
Dangerous Music D Box+ Manual
