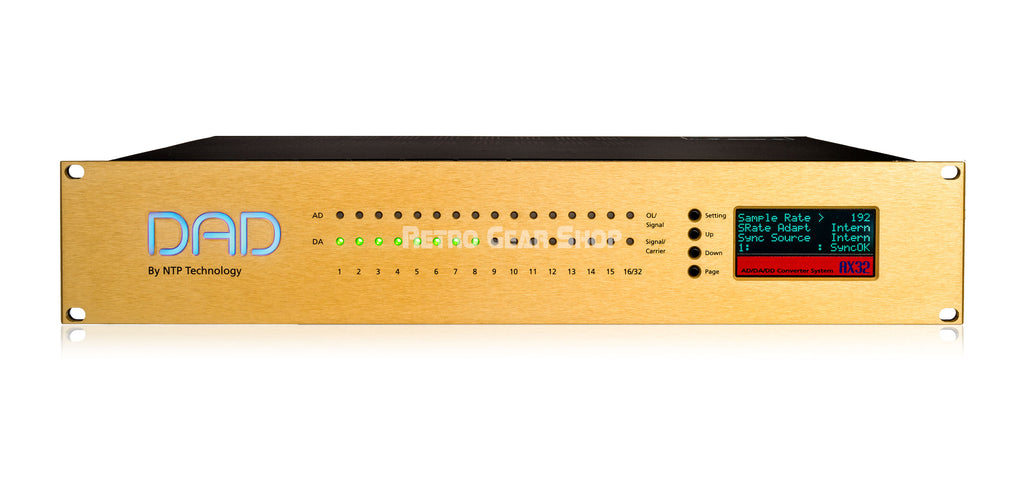

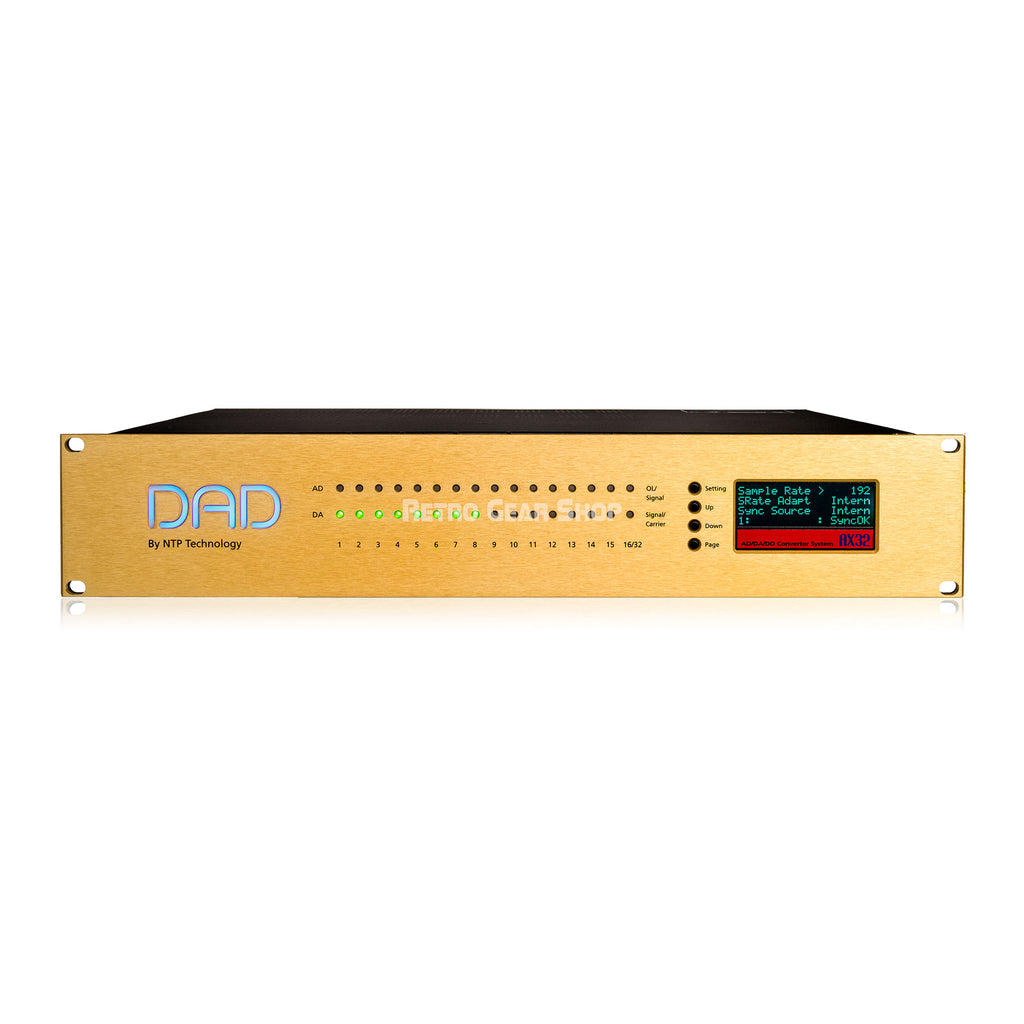

Digital Audio Denmark DAD AX32R 8-48 Channel AD/DA Converter and Digital Audio Matrix

AX32 is a multi-channel audio converter and modular microphone preamplifier for independent simultaneous AD and DA conversion as well as a digital format converter and router. The AX32 has as standard 8 stereo AES3 inputs and outputs and one MADI input and output connection. The AX32 can be fitted with up to 6 analogue cards or up to 8 digital cards. Optionally AX32 can be installed with a 64 ch. Dante module and a dual MADI and DADink module.

The DAD routing engine provides a 1,424x1,424 matrix where all inputs and outputs can be patched in any combination. In addition, a 256x32 channel summing processor is also available. Eight slots are available for optional expansion cards.

• MADI I/O (64 channels at 48 kHz)
• AES3 I/O (16 channels at 48 kHz
• Up to 1,024×1,024 channels I/O via optional cards
• Up to 256×256 DADLink channels or 128x128 MADI channels at 48 kHz via optional MODMADI-DADLNK and SFP modules
• 256×32 channel PRO | MON monitor control
• 28bit floating point processing
• Apple macOS and Windows compatible DADman control software
• Avid Eucon™ enabled devices via DADman
• Word Clock I/O, VBB sync input
• AES11 sync input
• 8 slots for expansion cards

Digital I/O and Synchronisation
• Digital I/O formats/ Supported sample rate:
AES3 44.1 up to 384 kHz
MADI 44.1 up to 384 kHz
DADLink 44.1 up to 384 kHz
Dante option 44.1 up to 192 kHz

• Latency:
Internal system delay 7 samples, can be set between 3 and 31 samples,
All outputs are time and phase aligned

• DADLink:
28bit floating point format
Latency zero samples.

• Synchronisation:
Word Clock, Video Black Burst,
AES11
Dante, ADAT, MADI and DADLink

• Network interface: 1000BASE-T, RJ45 connector, 4-pair connection

Electrical Specifications
• Power Connection:
Single Power Input
Dual Power Supply

• Max rating mains: 90 W

• Input voltage:
90 – 260 VAC
100 – 240 VAC Nominal,
47 - 63 Hz

• Mains fuse:
Mounted in IEC connector
1 A, T1AH/250V

• Mains connector: IEC 60309

• Power consumption:
Digital section 15W
DAD I/O Options max 65W

Weight and Environmental
• Weight: 5 kg / 11 lbs.

• Measures:
19” rack mount, 2RU/8.89cm
Chassis depth, 35 cm/ 13.8”
Body width, 43.5 cm / 17.2”

• Operating Temperature: 0 – 45 ºC / 32 - 113ºF
Fan. 2 x super low noise internal fans

• Humidity: 20 to 85%, non-condensing

• EMC Compliance:
EN 55103-1, EN 55103-2,
FCC part 15, Subpart B

• Safety Compliance: EN 60950-1:2006
